Wire Seal Inspection

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

The wire seal must be installed on the wire insertion area of a waterproof connector. Be sure that the seal is installed properly.

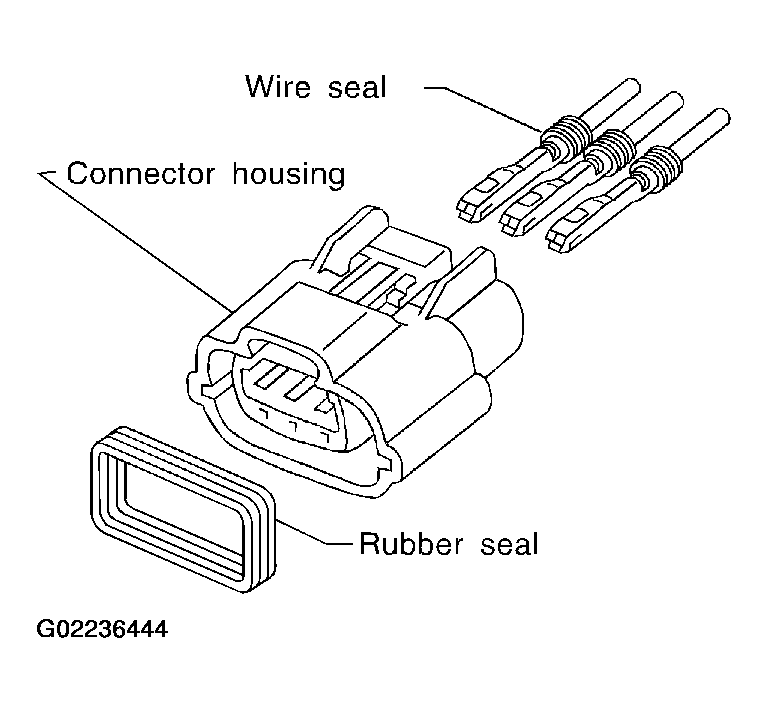

Fig 1: Identifying Components Of Connector
G02236444Courtesy of NISSAN MOTOR CO., U.S.A.
