Switch Positions

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

Switches are shown in Circuit Diagrams as if the vehicle is in the normal condition.

A vehicle is in the normal condition when:

ignition switch is OFF,
doors, hood and trunk lid/back door are closed,
pedals are not depressed, and
parking brake is released.

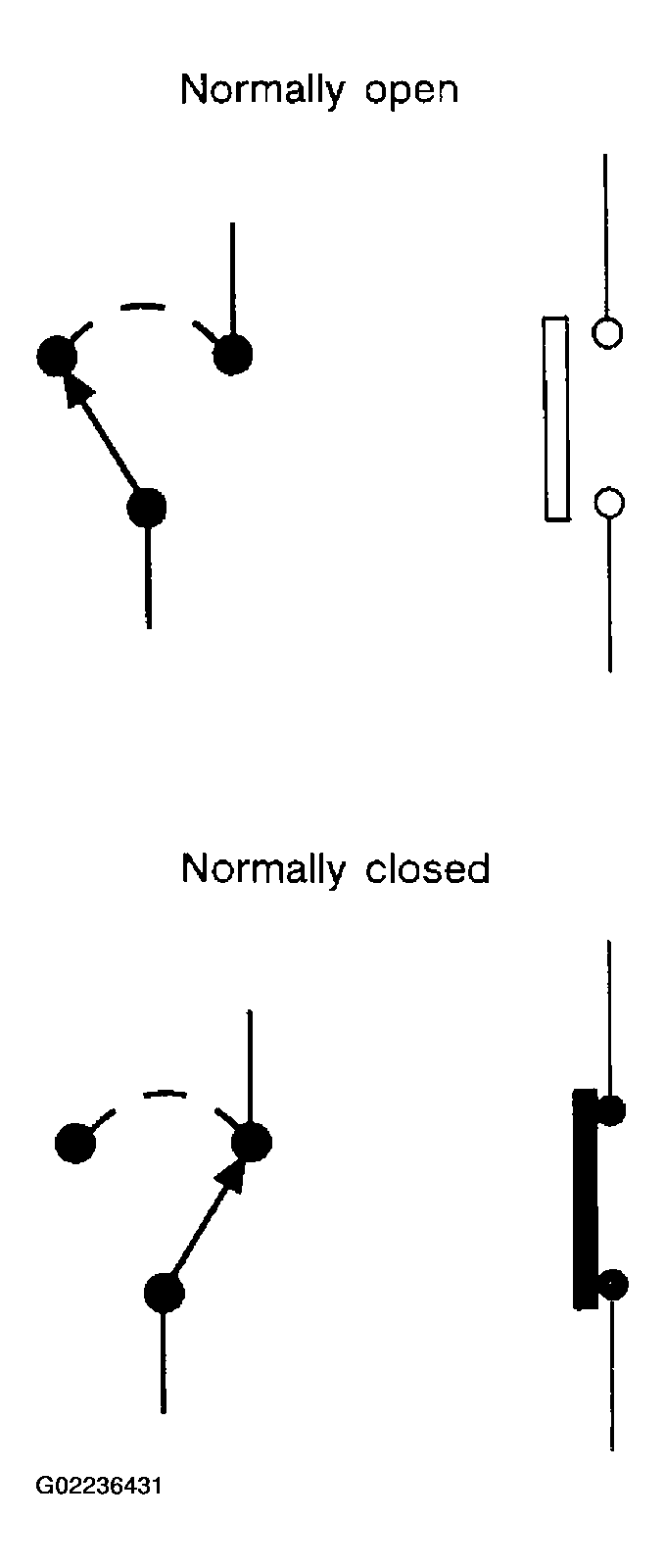

Fig 1: Identifying Open And Closed Positions Of Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
