Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Nissan Xterra and 2002 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and check cooling fan operation. If cooling fan operates, go to next step. If cooling fan does not operate, repair as necessary.
  2. Pressure test cooling system and radiator cap. Check thermostat operation. Radiator cap relief pressure should be 8.6-14.2 psi (59-98 kPa). Thermostat opening temperature should be 180°F (82°C). Repair coolant leaks or replace radiator cap or thermostat as necessary. If no problems are found, go to next step.

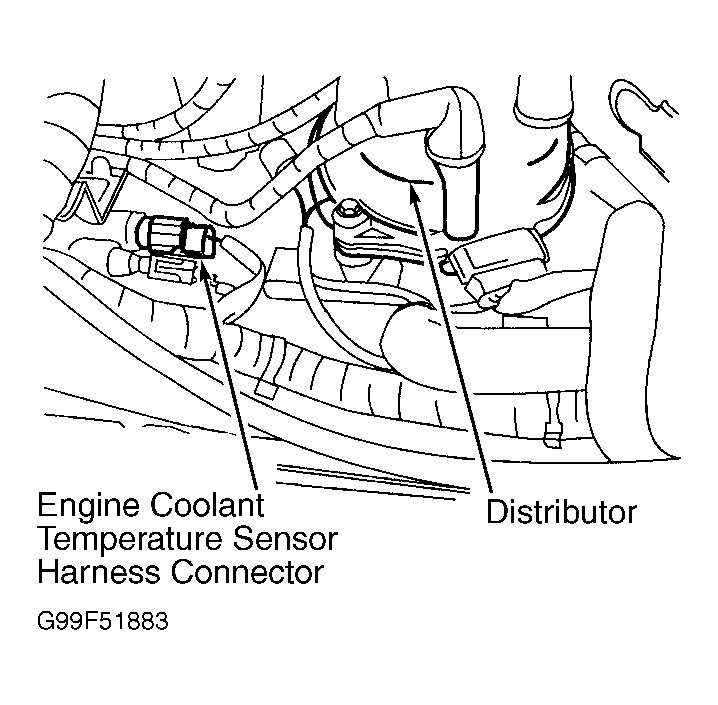

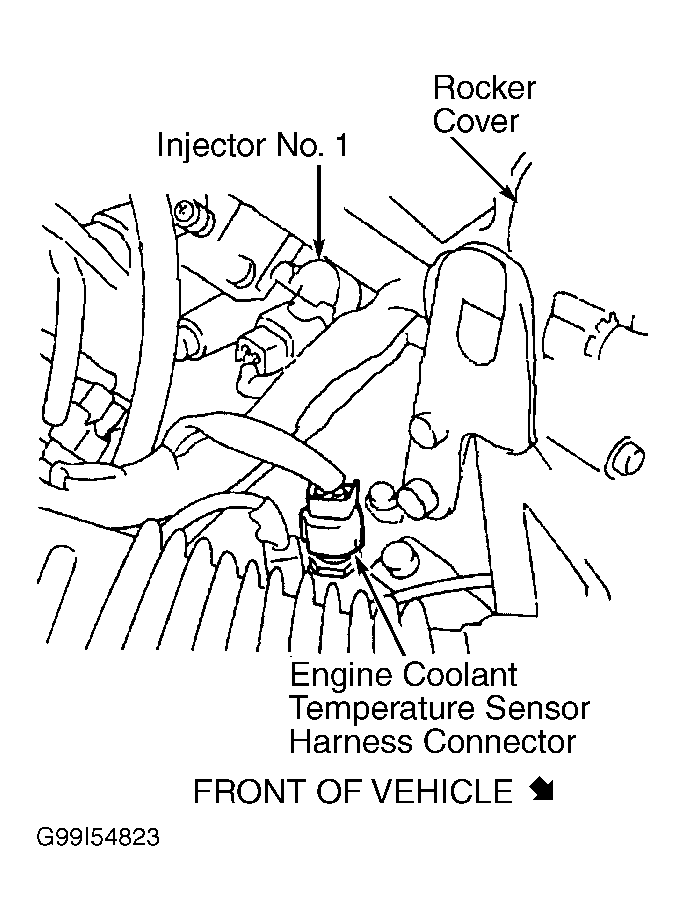

  3. Remove ECT sensor, and place in heated water. For location, see Figure or Figure . Measure resistance between sensor terminals, with water at specified temperatures. See ENGINE COOLANT TEMPERATURE SENSOR RESISTANCE  table under DIAGNOSTIC PROCEDURE under DTC P0117 OR DTC P0118: ENGINE COOLANT TEMPERATURE SENSOR. If resistance is not as specified, replace ECT sensor. If resistance is as specified, check for other possible causes of engine overheating and repair as necessary.
