Engine Performance Harness Connectors

WARNING: This page is about a different car, the 2002 Nissan Pathfinder and 2002 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying In-Line Harness Connector M32/F23 Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying In-Line Harness Connector F22/M33 Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying In-Line Harness Connector E132/E135 Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Various Engine Performance In-Line Harness Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

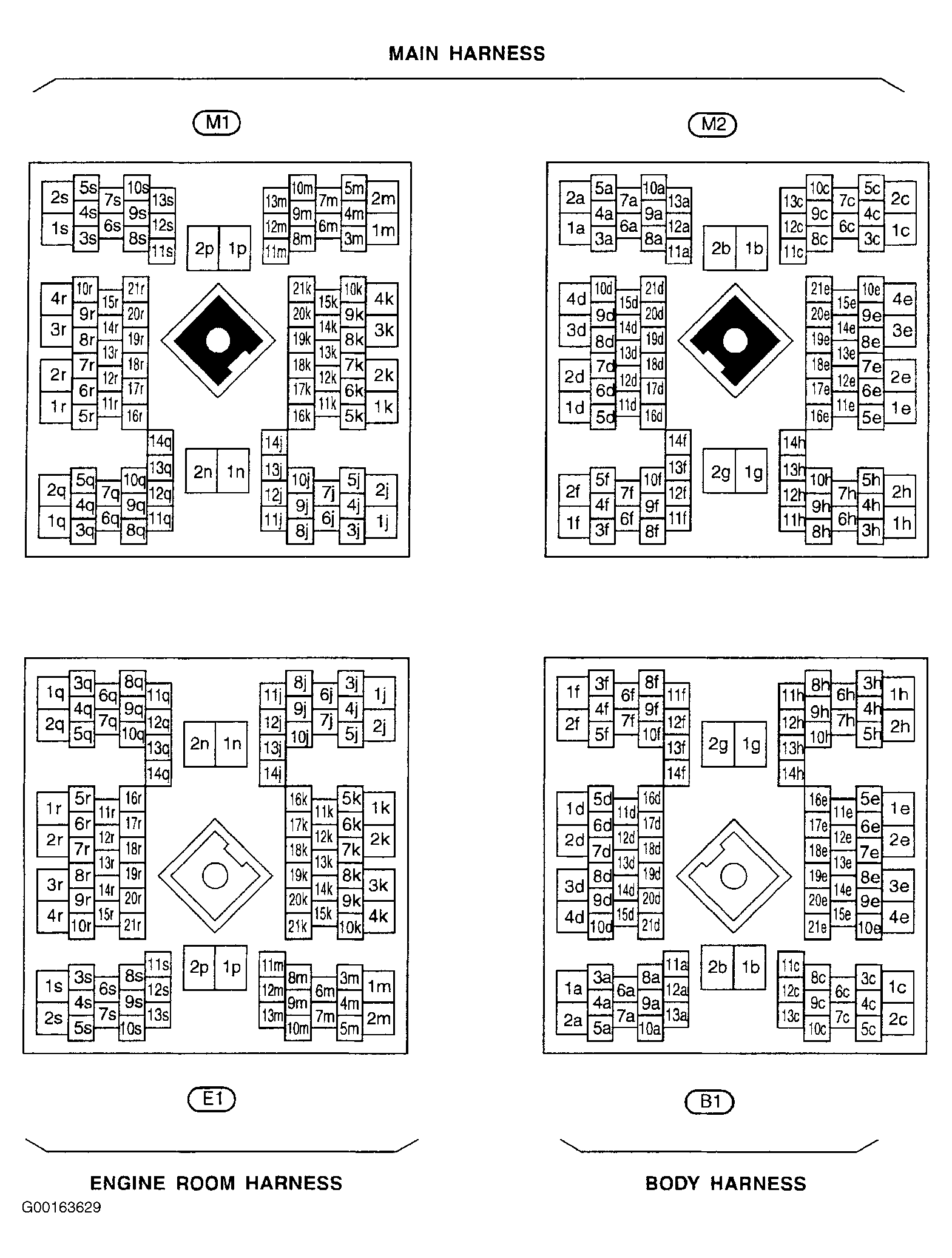

Fig 5: Identifying Main Super Multiple Junction Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
