Engine Compartment Harness

WARNING: This page is about a different car, the 2002 Nissan Pathfinder and 2002 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

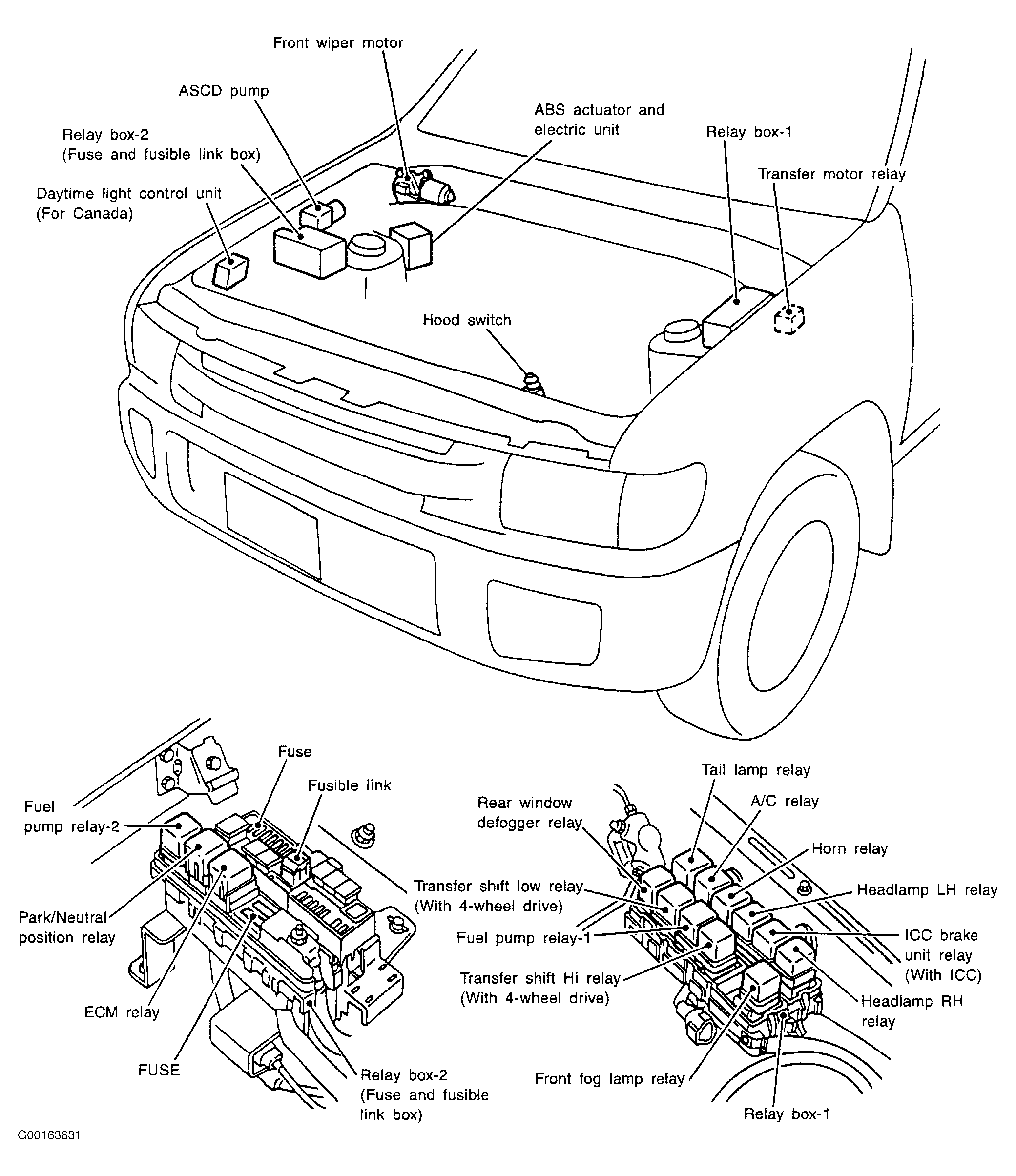

Fig 1: Identifying Underhood Fuse & Relay Box Components (Pathfinder)

Courtesy of NISSAN MOTOR CO., U.S.A.

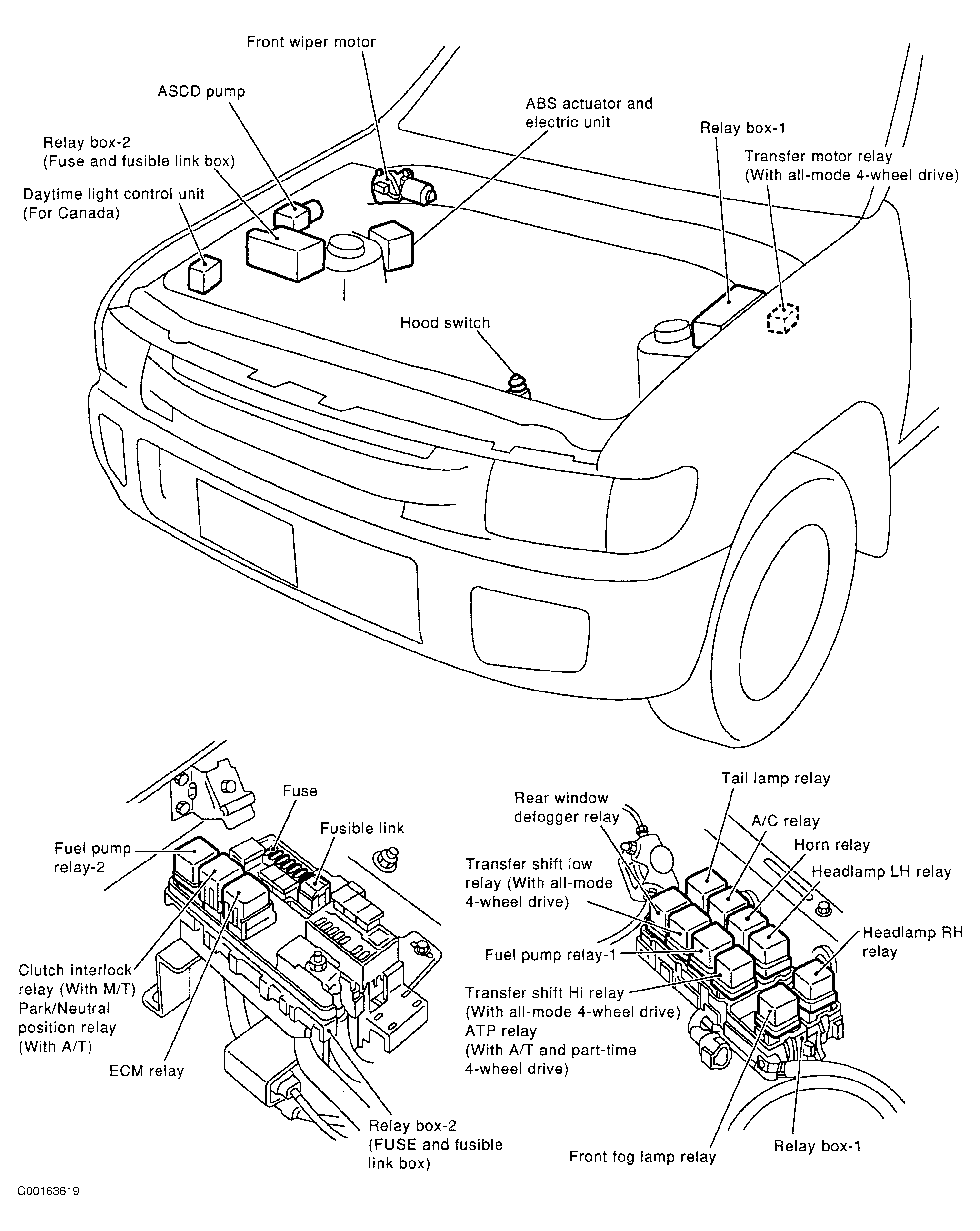

Fig 2: Identifying Underhood Fuse & Relay Boxes Components (QX4)

Courtesy of NISSAN MOTOR CO., U.S.A.

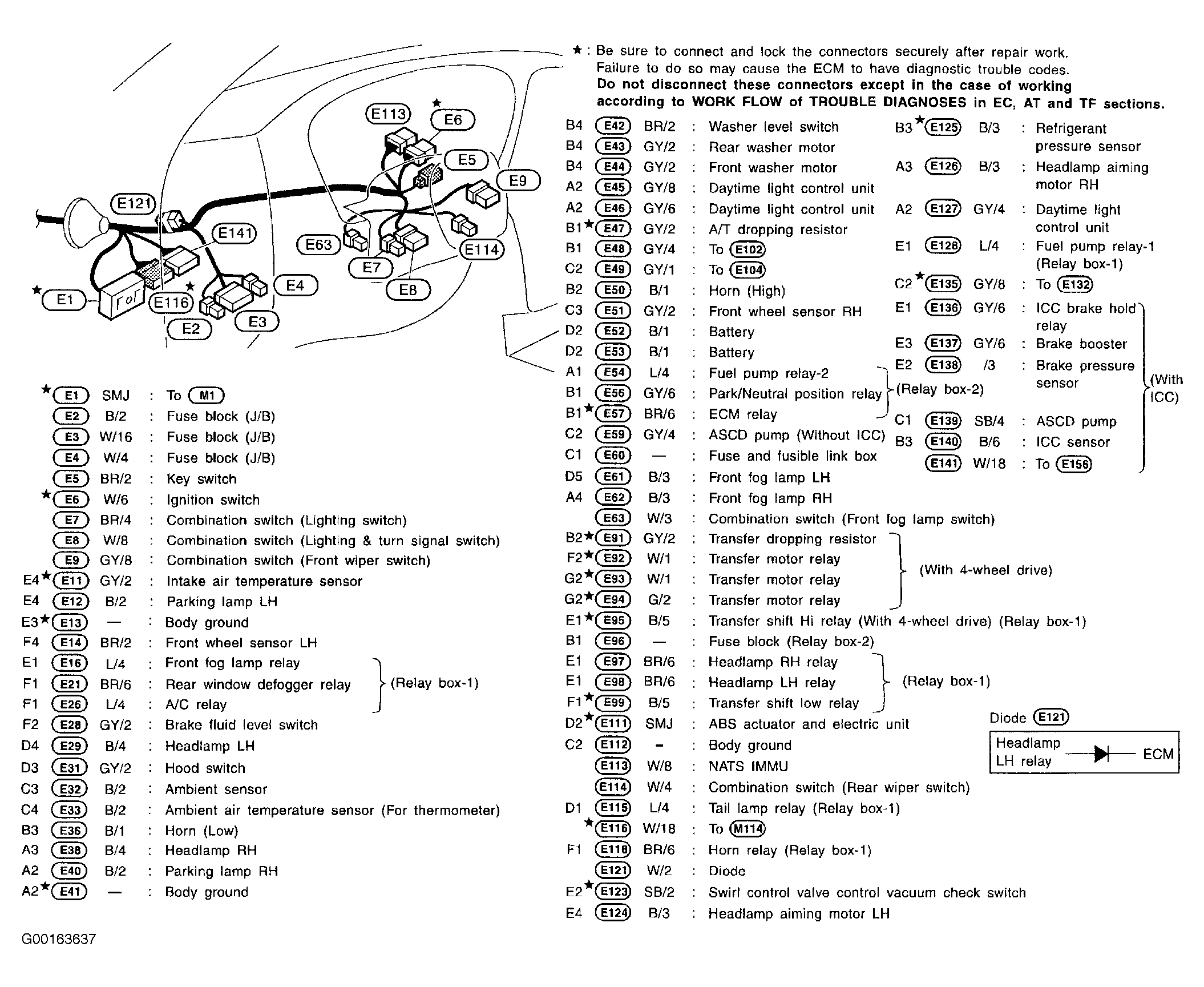

Fig 3: Identifying Engine Room Harness Routing (Pathfinder - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

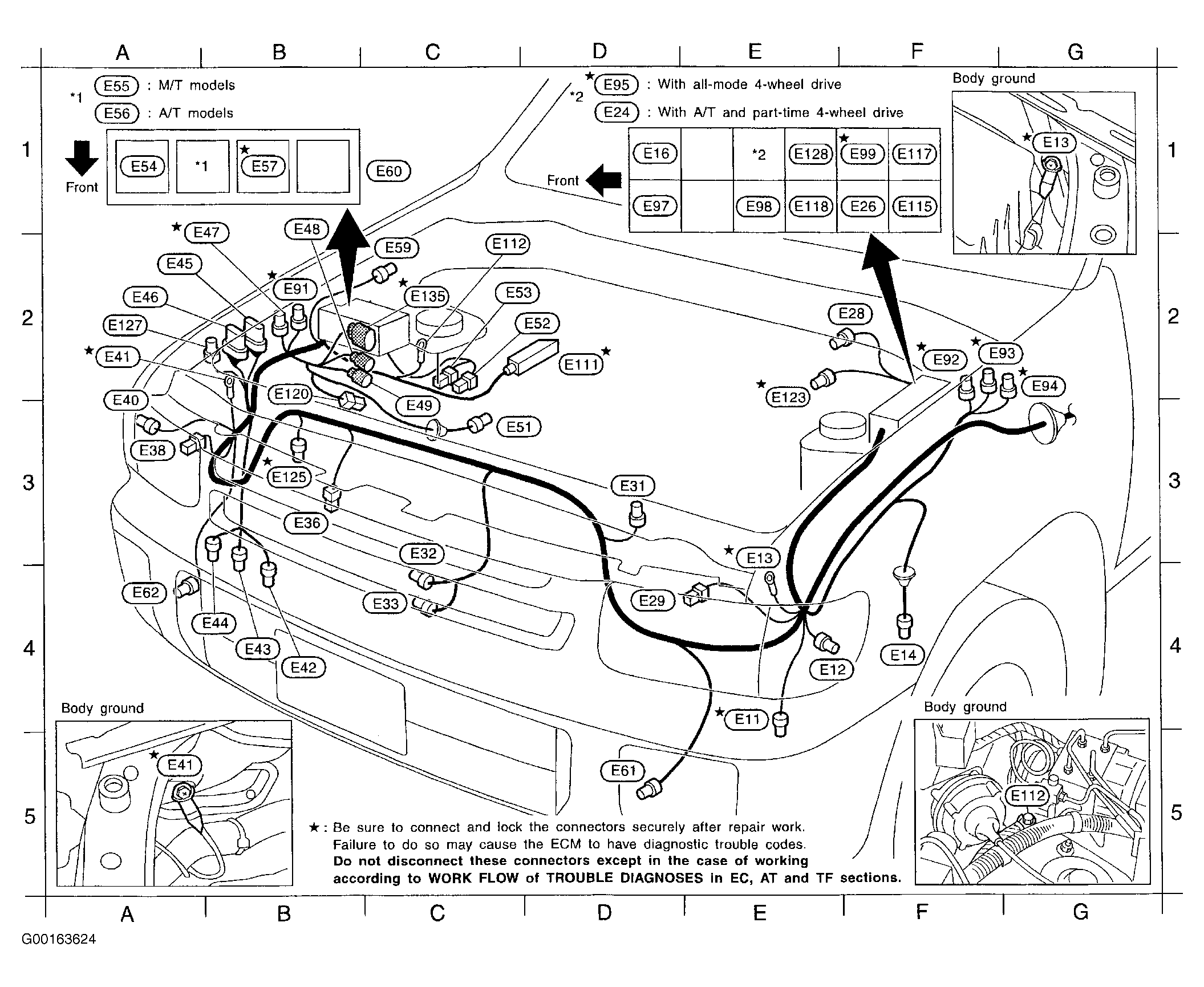

Fig 4: Identifying Engine Room Harness Routing (Pathfinder - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

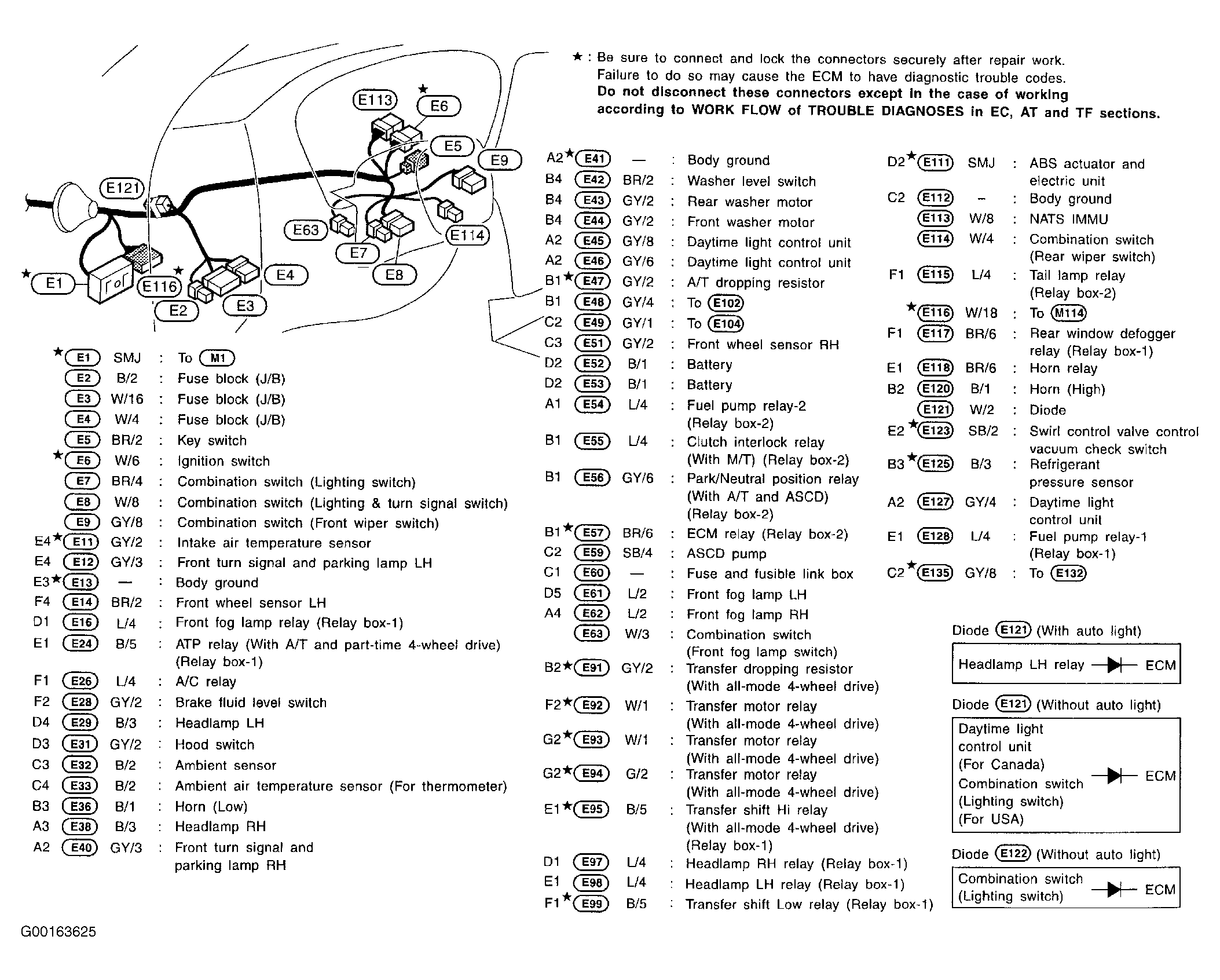

Fig 5: Identifying Engine Room Harness Routing (QX4 - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

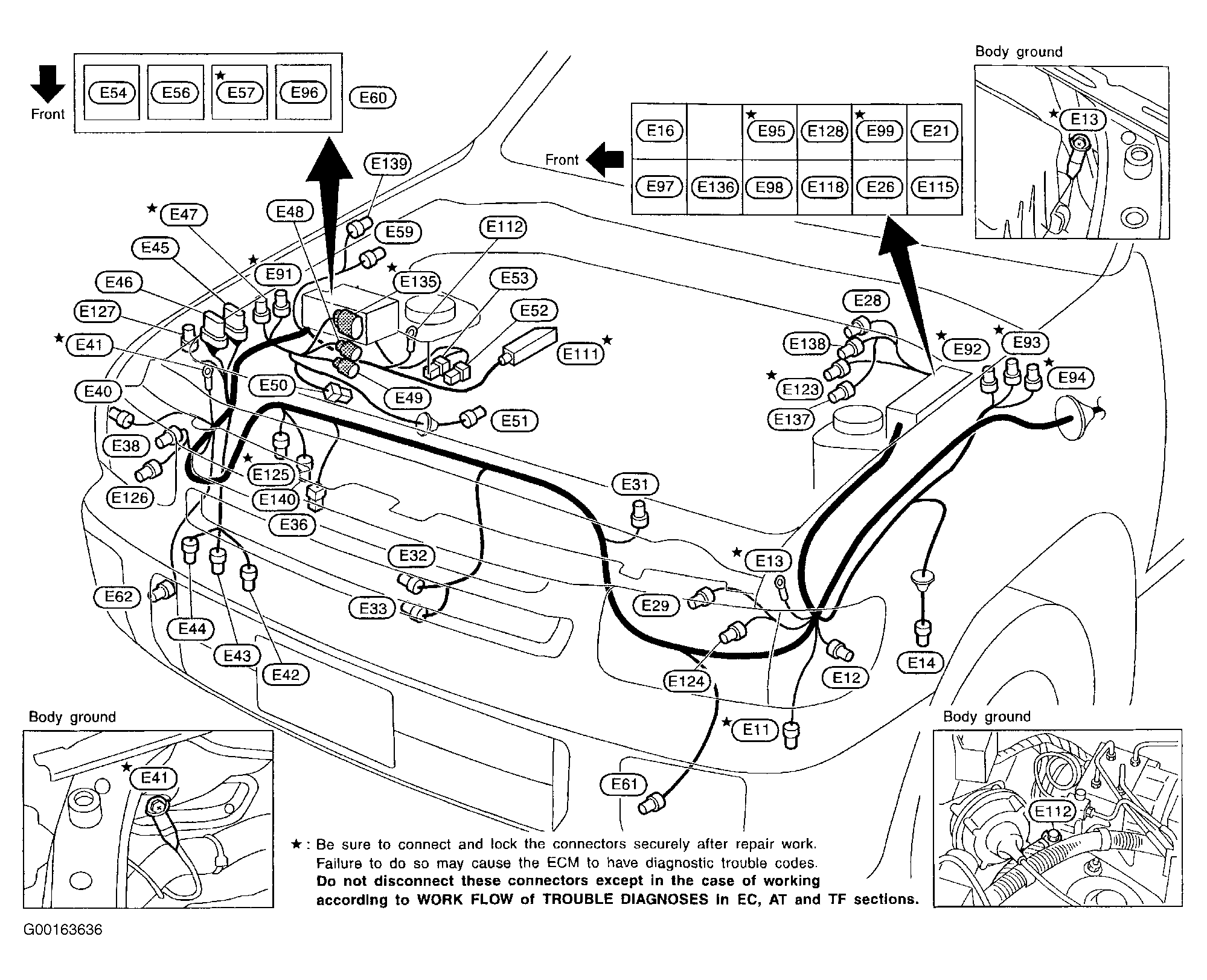

Fig 6: Identifying Engine Room Harness Routing (QX4 - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
