Park/Neutral Position Switch
WARNING: This page is about a different car, the 2002 Infiniti QX4, 2001 Nissan Pathfinder, and 2001 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

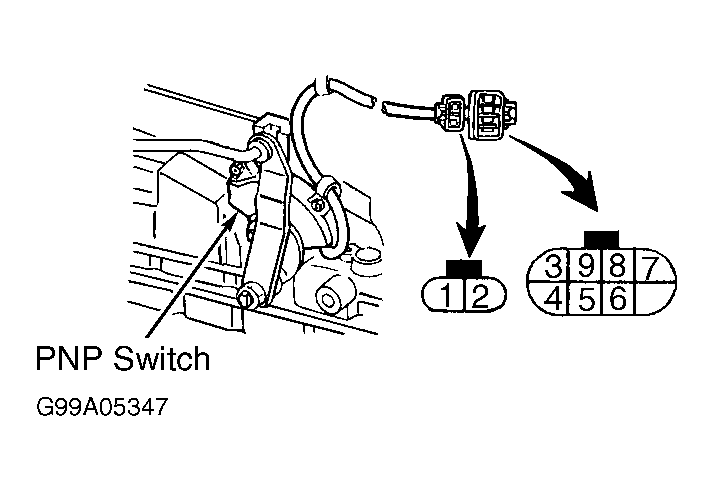

Disconnect PNP switch connectors. Check continuity between specified terminals while moving gearshift lever through each position. See PARK/NEUTRAL POSITION SWITCH CONTINUITY TEST table. See Fig 1.
PARK/NEUTRAL POSITION SWITCH CONTINUITY TEST
| Gearshift Lever Position | (1) Continuity Between Terminals No. | ||
|---|---|---|---|
| "P" | 1 & 2; 3 & 4 | ||
| "R" | 3 & 5 | ||
| "N" | 1 & 2; 3 & 6 | ||
| "D" | 3 & 7 | ||
| "2" | 3 & 8 | ||
| "1" | 3 & 9 | ||
|
|||
