Component Locations

WARNING: This page is about a different car, the 2002 Infiniti QX4, 2001 Nissan Pathfinder, and 2001 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

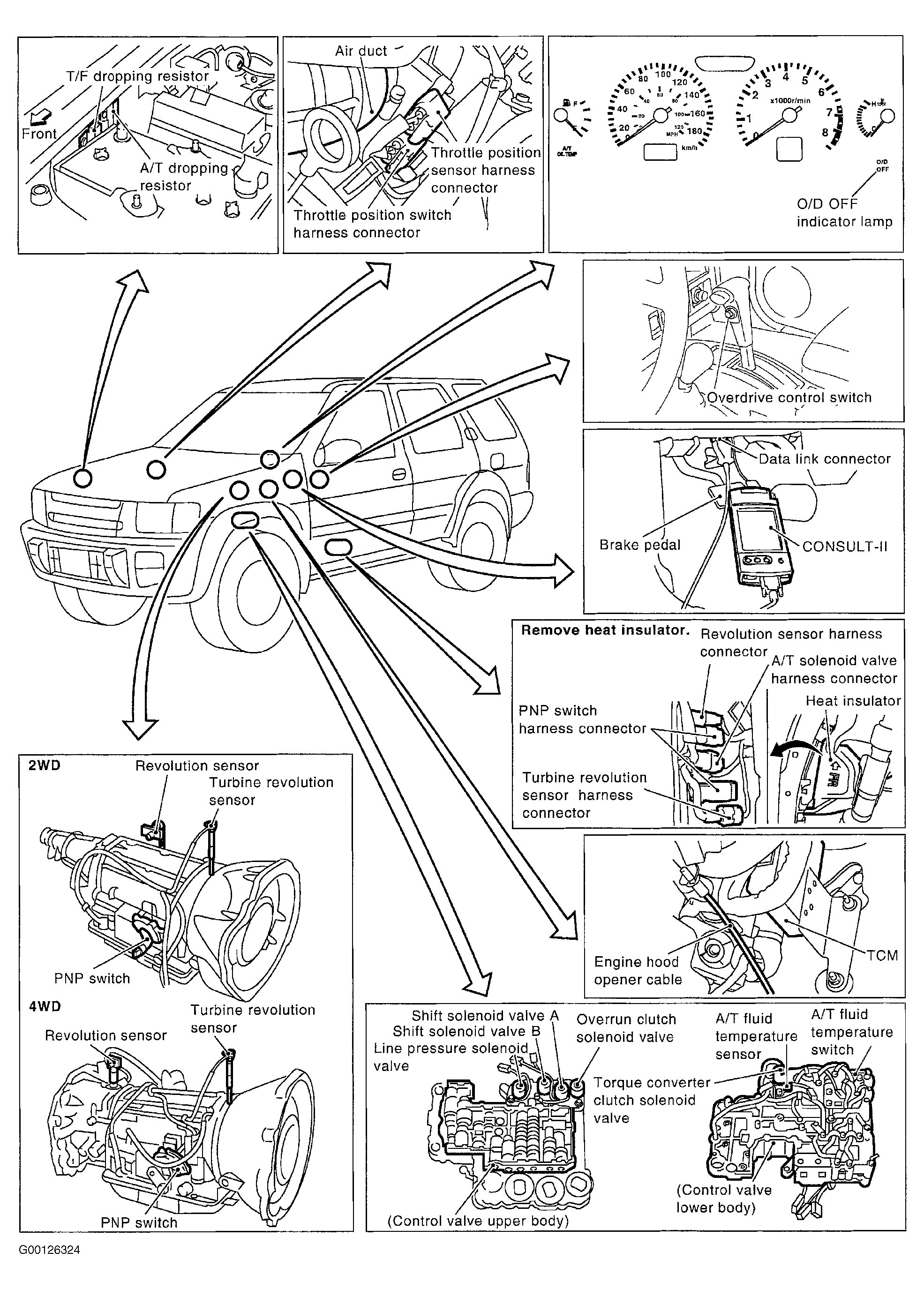

Fig 1: Locating Transmission Electronic Components (Pathfinder)

Courtesy of NISSAN MOTOR CO., U.S.A.

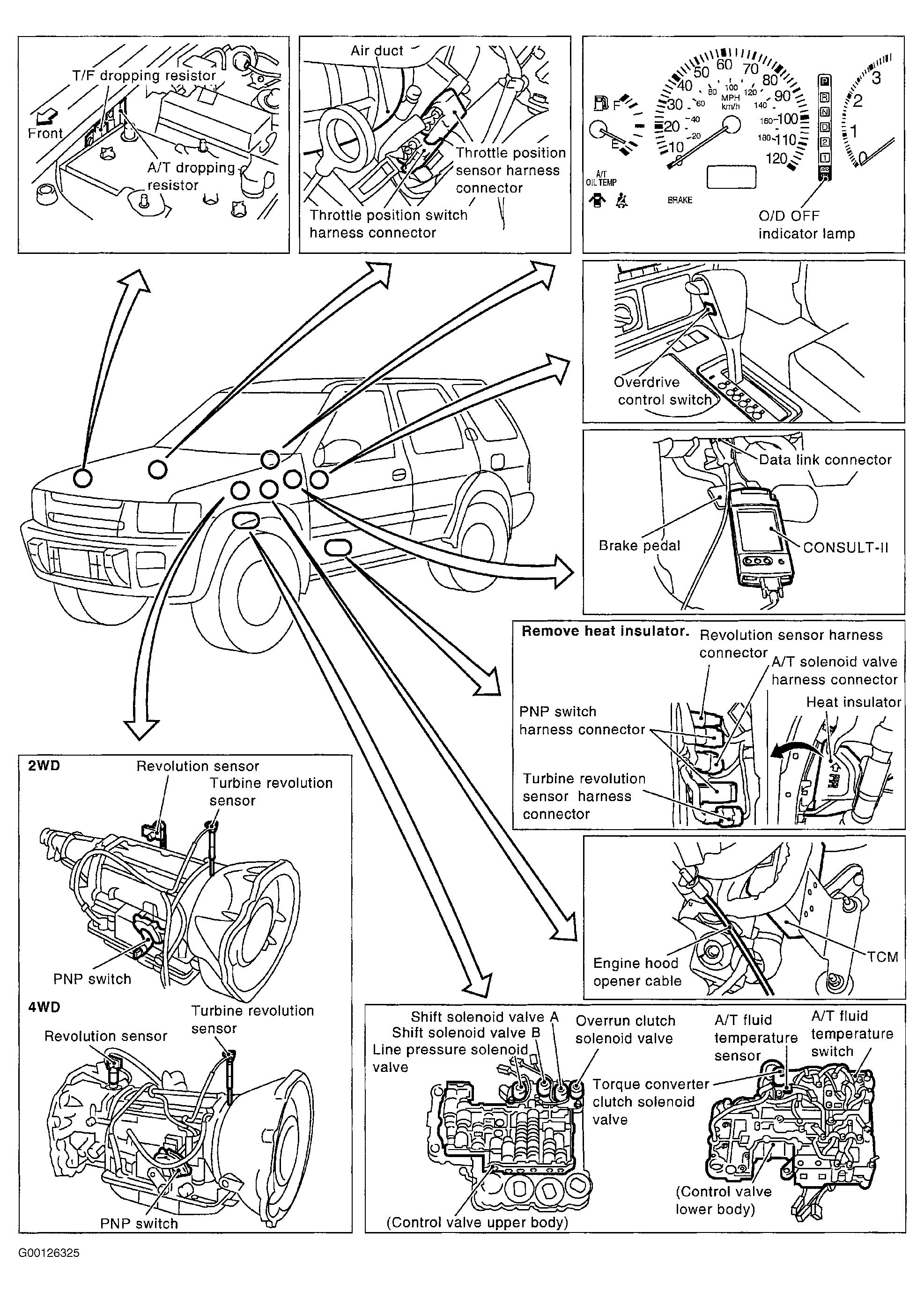

Fig 2: Locating Transmission Electronic Components (QX4)

Courtesy of NISSAN MOTOR CO., U.S.A.

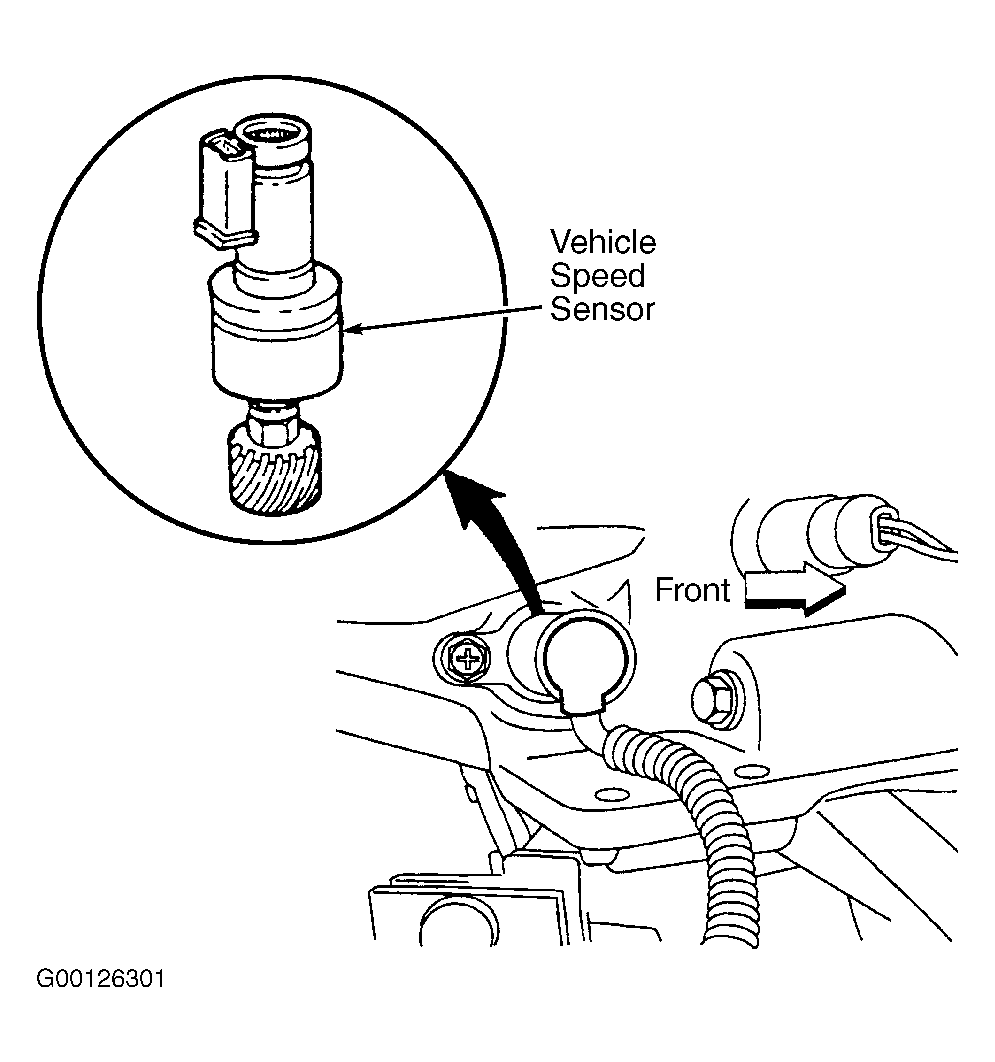

Fig 3: Locating Vehicle Speed Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
