Installation (I35, Maxima & Sentra)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 Nissan Xterra, 2002 Nissan Sentra, 2002 Nissan Quest, 2002 Nissan Pathfinder, and 2002 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Ensuring that fuel filter and pump tabs are properly aligned. A audible click should be heard when filter and pump are engaged. Secure harness connector. Replace fuel pressure regulator "O" ring. Match protrusion on regulator and fuel pump so that retaining clip notch aligns correctly. See Fig 3.

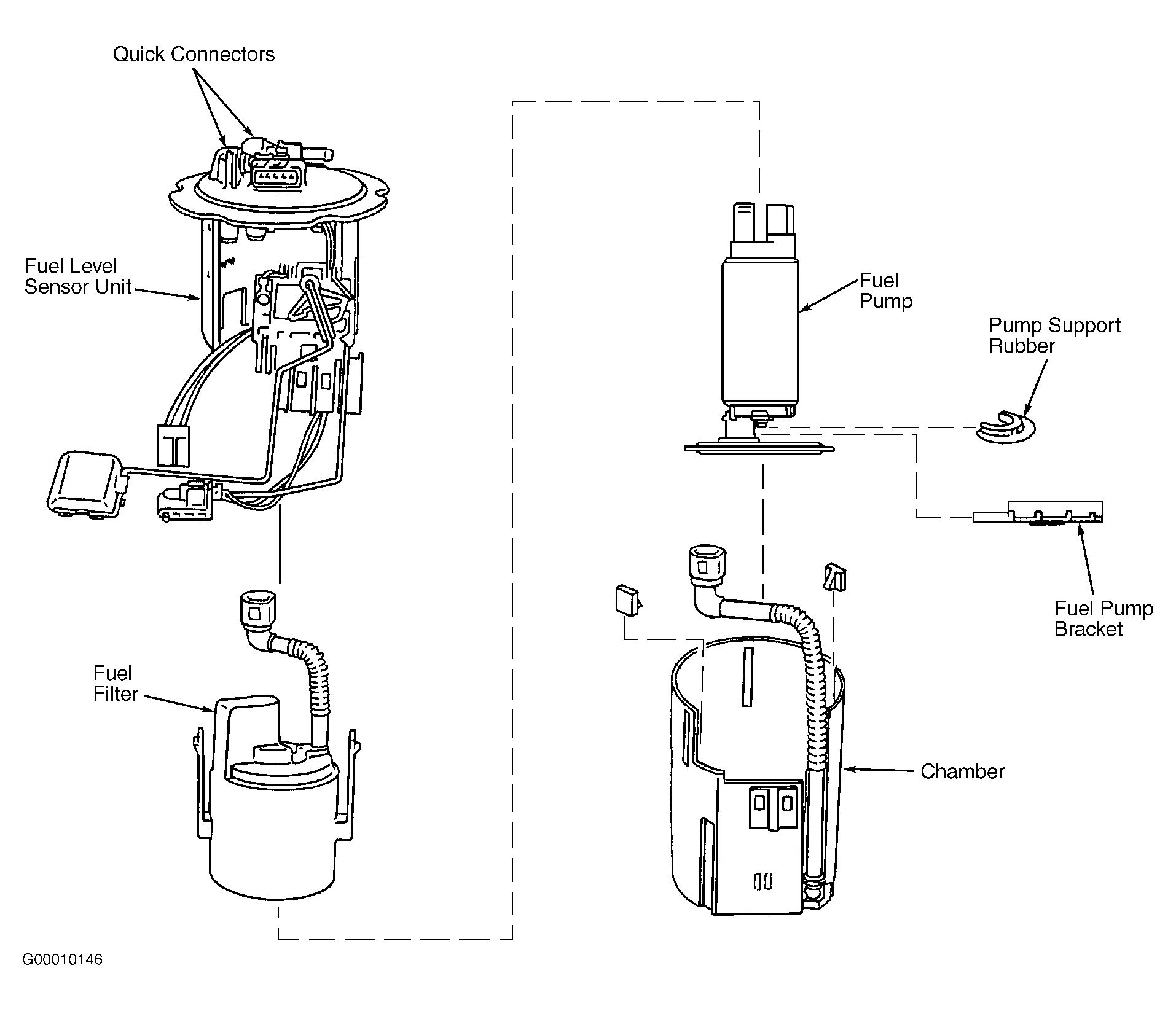

Fig 1: Identifying Fuel Level Sensor Unit, Fuel Pump & Fuel Filter (I35, Maxima & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

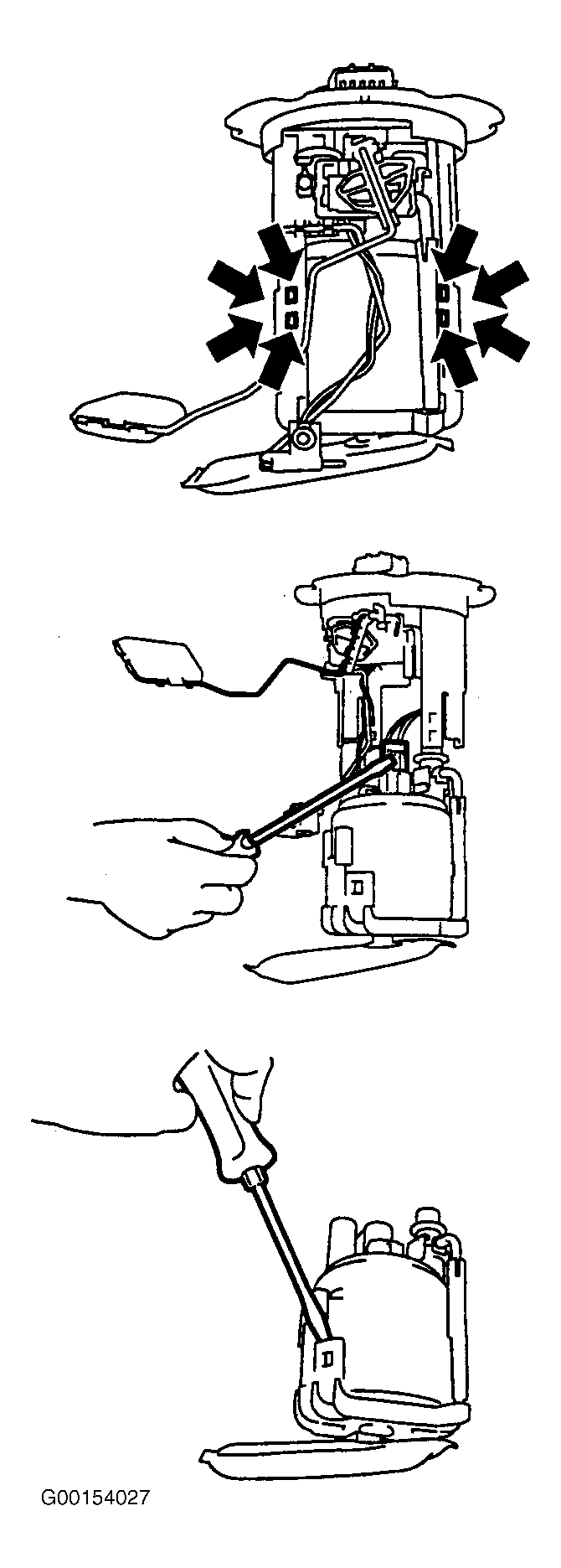

Fig 2: Removing & Installing Fuel Pump (I35, Maxima & Sentra - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

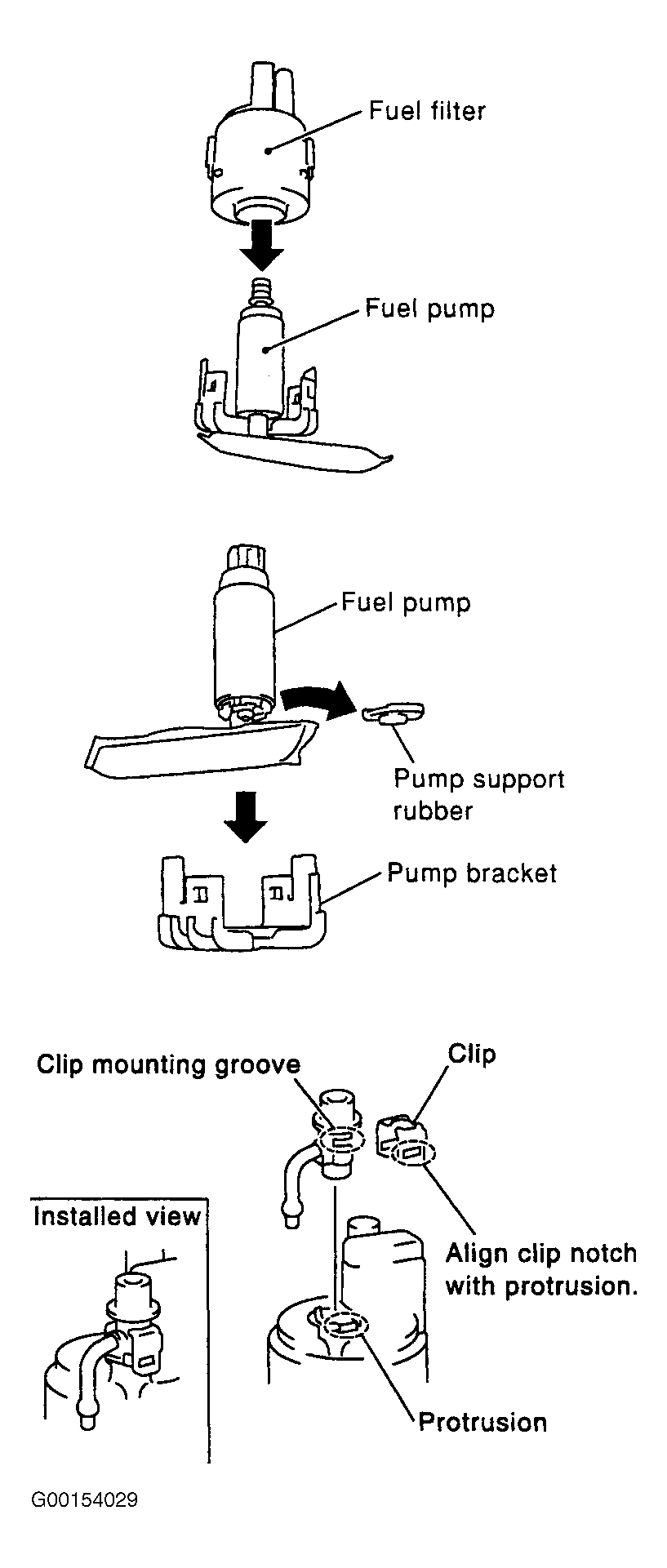

Fig 3: Removing & Installing Fuel Pump (I35, Maxima & Sentra - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
