Evaporative Emissions System Diagrams

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 Nissan Xterra, 2002 Nissan Sentra, 2002 Nissan Quest, 2002 Nissan Pathfinder, and 2002 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

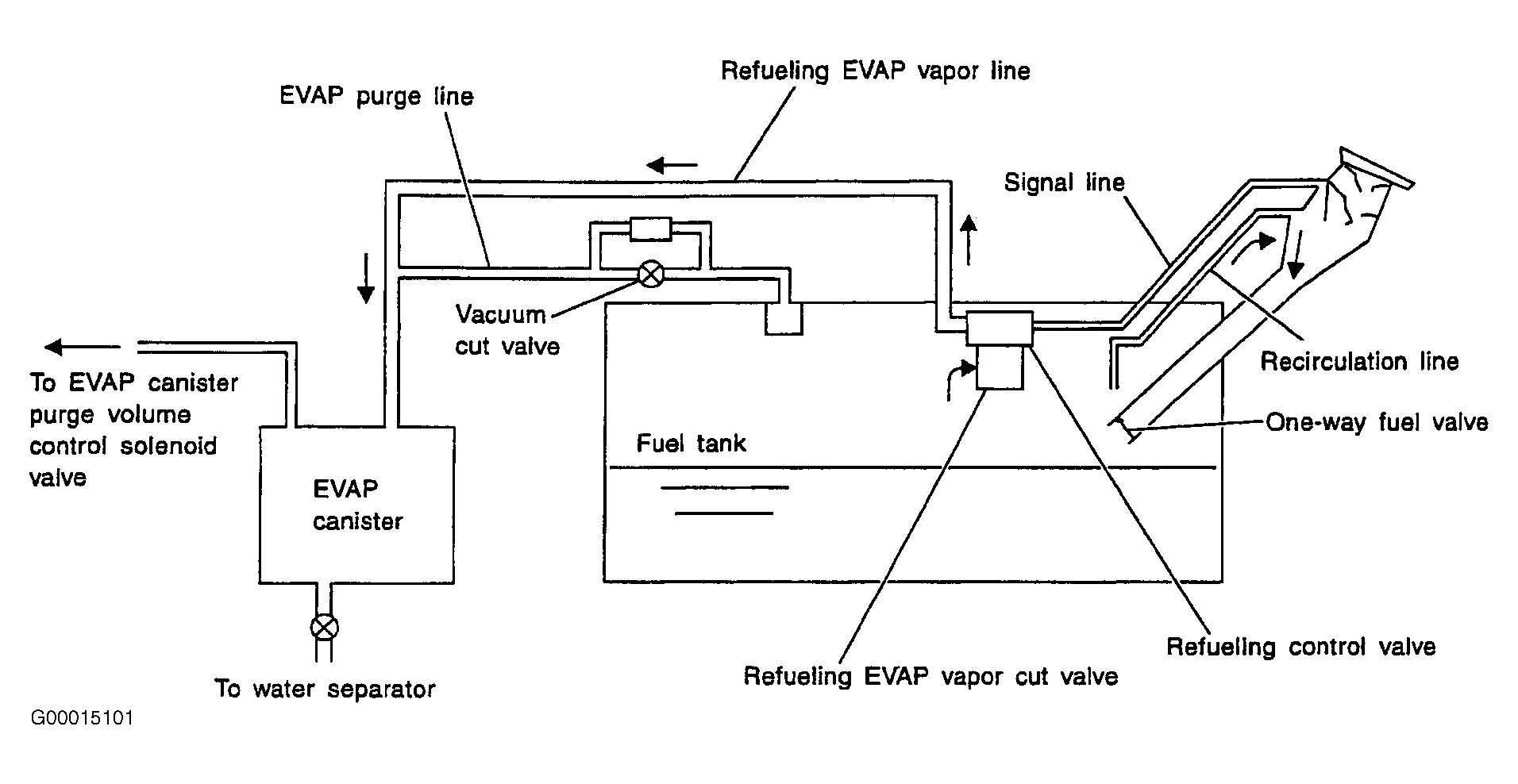

Fig 1: On Board Refueling Vapor Recovery Vacuum Diagram (All Models)

G00015101

Courtesy of NISSAN MOTOR CO., U.S.A.

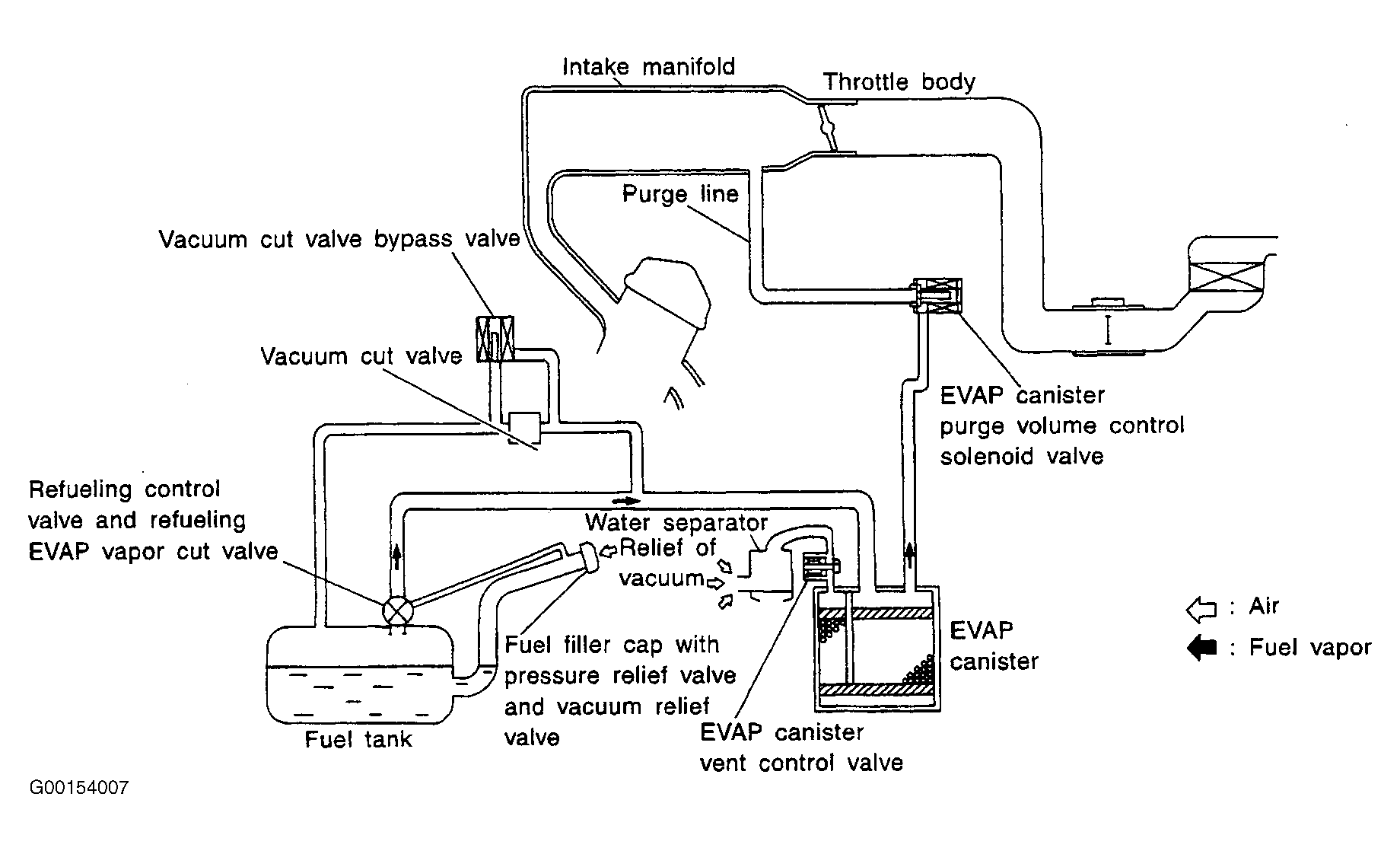

Fig 2: Evaporative Emissions System Vacuum Diagram (All Models)

G00154007

Courtesy of NISSAN MOTOR CO., U.S.A.

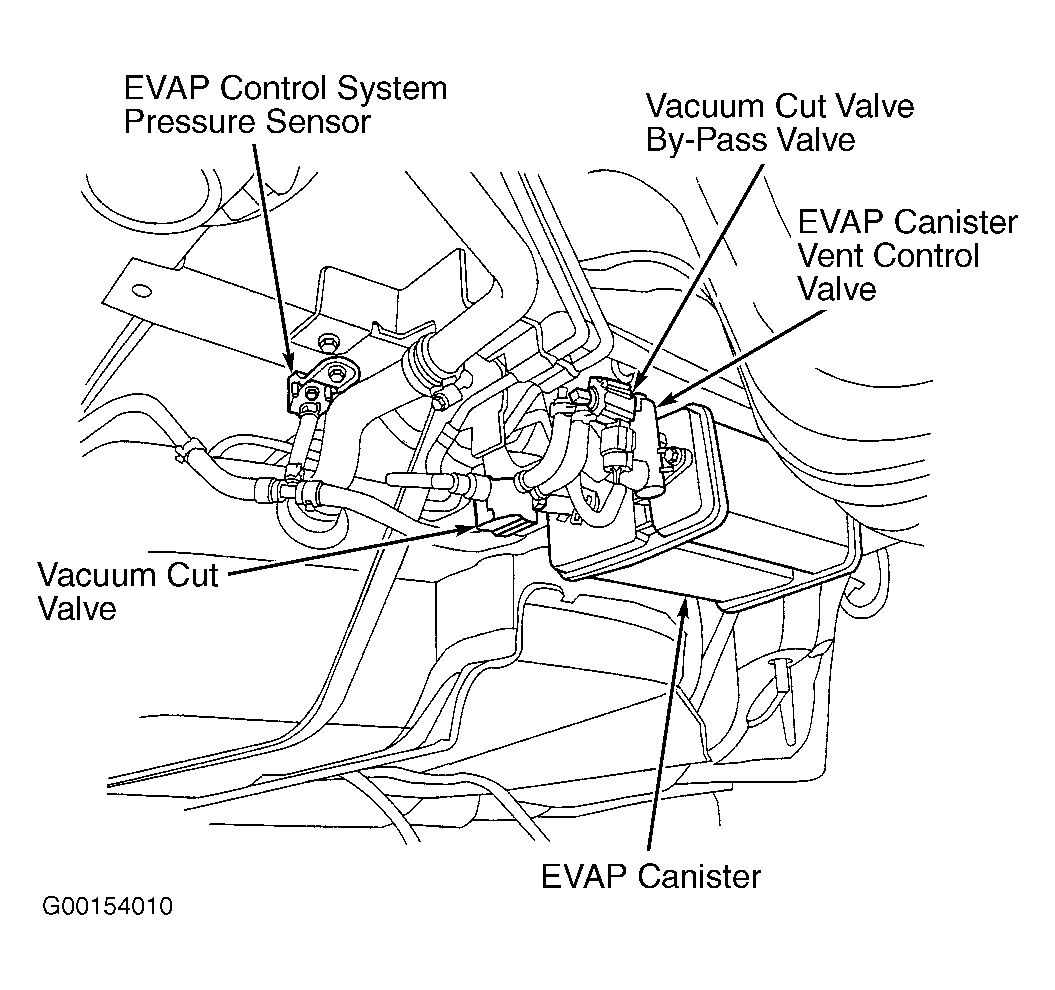

Fig 3: Evaporative Emissions Control Under Vehicle View (Altima)

G00154010

Courtesy of NISSAN MOTOR CO., U.S.A.

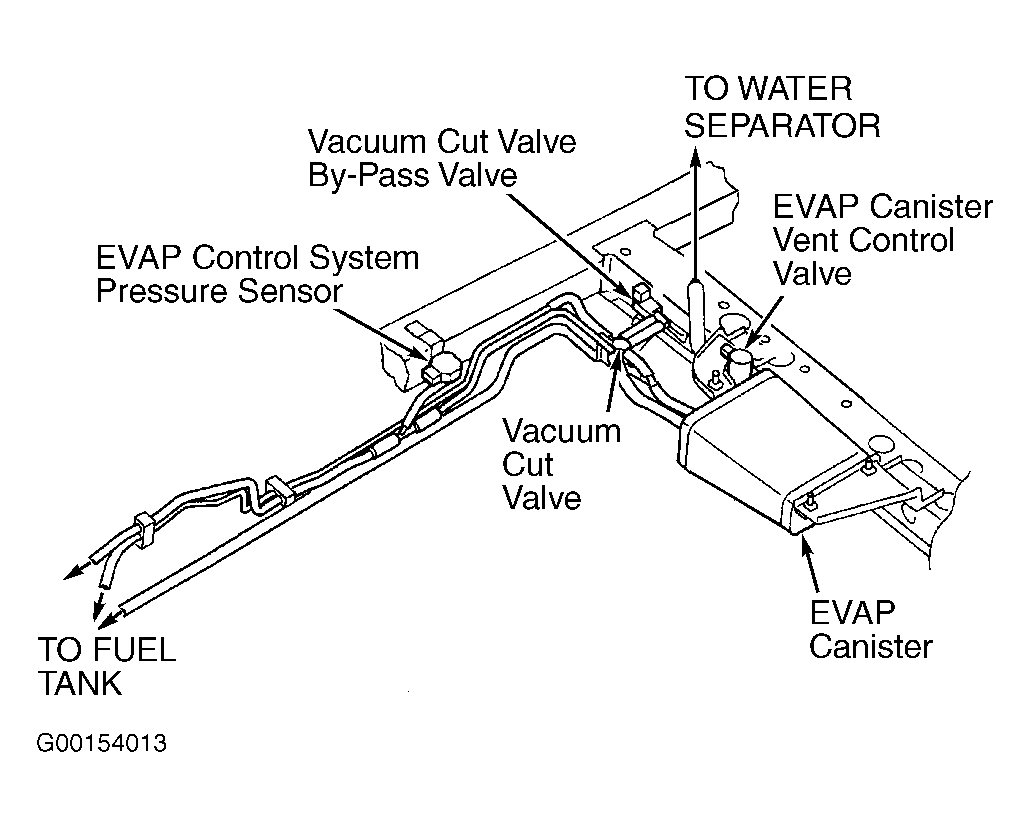

Fig 4: Evaporative Emissions System Under Vehicle View (Frontier & Xterra)

G00154013

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Evaporative Emissions System Under Vehicle View (Pathfinder & QX4)

G00154016

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Evaporative Emissions System Under Vehicle View (I35 & Maxima)

G00154017

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Evaporative Emissions System Under Vehicle View (Quest)

G00154018

Courtesy of NISSAN MOTOR CO., U.S.A.

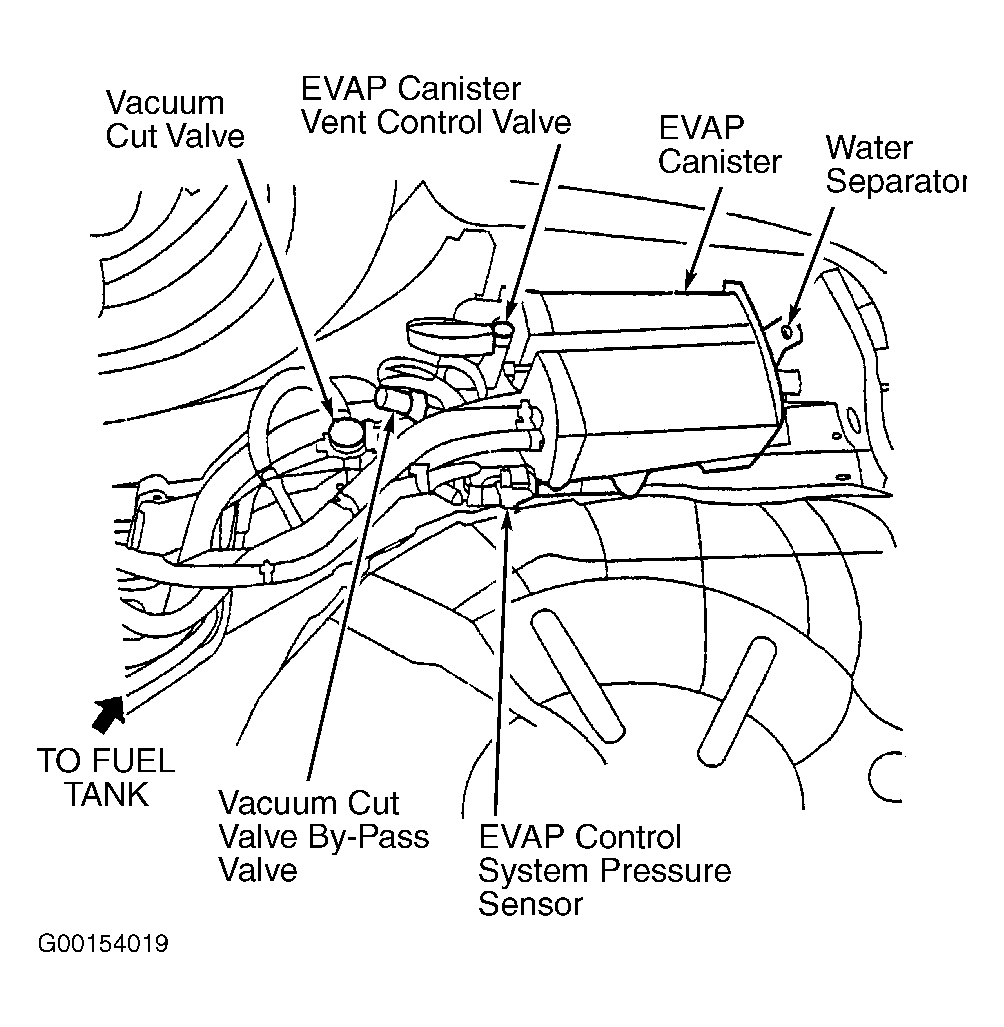

Fig 8: Evaporative Emissions System Under Vehicle View (Sentra 1.8L)

G00154019

Courtesy of NISSAN MOTOR CO., U.S.A.

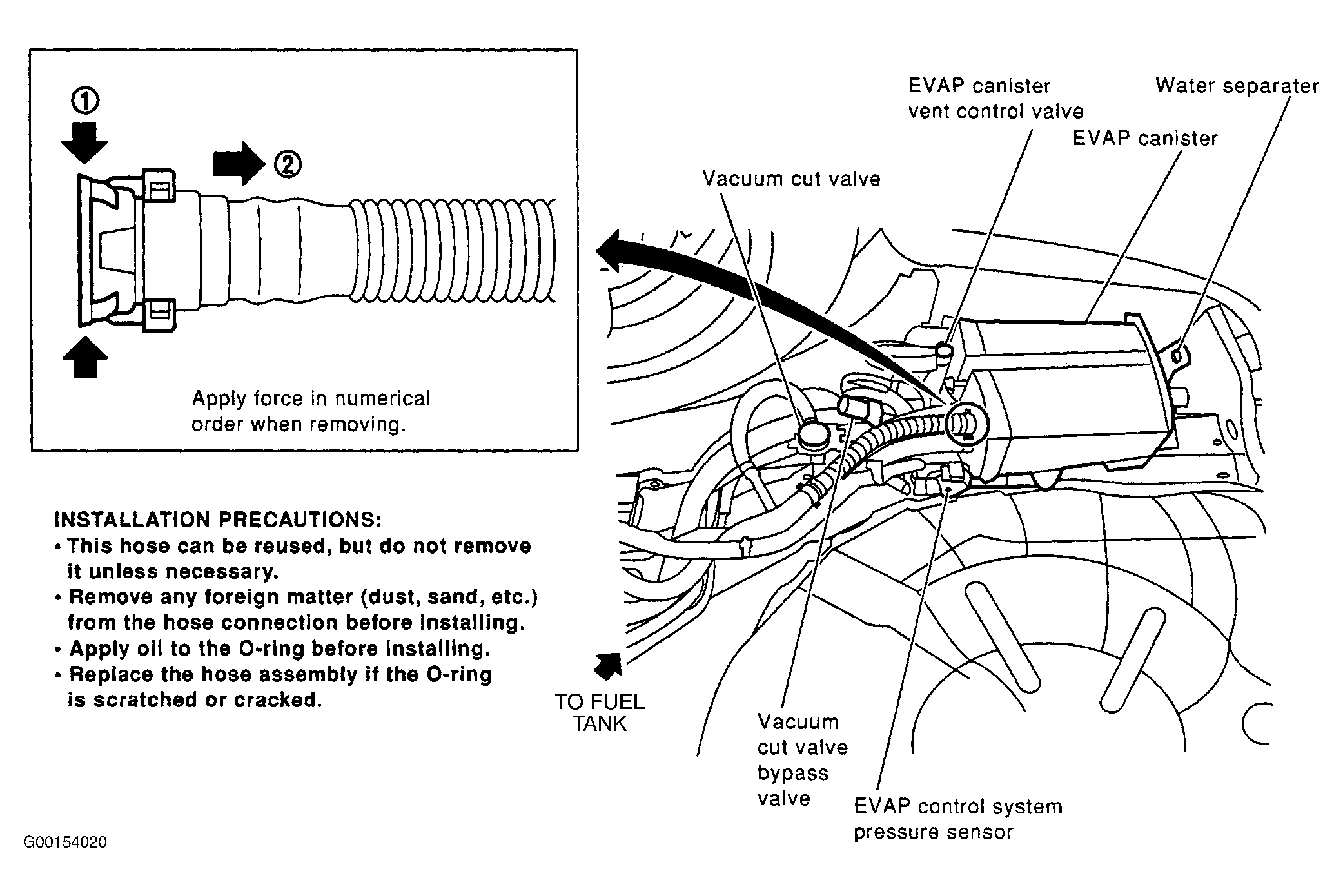

Fig 9: Evaporative Emissions System Under Vehicle View (Sentra 1.8L California CA)

G00154020

Courtesy of NISSAN MOTOR CO., U.S.A.
