Pin Voltage Charts

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 Nissan Xterra, 2002 Nissan Sentra, 2002 Nissan Quest, 2002 Nissan Pathfinder, and 2002 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may cause damage to ECM transistors. Use a good body ground.

CAUTION: Shorting positive DVOM lead between a connector terminal and ground could damage vehicle wiring, sensor and/or control module.

NOTE: For wiring circuit identification, see WIRING DIAGRAMS article.

If necessary, remove ECM to gain access to harness connector. Using DVOM or oscilloscope, obtain reference values by carefully backprobing ECM harness connector between suspect system terminal and a good body ground. DO NOT use any ECM ground terminals during measurements.
Voltage measurements are taken with engine warm unless otherwise specified. If DVOM or oscilloscope displays a measurement that is not within specification, see appropriate SELF-DIAGNOSTICS or SYSTEM & COMPONENT TESTING article.
For ECM location, see appropriate illustration under ECM LOCATIONS . For identification of wire color abbreviations used in pin voltage charts, see WIRE COLOR IDENTIFICATION table. For appropriate pin voltage chart figure reference, see PIN VOLTAGE CHART INDEX table.

PIN VOLTAGE CHART INDEX

Model

See Figs.

Altima

2.5L

3.5L

Frontier

2.4L

3.3L

With Supercharger

Without Supercharger

I35 & Maxima ⁽¹⁾

Pathfinder & QX4⁽²⁾

Quest

Sentra

1.8L

Except California CA

California CA

2.5L

Xterra

2.4L

3.3L

With Supercharger

Without Supercharger

⁽¹⁾	Also applies to Infiniti I35 models.

⁽²⁾	Also applies to Infiniti QX4 models.

WIRE COLOR IDENTIFICATION

Abbreviation	Wire Color
B	Black
BR	Brown
CH	Dark Brown
DG	Dark Green
G	Green
GY	Gray
L	Blue
LG	Light Green
OR	Orange
P	Pink
PU	Purple
R	Red
SB	Light Blue
W	White
Y	Yellow

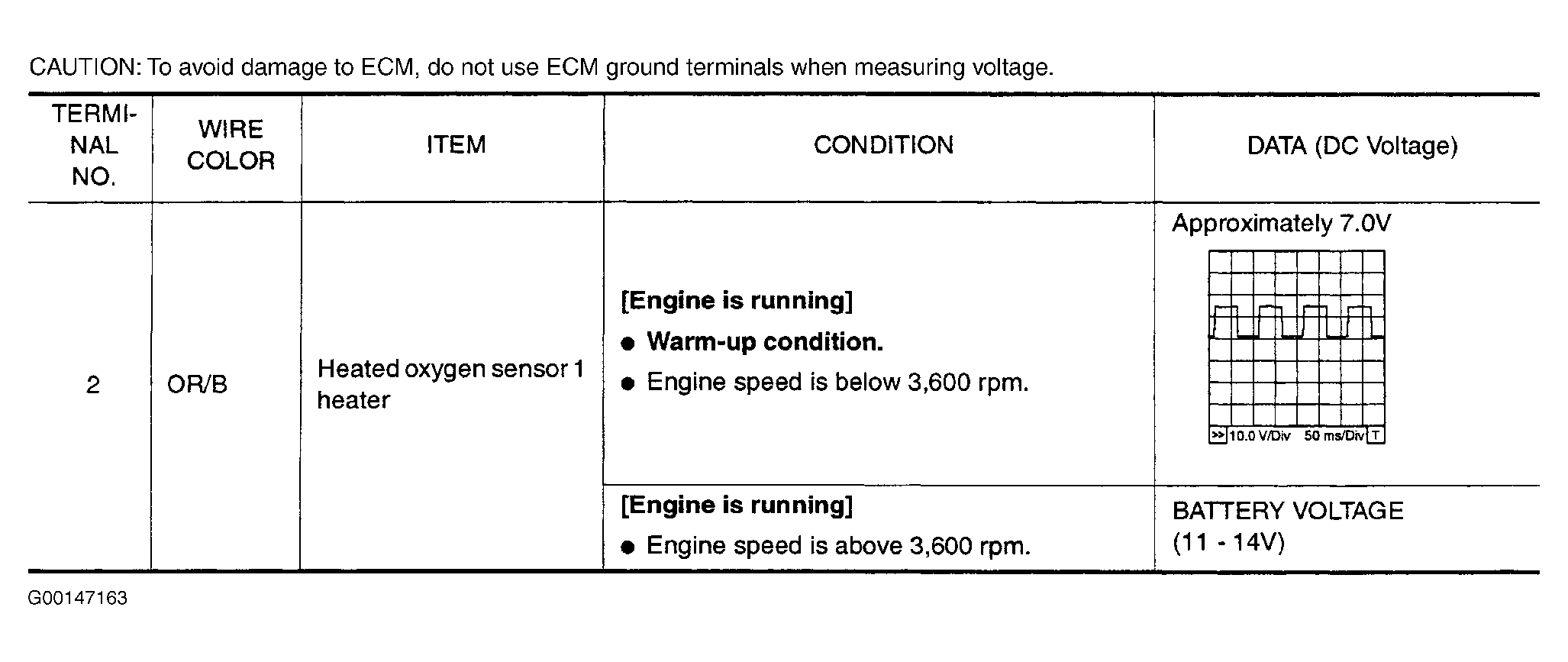

Fig 1: Pin Voltage Chart (Altima 2.5L - 1 Of 8)

G00147163

Courtesy of NISSAN MOTOR CO., U.S.A.

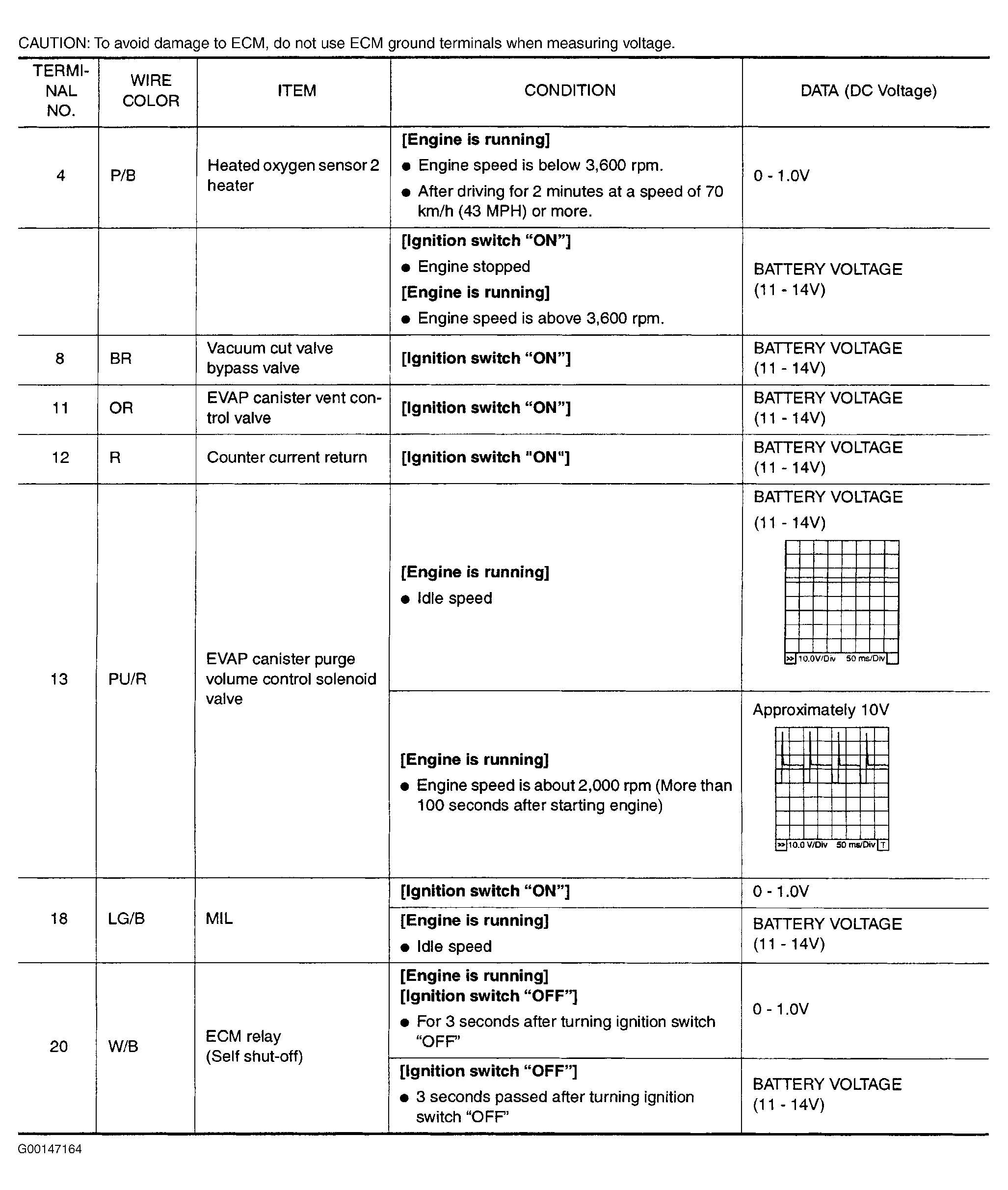

Fig 2: Pin Voltage Chart (Altima 2.5L - 2 Of 8)

G00147164

Courtesy of NISSAN MOTOR CO., U.S.A.

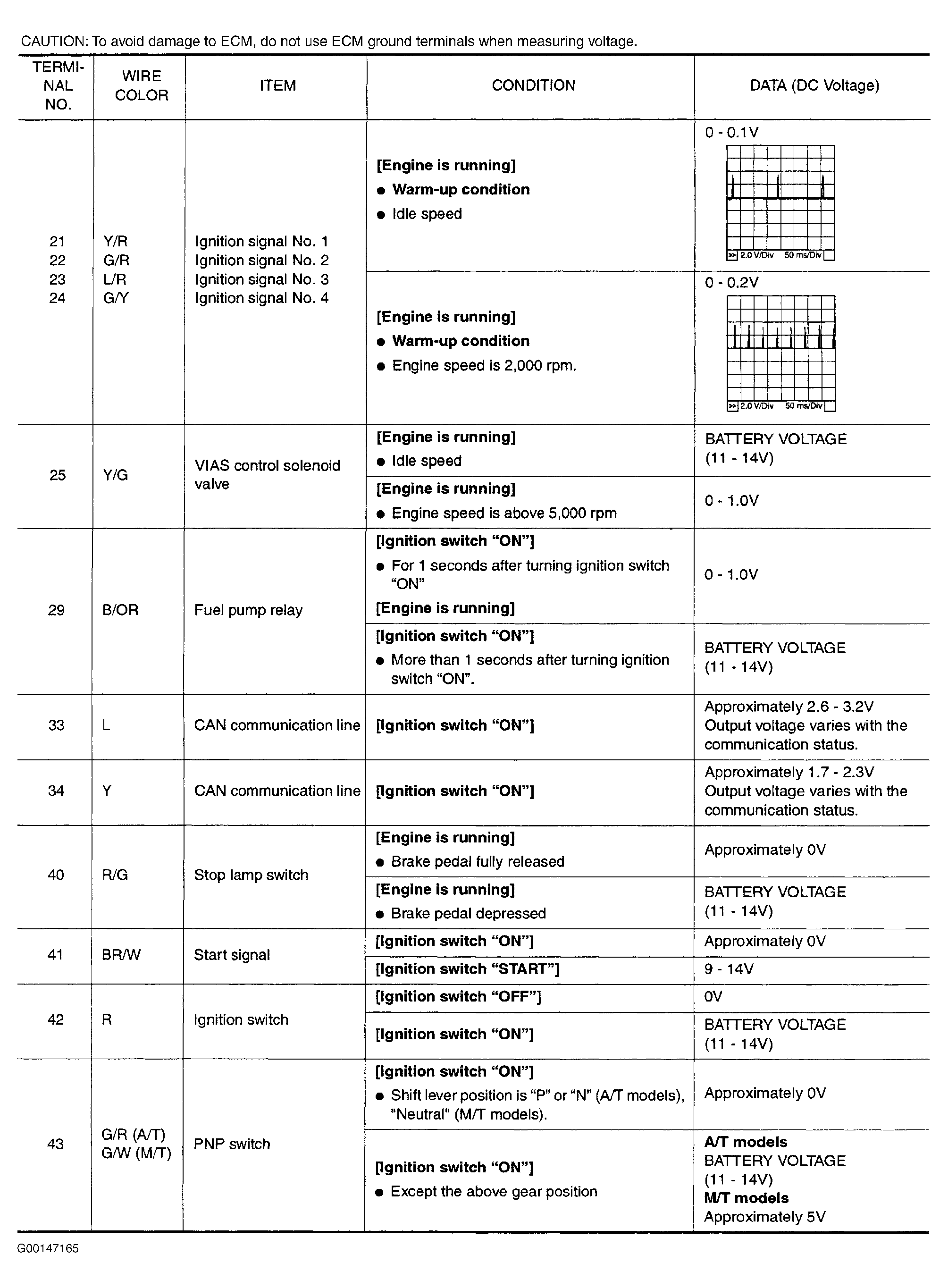

Fig 3: Pin Voltage Chart (Altima 2.5L - 3 Of 8)

G00147165

Courtesy of NISSAN MOTOR CO., U.S.A.

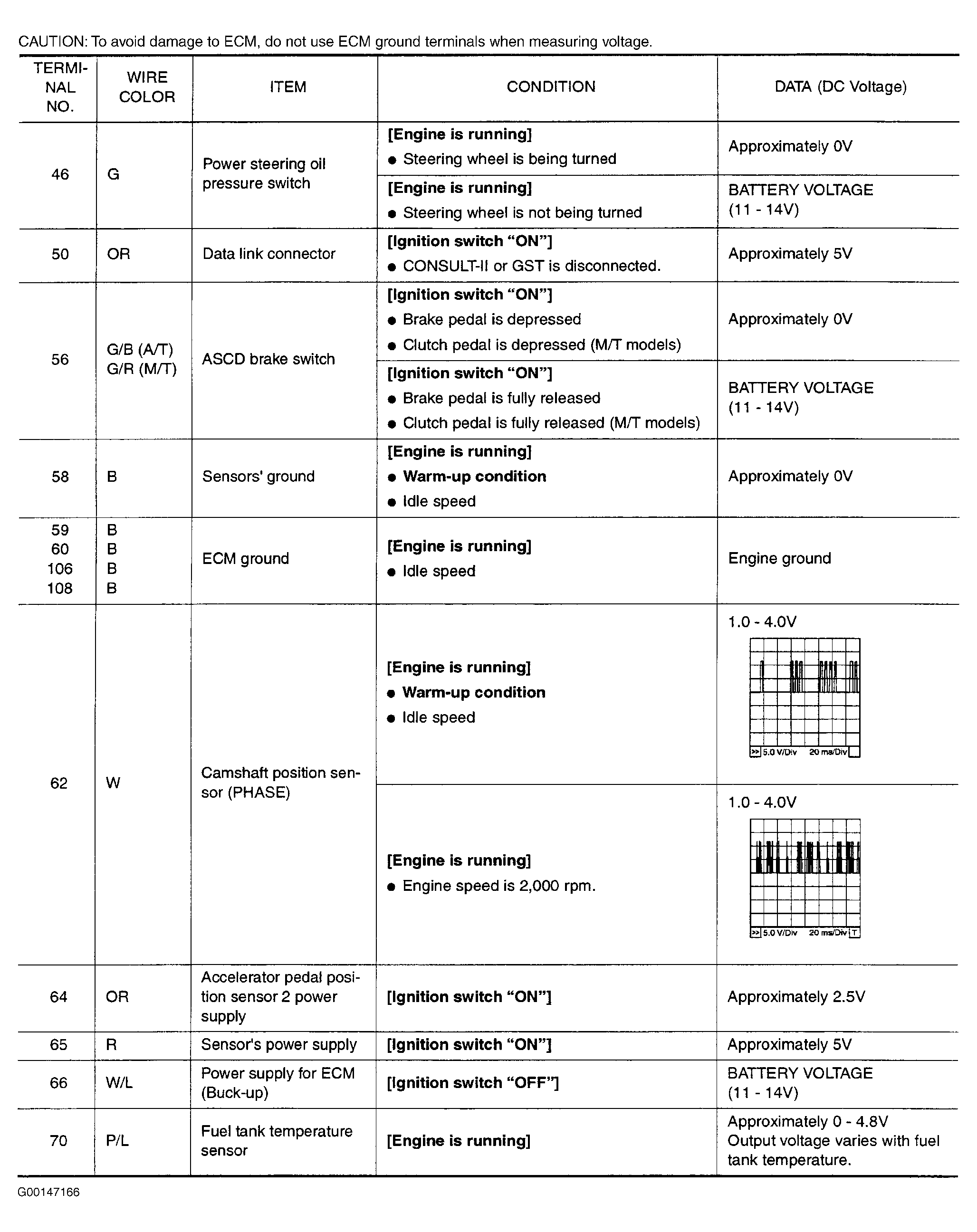

Fig 4: Pin Voltage Chart (Altima 2.5L - 4 Of 8)

G00147166

Courtesy of NISSAN MOTOR CO., U.S.A.

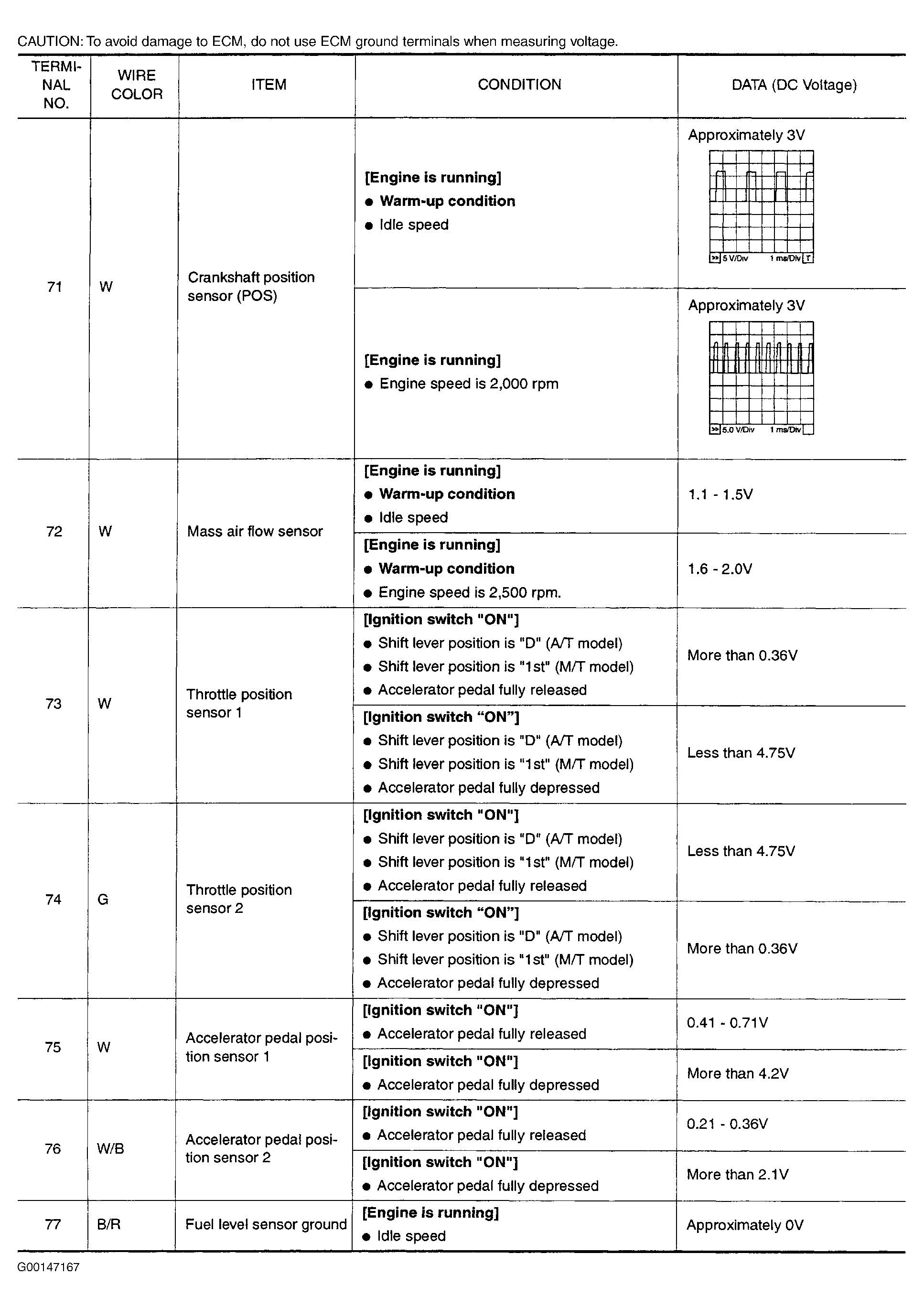

Fig 5: Pin Voltage Chart (Altima 2.5L - 5 Of 8)

G00147167

Courtesy of NISSAN MOTOR CO., U.S.A.

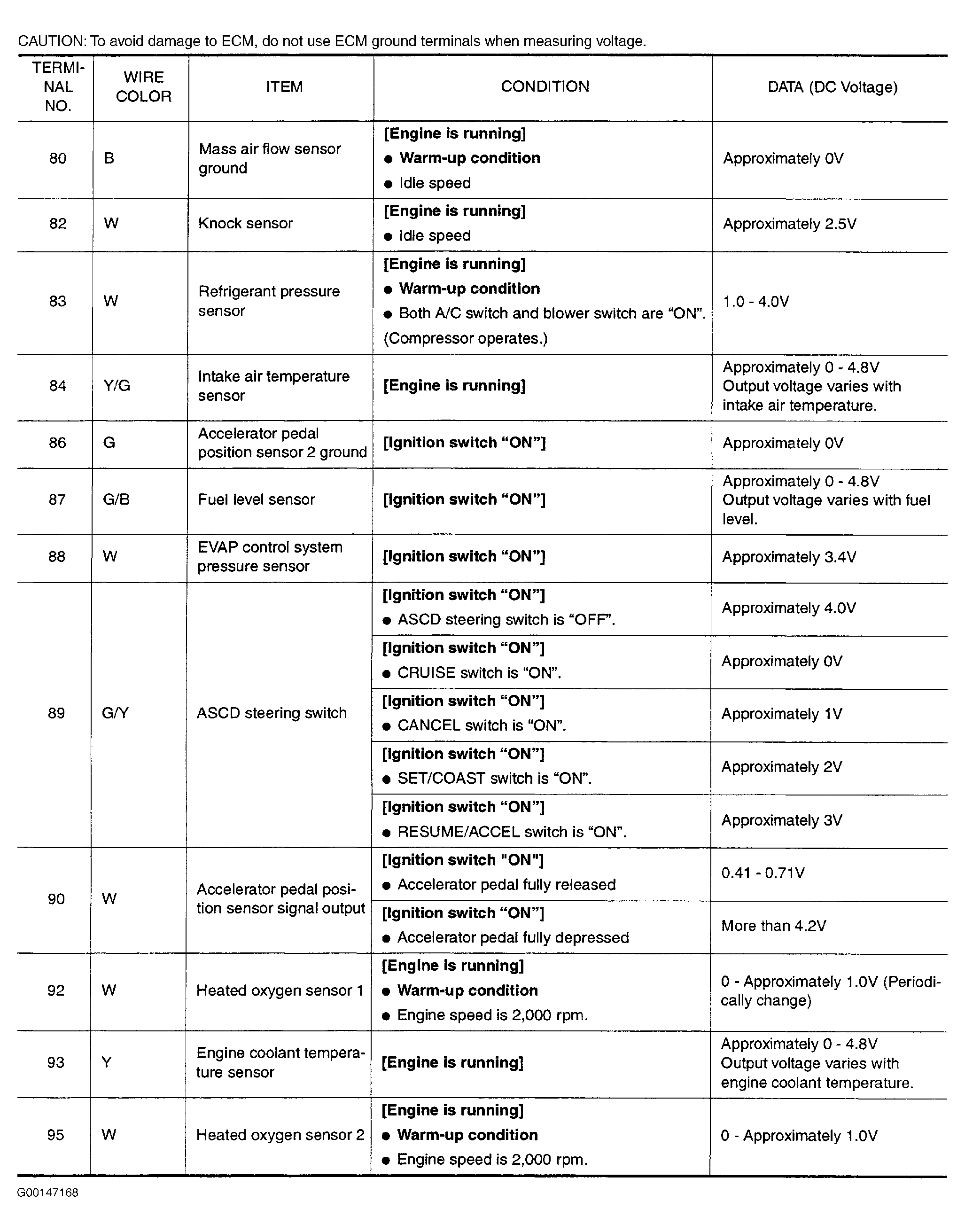

Fig 6: Pin Voltage Chart (Altima 2.5L - 6 Of 8)

G00147168

Courtesy of NISSAN MOTOR CO., U.S.A.

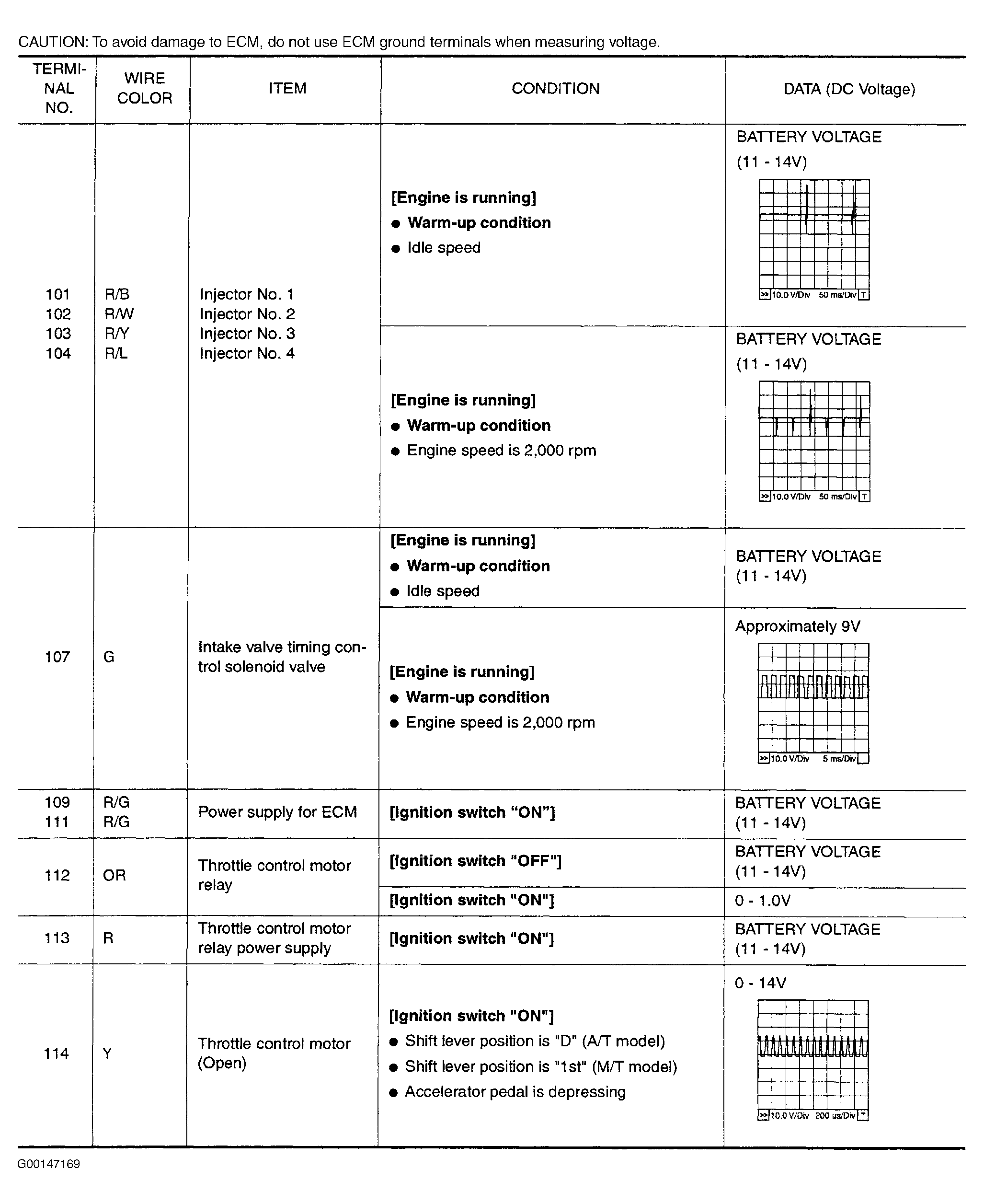

Fig 7: Pin Voltage Chart (Altima 2.5L - 7 Of 8)

G00147169

Courtesy of NISSAN MOTOR CO., U.S.A.

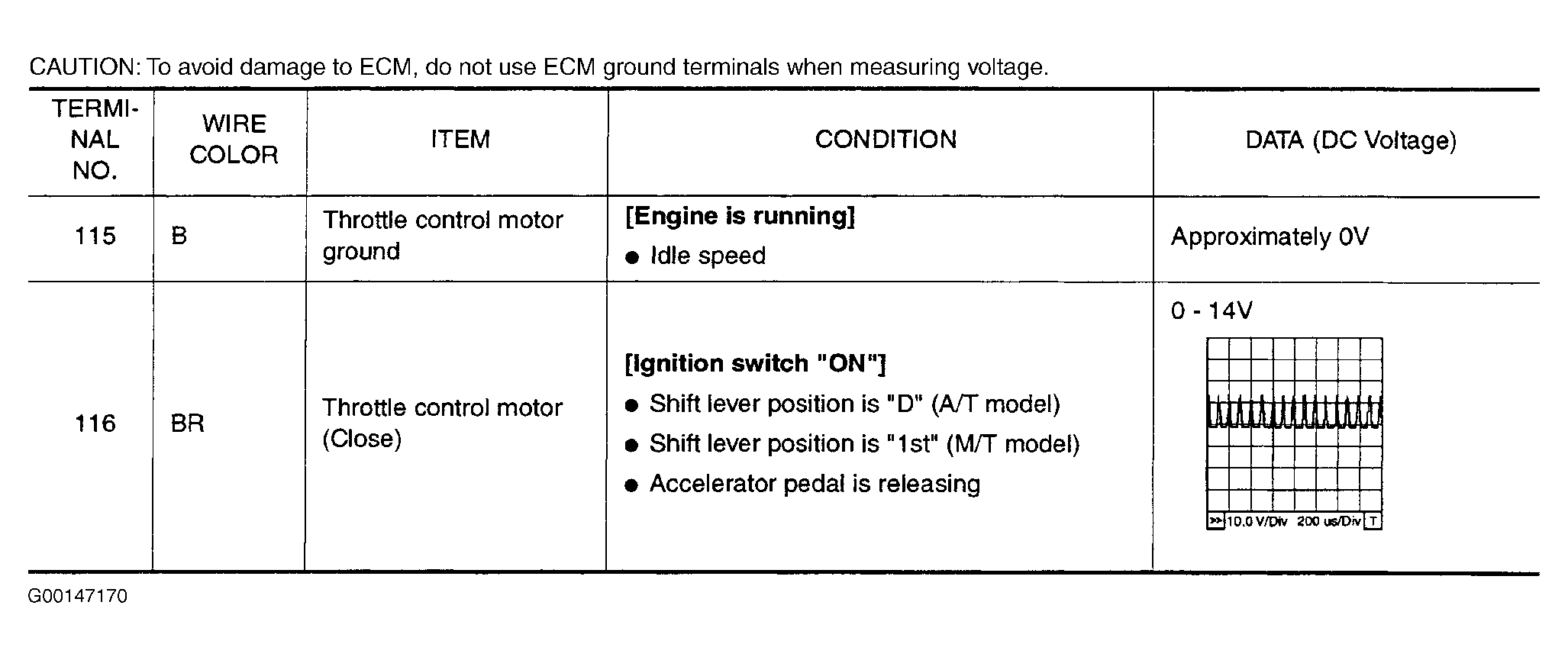

Fig 8: Pin Voltage Chart (Altima 2.5L - 8 Of 8)

G00147170

Courtesy of NISSAN MOTOR CO., U.S.A.

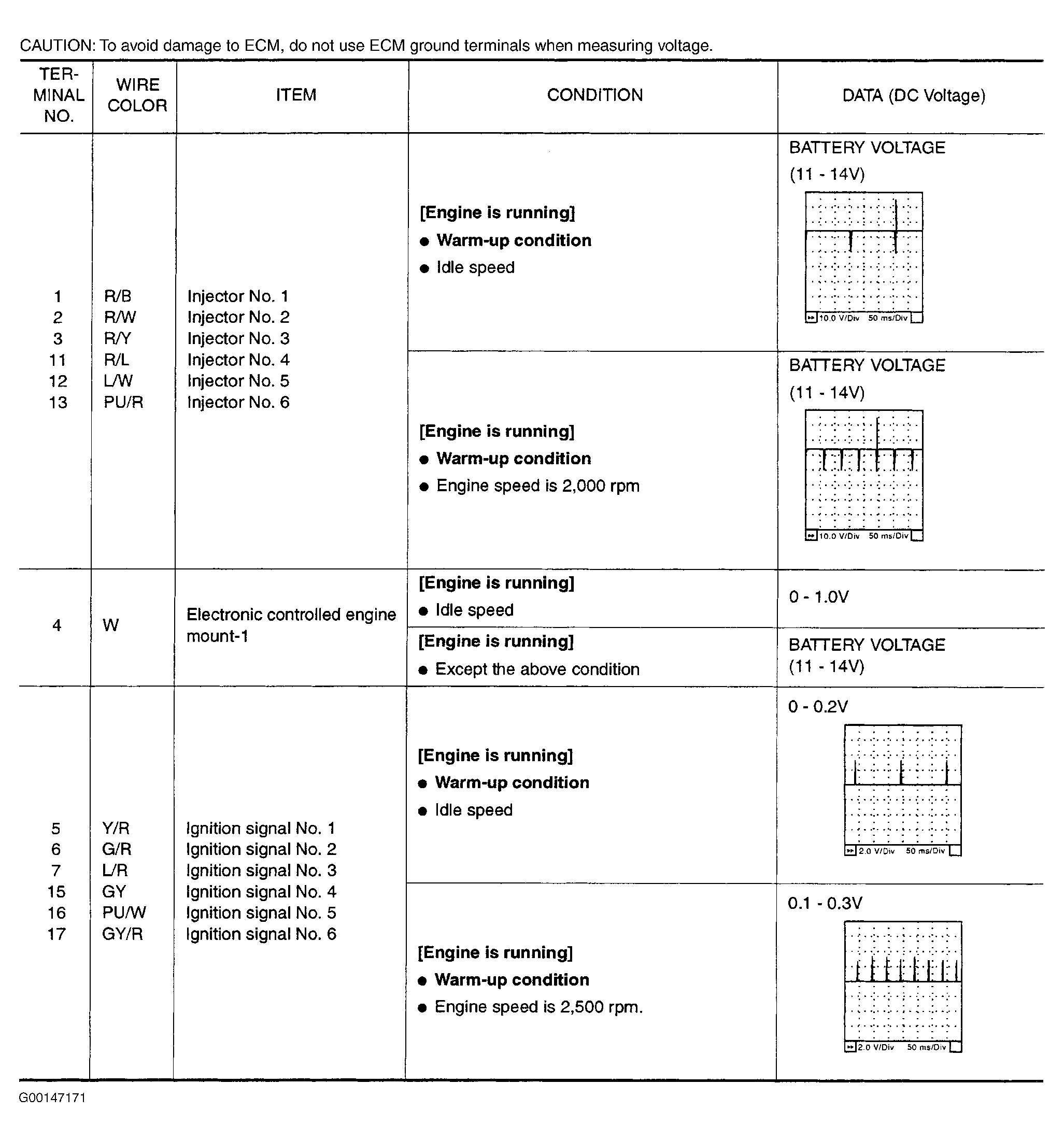

Fig 9: Pin Voltage Chart (Altima 3.5L - 1 Of 8)

G00147171

Courtesy of NISSAN MOTOR CO., U.S.A.

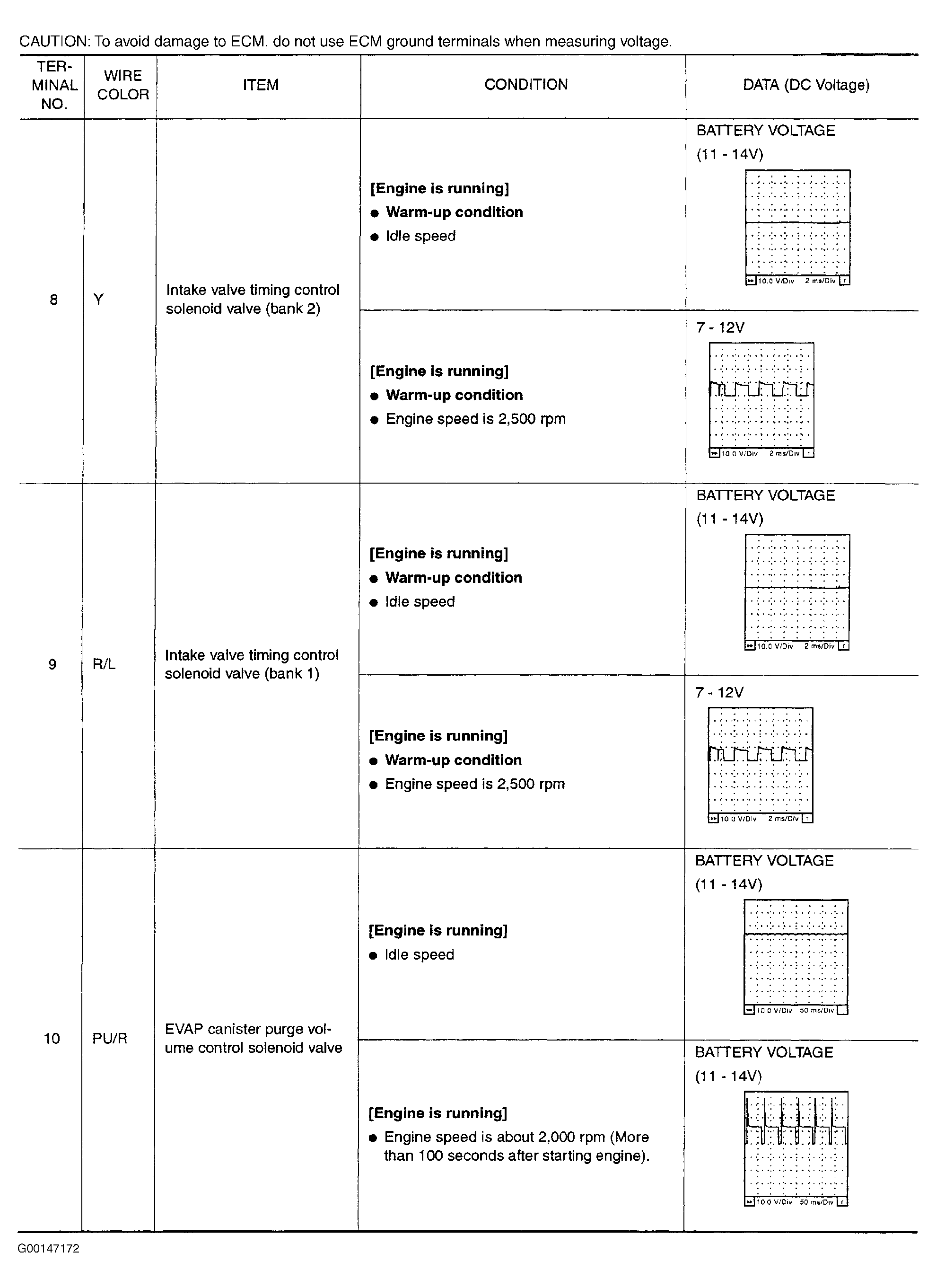

Fig 10: Pin Voltage Chart (Altima 3.5L - 2 Of 8)

G00147172

Courtesy of NISSAN MOTOR CO., U.S.A.

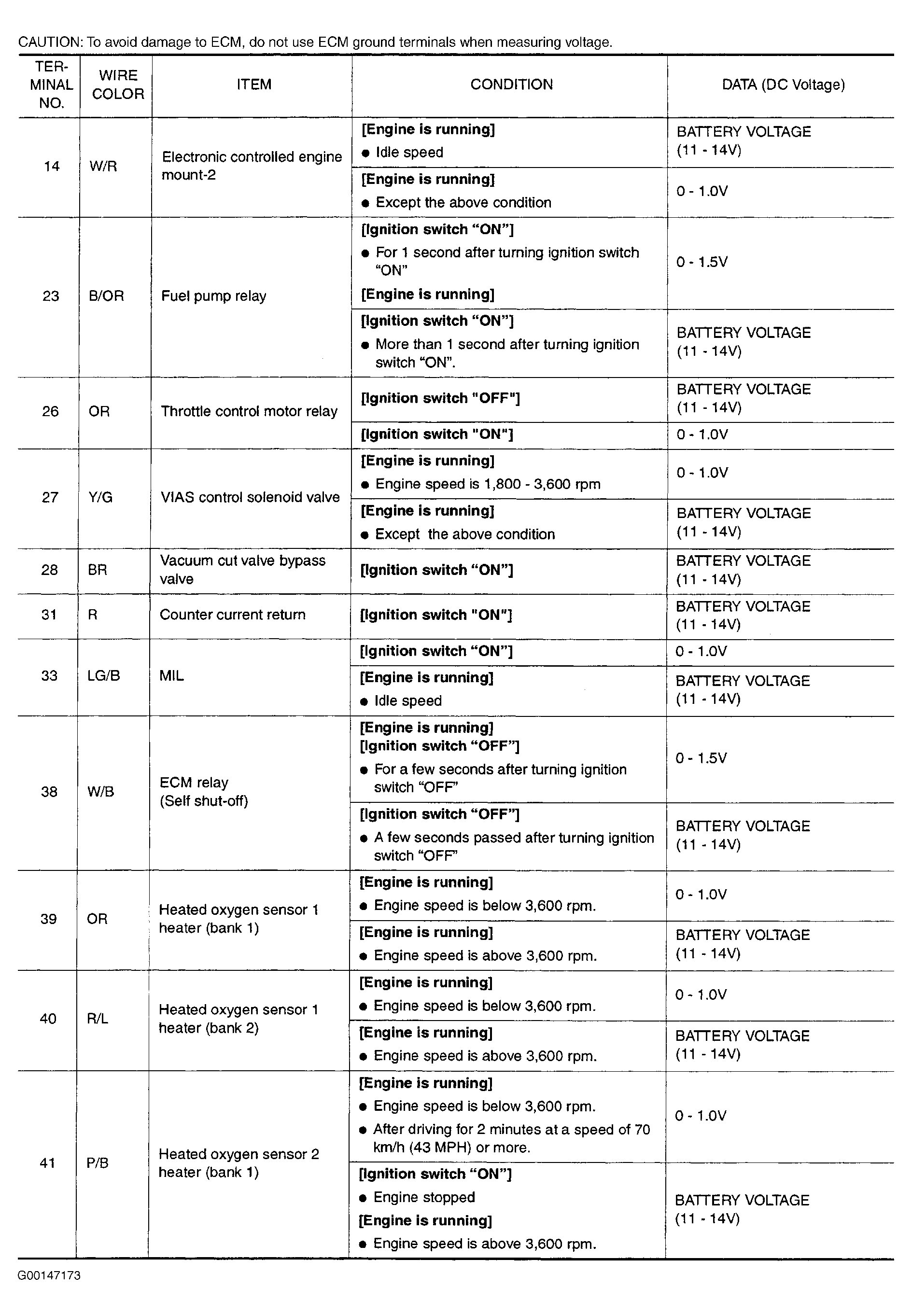

Fig 11: Pin Voltage Chart (Altima 3.5L - 3 Of 8)

G00147173

Courtesy of NISSAN MOTOR CO., U.S.A.

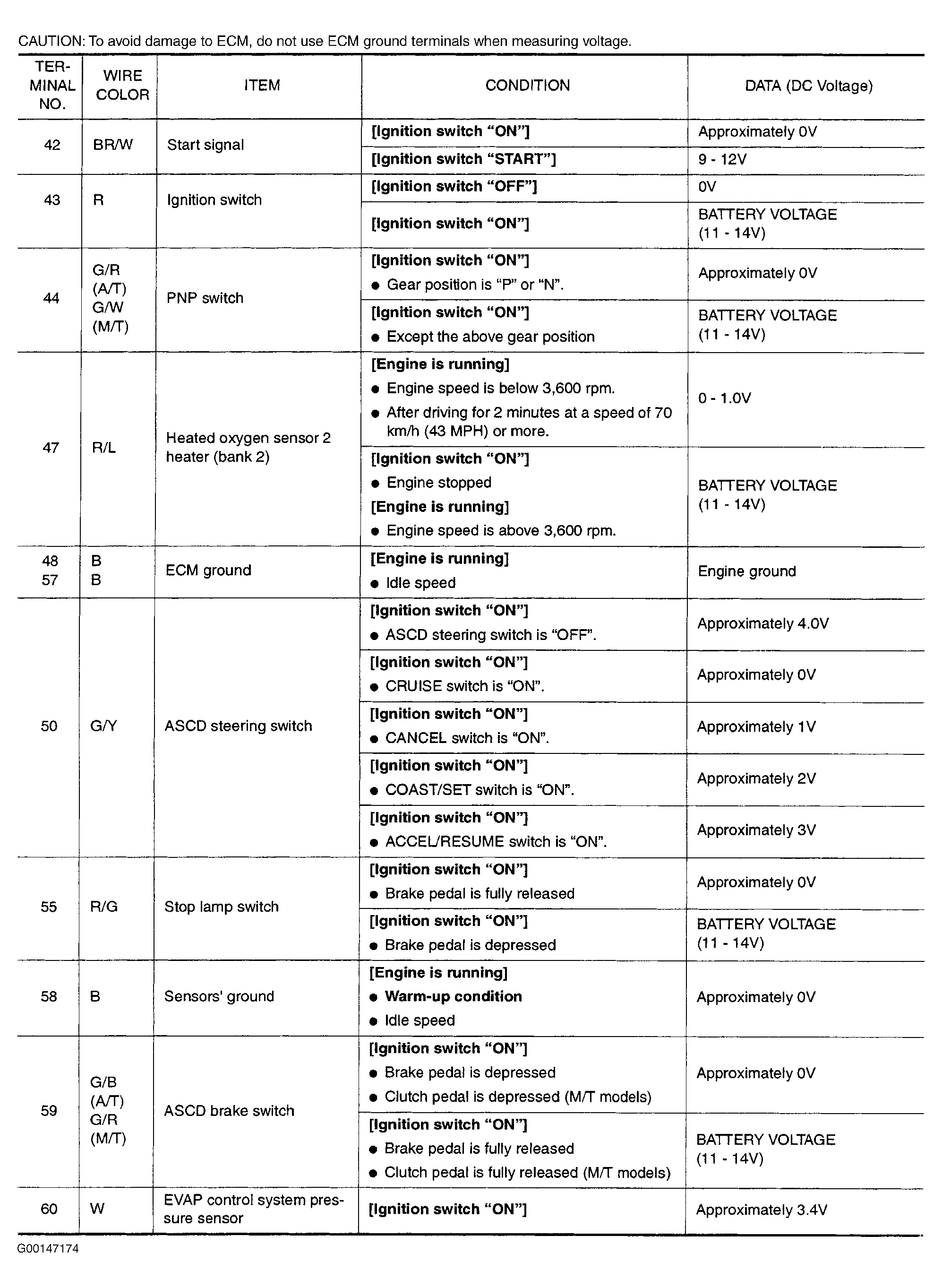

Fig 12: Pin Voltage Chart (Altima 3.5L - 4 Of 8)

G00147174

Courtesy of NISSAN MOTOR CO., U.S.A.

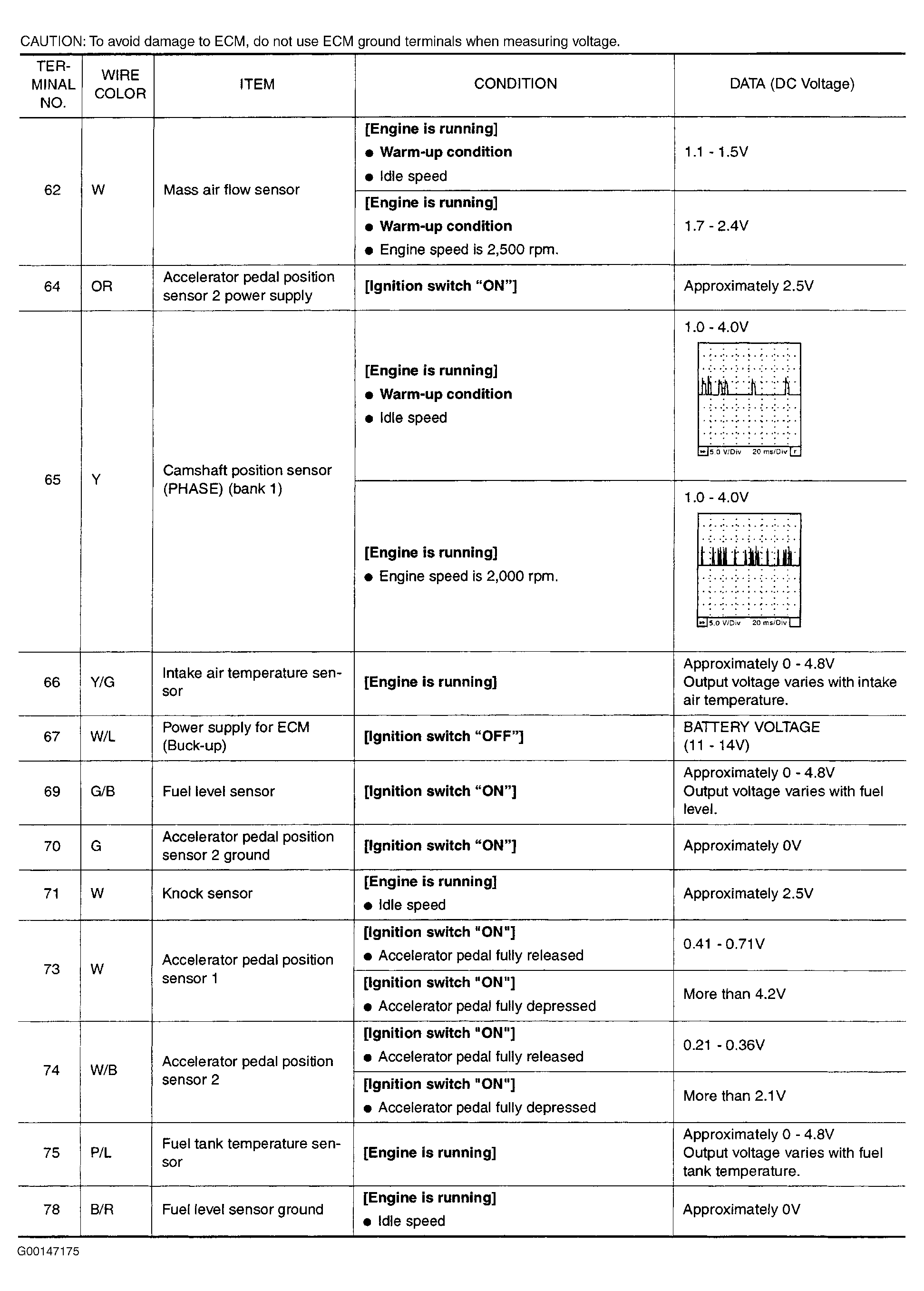

Fig 13: Pin Voltage Chart (Altima 3.5L - 5 Of 8)

G00147175

Courtesy of NISSAN MOTOR CO., U.S.A.

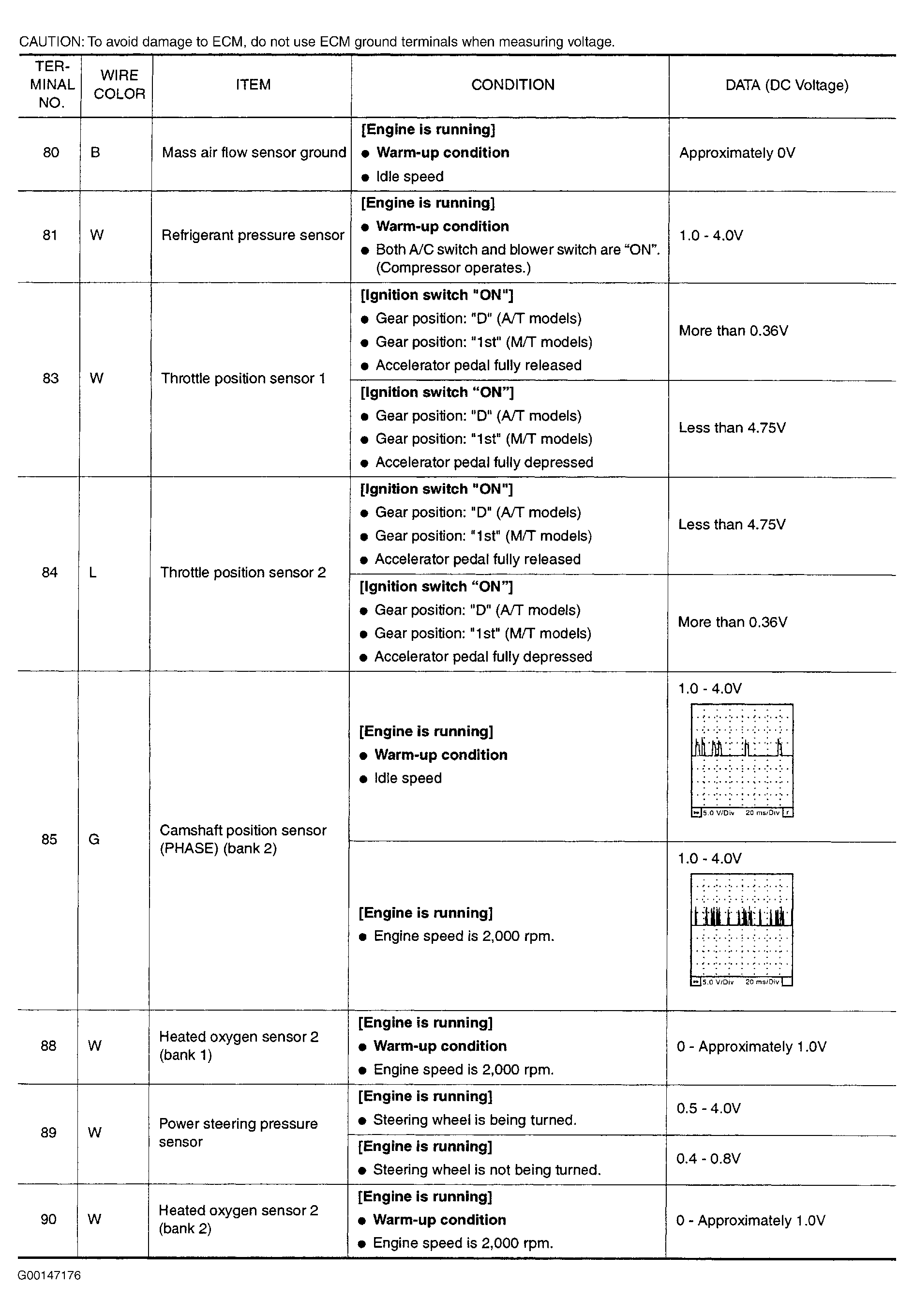

Fig 14: Pin Voltage Chart (Altima 3.5L - 6 Of 8)

G00147176

Courtesy of NISSAN MOTOR CO., U.S.A.

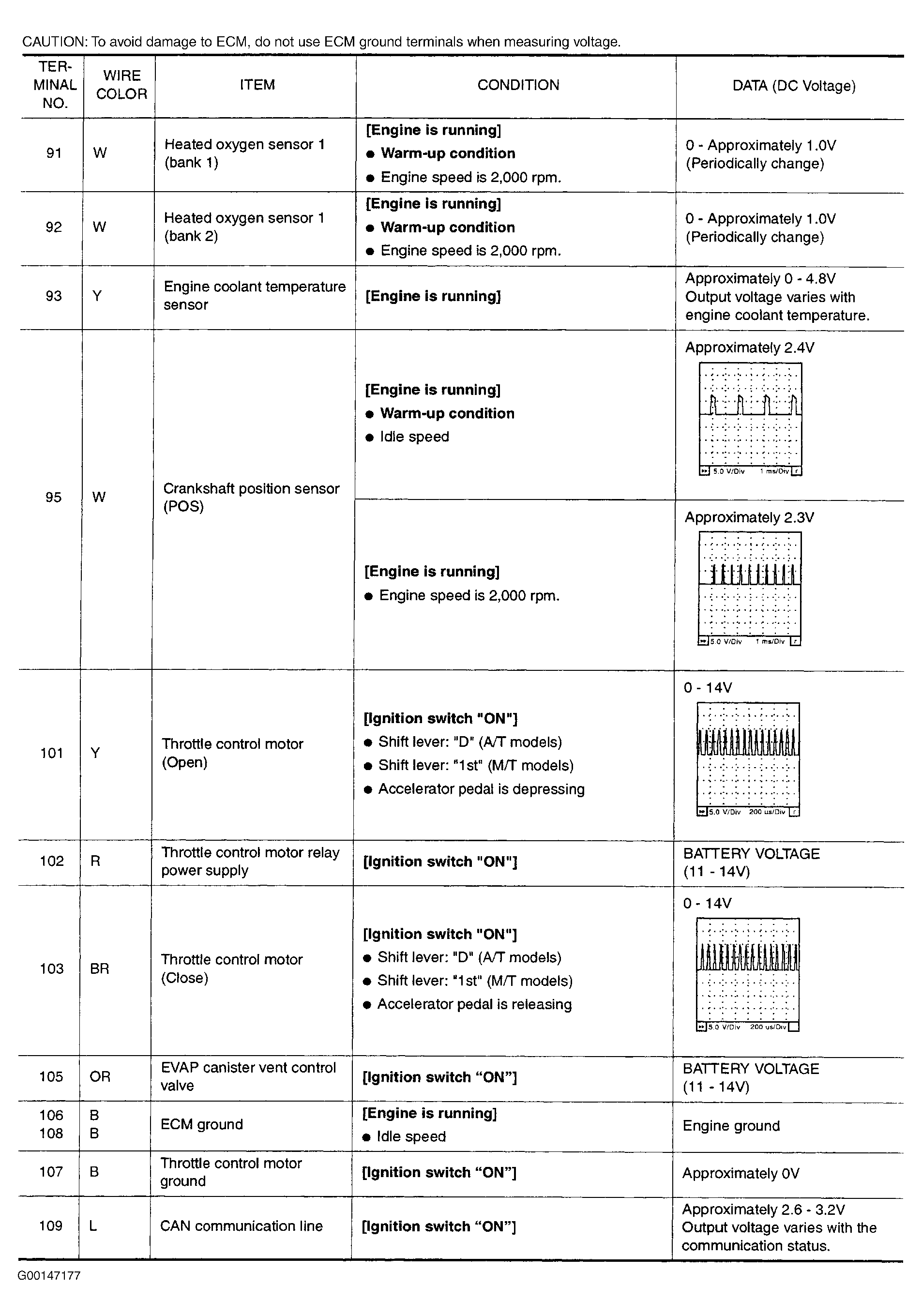

Fig 15: Pin Voltage Chart (Altima 3.5L - 7 Of 8)

G00147177

Courtesy of NISSAN MOTOR CO., U.S.A.

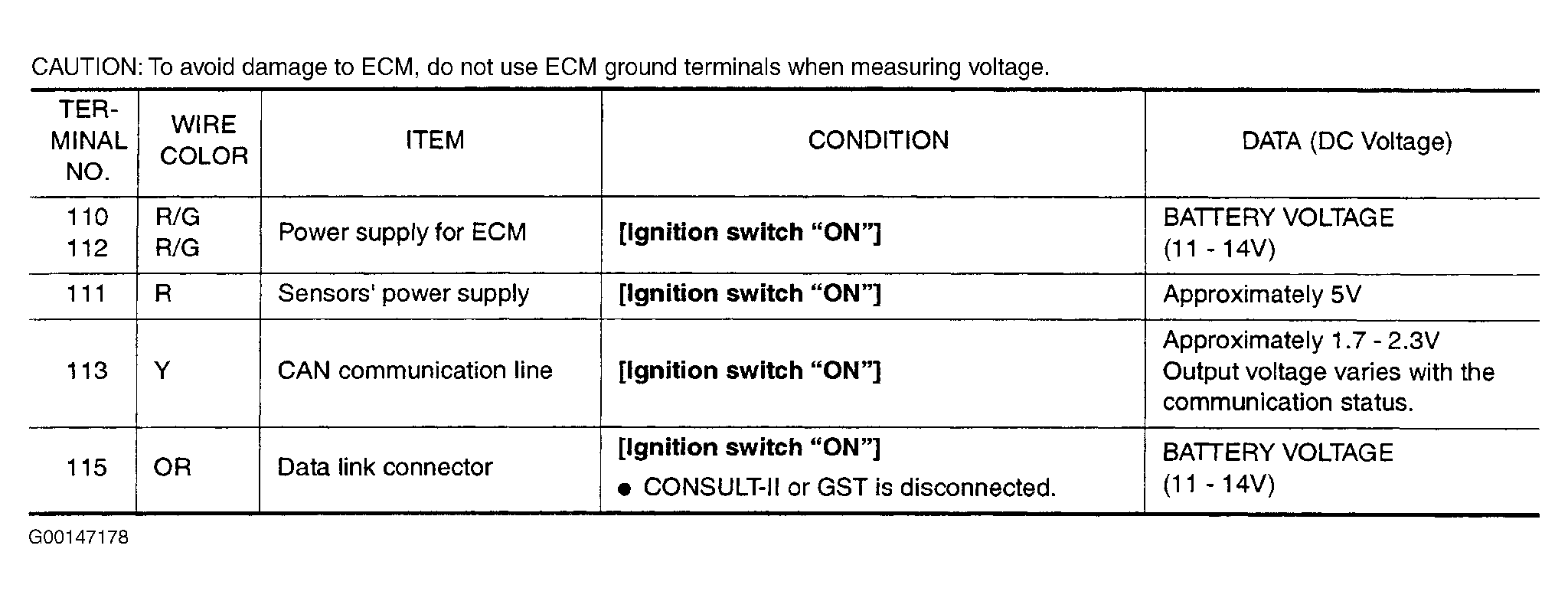

Fig 16: Pin Voltage Chart (Altima 3.5L - 8 Of 8)

G00147178

Courtesy of NISSAN MOTOR CO., U.S.A.

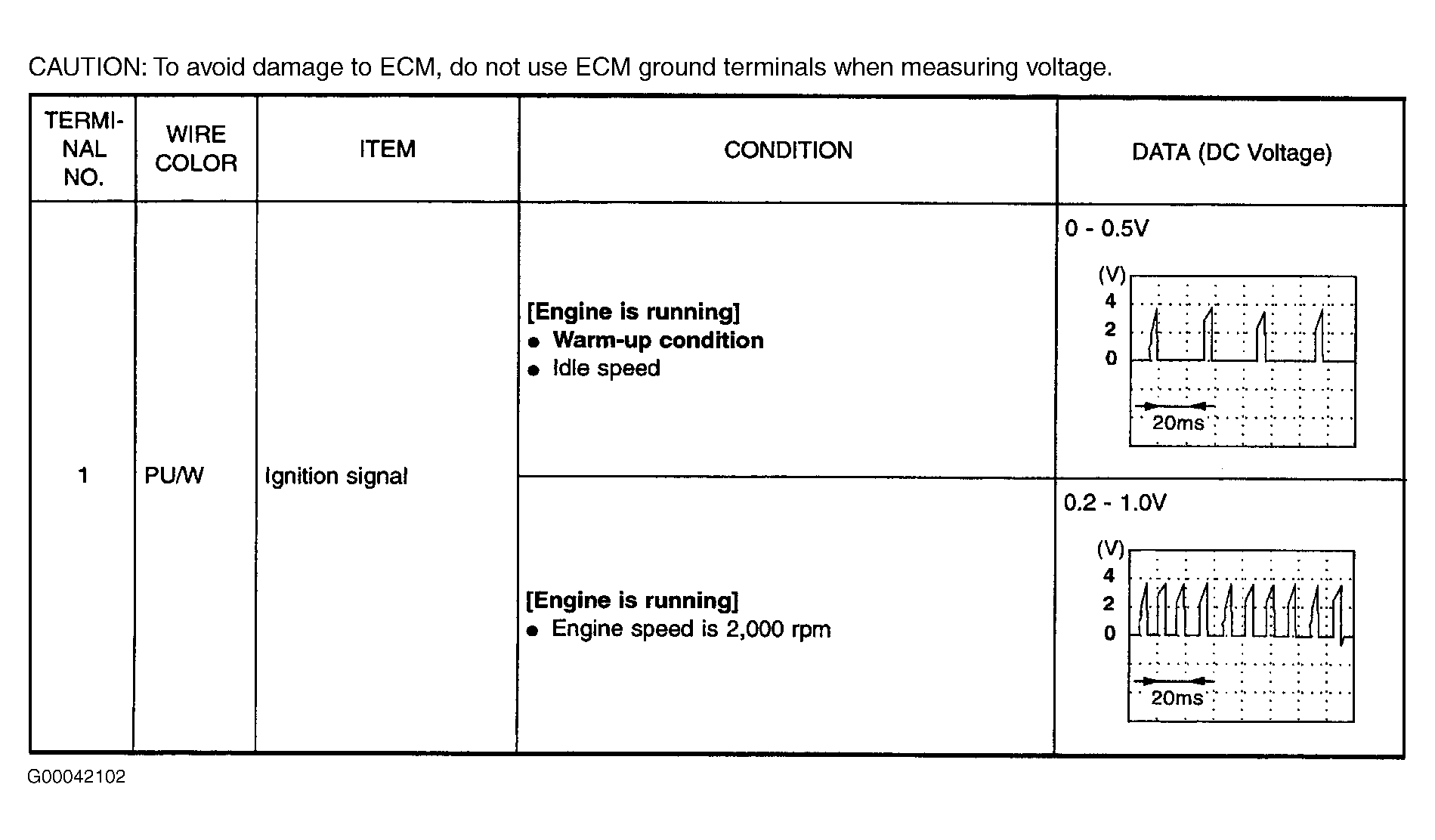

Fig 17: Pin Voltage Chart (Frontier 2.4L & Xterra 2.4L - 1 Of 8)

G00042102

Courtesy of NISSAN MOTOR CO., U.S.A.

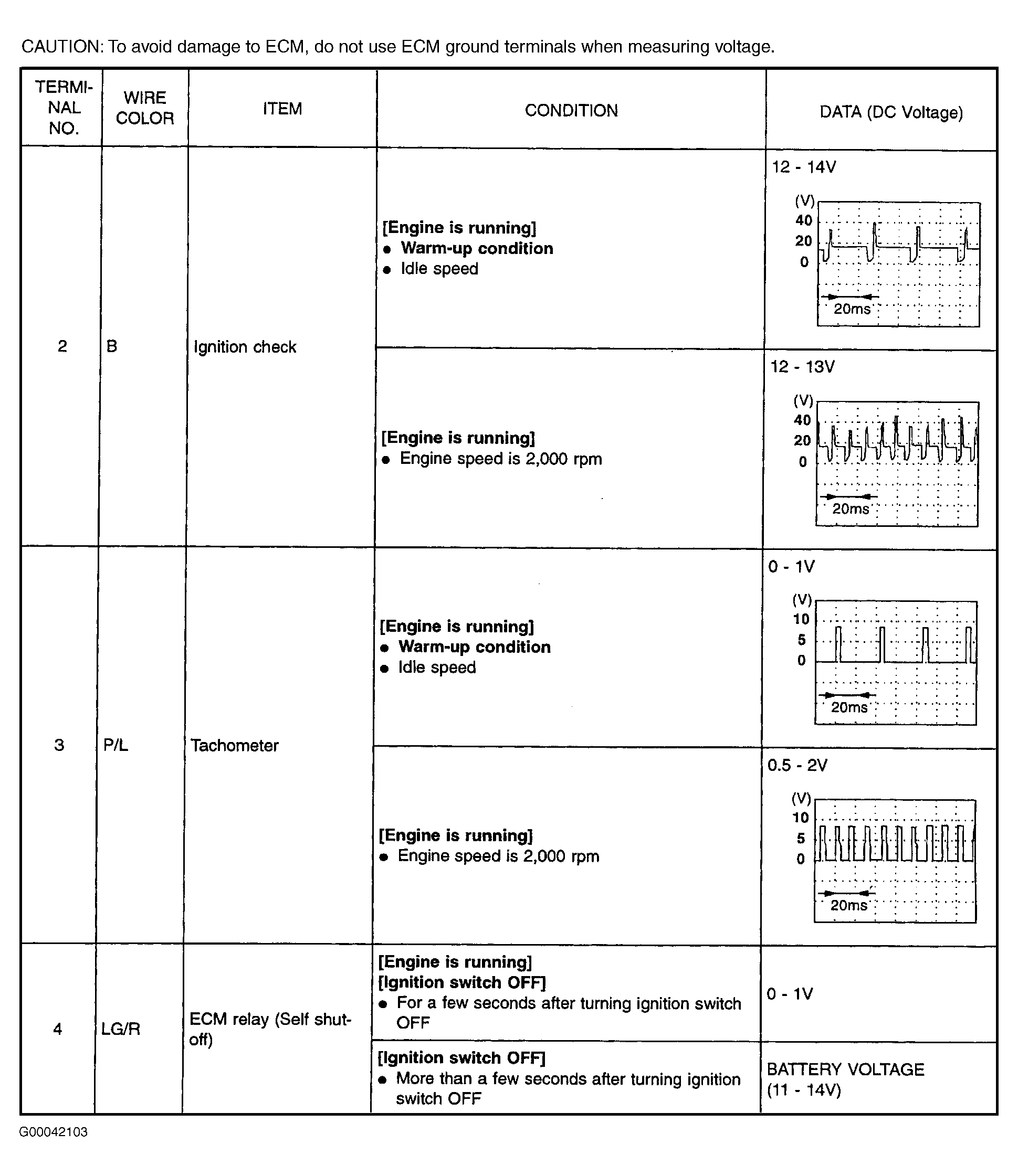

Fig 18: Pin Voltage Chart (Frontier 2.4L & Xterra 2.4L - 2 Of 8)

G00042103

Courtesy of NISSAN MOTOR CO., U.S.A.

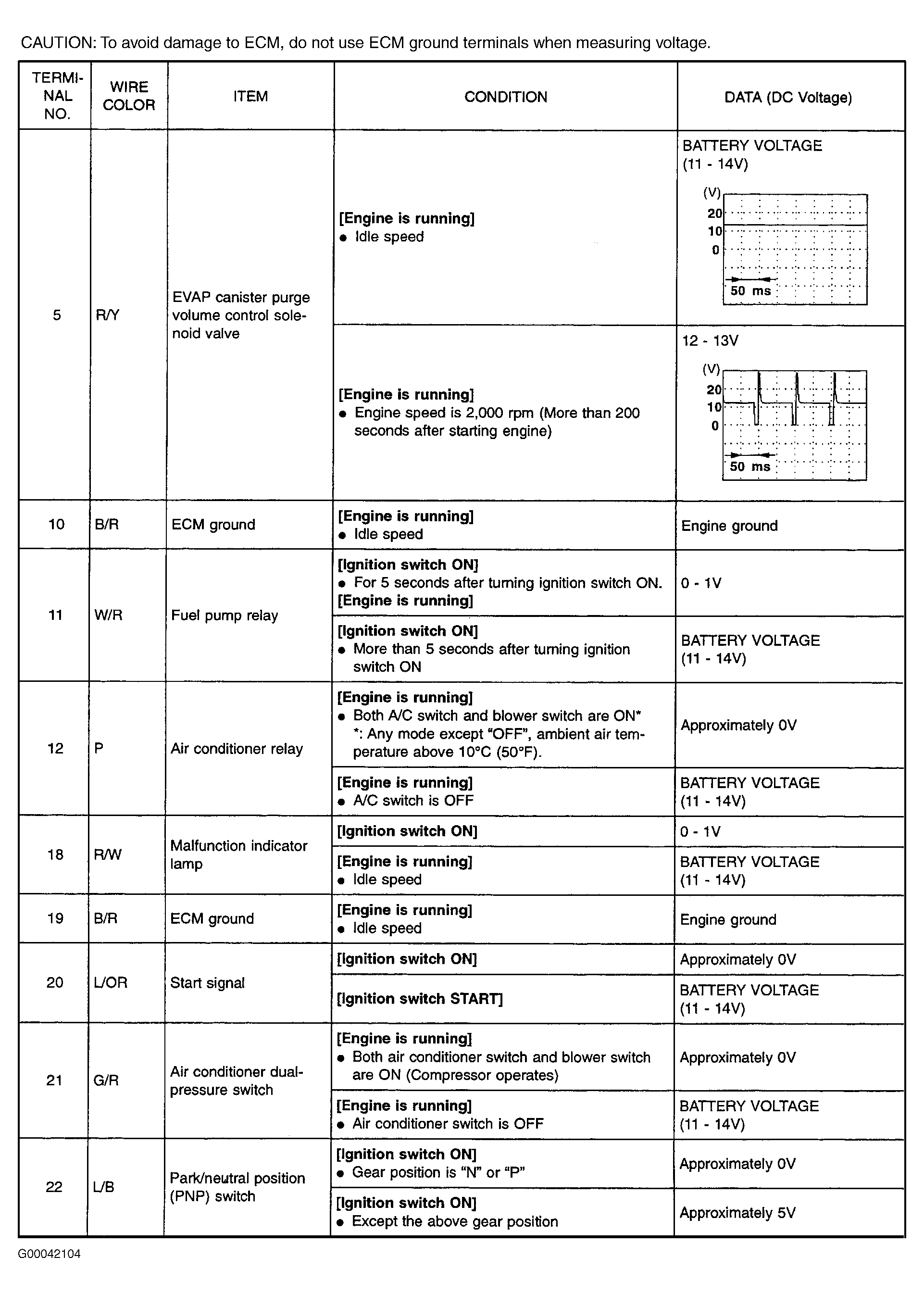

Fig 19: Pin Voltage Chart (Frontier 2.4L & Xterra 2.4L - 3 Of 8)

G00042104

Courtesy of NISSAN MOTOR CO., U.S.A.

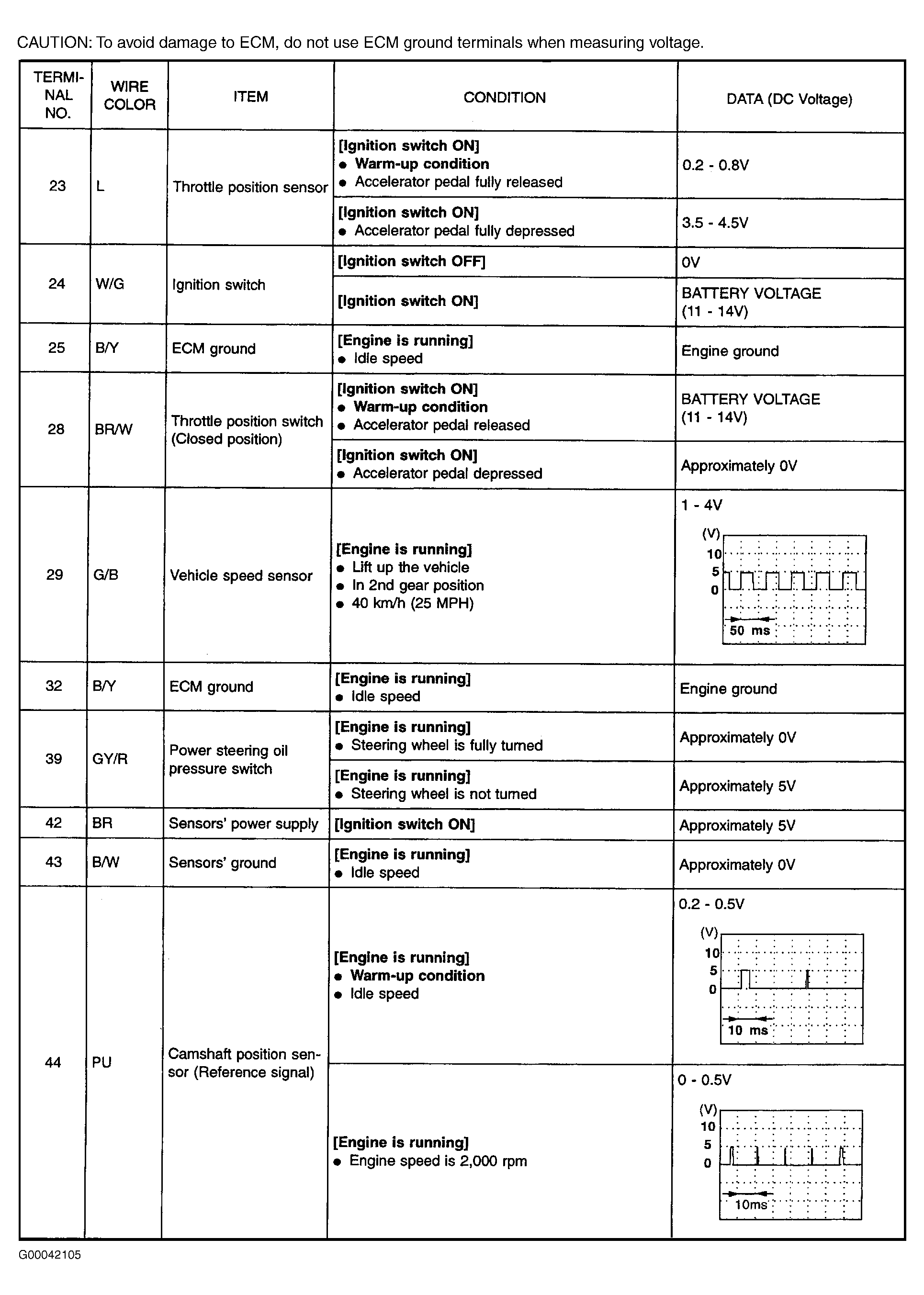

Fig 20: Pin Voltage Chart (Frontier 2.4L & Xterra 2.4L - 4 Of 8)

G00042105

Courtesy of NISSAN MOTOR CO., U.S.A.

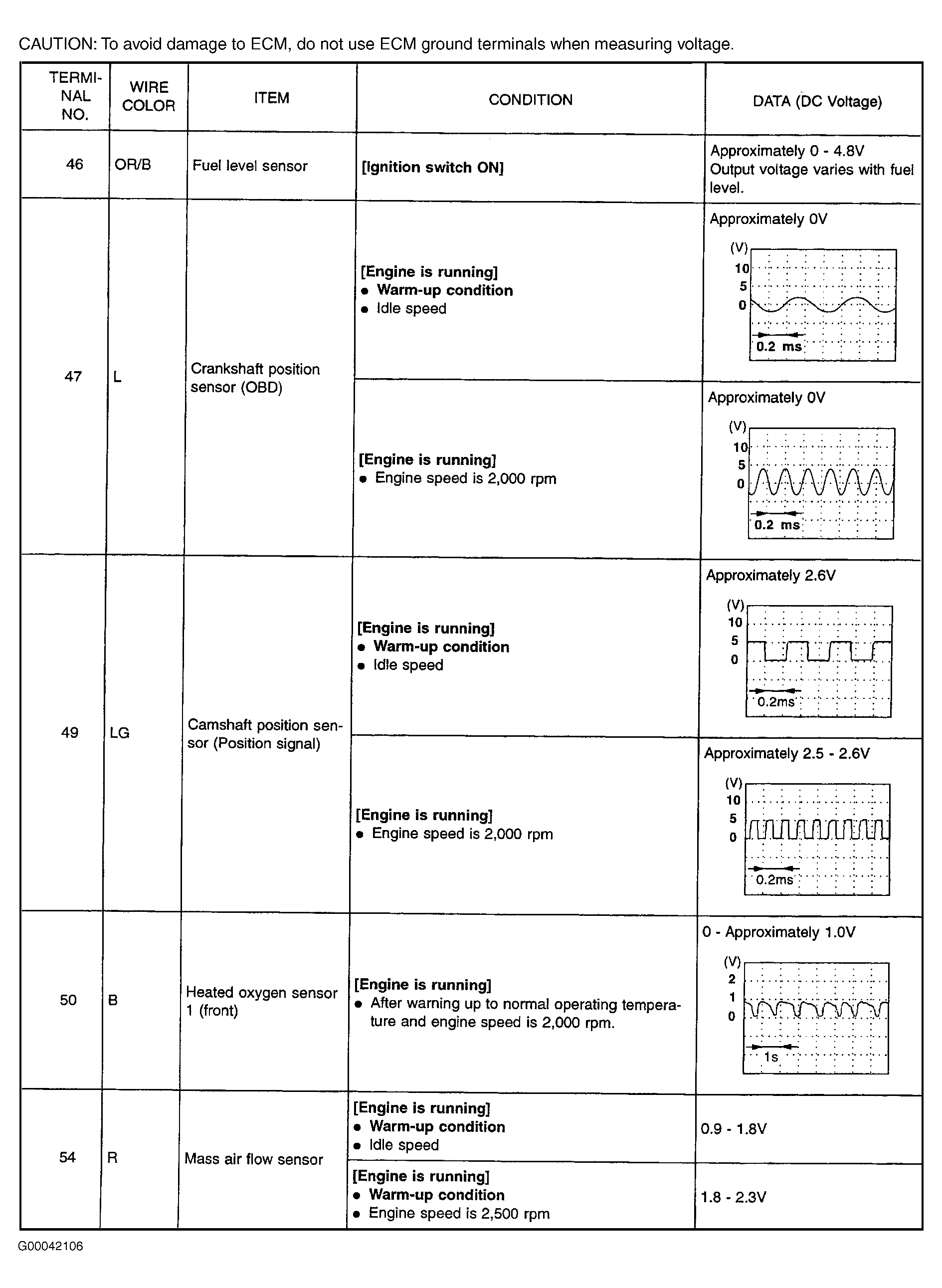

Fig 21: Pin Voltage Chart (Frontier 2.4L & Xterra 2.4L - 5 Of 8)

G00042106

Courtesy of NISSAN MOTOR CO., U.S.A.

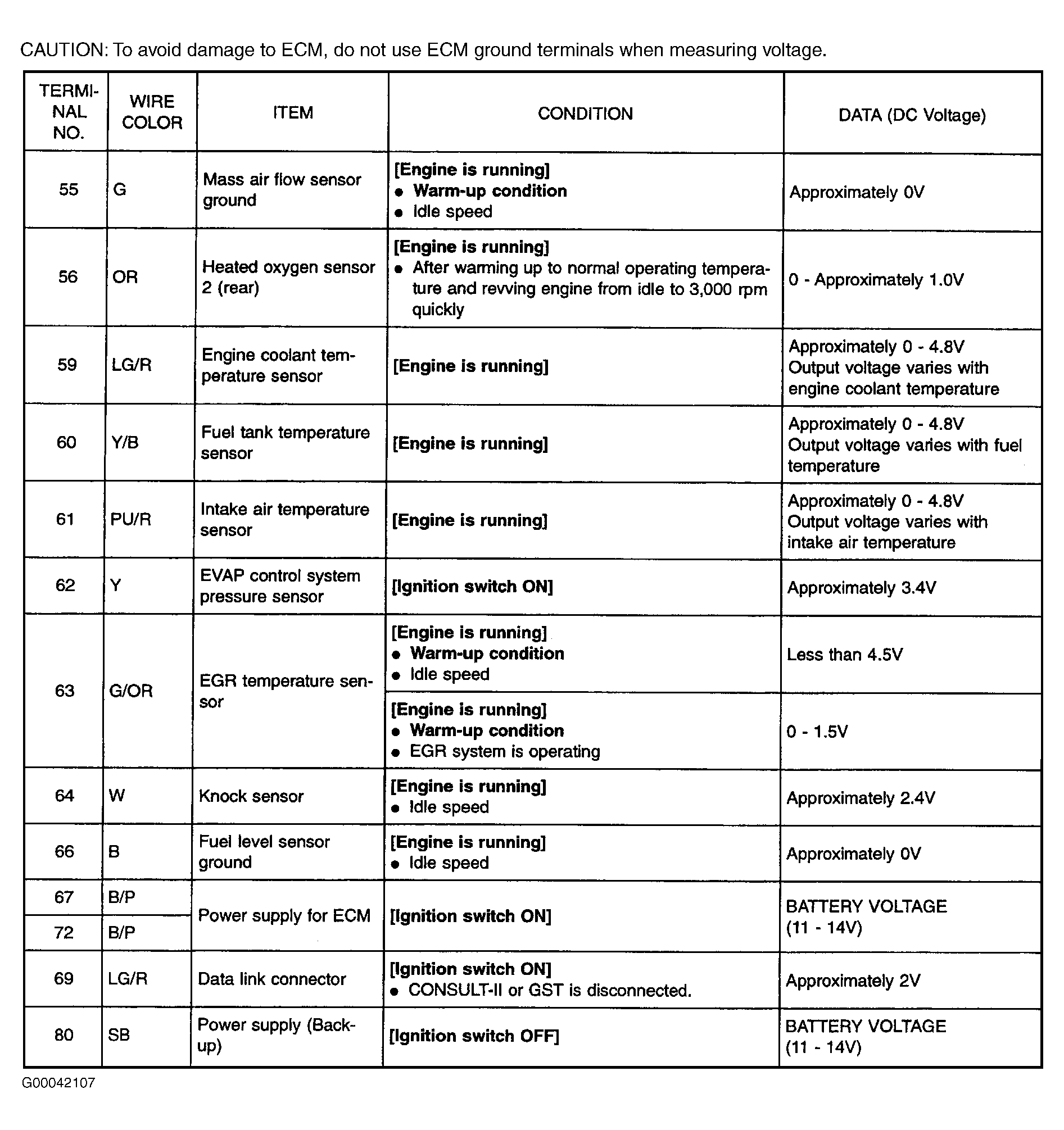

Fig 22: Pin Voltage Chart (Frontier 2.4L & Xterra 2.4L - 6 Of 8)

G00042107

Courtesy of NISSAN MOTOR CO., U.S.A.

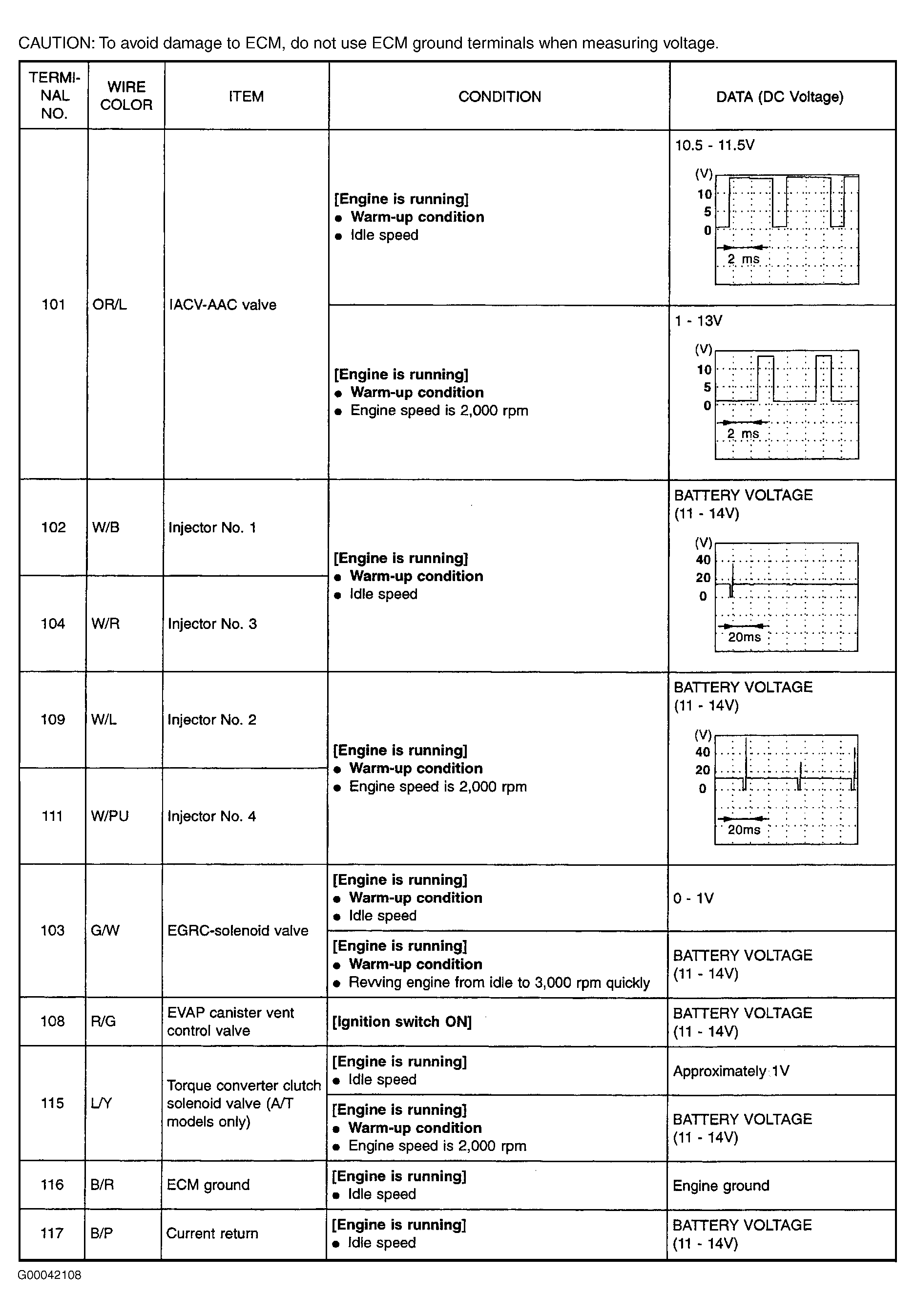

Fig 23: Pin Voltage Chart (Frontier 2.4L & Xterra 2.4L - 7 Of 8)

G00042108

Courtesy of NISSAN MOTOR CO., U.S.A.

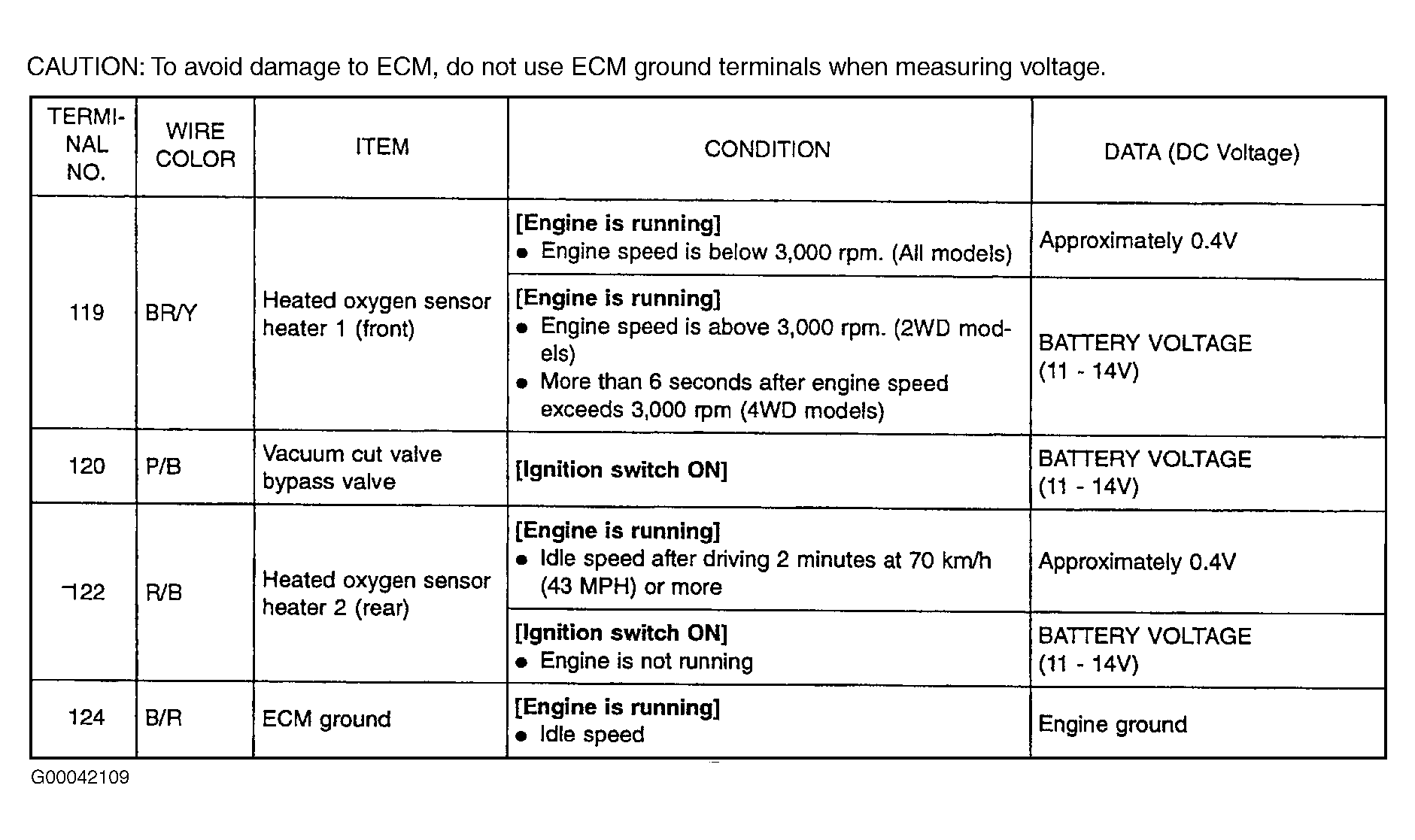

Fig 24: Pin Voltage Chart (Frontier 2.4L & Xterra 2.4L - 8 Of 8)

G00042109

Courtesy of NISSAN MOTOR CO., U.S.A.

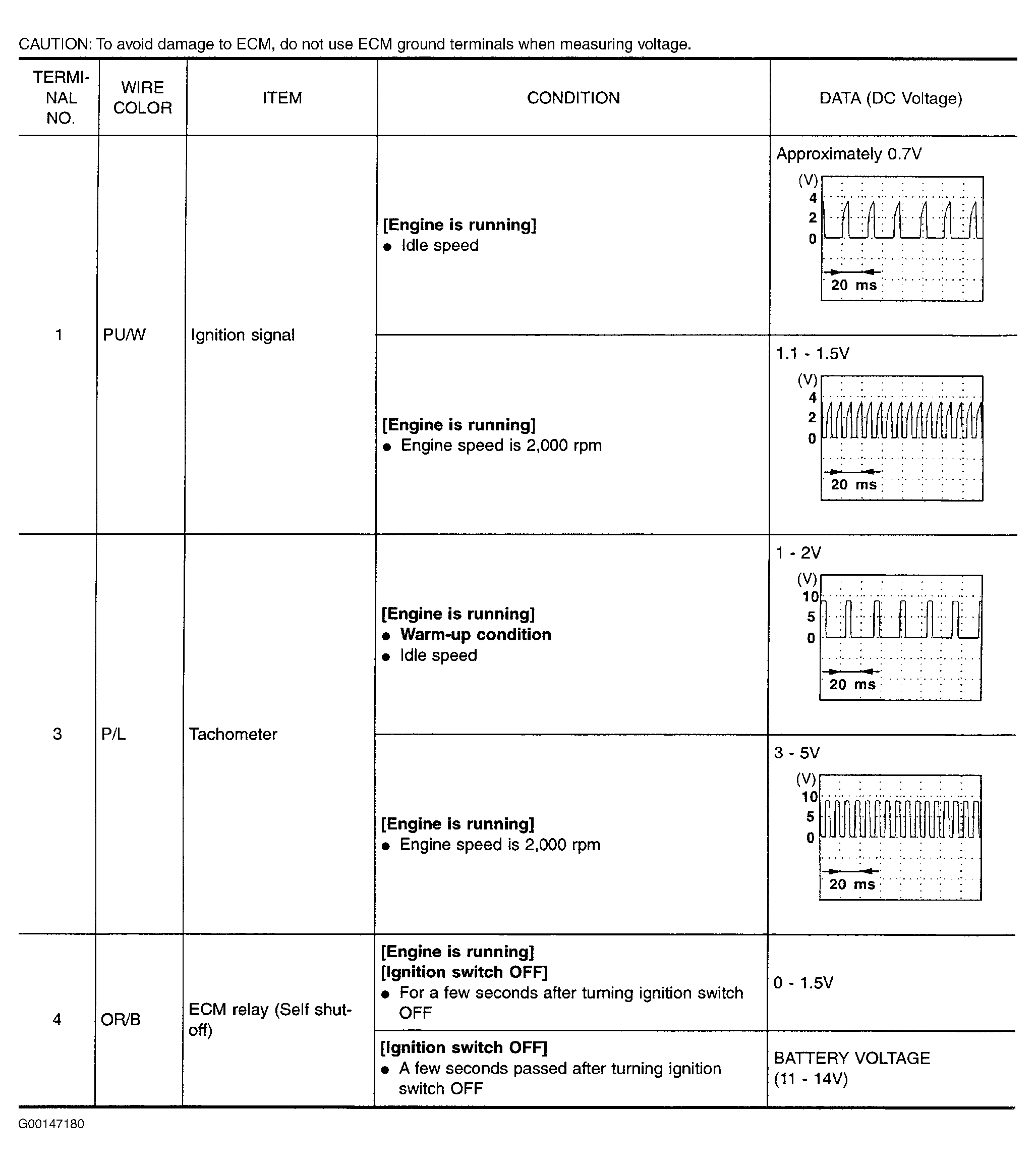

Fig 25: Pin Voltage Chart (Frontier 3.3L With Supercharger & Xterra 3.3L With Supercharger - 1 Of 8)

G00147180

Courtesy of NISSAN MOTOR CO., U.S.A.

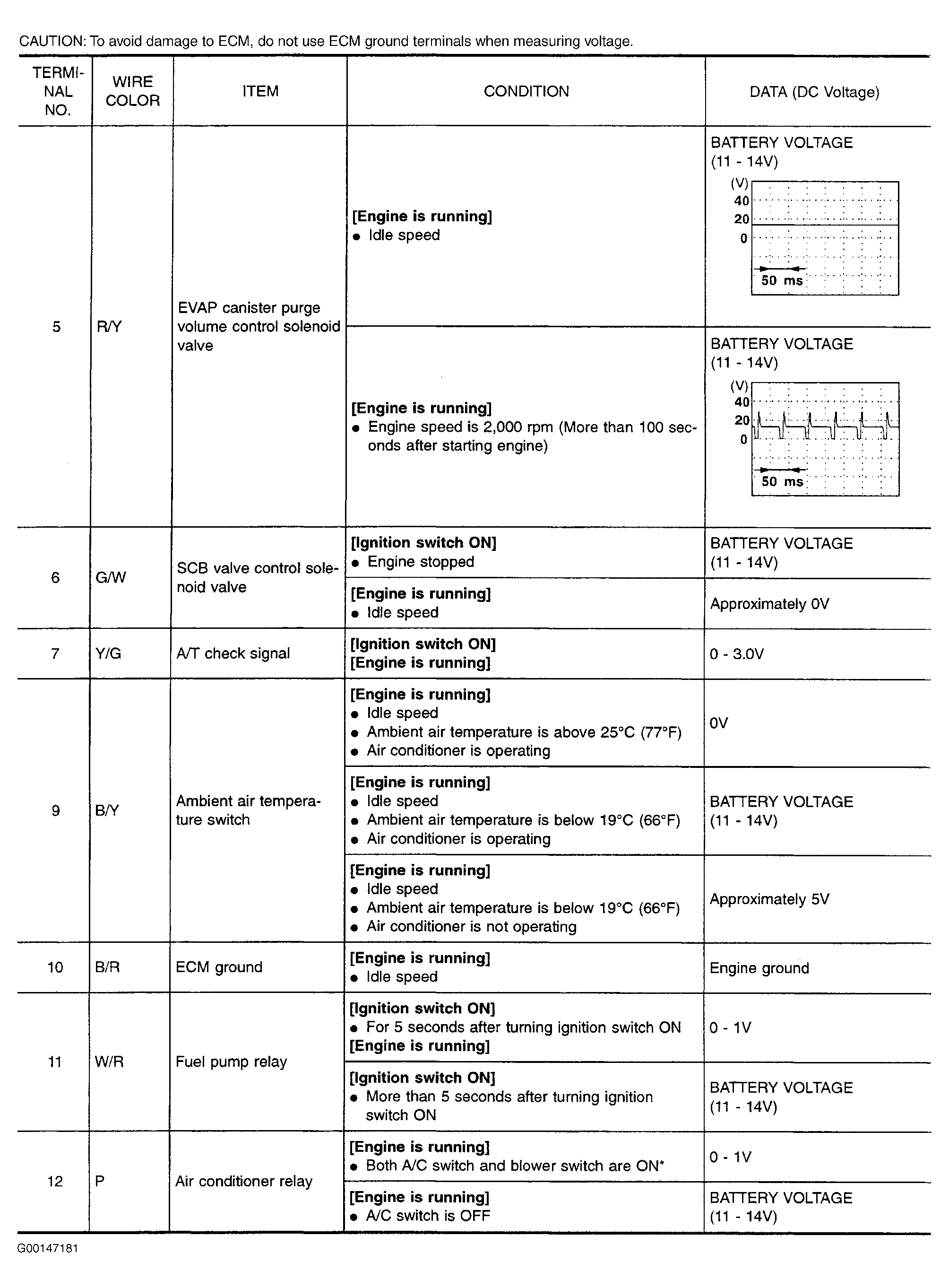

Fig 26: Pin Voltage Chart (Frontier 3.3L With Supercharger & Xterra 3.3L With Supercharger - 2 Of 8)

G00147181

Courtesy of NISSAN MOTOR CO., U.S.A.

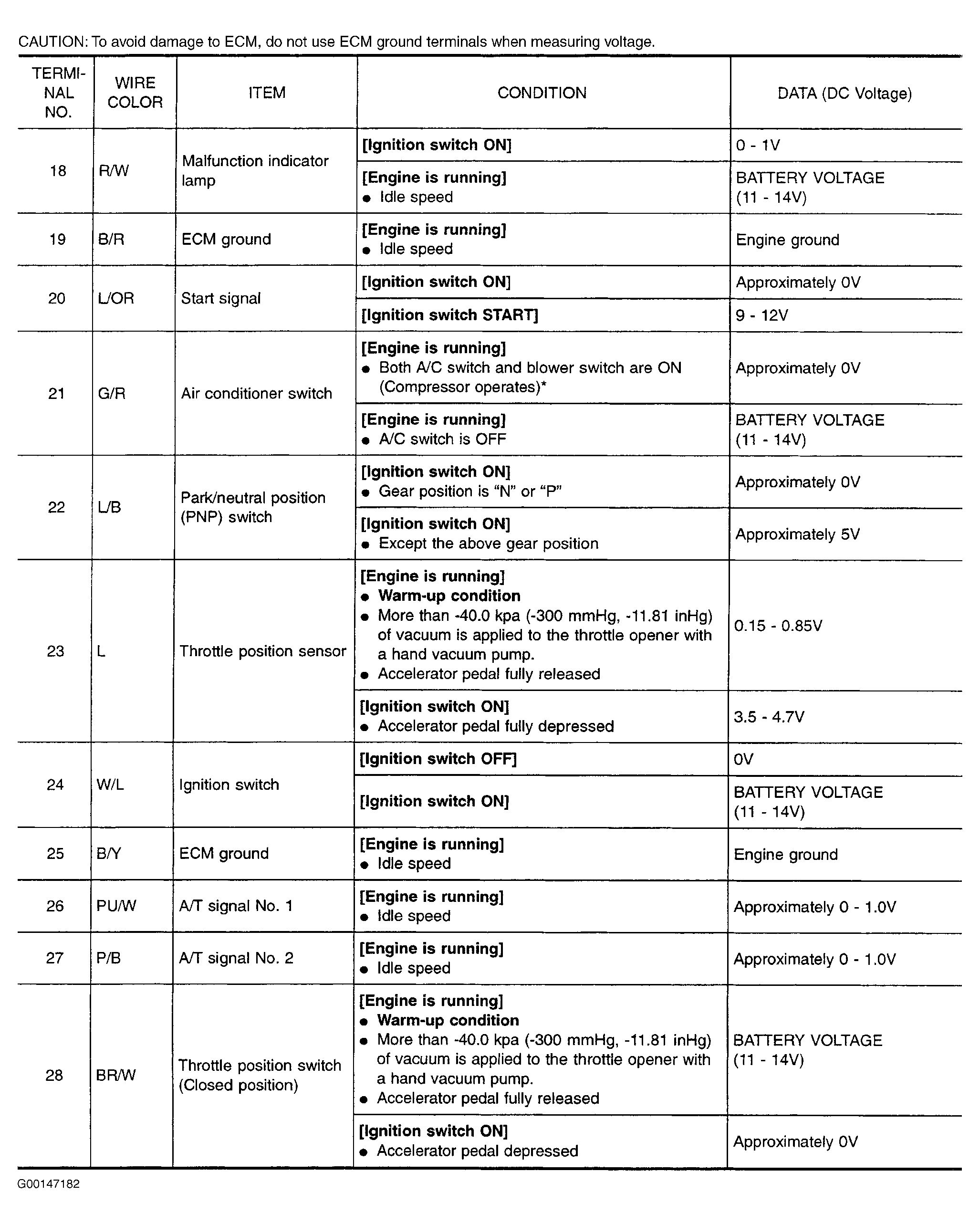

Fig 27: Pin Voltage Chart (Frontier 3.3L With Supercharger & Xterra 3.3L With Supercharger - 3 Of 8)

G00147182

Courtesy of NISSAN MOTOR CO., U.S.A.

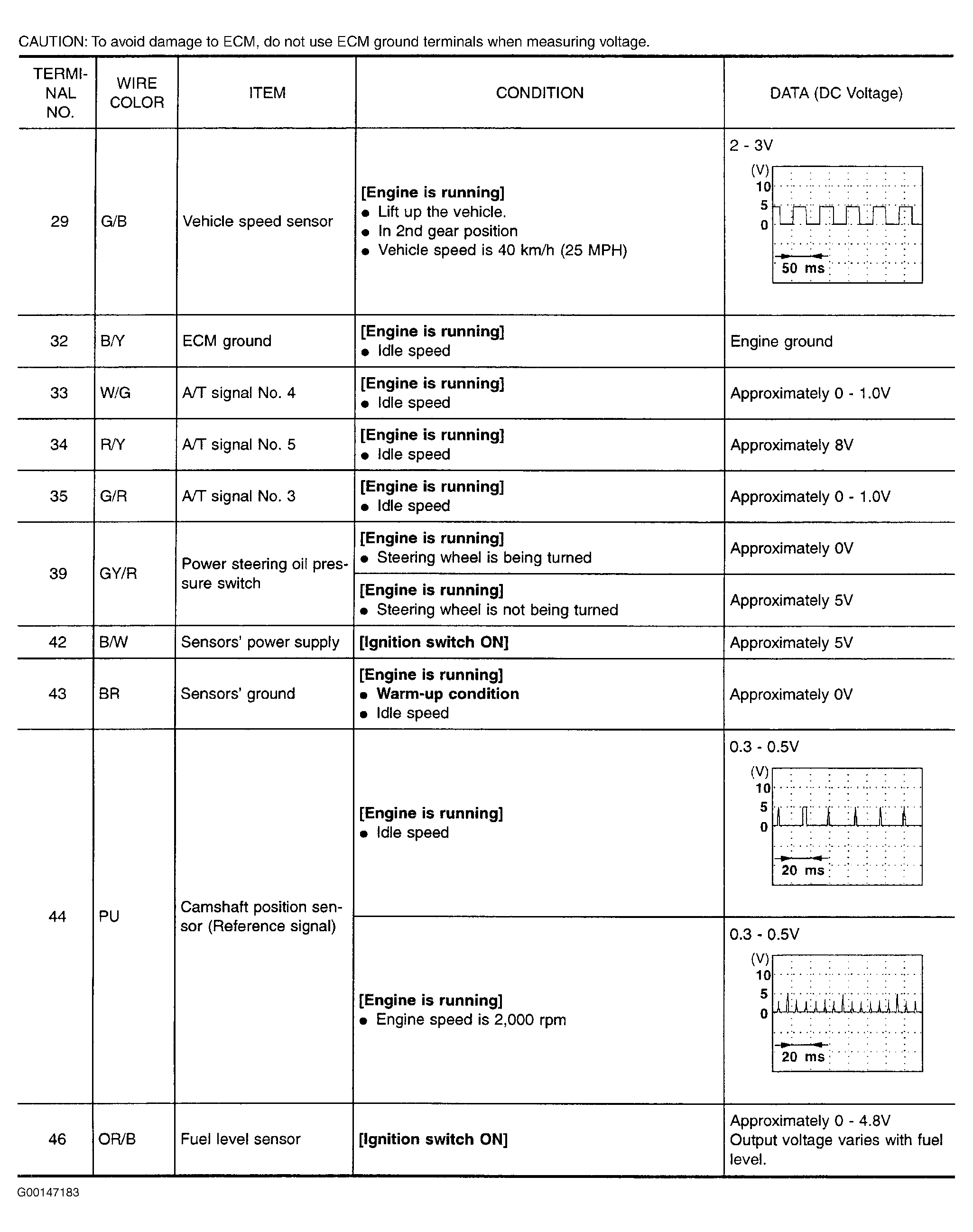

Fig 28: Pin Voltage Chart (Frontier 3.3L With Supercharger & Xterra 3.3L With Supercharger - 4 Of 8)

G00147183

Courtesy of NISSAN MOTOR CO., U.S.A.

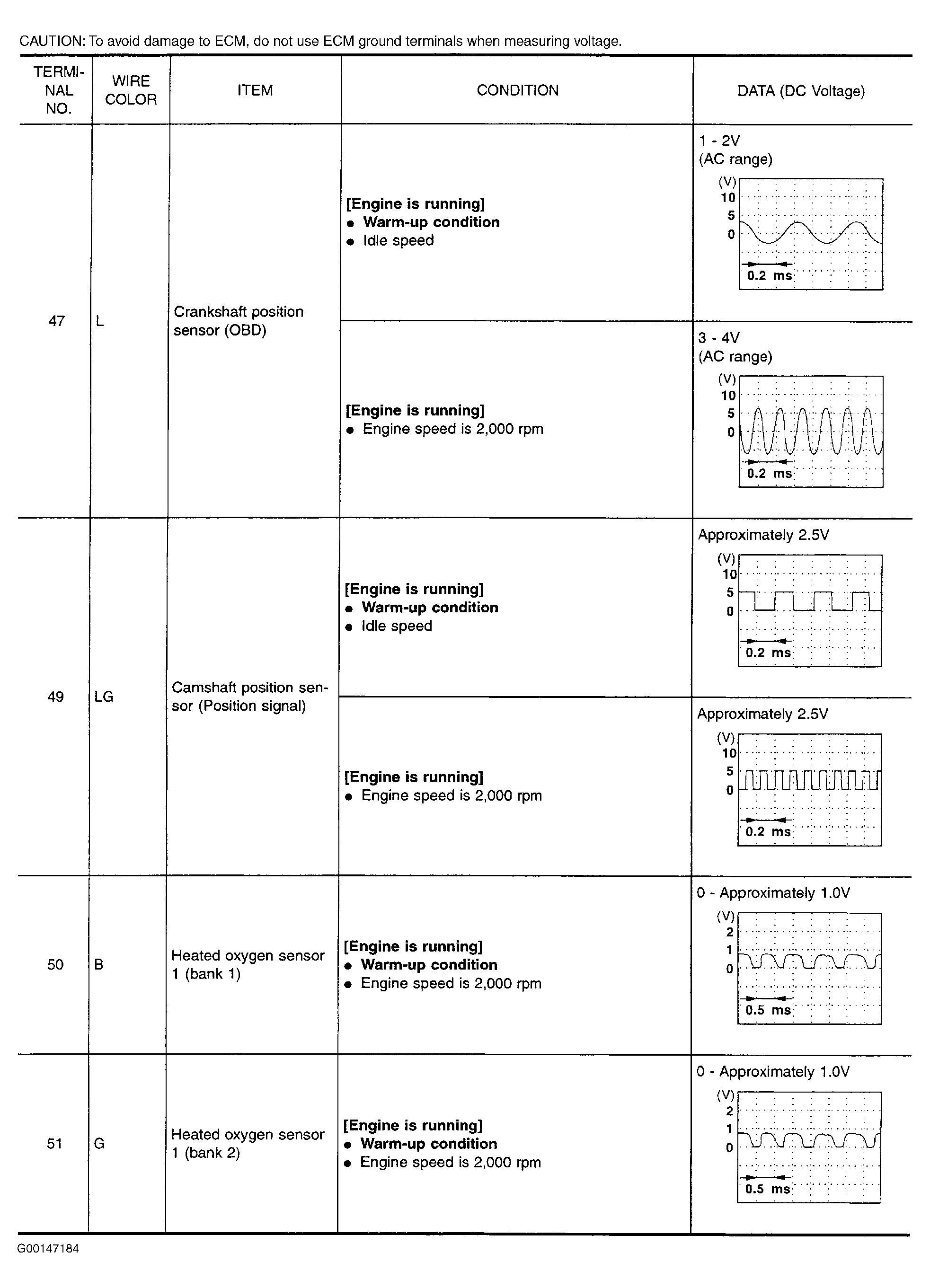

Fig 29: Pin Voltage Chart (Frontier 3.3L With Supercharger & Xterra 3.3L With Supercharger - 5 Of 8)

G00147184

Courtesy of NISSAN MOTOR CO., U.S.A.

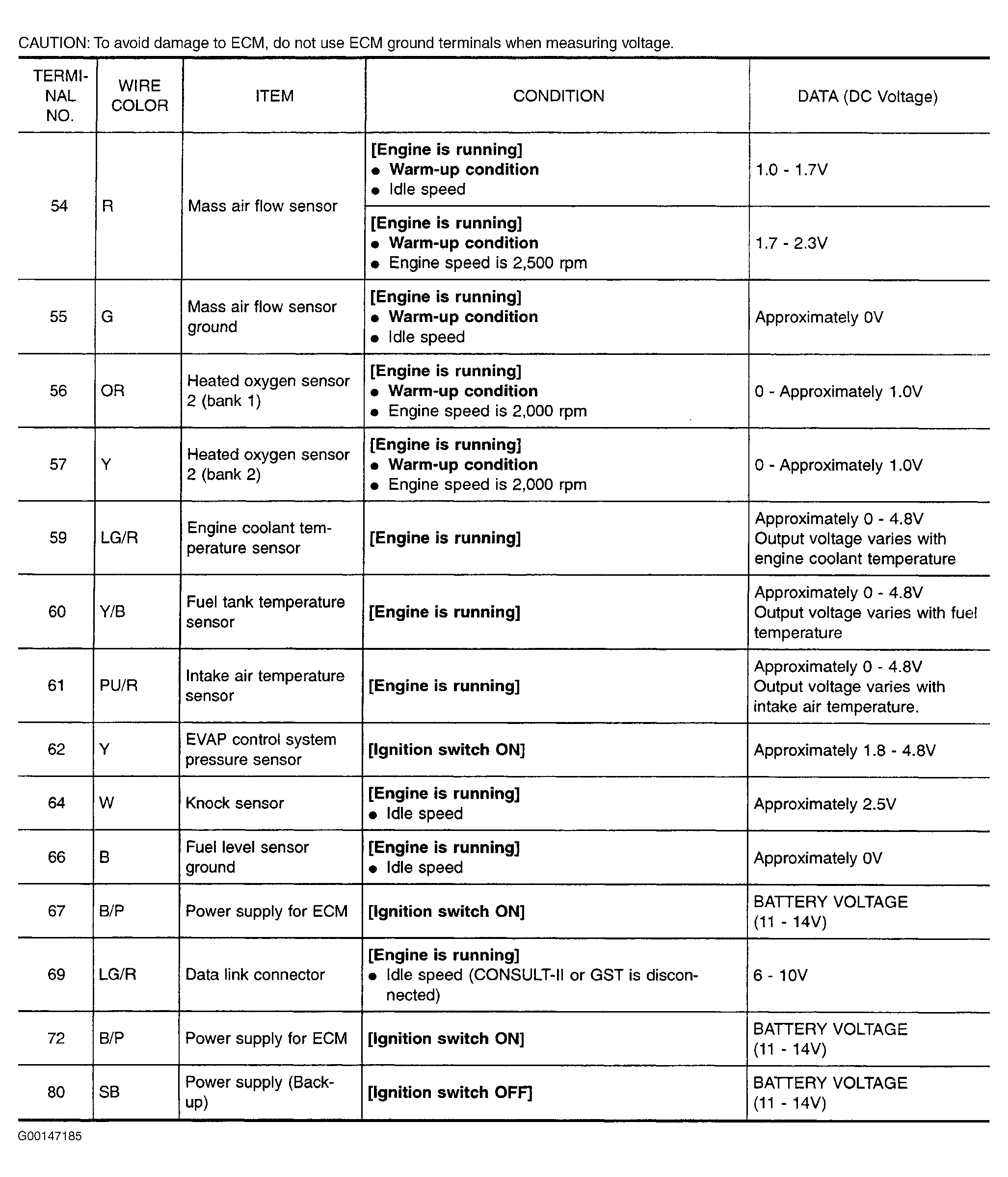

Fig 30: Pin Voltage Chart (Frontier 3.3L With Supercharger & Xterra 3.3L With Supercharger - 6 Of 8)

G00147185

Courtesy of NISSAN MOTOR CO., U.S.A.

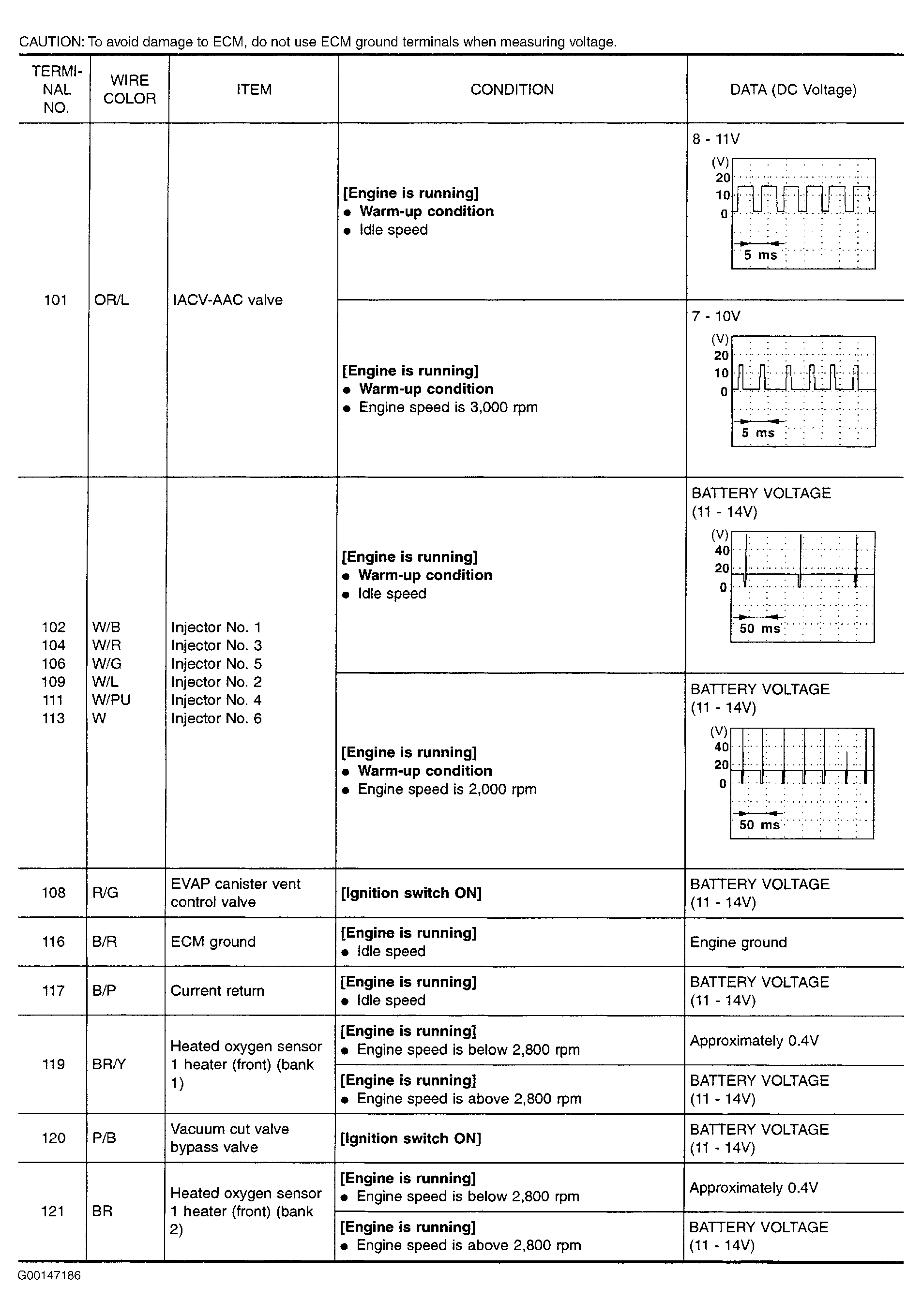

Fig 31: Pin Voltage Chart (Frontier 3.3L With Supercharger & Xterra 3.3L With Supercharger - 7 Of 8)

G00147186

Courtesy of NISSAN MOTOR CO., U.S.A.

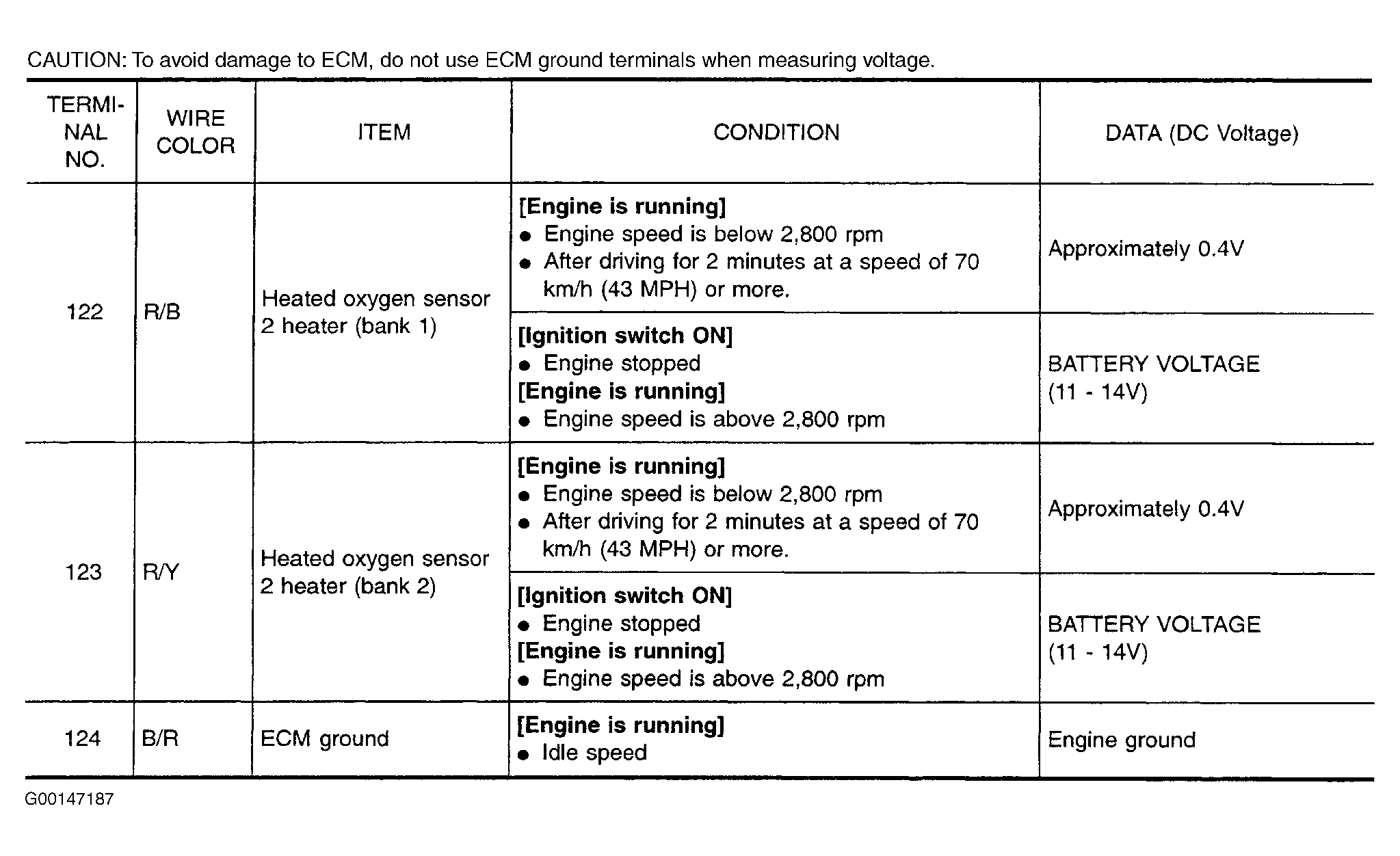

Fig 32: Pin Voltage Chart (Frontier 3.3L With Supercharger & Xterra 3.3L With Supercharger - 8 Of 8)

G00147187

Courtesy of NISSAN MOTOR CO., U.S.A.

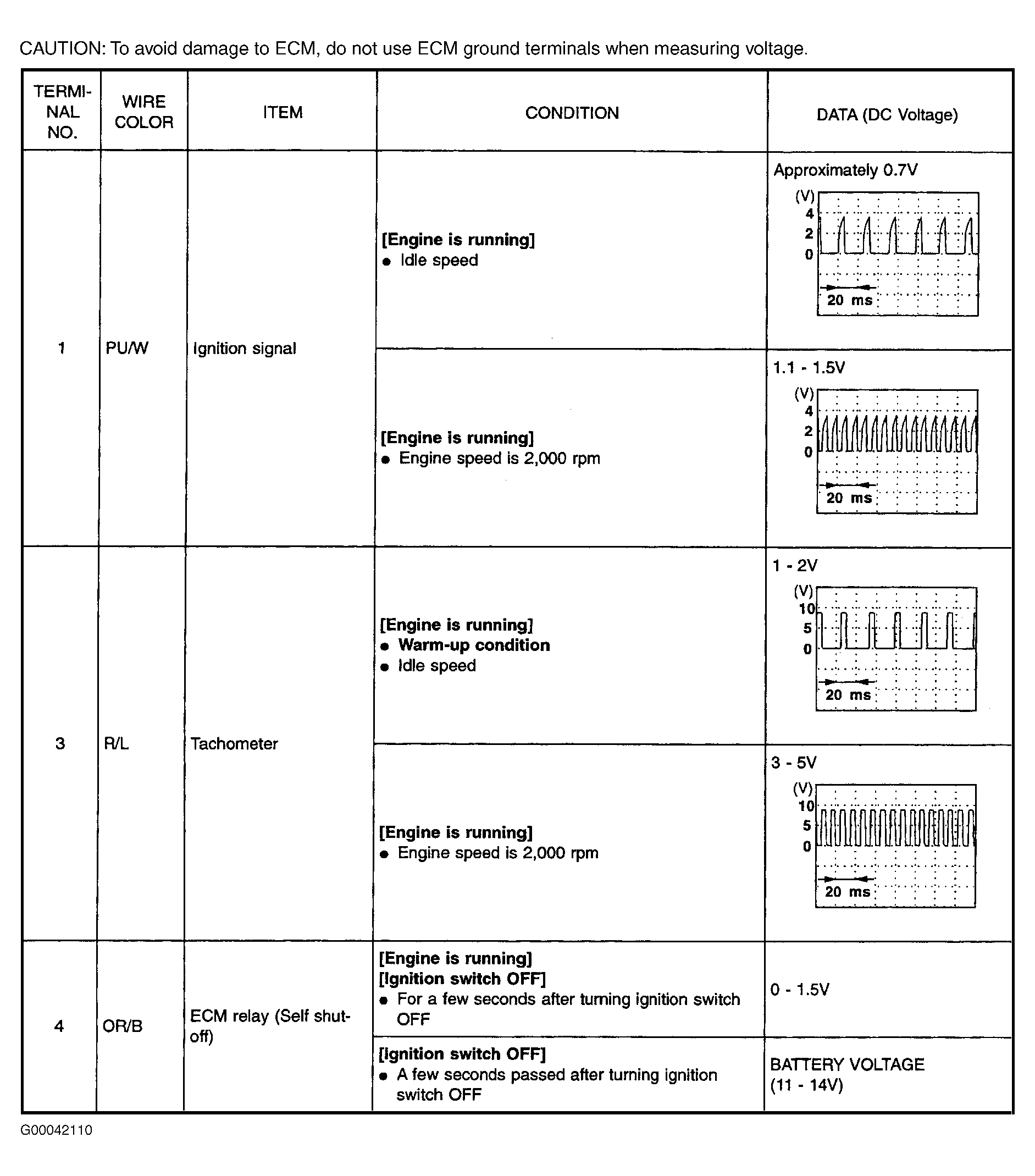

Fig 33: Pin Voltage Chart (Frontier 3.3L Without Supercharger & Xterra 3.3L Without Supercharger - 1 Of 8)

G00042110

Courtesy of NISSAN MOTOR CO., U.S.A.

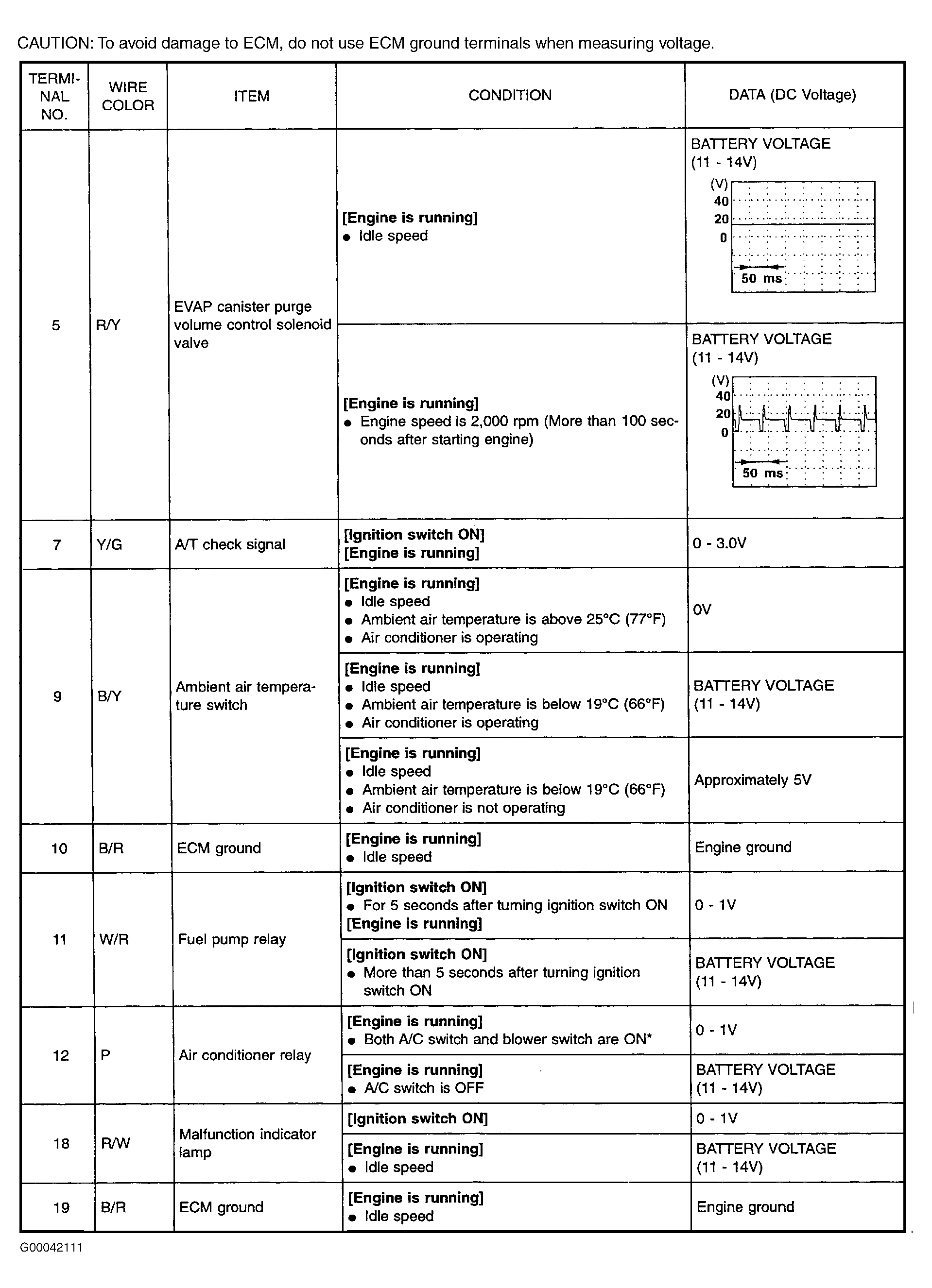

Fig 34: Pin Voltage Chart (Frontier 3.3L Without Supercharger & Xterra 3.3L Without Supercharger - 2 Of 8)

G00042111

Courtesy of NISSAN MOTOR CO., U.S.A.

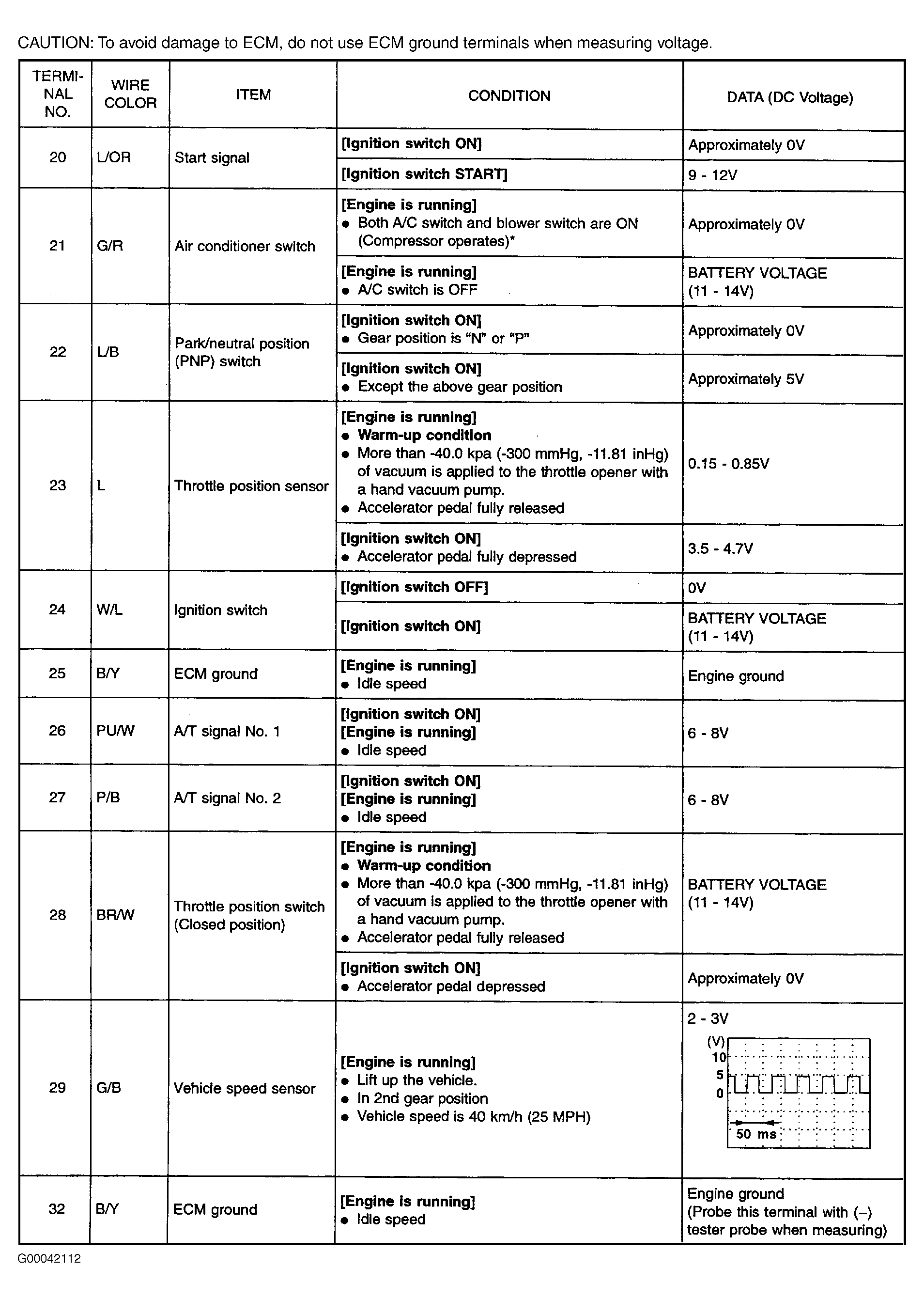

Fig 35: Pin Voltage Chart (Frontier 3.3L Without Supercharger & Xterra 3.3L Without Supercharger - 3 Of 8)

G00042112

Courtesy of NISSAN MOTOR CO., U.S.A.

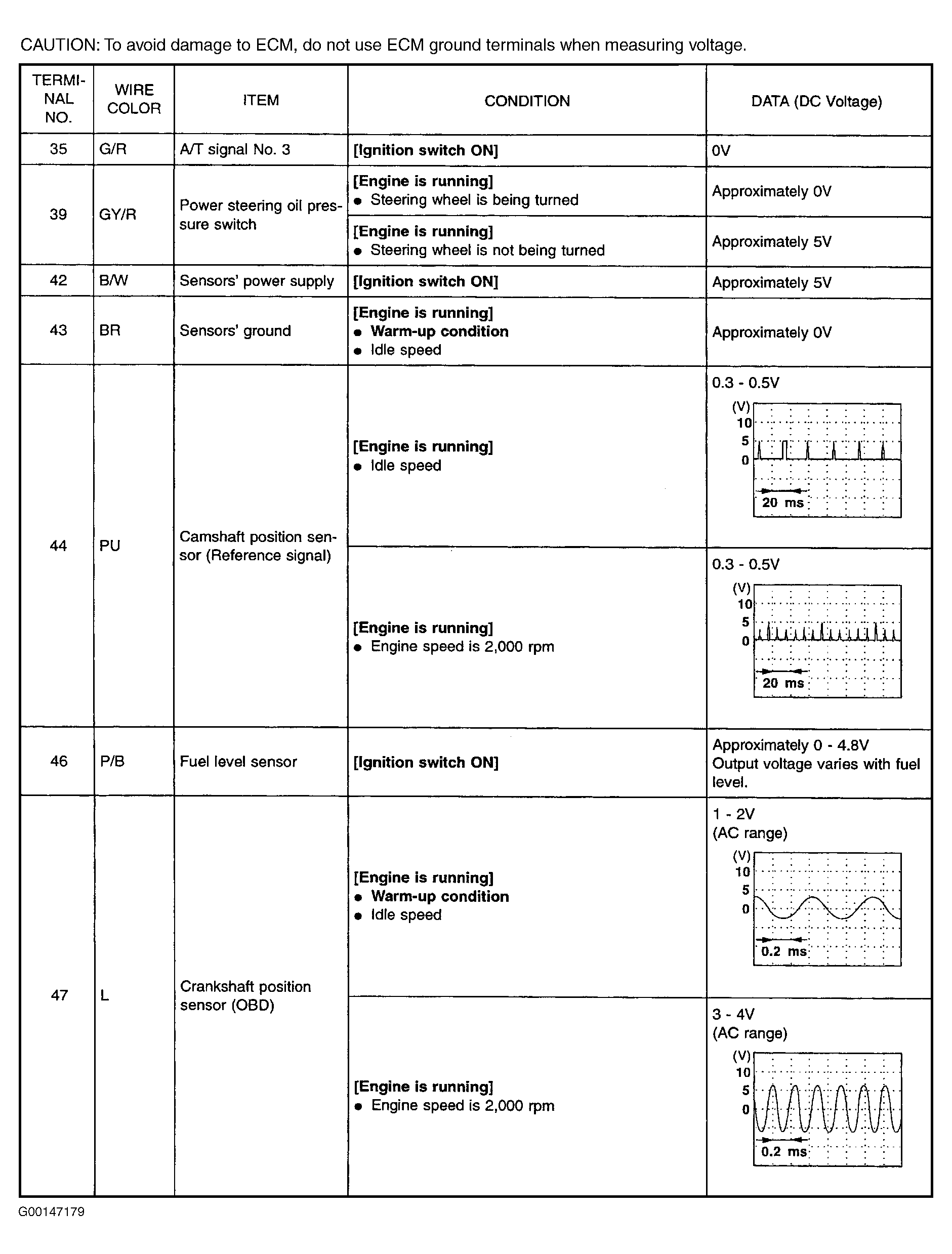

Fig 36: Pin Voltage Chart (Frontier 3.3L Without Supercharger & Xterra 3.3L Without Supercharger - 4 Of 8)

G00147179

Courtesy of NISSAN MOTOR CO., U.S.A.

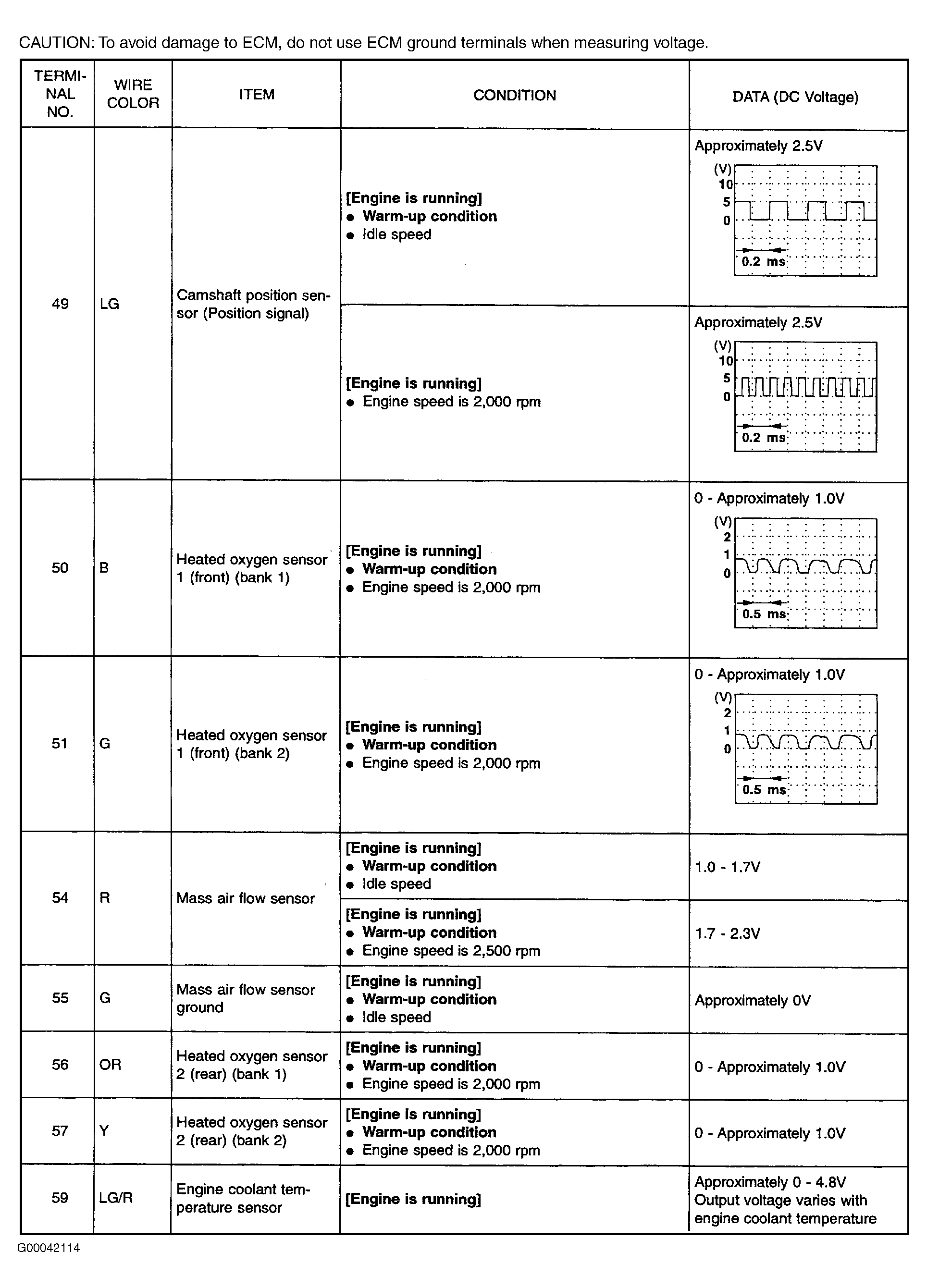

Fig 37: Pin Voltage Chart (Frontier 3.3L Without Supercharger & Xterra 3.3L Without Supercharger - 5 Of 8)

G00042114

Courtesy of NISSAN MOTOR CO., U.S.A.

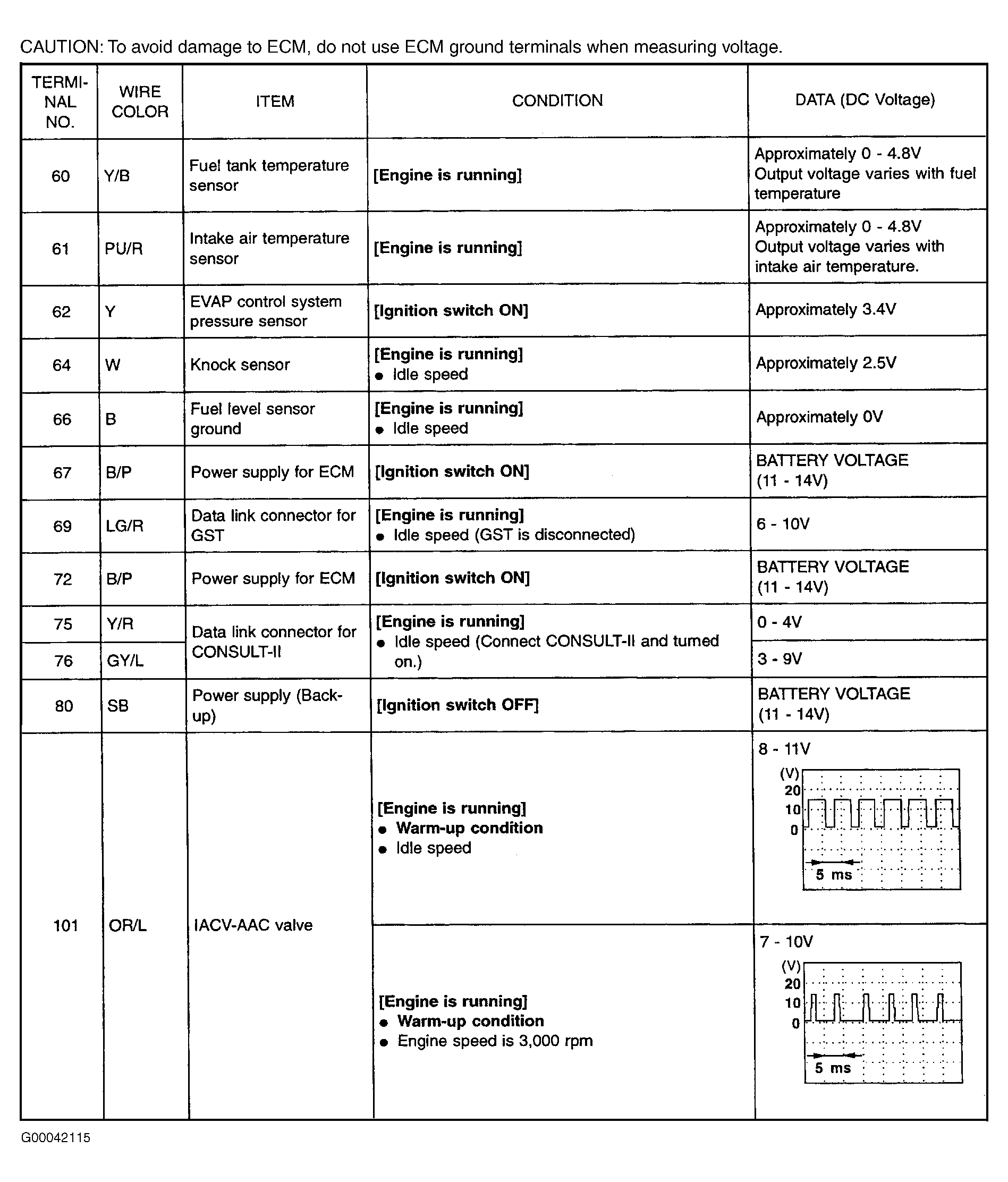

Fig 38: Pin Voltage Chart (Frontier 3.3L Without Supercharger & Xterra 3.3L Without Supercharger - 6 Of 8)

G00042115

Courtesy of NISSAN MOTOR CO., U.S.A.

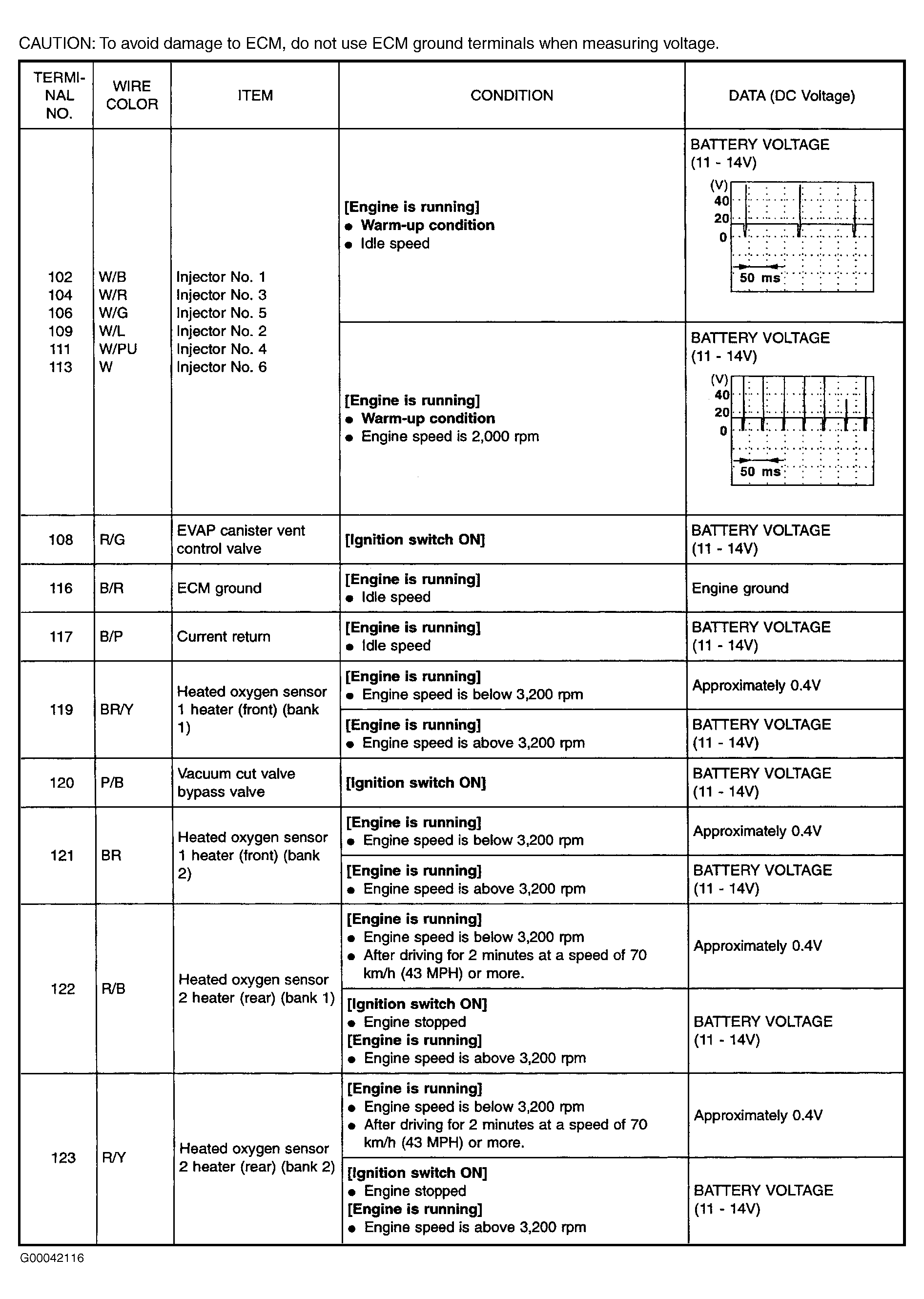

Fig 39: Pin Voltage Chart (Frontier 3.3L Without Supercharger & Xterra 3.3L Without Supercharger - 7 Of 8)

G00042116

Courtesy of NISSAN MOTOR CO., U.S.A.

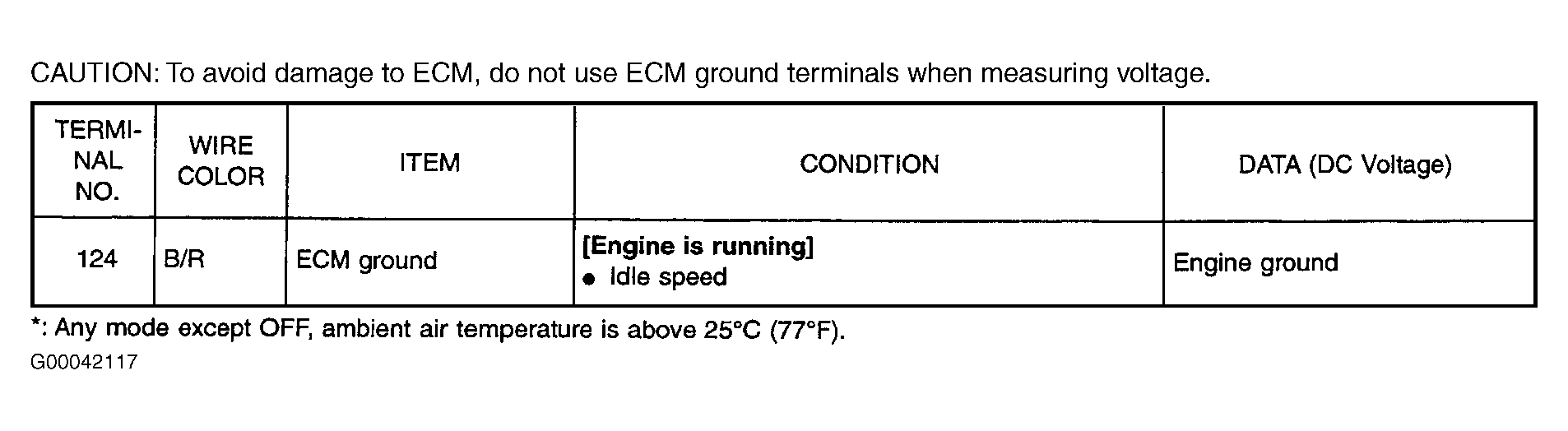

Fig 40: Pin Voltage Chart (Frontier 3.3L Without Supercharger & Xterra 3.3L Without Supercharger - 8 Of 8)

G00042117

Courtesy of NISSAN MOTOR CO., U.S.A.

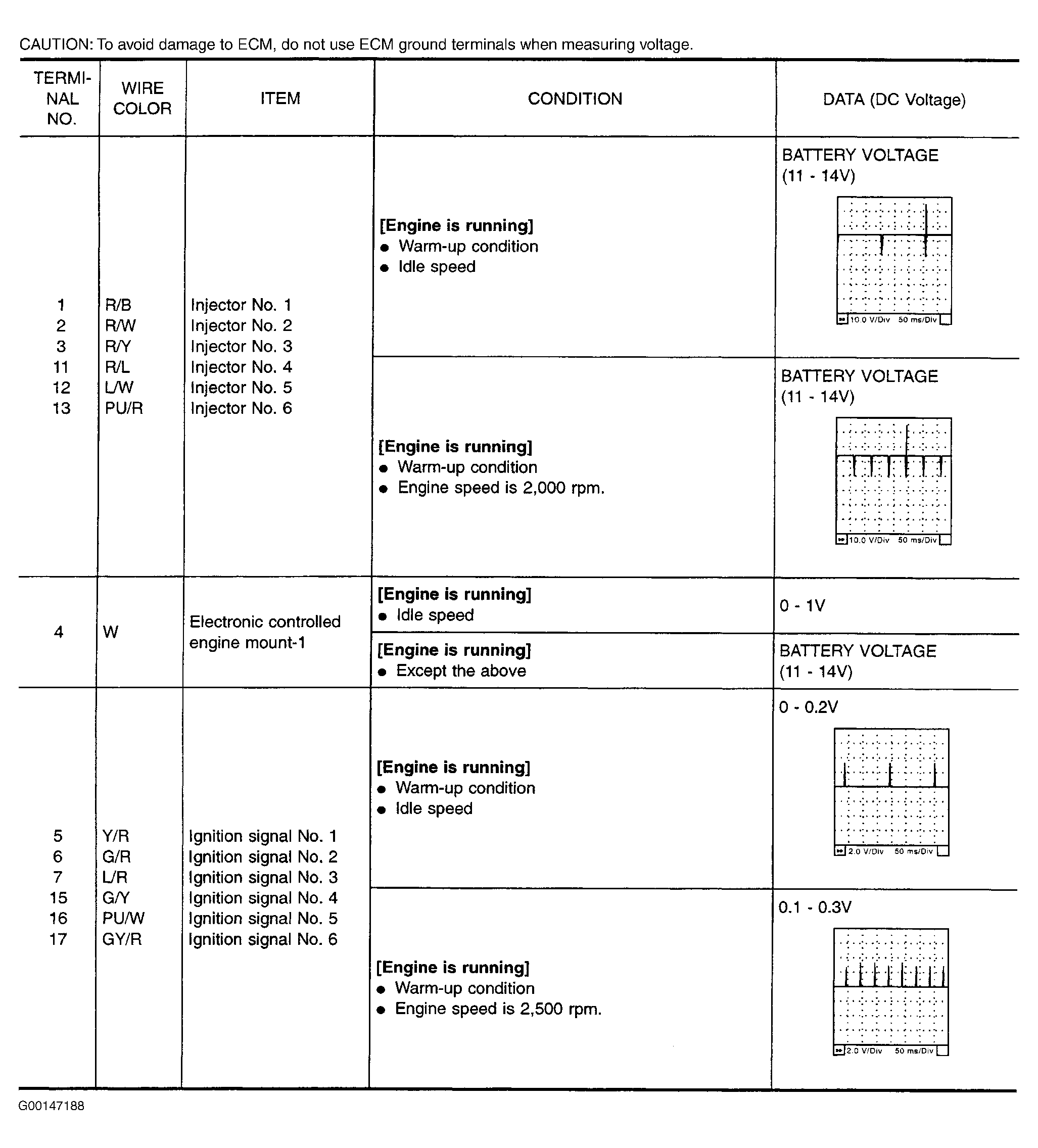

Fig 41: Pin Voltage Chart (I35 & Maxima - 1 Of 10)

G00147188

Courtesy of NISSAN MOTOR CO., U.S.A.

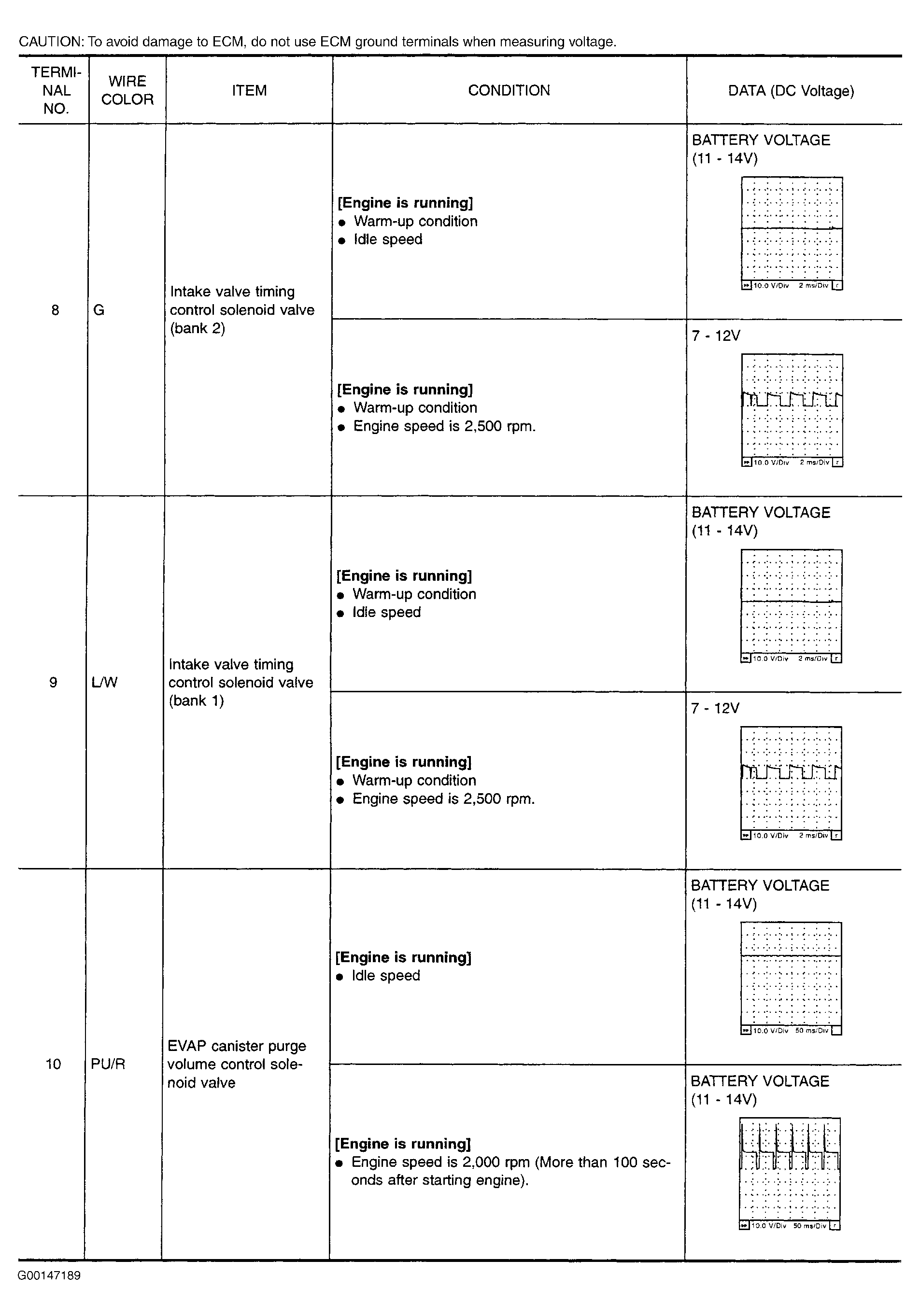

Fig 42: Pin Voltage Chart (I35 & Maxima - 2 Of 10)

G00147189

Courtesy of NISSAN MOTOR CO., U.S.A.

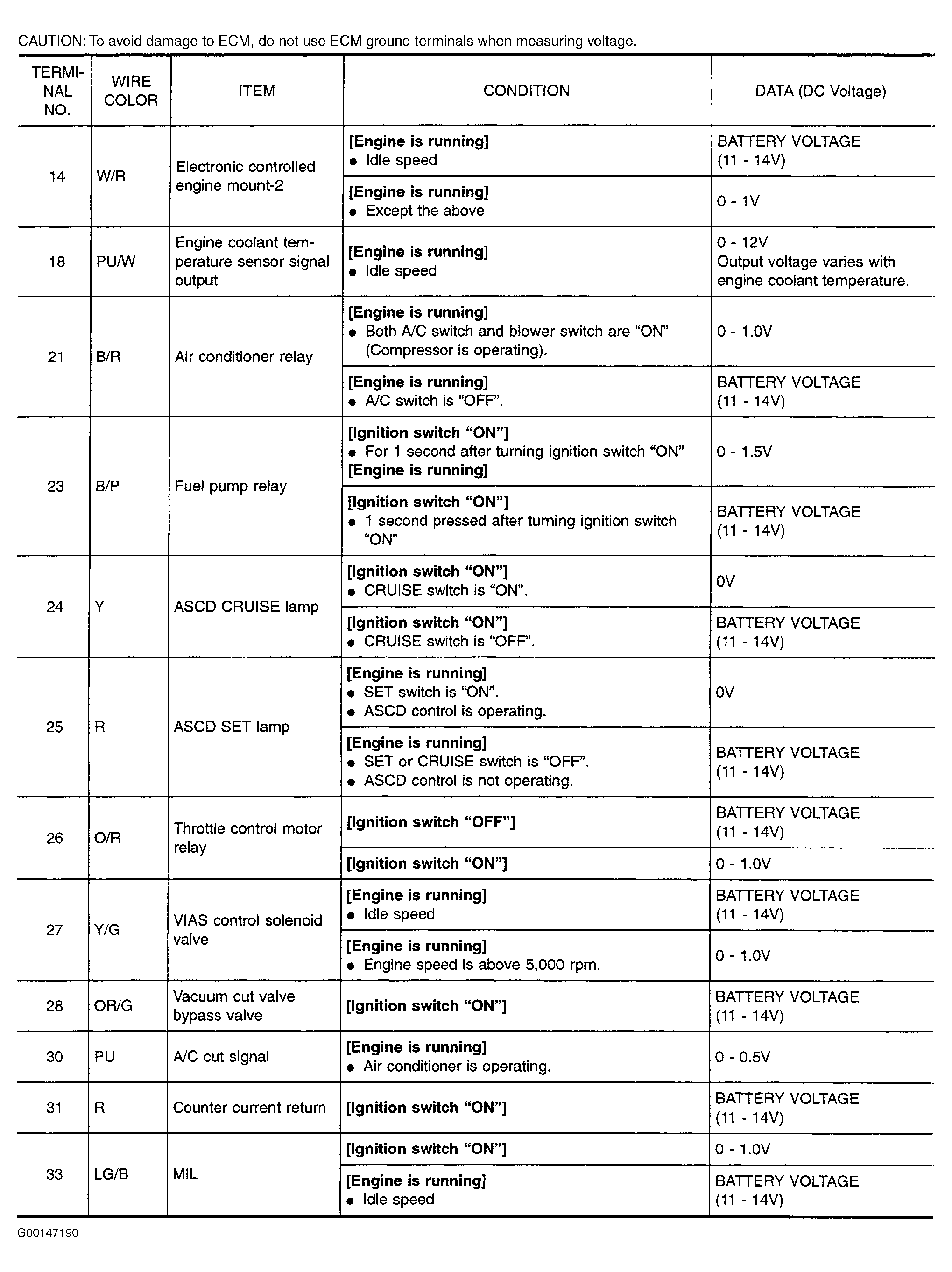

Fig 43: Pin Voltage Chart (I35 & Maxima - 3 Of 10)

G00147190

Courtesy of NISSAN MOTOR CO., U.S.A.

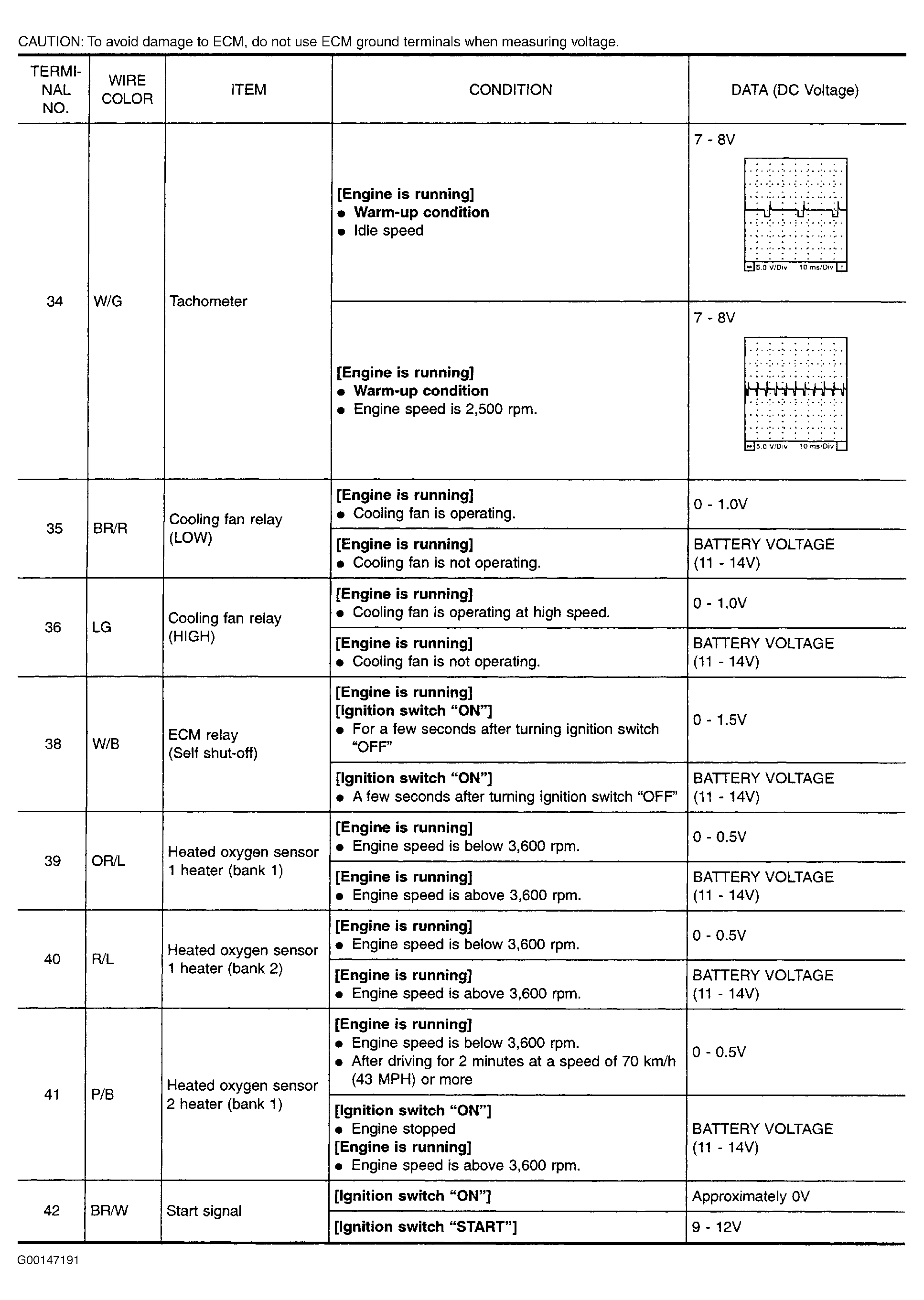

Fig 44: Pin Voltage Chart (I35 & Maxima - 4 Of 10)

G00147191

Courtesy of NISSAN MOTOR CO., U.S.A.

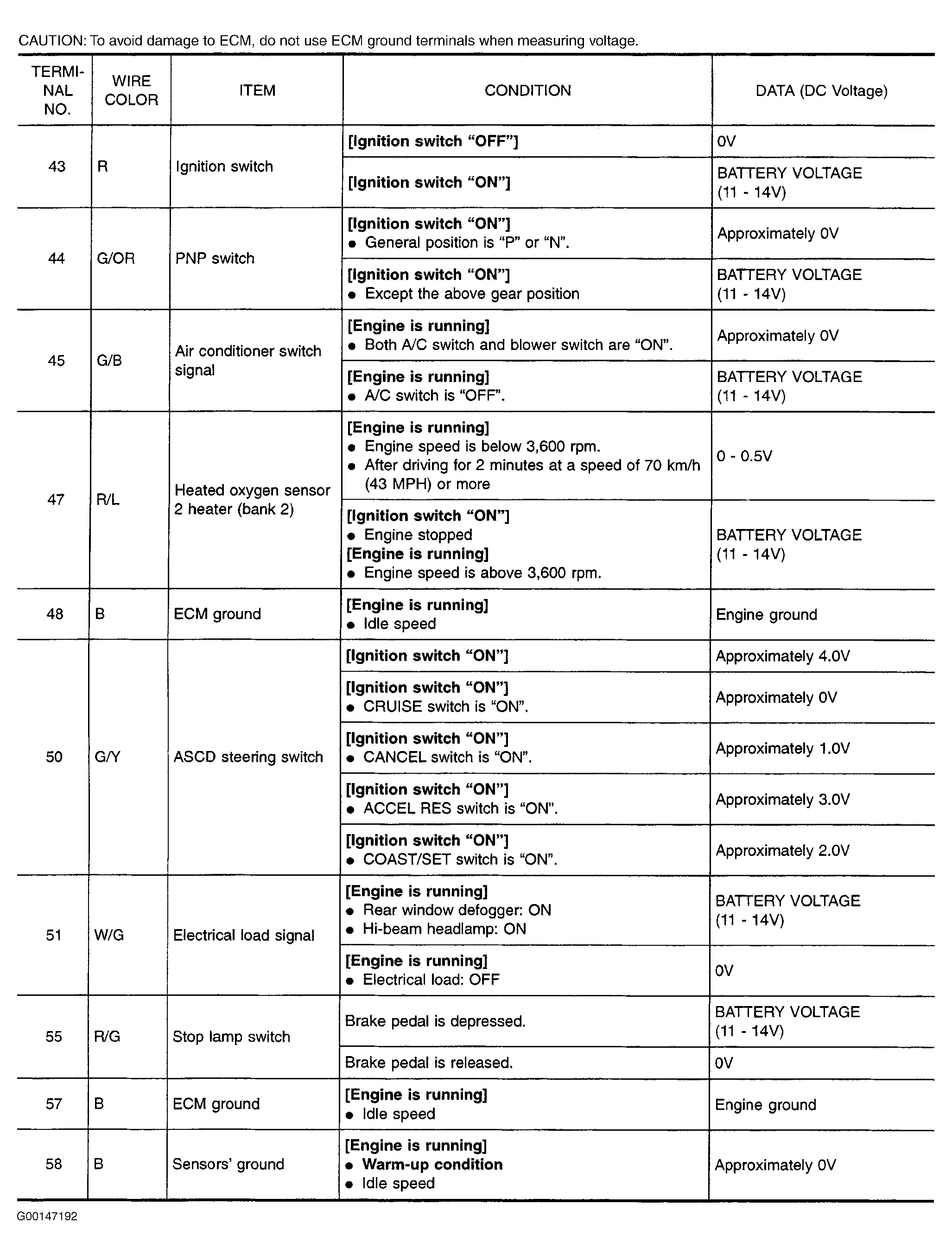

Fig 45: Pin Voltage Chart (I35 & Maxima - 5 Of 10)

G00147192

Courtesy of NISSAN MOTOR CO., U.S.A.

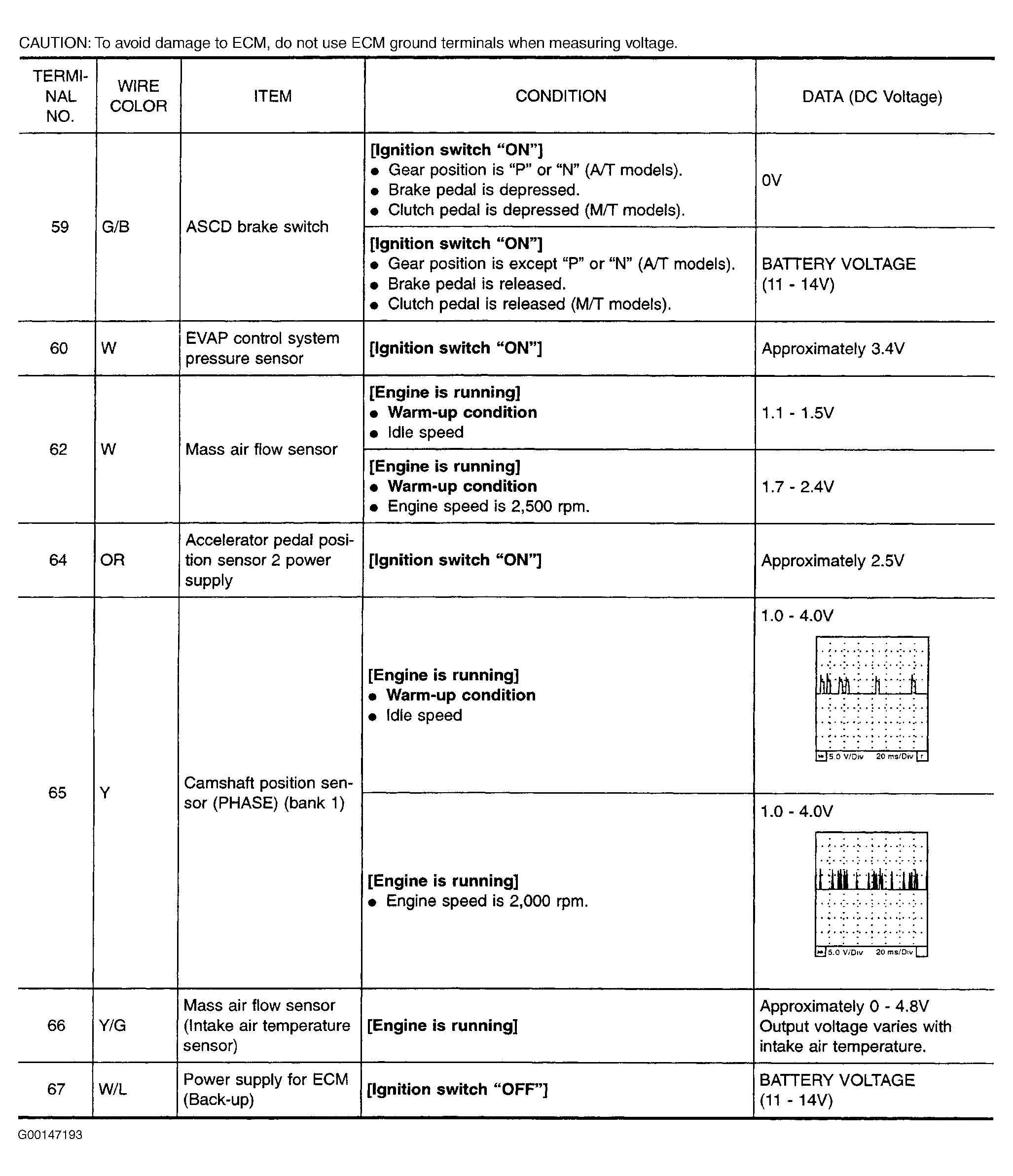

Fig 46: Pin Voltage Chart (I35 & Maxima - 6 Of 10)

G00147193

Courtesy of NISSAN MOTOR CO., U.S.A.

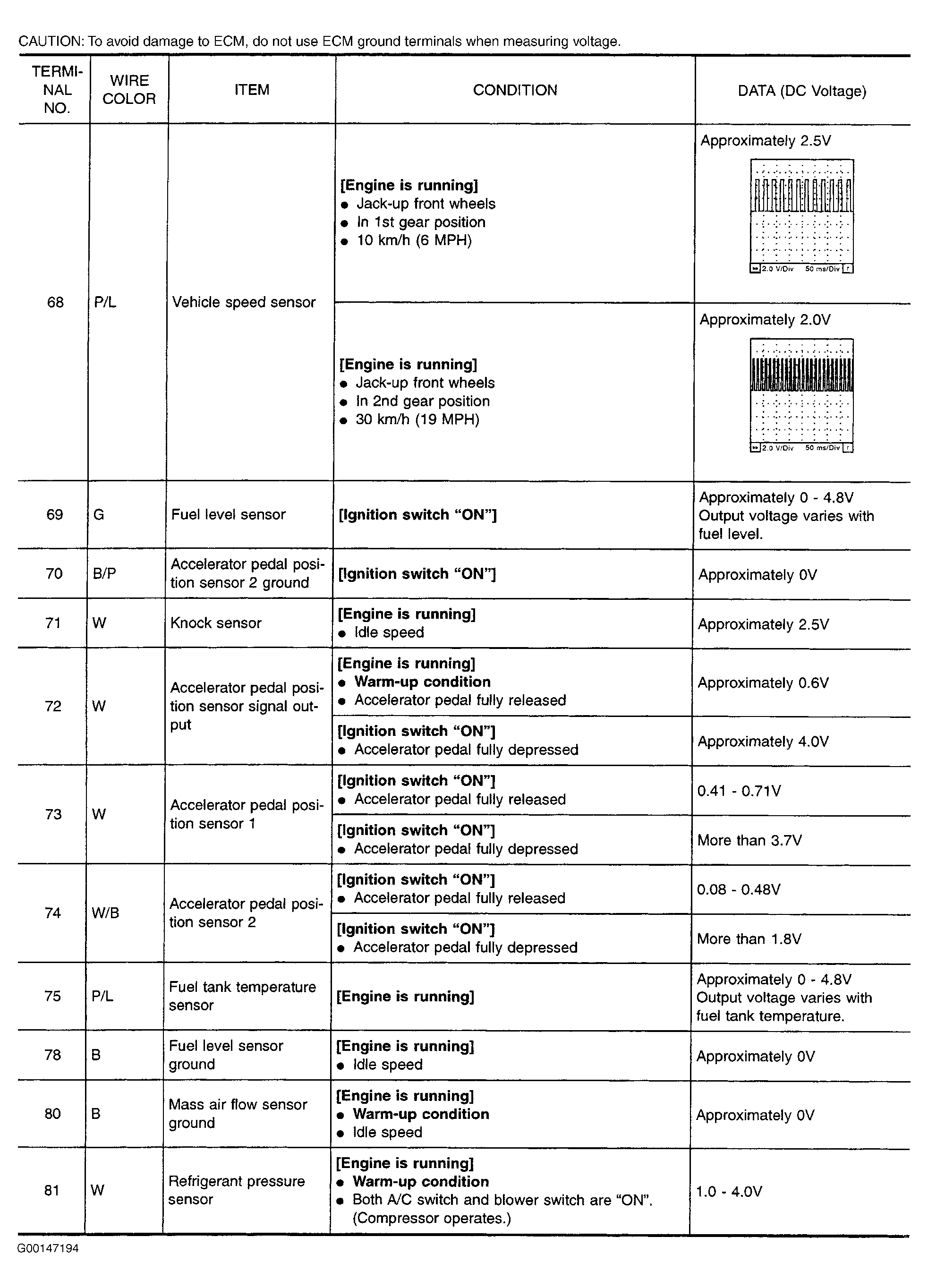

Fig 47: Pin Voltage Chart (I35 & Maxima - 7 Of 10)

G00147194

Courtesy of NISSAN MOTOR CO., U.S.A.

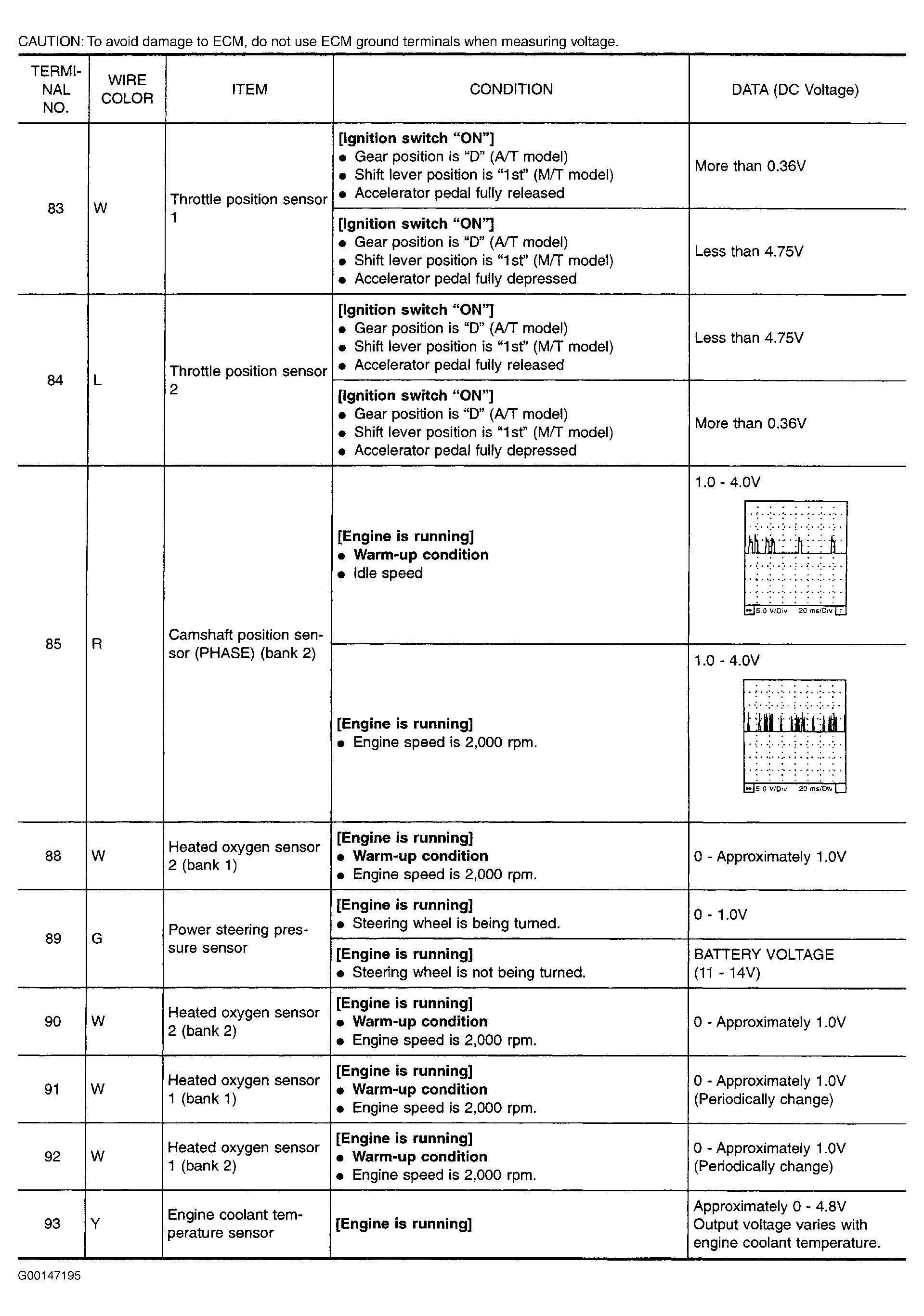

Fig 48: Pin Voltage Chart (I35 & Maxima - 8 Of 10)

G00147195

Courtesy of NISSAN MOTOR CO., U.S.A.

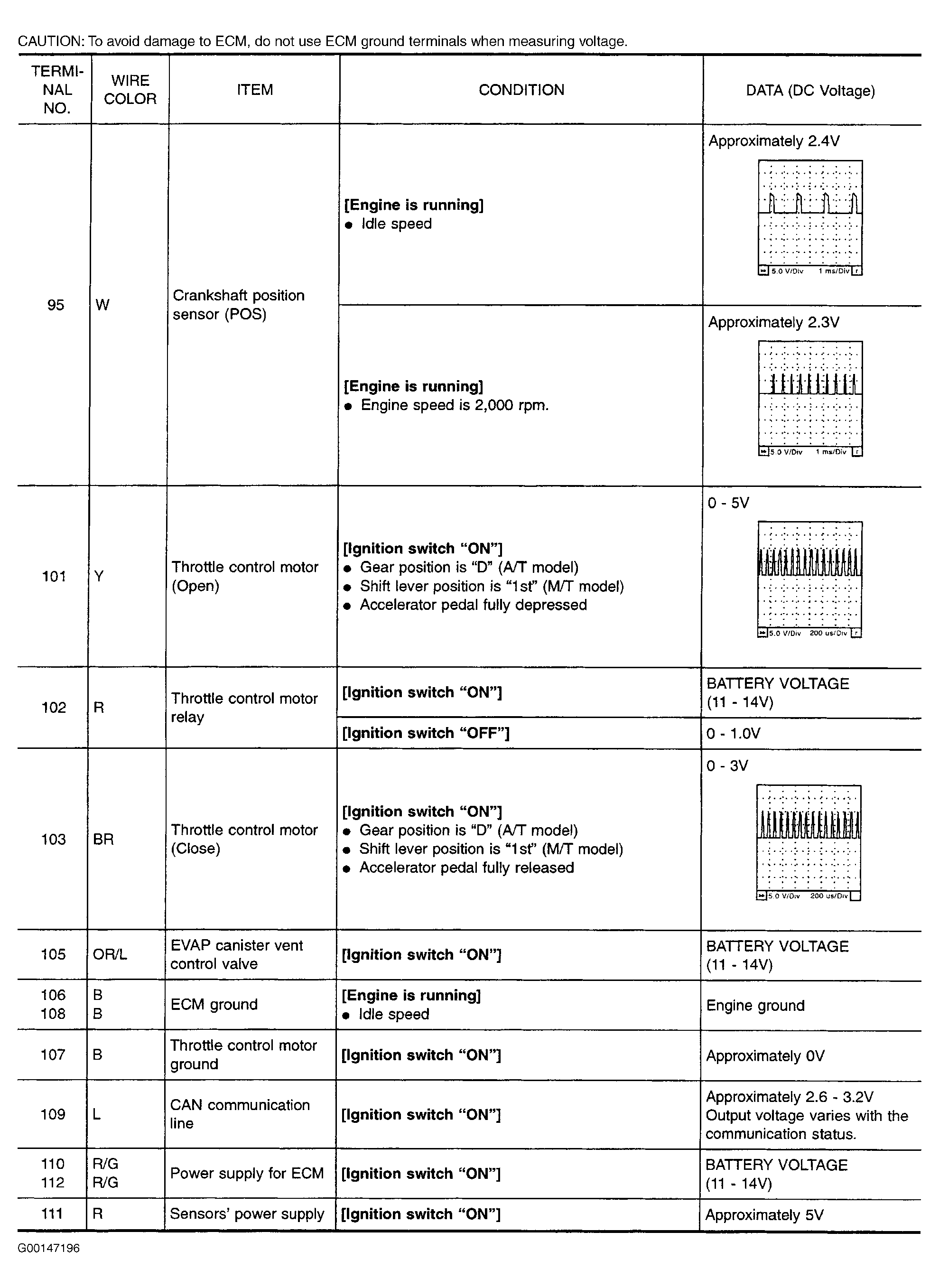

Fig 49: Pin Voltage Chart (I35 & Maxima - 9 Of 10)

G00147196

Courtesy of NISSAN MOTOR CO., U.S.A.

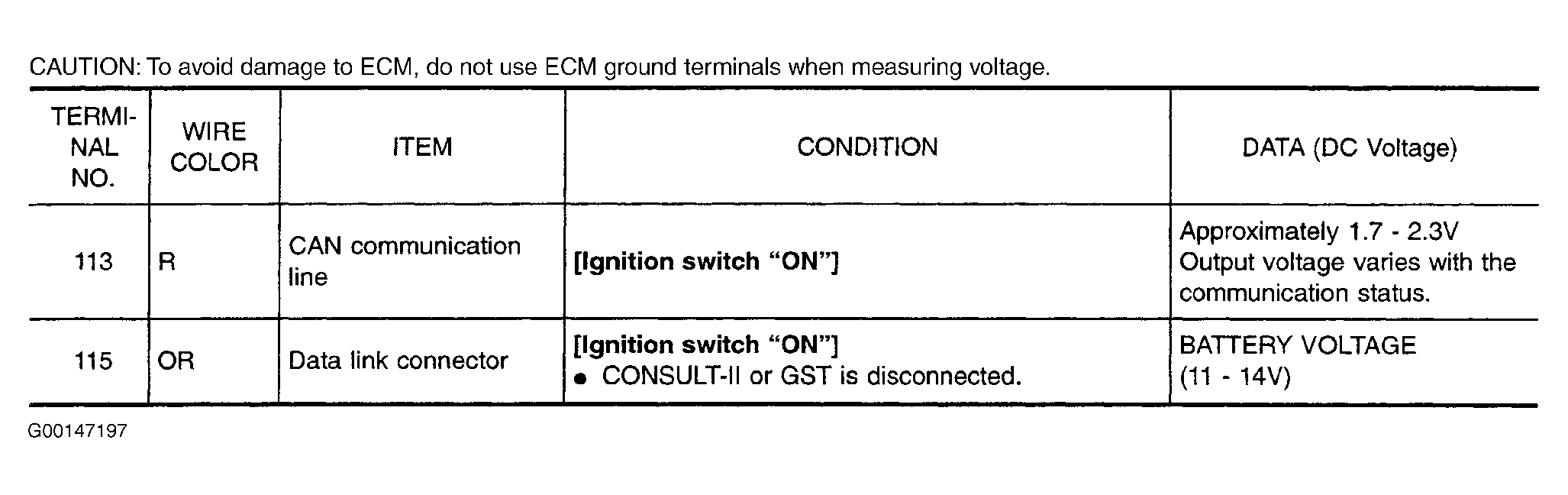

Fig 50: Pin Voltage Chart (I35 & Maxima - 10 Of 10)

G00147197

Courtesy of NISSAN MOTOR CO., U.S.A.

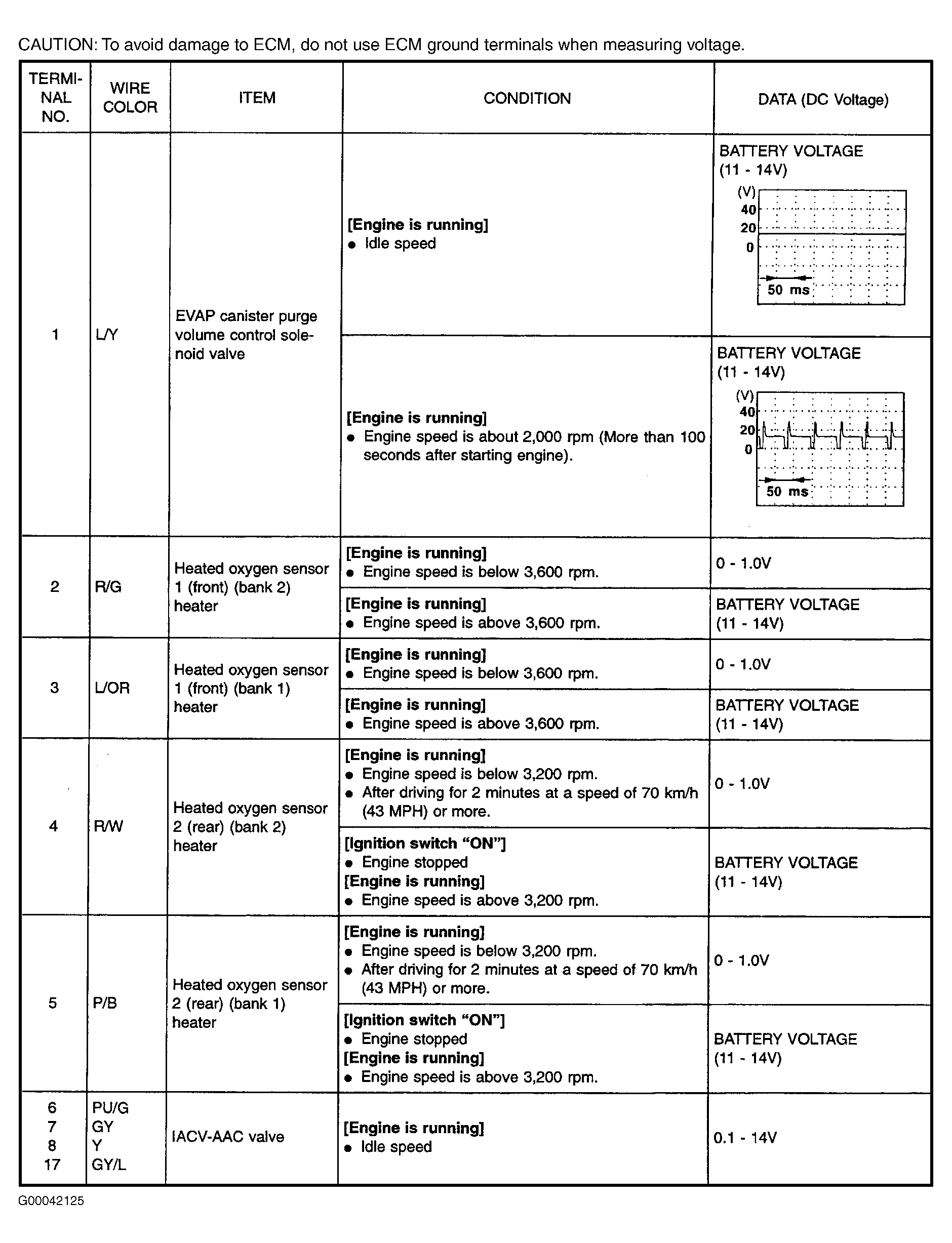

Fig 51: Pin Voltage Chart (Pathfinder & QX4 - 1 Of 8)

G00042125

Courtesy of NISSAN MOTOR CO., U.S.A.

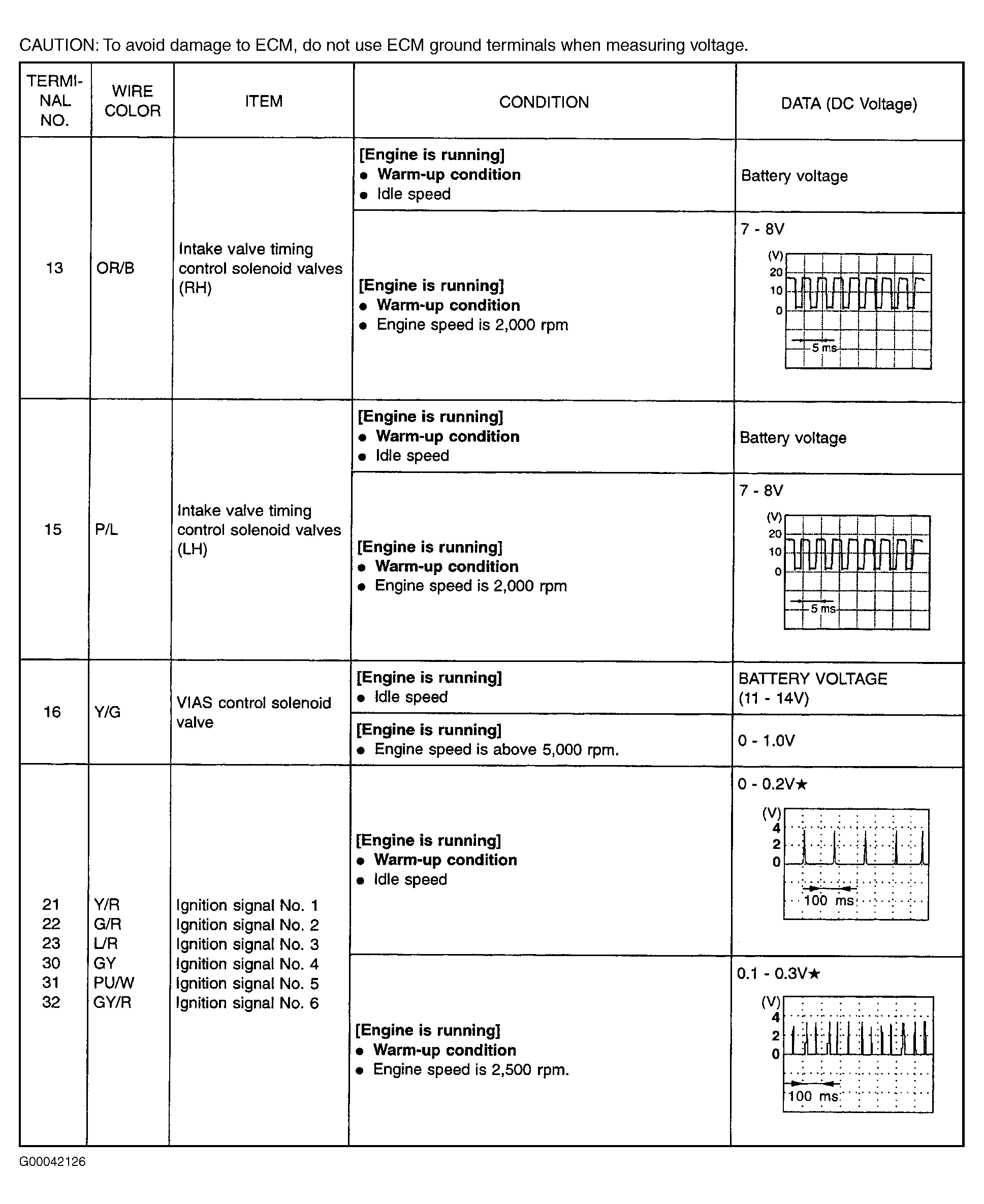

Fig 52: Pin Voltage Chart (Pathfinder & QX4 - 2 Of 8)

G00042126

Courtesy of NISSAN MOTOR CO., U.S.A.

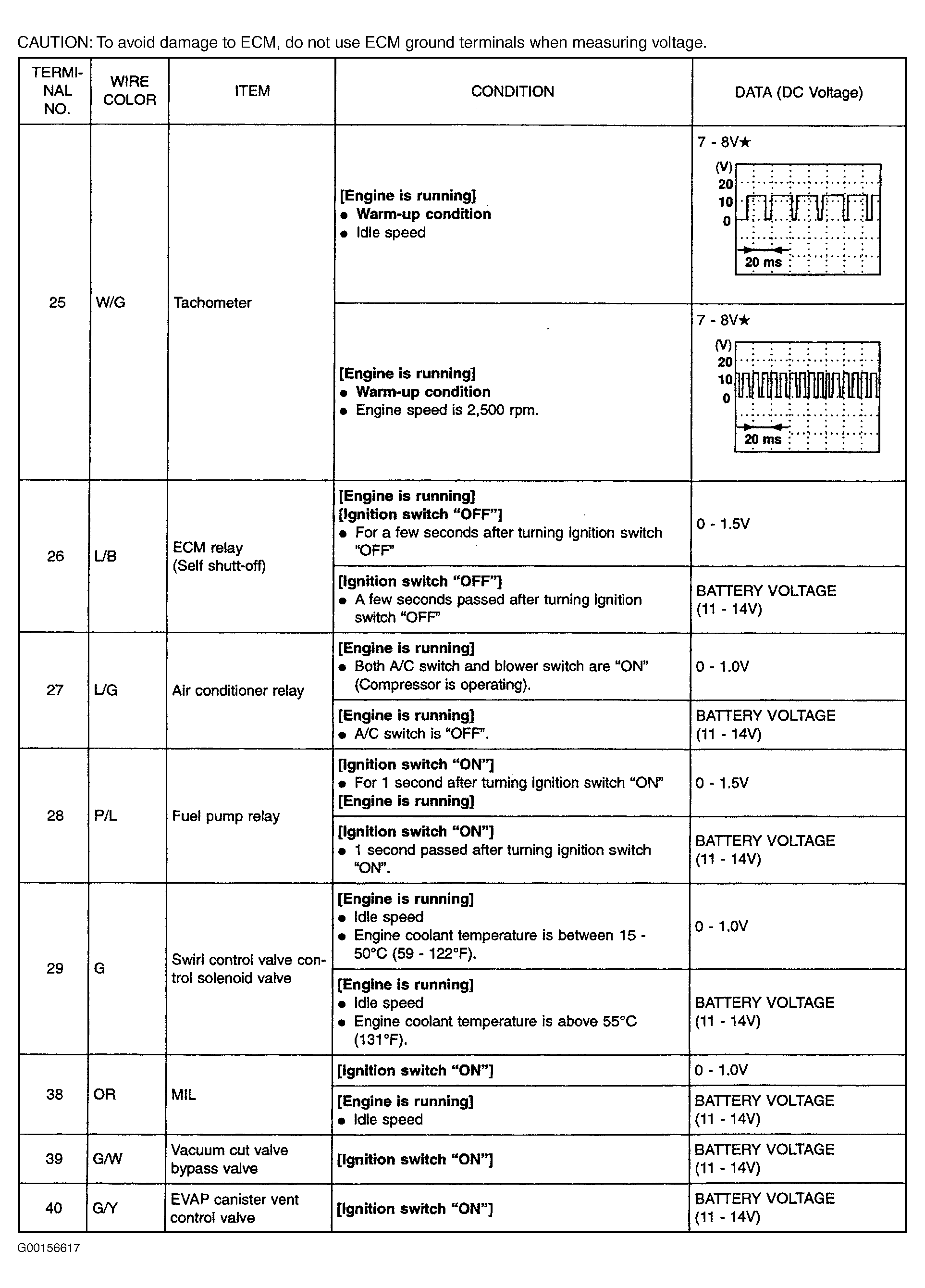

Fig 53: Pin Voltage Chart (Pathfinder & QX4 - 3 Of 8)

G00156617

Courtesy of NISSAN MOTOR CO., U.S.A.

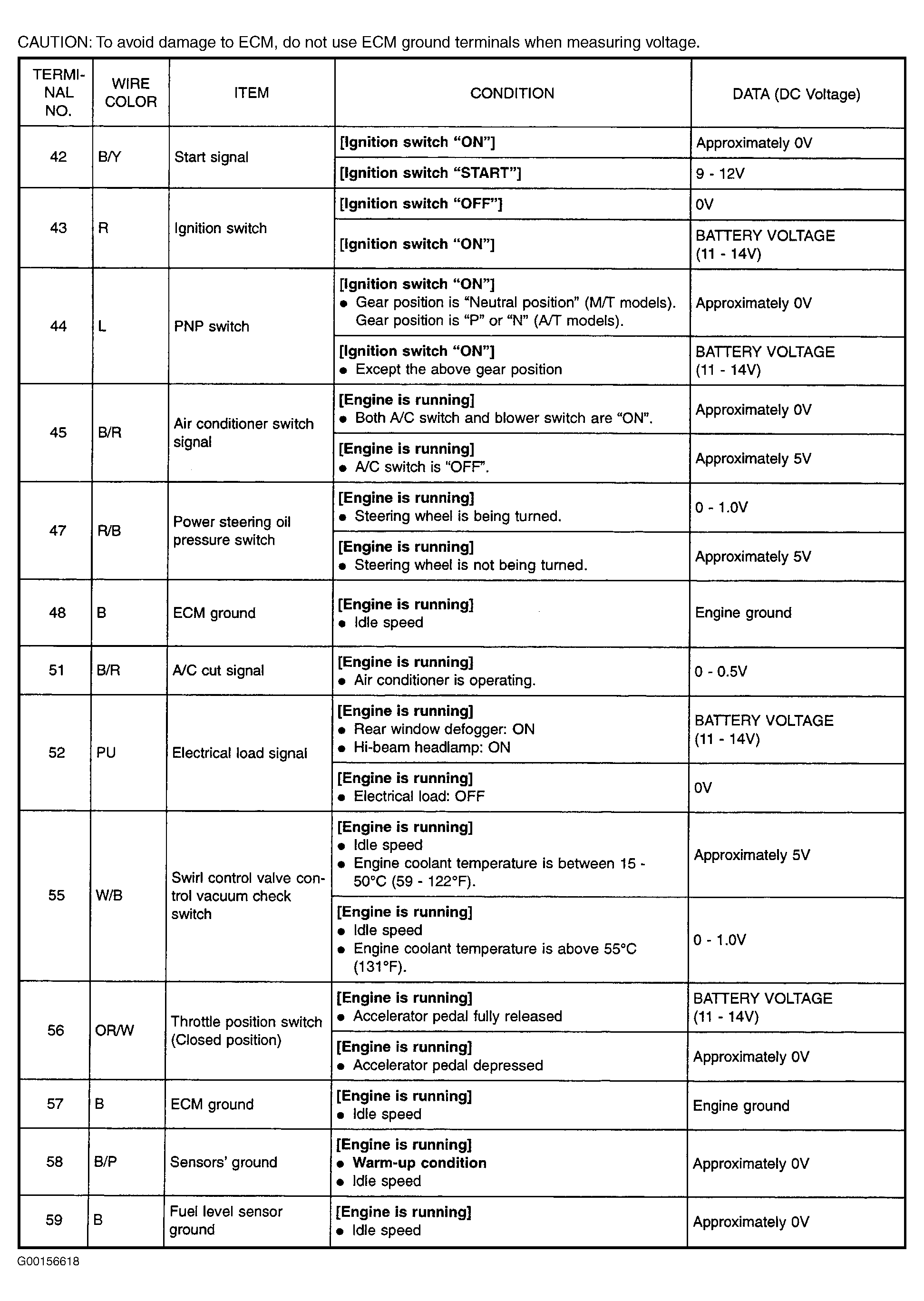

Fig 54: Pin Voltage Chart (Pathfinder & QX4 - 4 Of 8)

G00156618

Courtesy of NISSAN MOTOR CO., U.S.A.

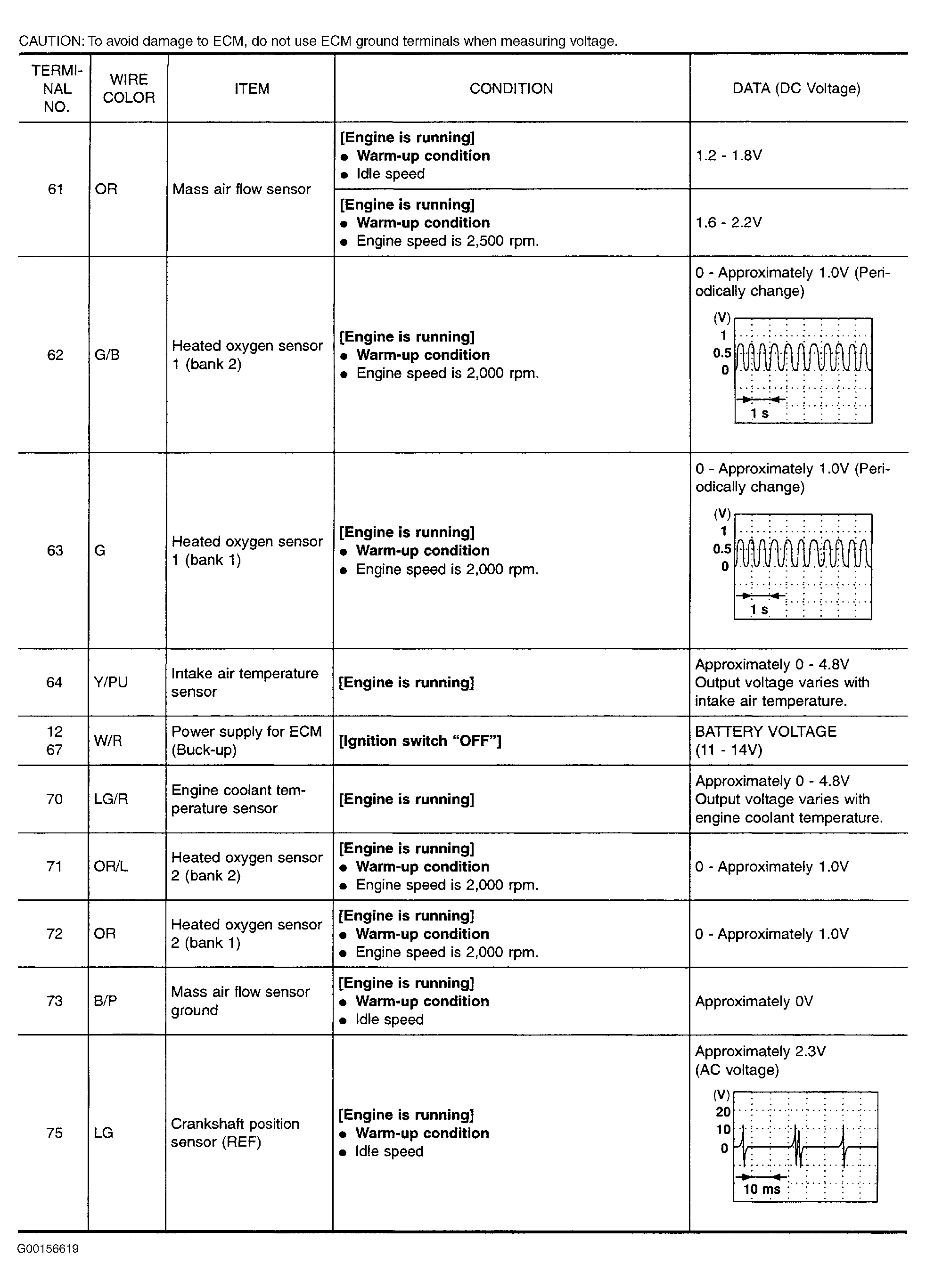

Fig 55: Pin Voltage Chart (Pathfinder & QX4 - 5 Of 8)

G00156619

Courtesy of NISSAN MOTOR CO., U.S.A.

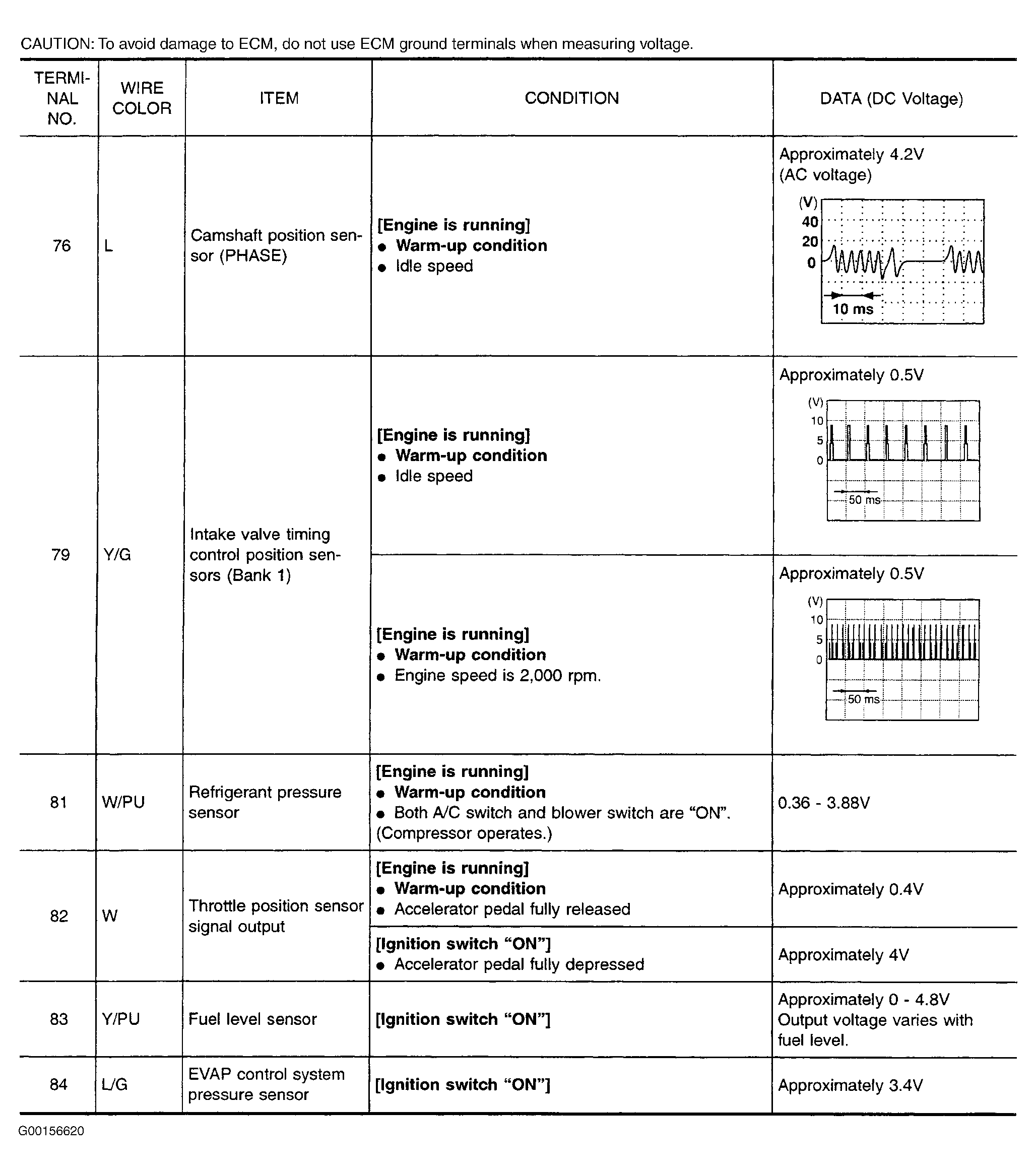

Fig 56: Pin Voltage Chart (Pathfinder & QX4 - 6 Of 8)

G00156620

Courtesy of NISSAN MOTOR CO., U.S.A.

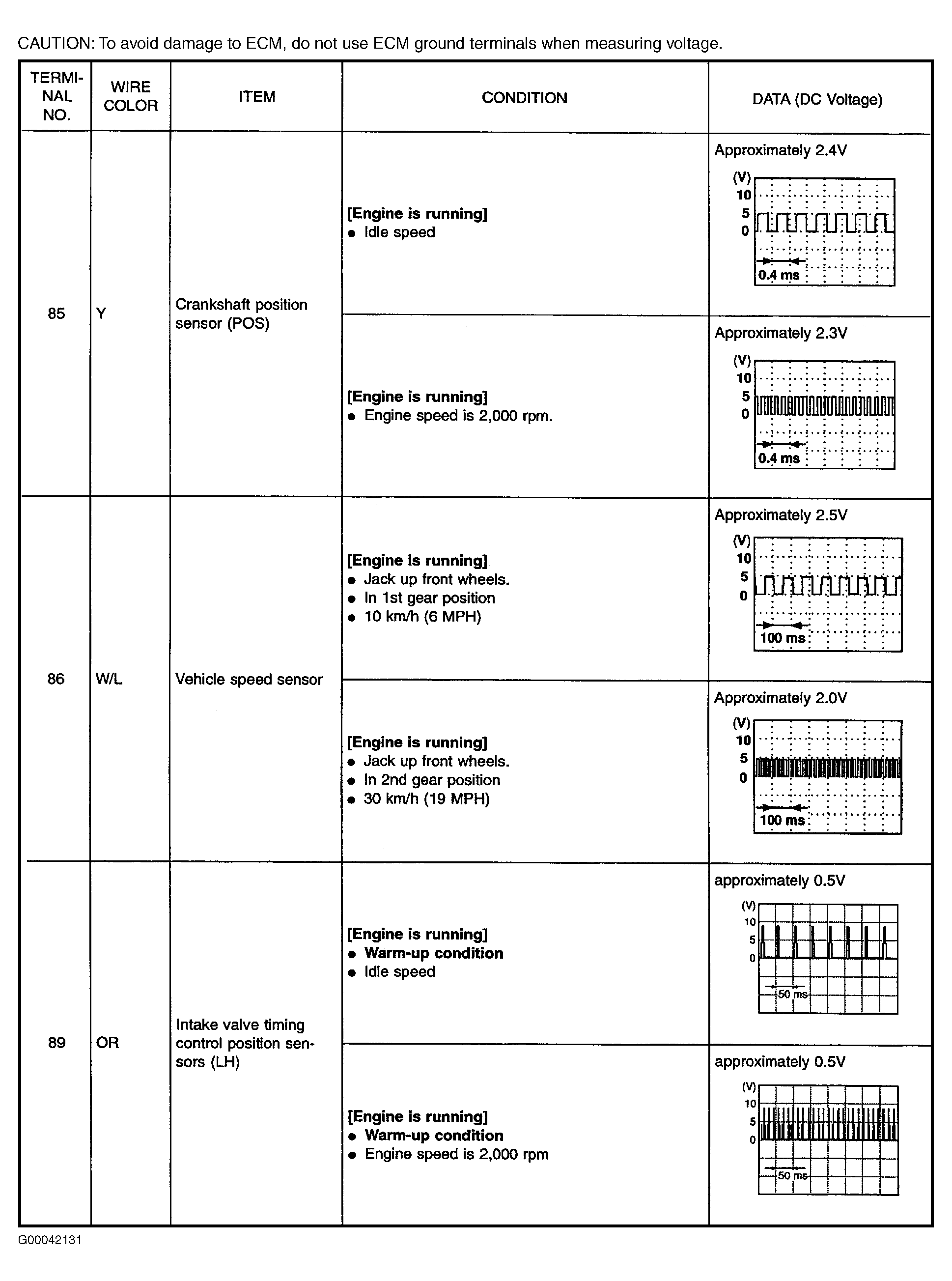

Fig 57: Pin Voltage Chart (Pathfinder & QX4 - 7 Of 8)

G00042131

Courtesy of NISSAN MOTOR CO., U.S.A.

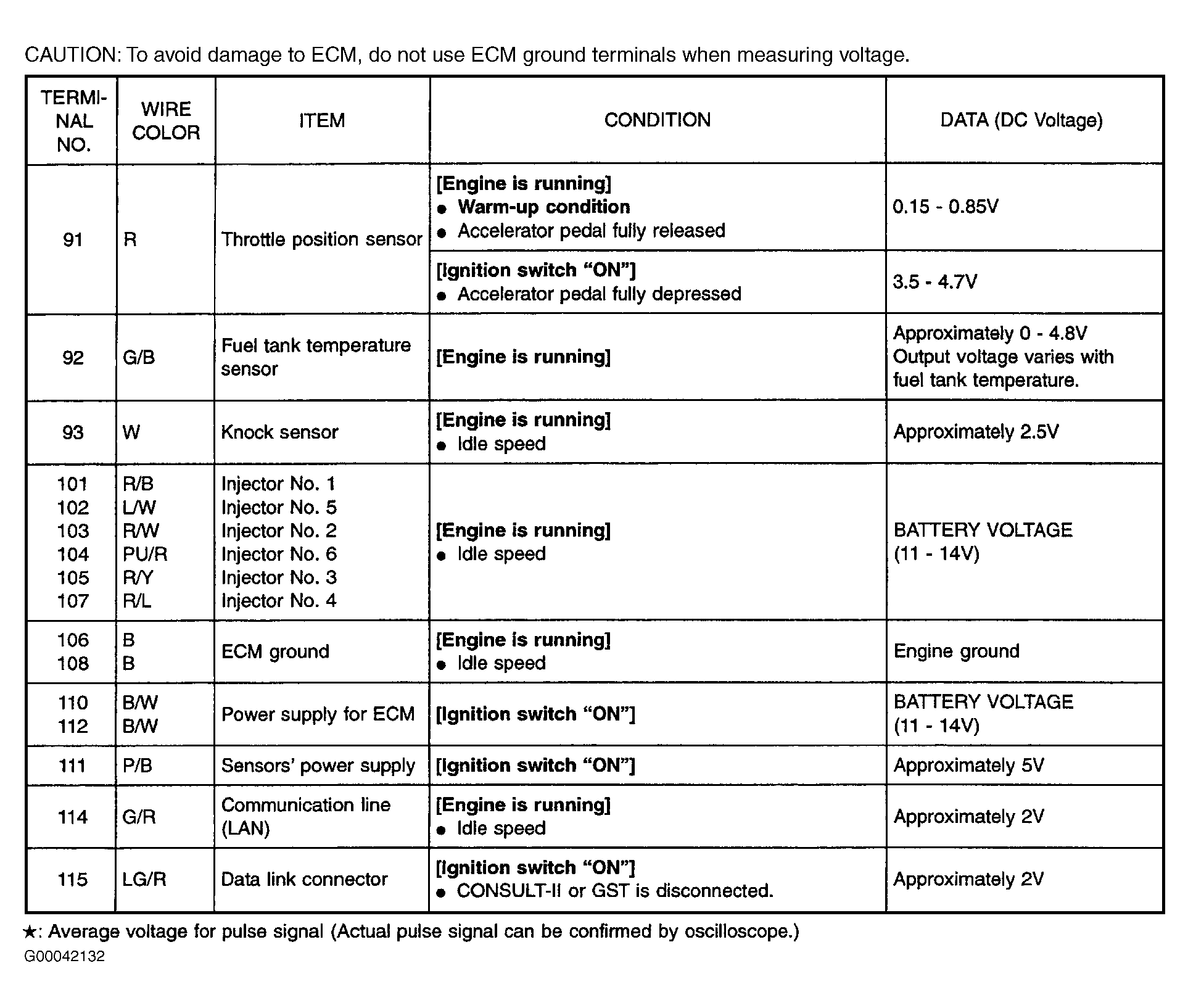

Fig 58: Pin Voltage Chart (Pathfinder & QX4 - 8 Of 8)

G00042132

Courtesy of NISSAN MOTOR CO., U.S.A.

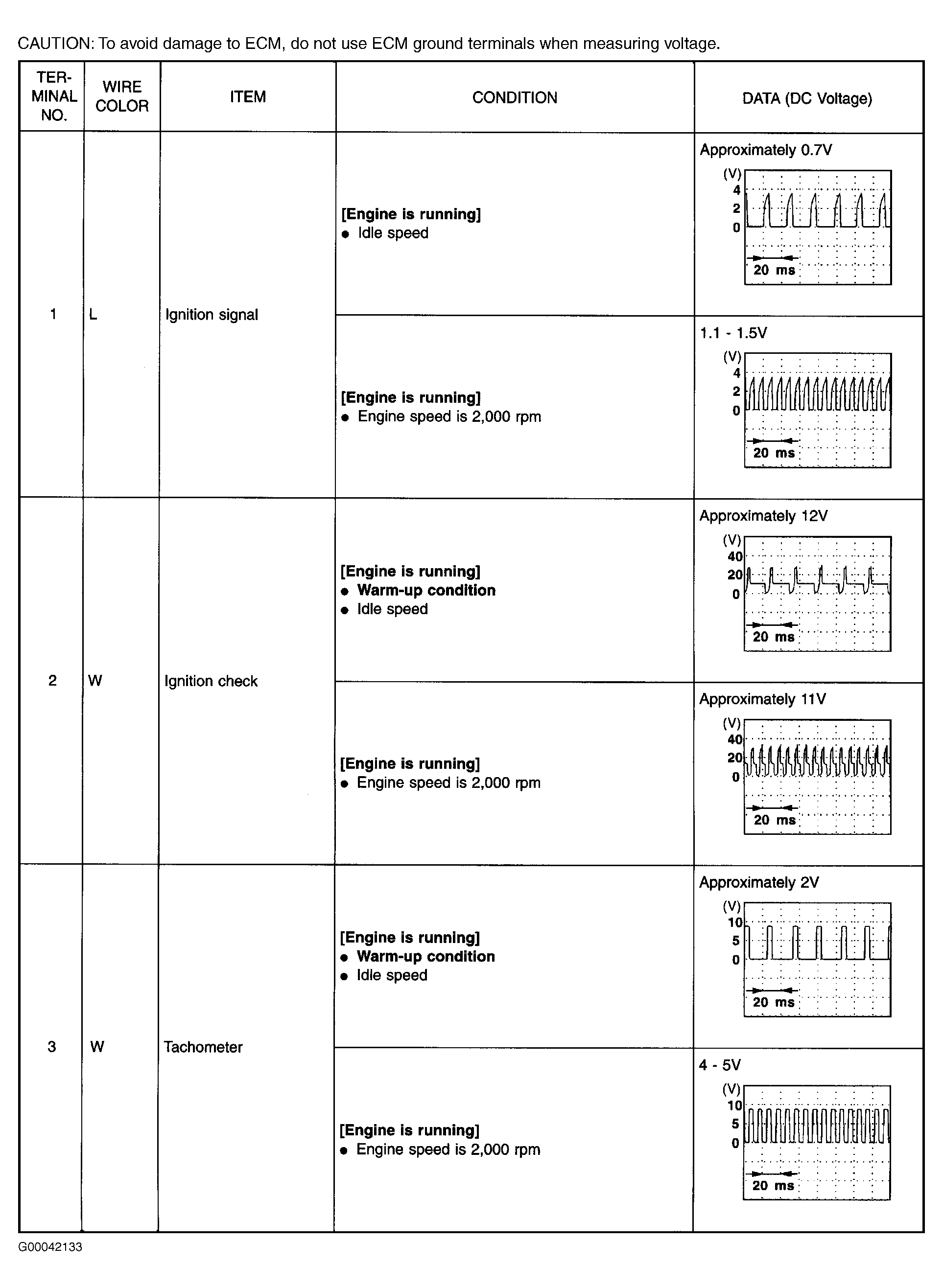

Fig 59: Pin Voltage Chart (Quest - 1 Of 8)

G00042133

Courtesy of NISSAN MOTOR CO., U.S.A.

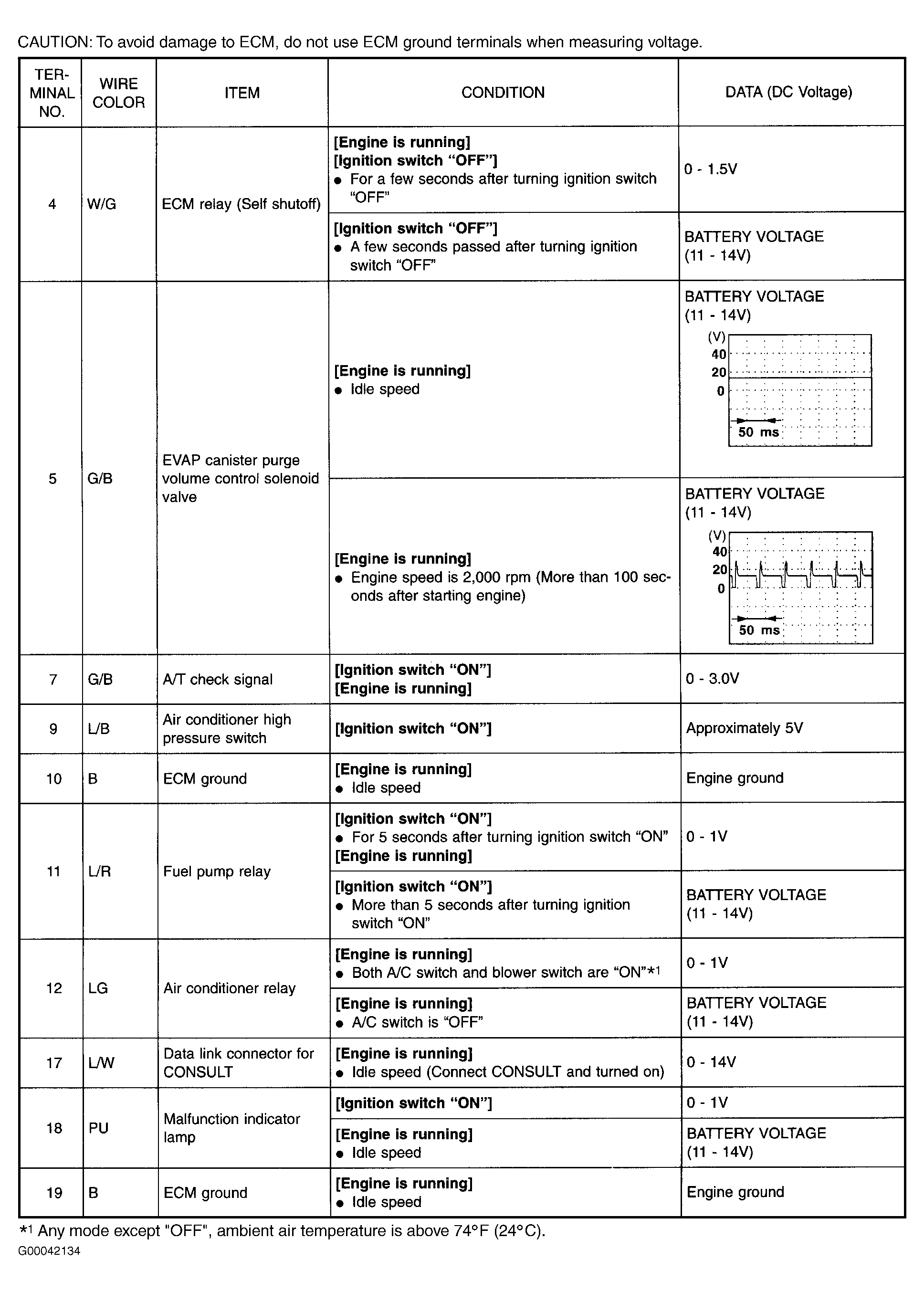

Fig 60: Pin Voltage Chart (Quest - 2 Of 8)

G00042134

Courtesy of NISSAN MOTOR CO., U.S.A.

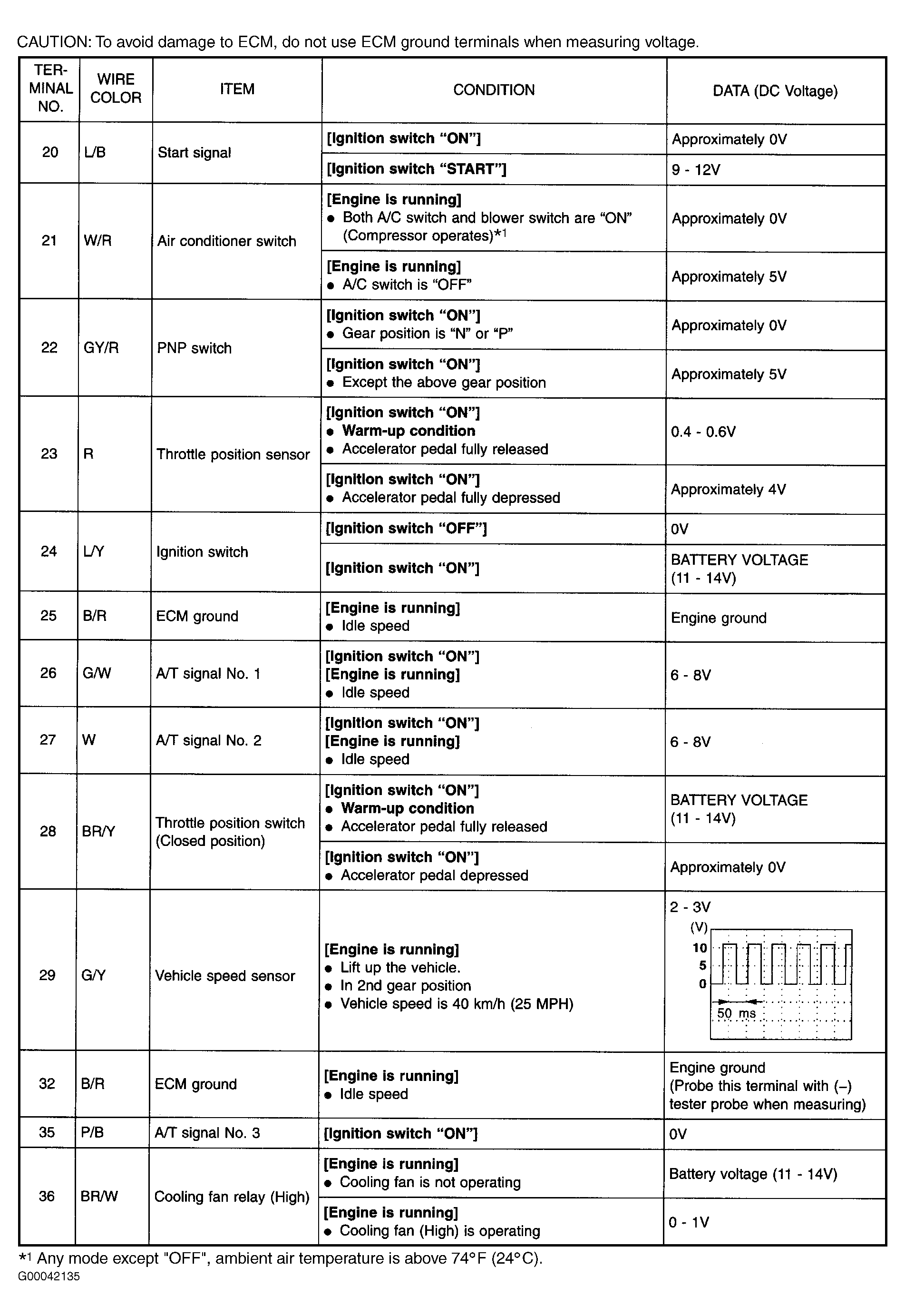

Fig 61: Pin Voltage Chart (Quest - 3 Of 8)

G00042135

Courtesy of NISSAN MOTOR CO., U.S.A.

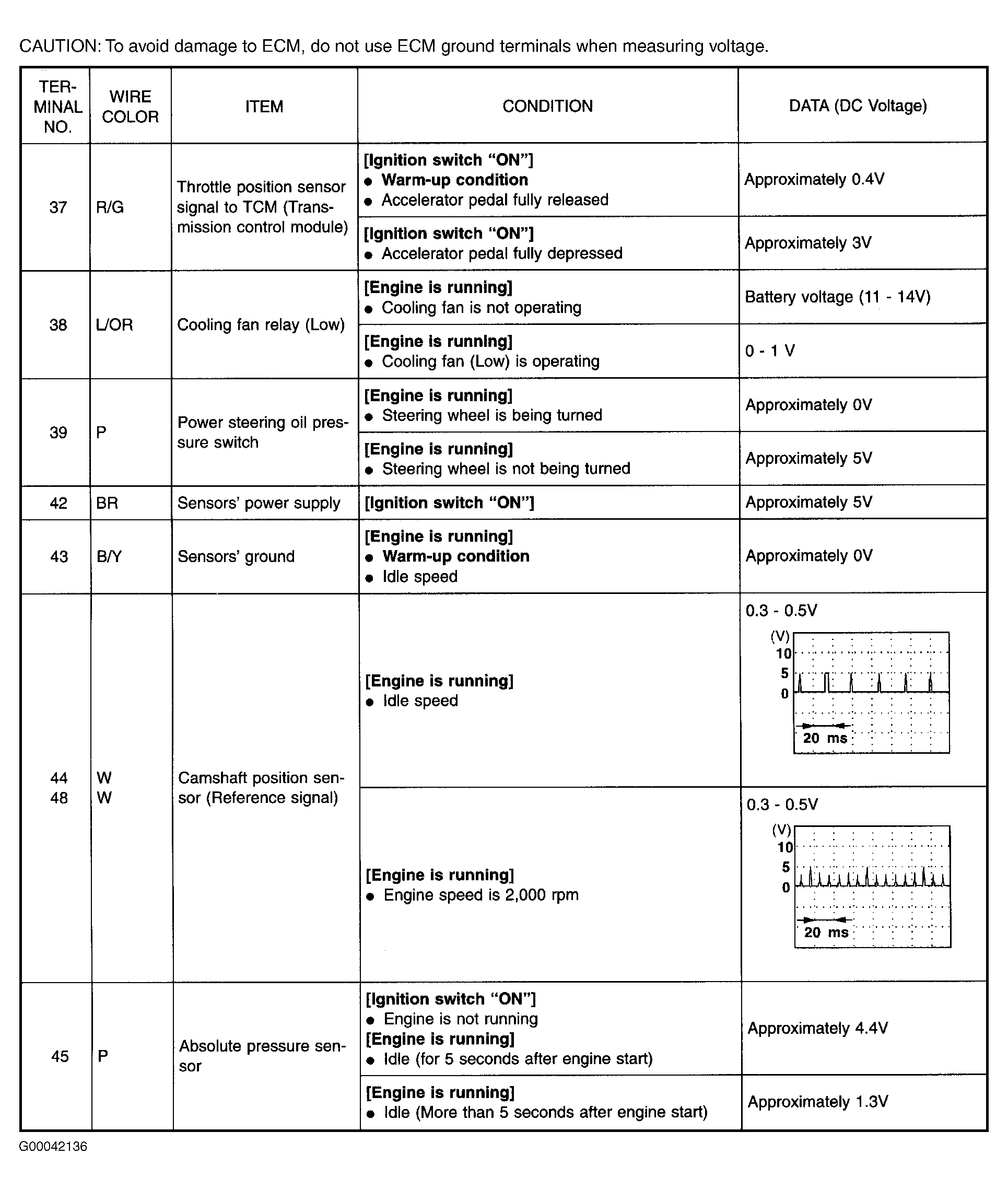

Fig 62: Pin Voltage Chart (Quest - 4 Of 8)

G00042136

Courtesy of NISSAN MOTOR CO., U.S.A.

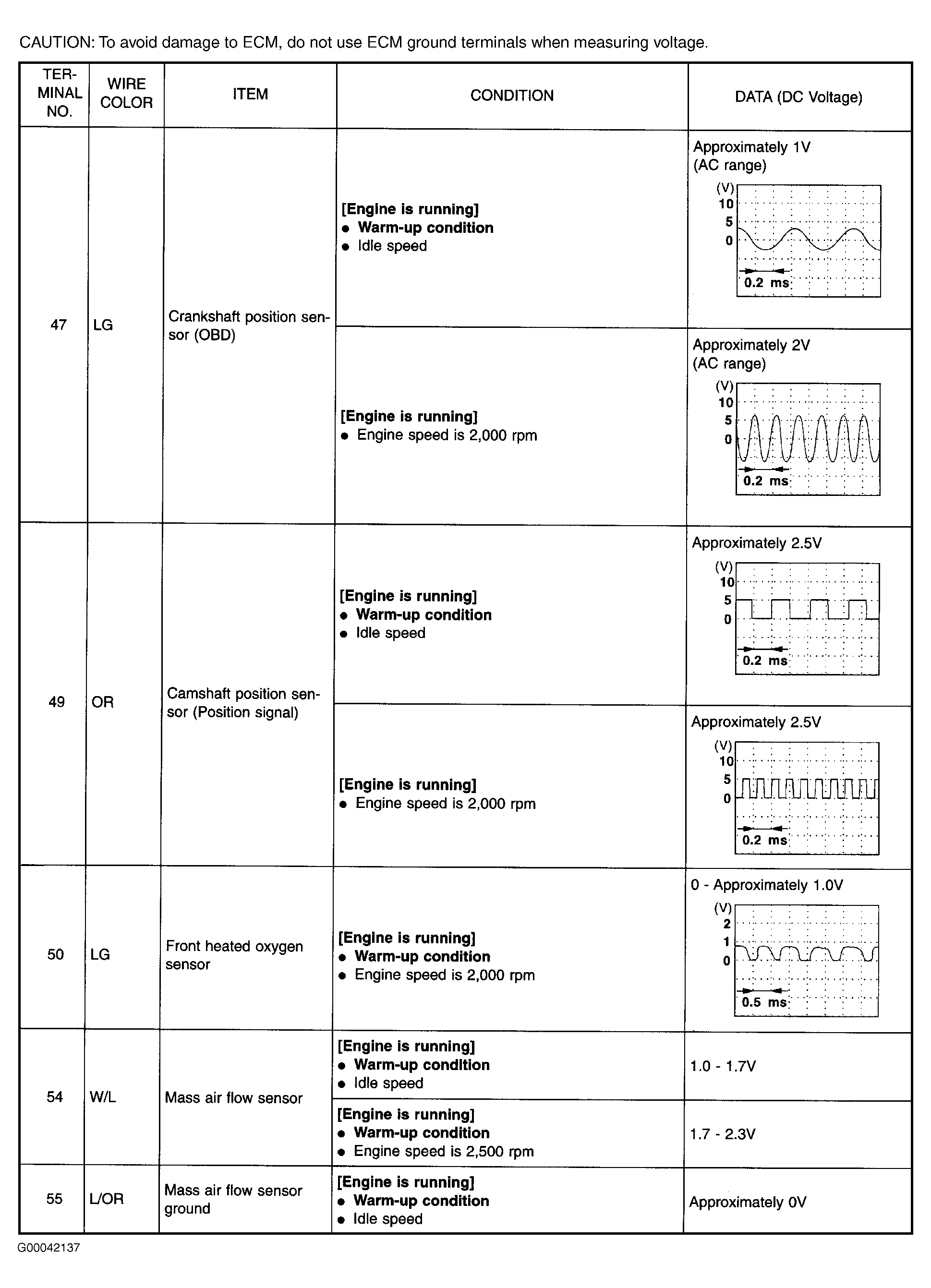

Fig 63: Pin Voltage Chart (Quest - 5 Of 8)

G00042137

Courtesy of NISSAN MOTOR CO., U.S.A.

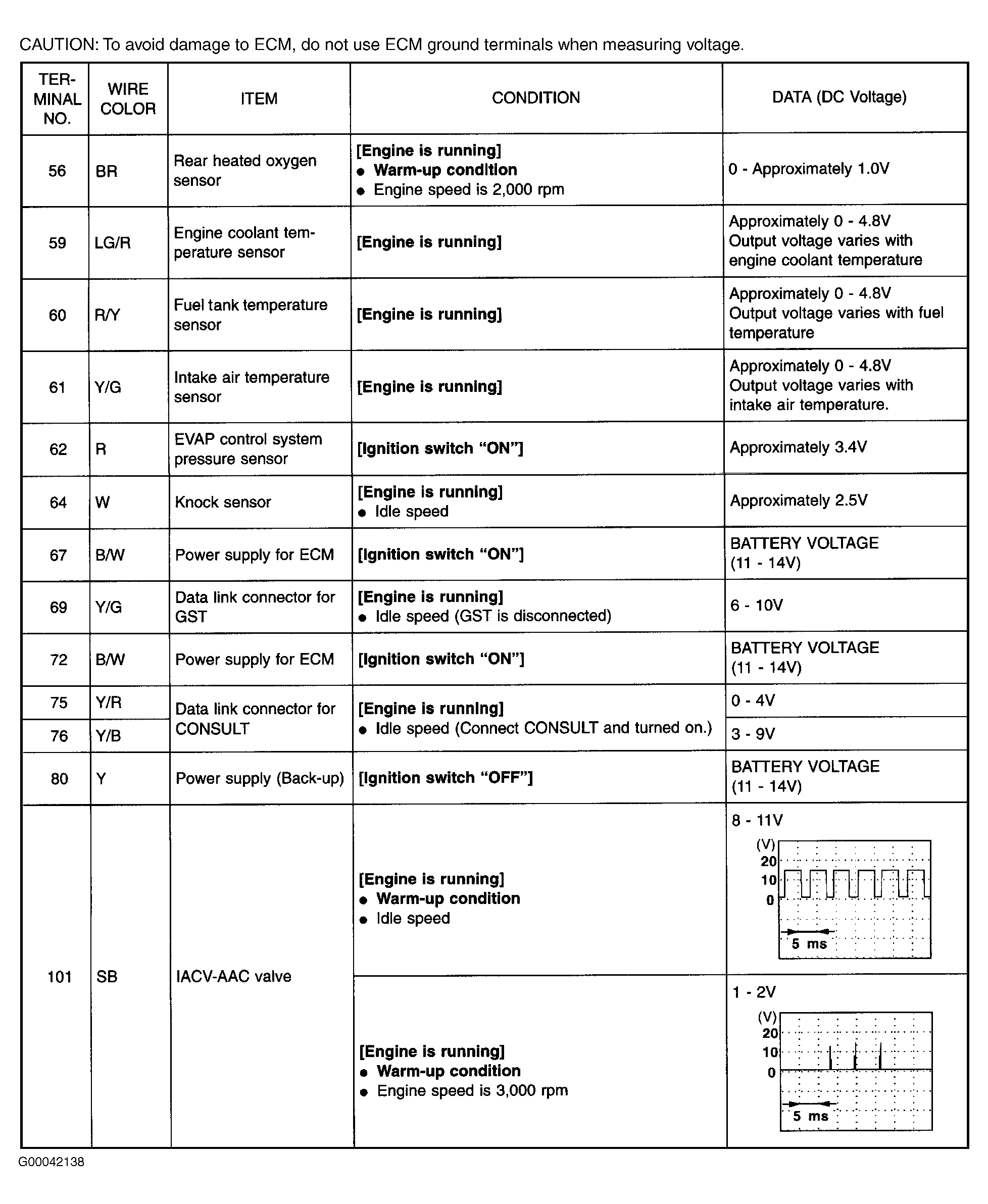

Fig 64: Pin Voltage Chart (Quest - 6 Of 8)

G00042138

Courtesy of NISSAN MOTOR CO., U.S.A.

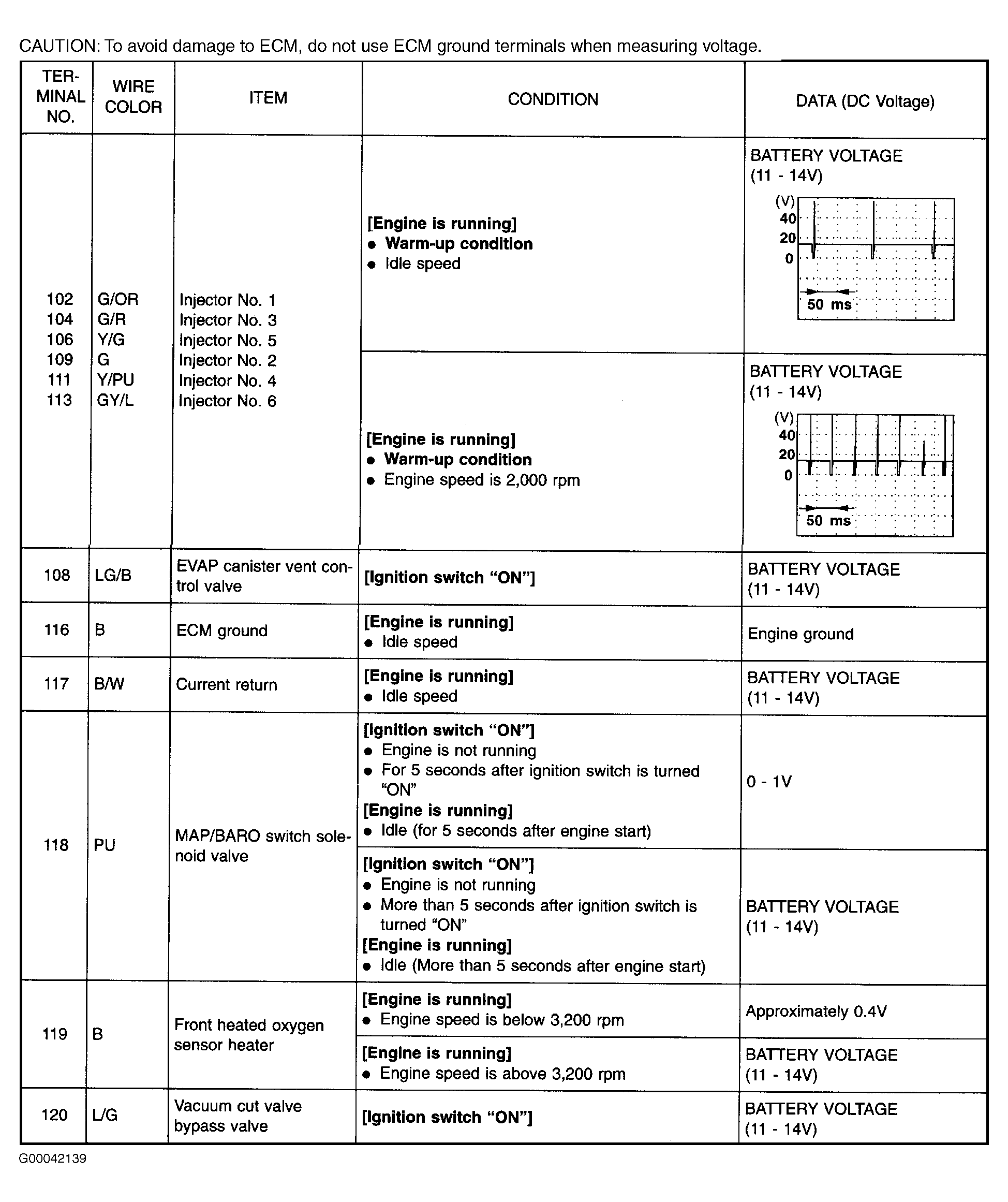

Fig 65: Pin Voltage Chart (Quest - 7 Of 8)

G00042139

Courtesy of NISSAN MOTOR CO., U.S.A.

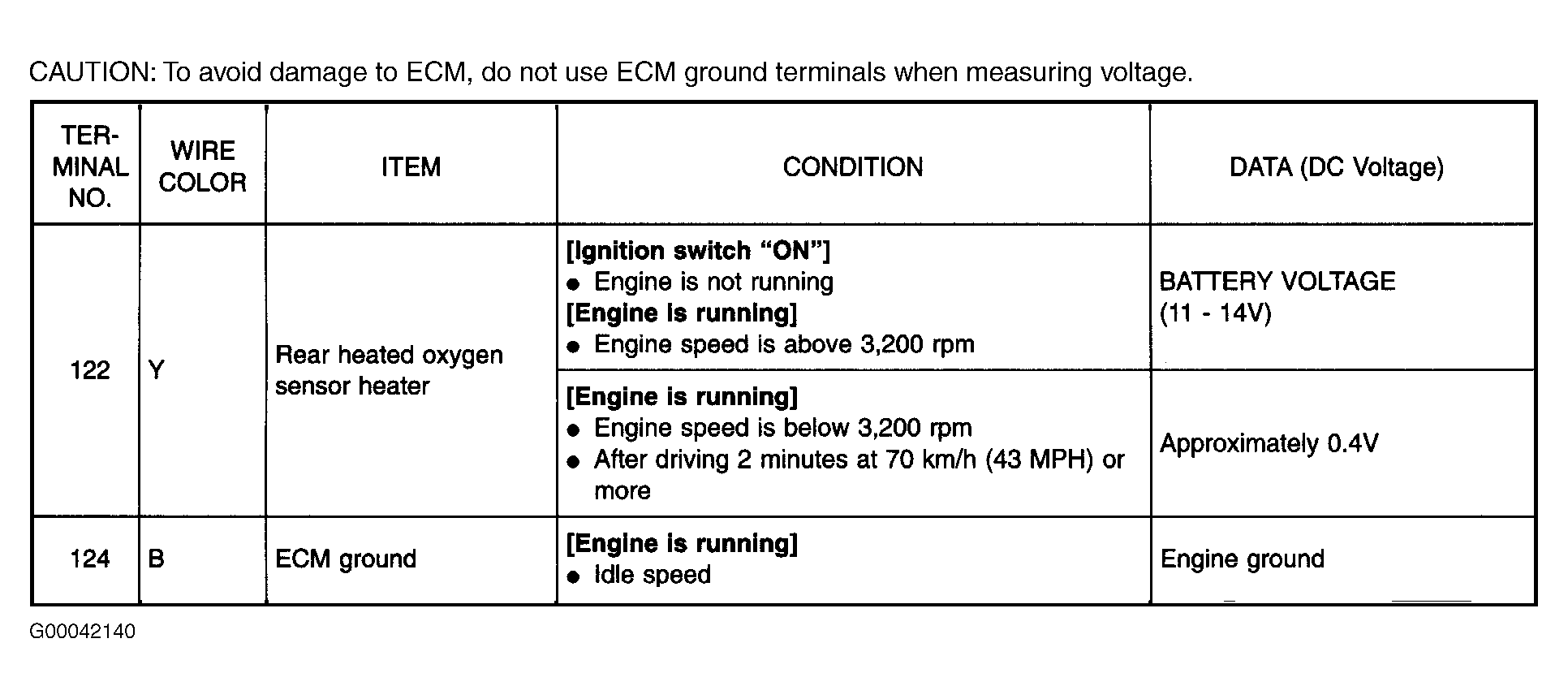

Fig 66: Pin Voltage Chart (Quest - 8 Of 8)

G00042140

Courtesy of NISSAN MOTOR CO., U.S.A.

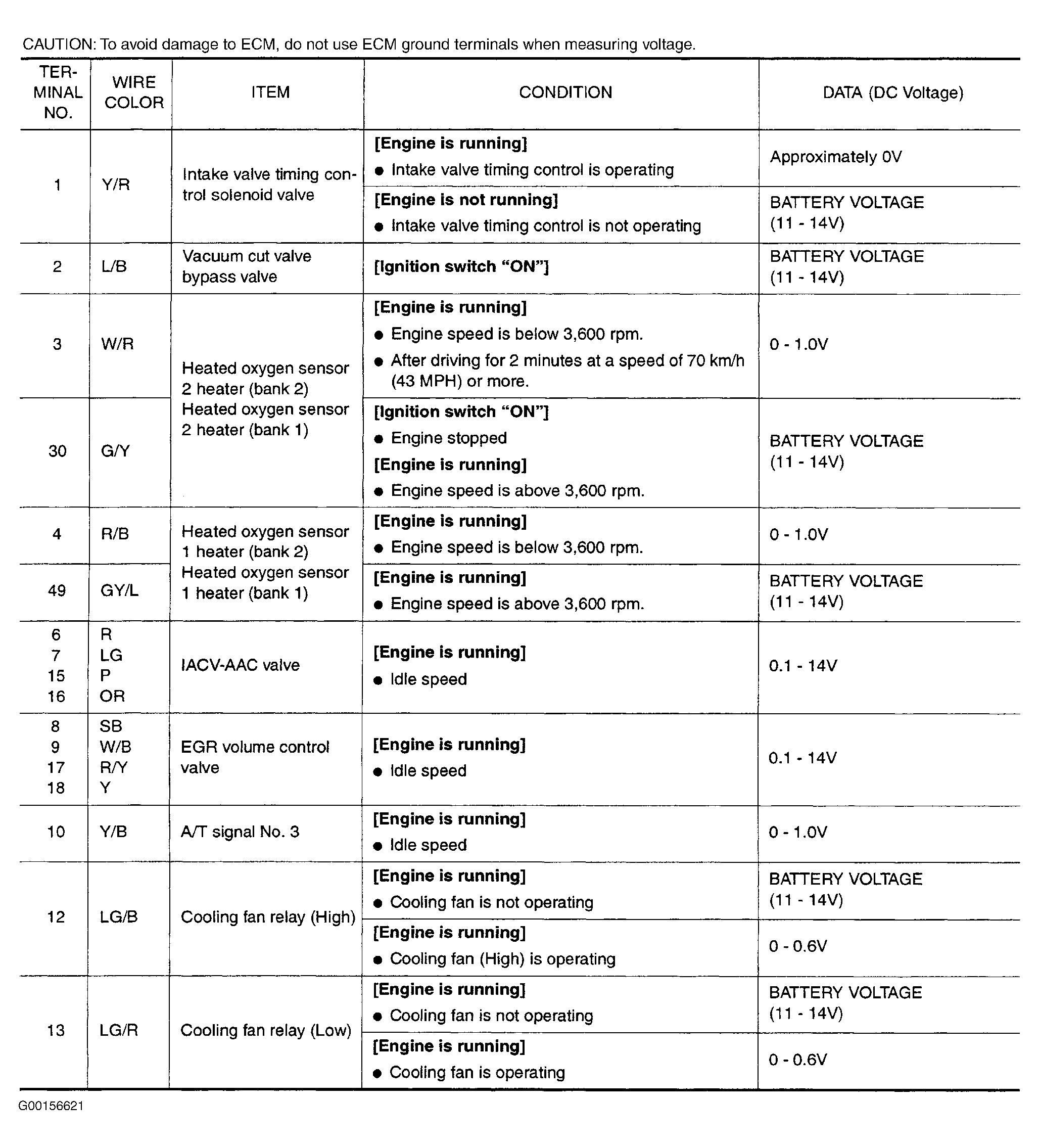

Fig 67: Pin Voltage Chart (Sentra 1.8L Except California CA - 1 Of 7)

G00156621

Courtesy of NISSAN MOTOR CO., U.S.A.

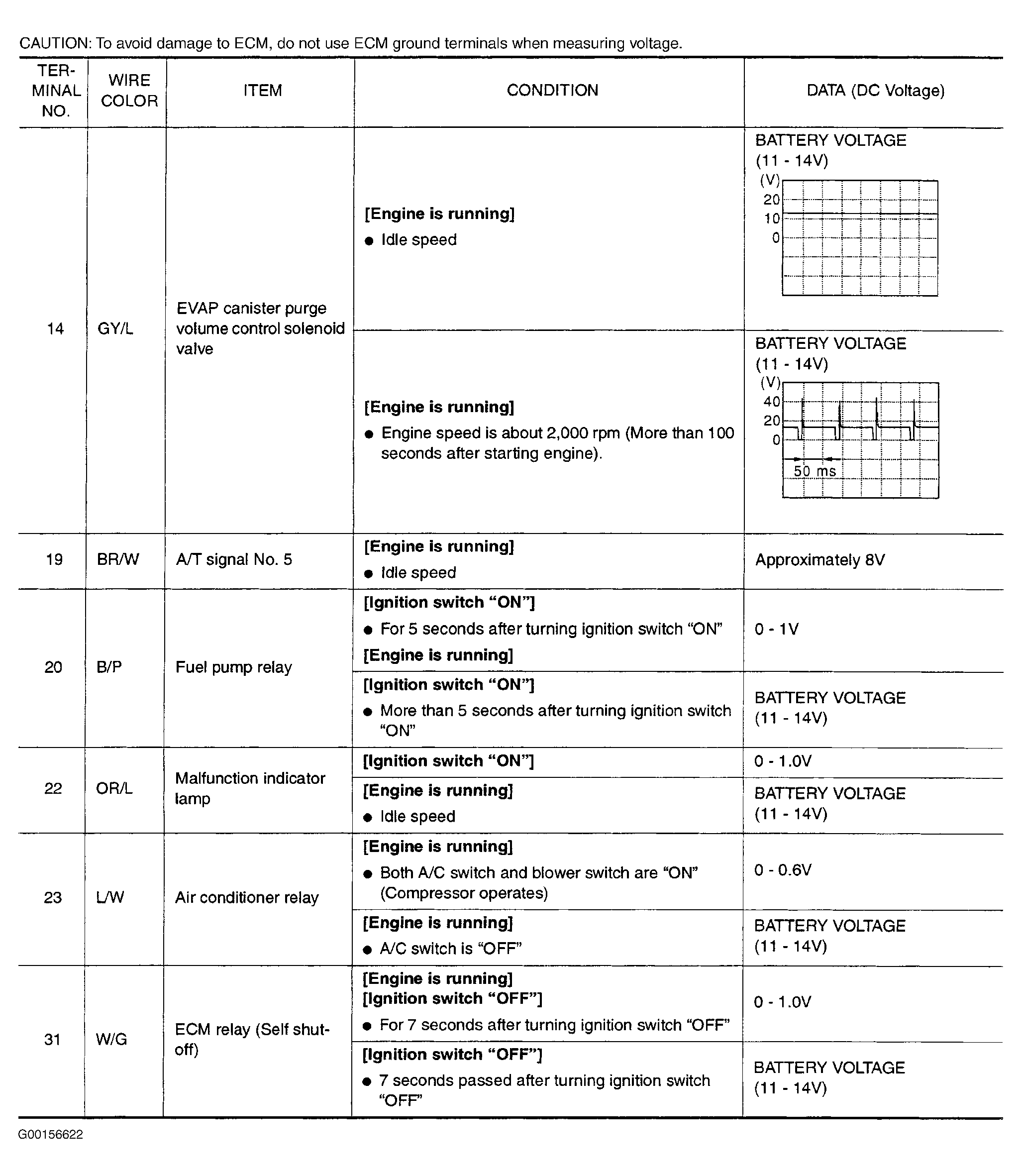

Fig 68: Pin Voltage Chart (Sentra 1.8L Except California CA - 2 Of 7)

G00156622

Courtesy of NISSAN MOTOR CO., U.S.A.

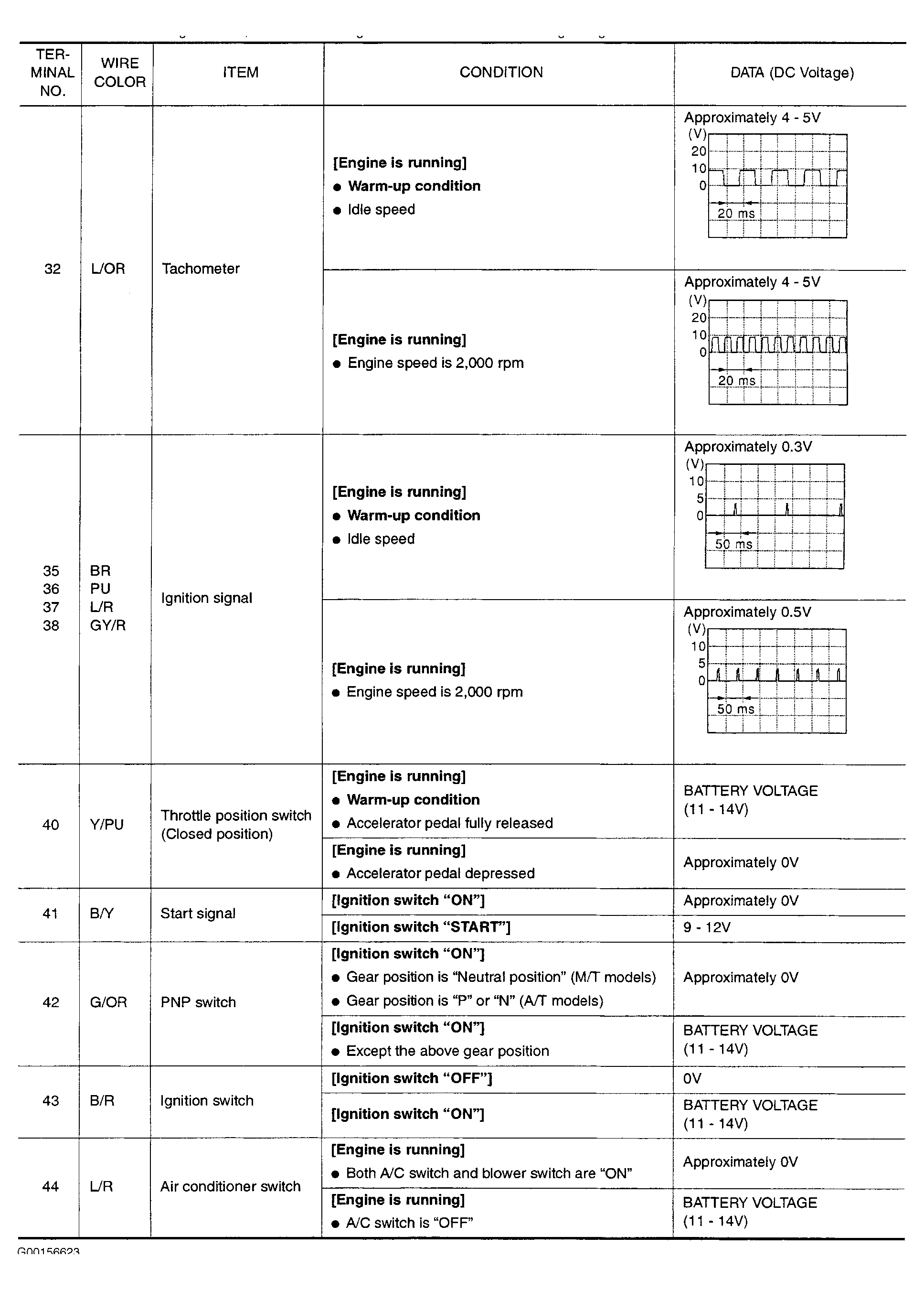

Fig 69: Pin Voltage Chart (Sentra 1.8L Except California CA - 3 Of 7)

G00156623

Courtesy of NISSAN MOTOR CO., U.S.A.

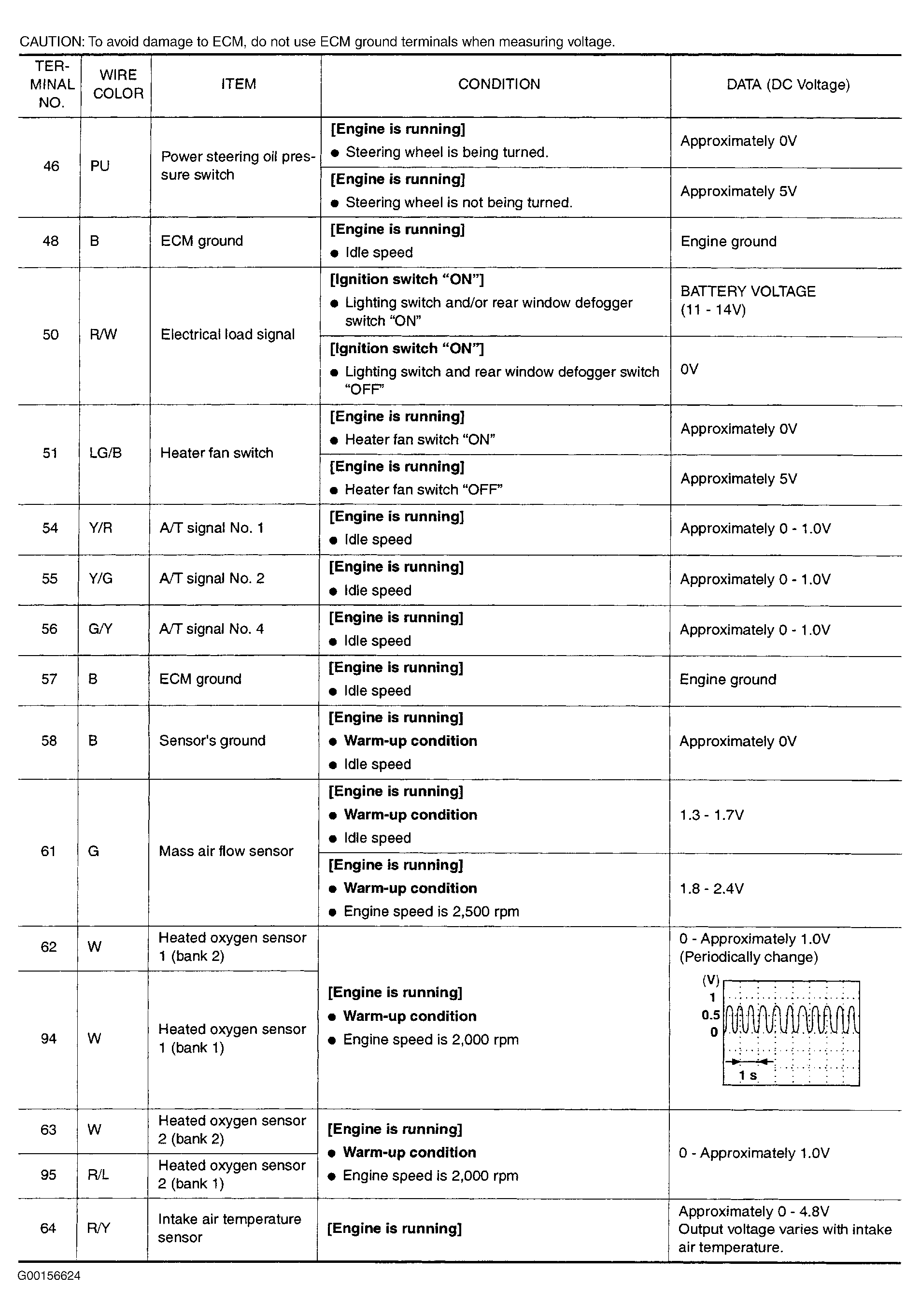

Fig 70: Pin Voltage Chart (Sentra 1.8L Except California CA - 4 Of 7)

G00156624

Courtesy of NISSAN MOTOR CO., U.S.A.

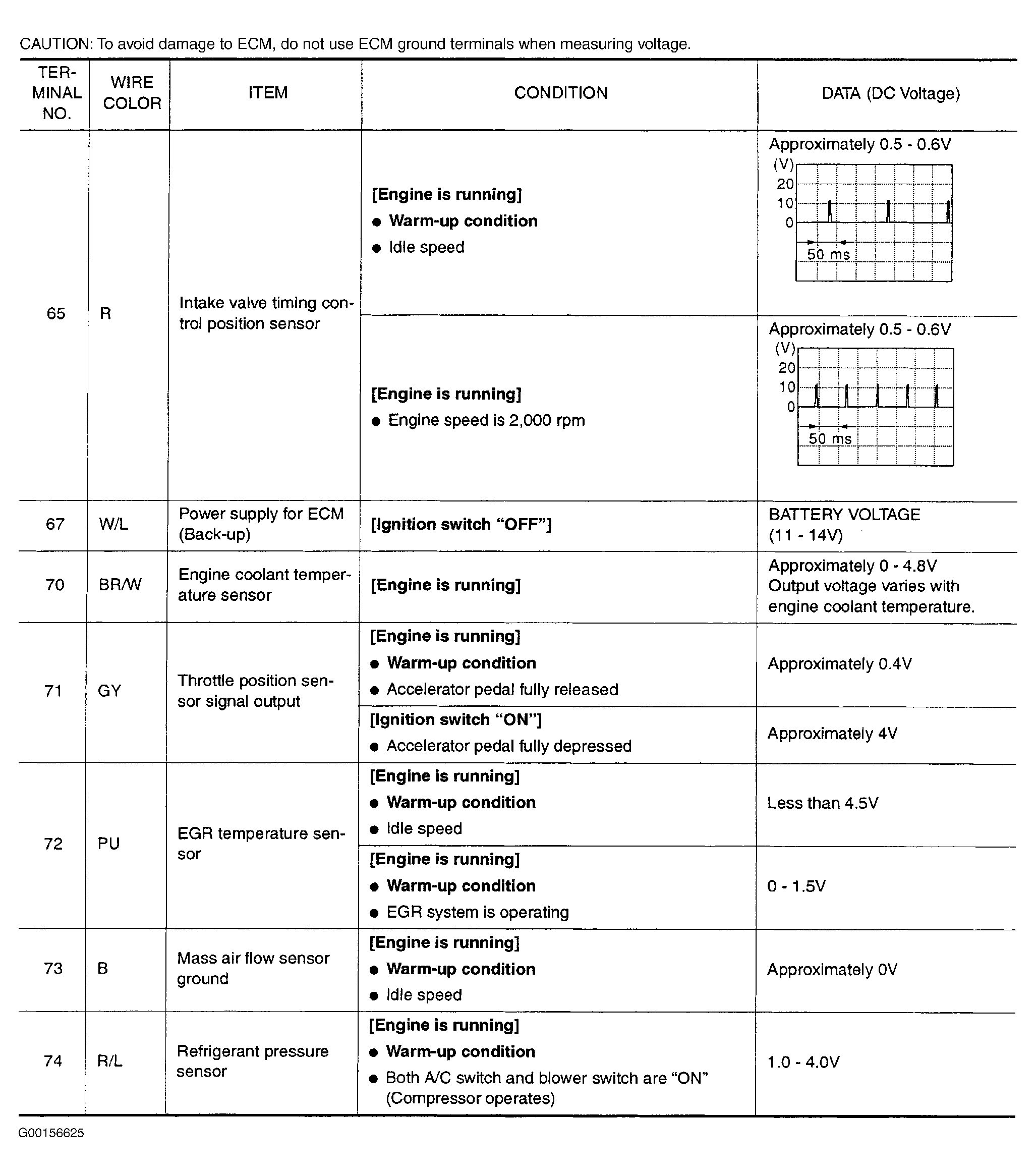

Fig 71: Pin Voltage Chart (Sentra 1.8L Except California CA - 5 Of 7)

G00156625

Courtesy of NISSAN MOTOR CO., U.S.A.

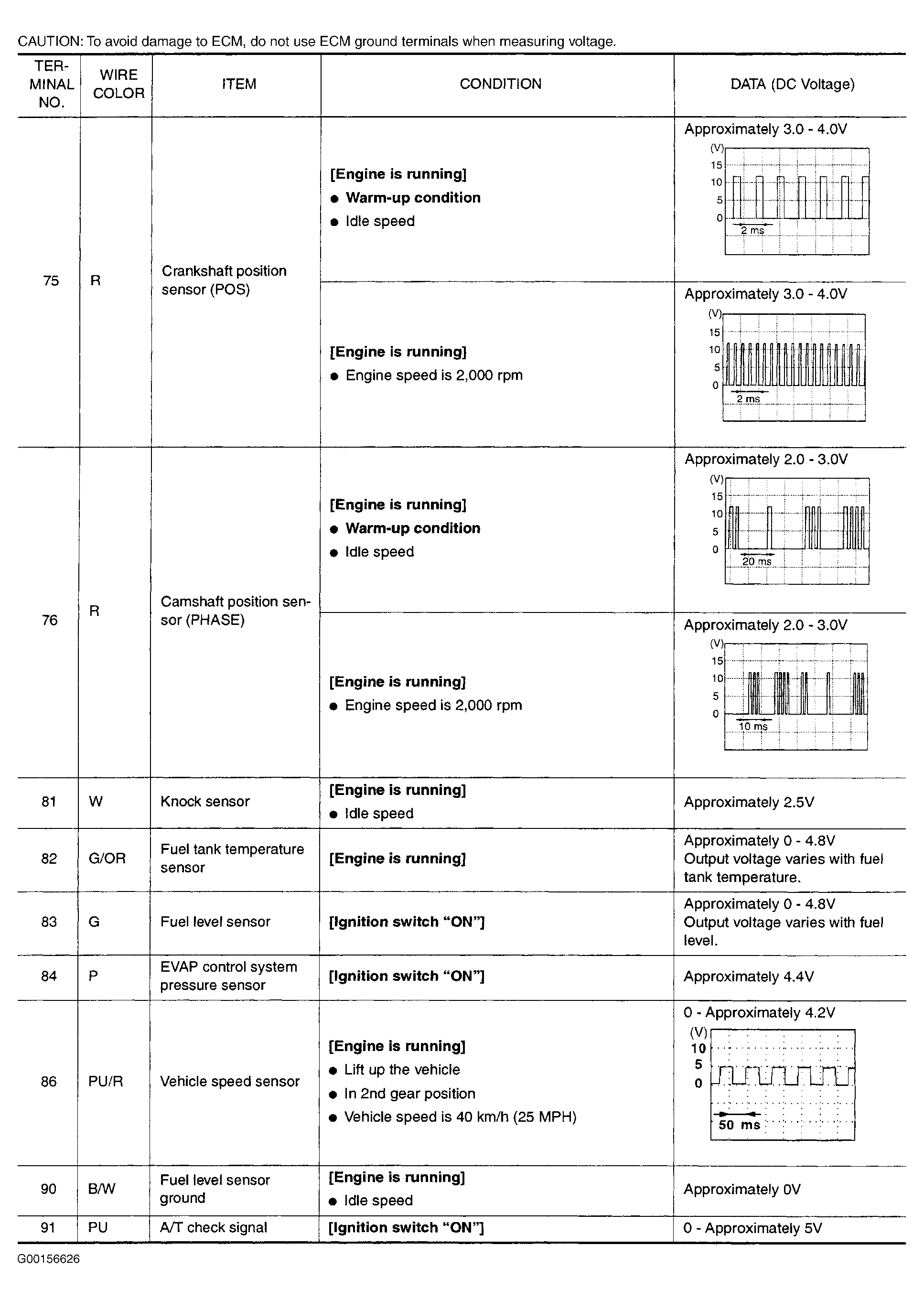

Fig 72: Pin Voltage Chart (Sentra 1.8L Except California CA - 6 Of 7)

G00156626

Courtesy of NISSAN MOTOR CO., U.S.A.

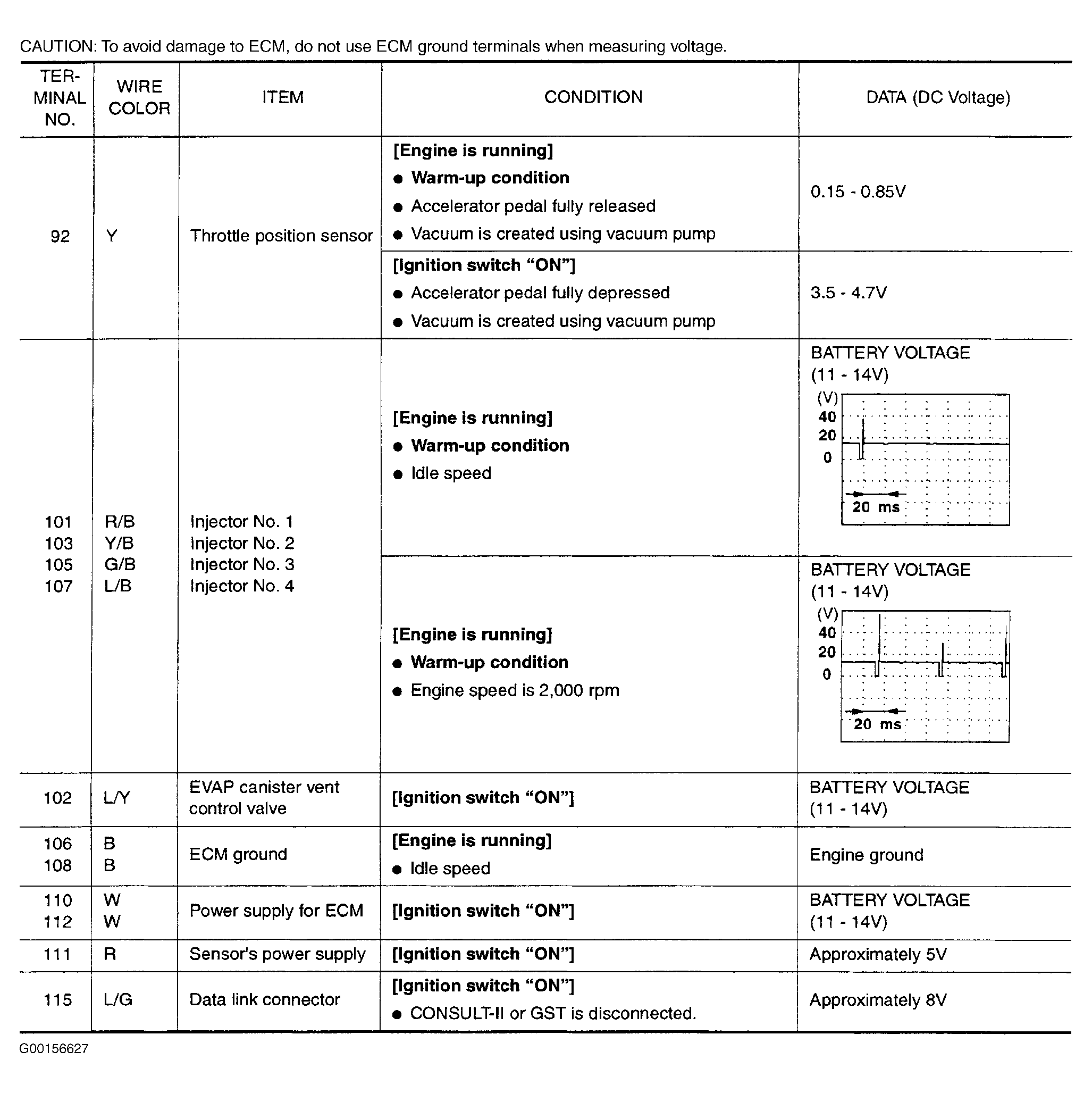

Fig 73: Pin Voltage Chart (Sentra 1.8L Except California CA - 7 Of 7)

G00156627

Courtesy of NISSAN MOTOR CO., U.S.A.

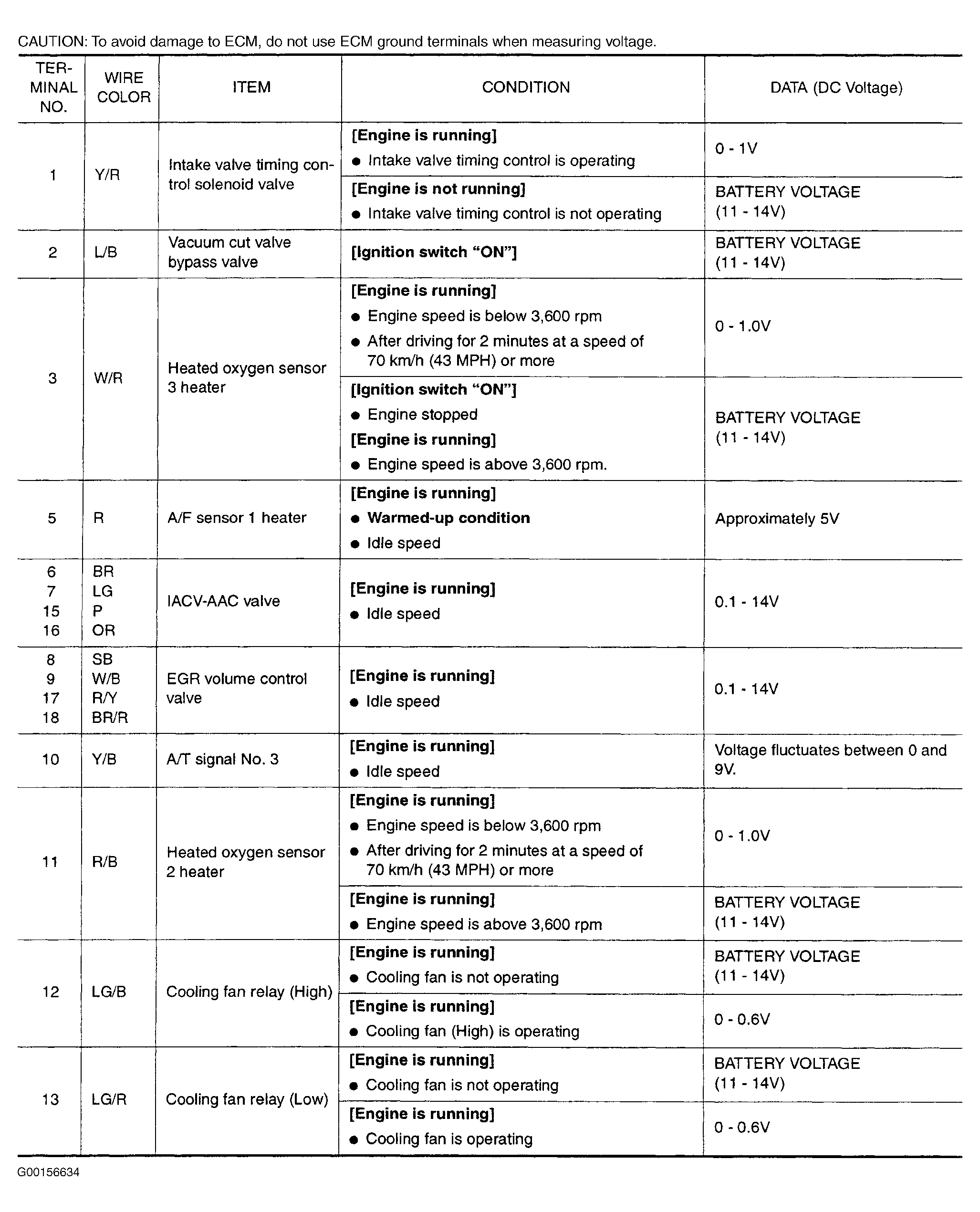

Fig 74: Pin Voltage Chart (Sentra 1.8L California CA - 1 Of 7)

G00156634

Courtesy of NISSAN MOTOR CO., U.S.A.

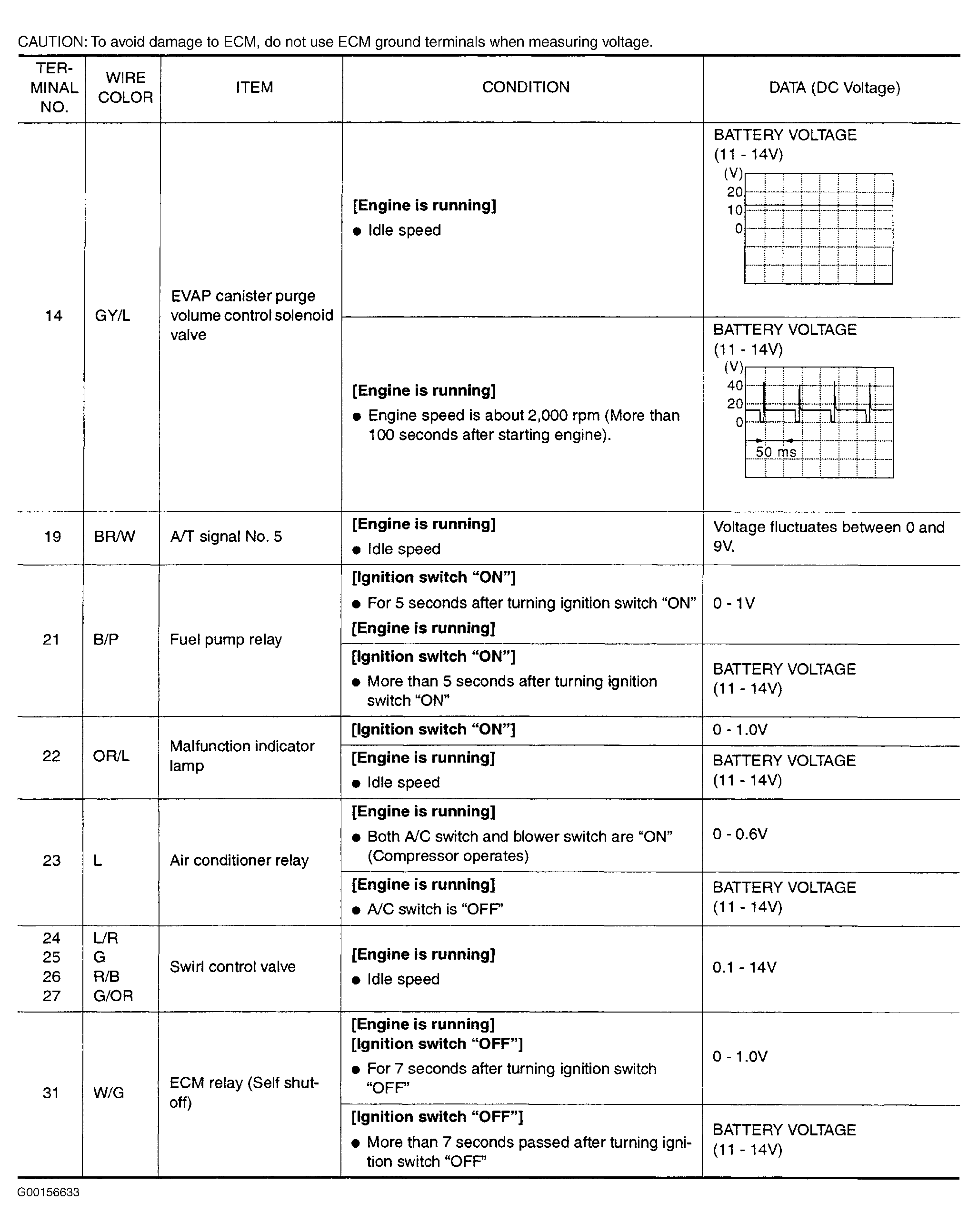

Fig 75: Pin Voltage Chart (Sentra 1.8L California CA - 2 Of 7)

G00156633

Courtesy of NISSAN MOTOR CO., U.S.A.

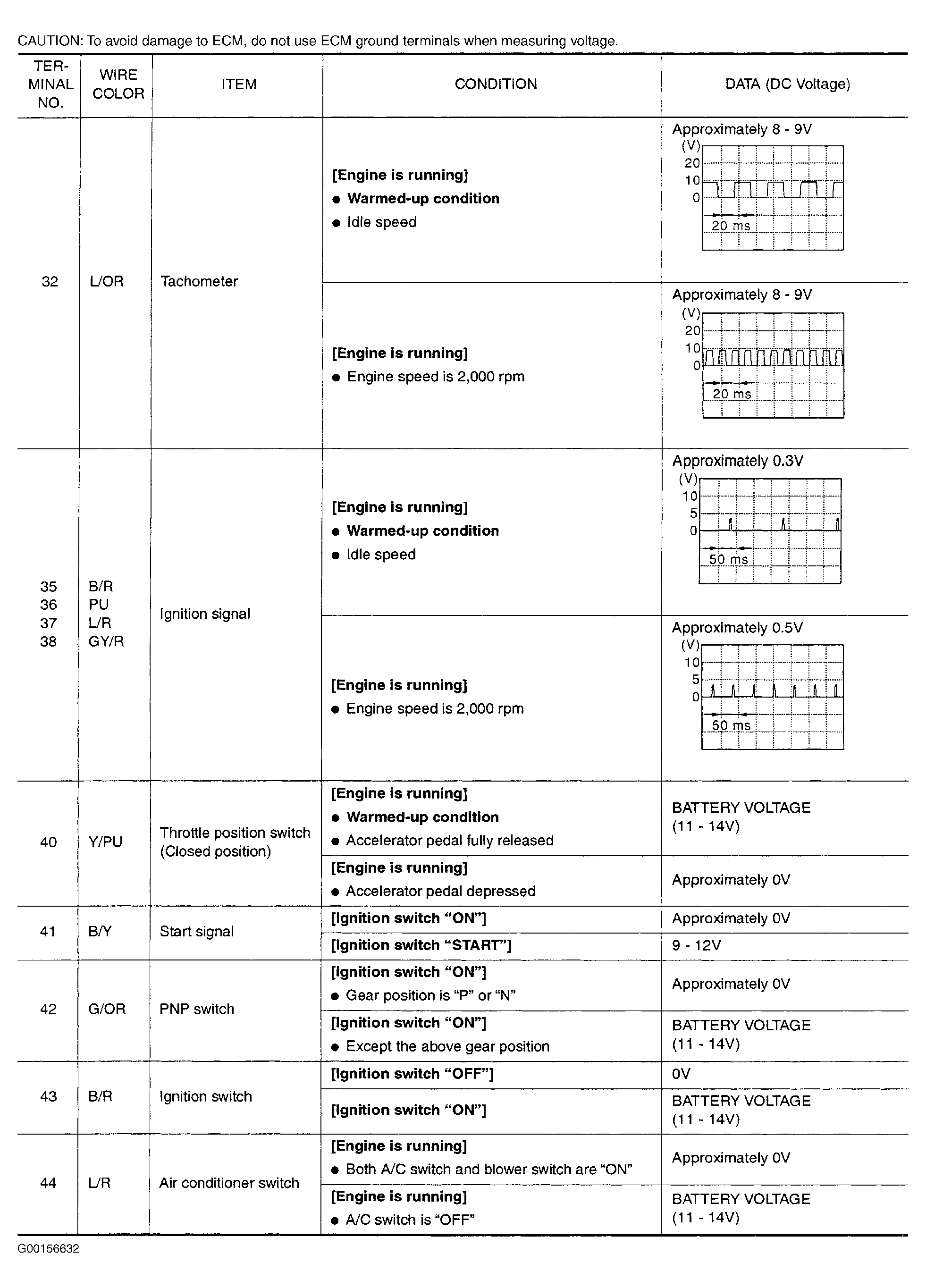

Fig 76: Pin Voltage Chart (Sentra 1.8L California CA - 3 Of 7)

G00156632

Courtesy of NISSAN MOTOR CO., U.S.A.

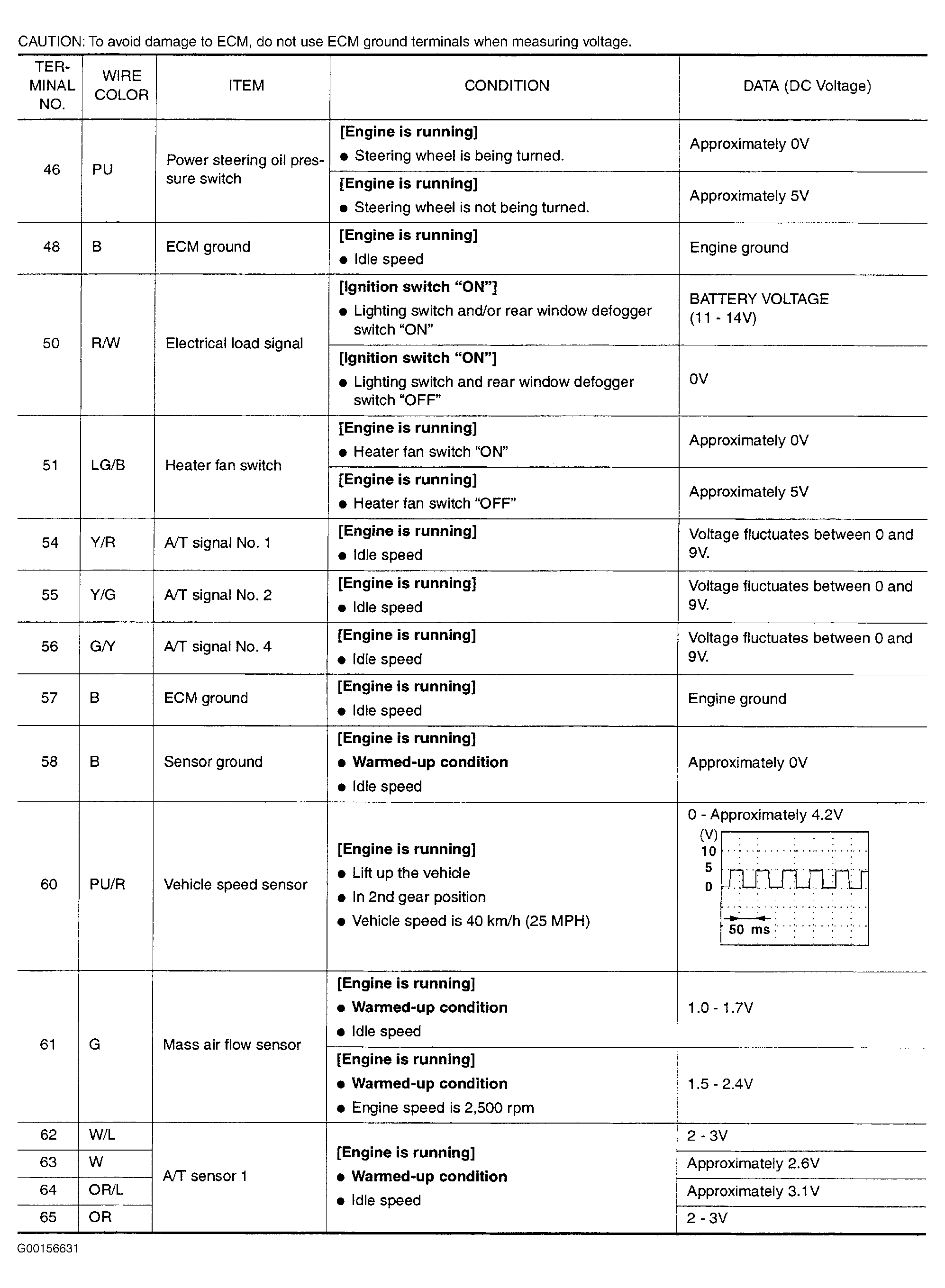

Fig 77: Pin Voltage Chart (Sentra 1.8L California CA - 4 Of 7)

G00156631

Courtesy of NISSAN MOTOR CO., U.S.A.

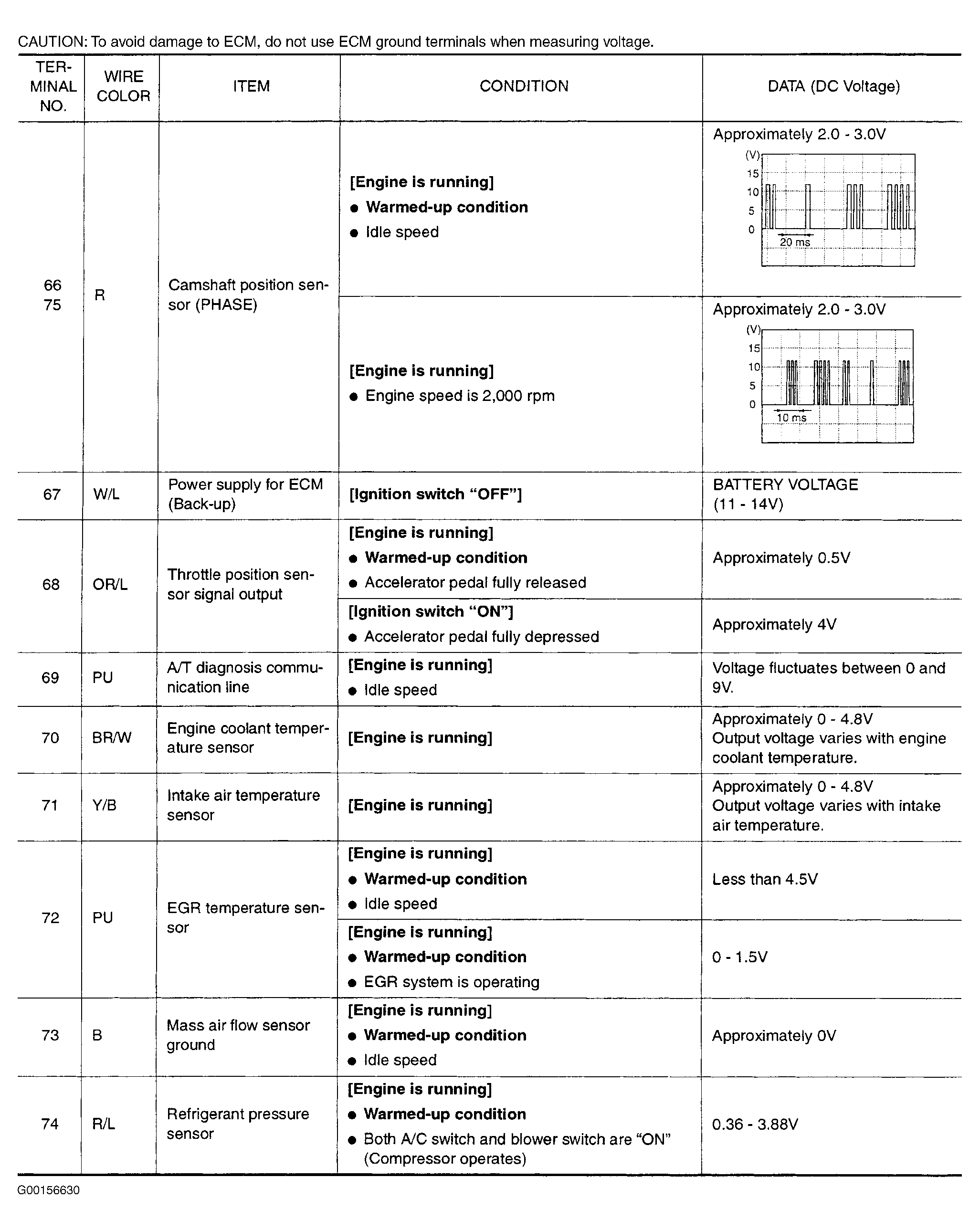

Fig 78: Pin Voltage Chart (Sentra 1.8L California CA - 5 Of 7)

G00156630

Courtesy of NISSAN MOTOR CO., U.S.A.

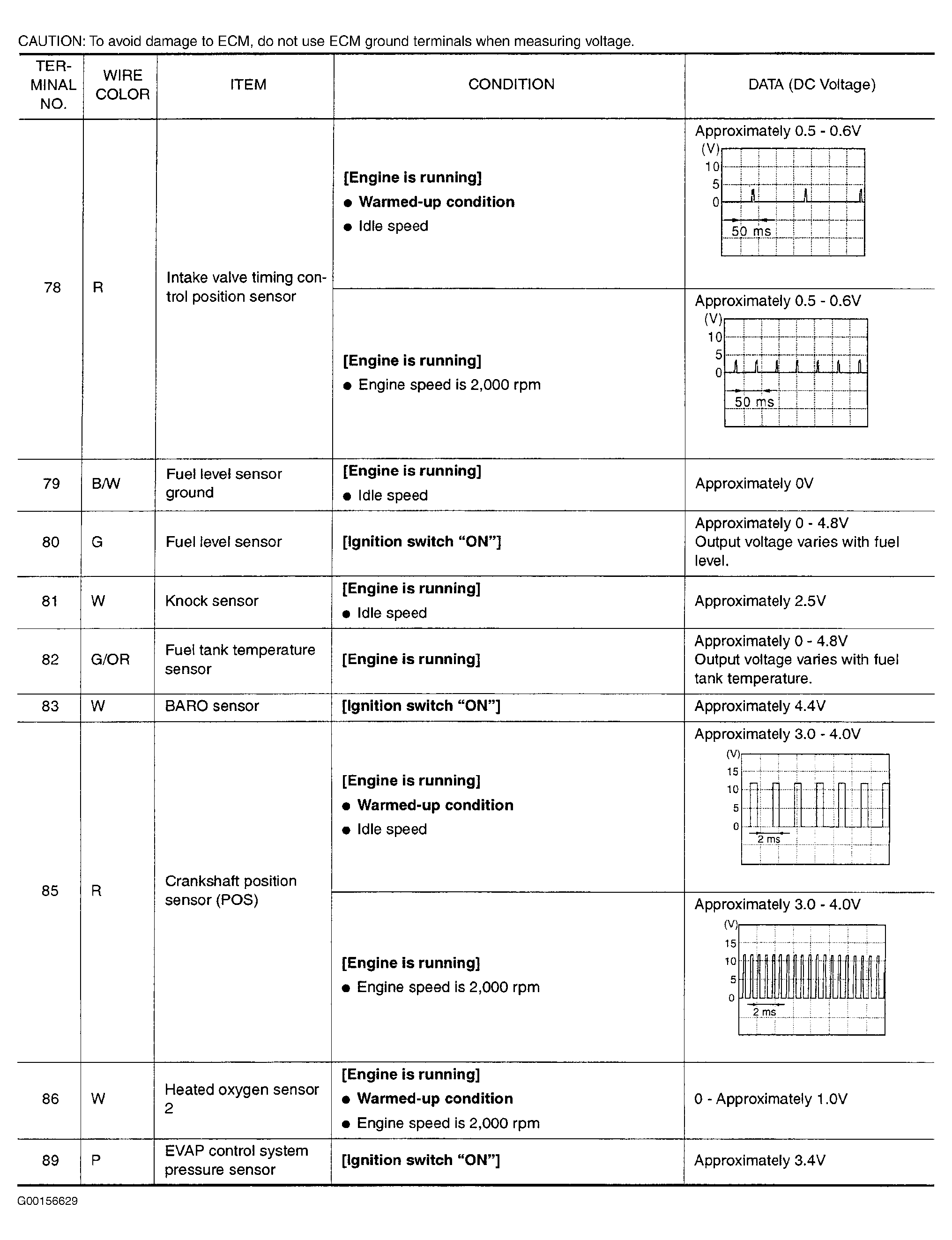

Fig 79: Pin Voltage Chart (Sentra 1.8L California CA - 6 Of 7)

G00156629

Courtesy of NISSAN MOTOR CO., U.S.A.

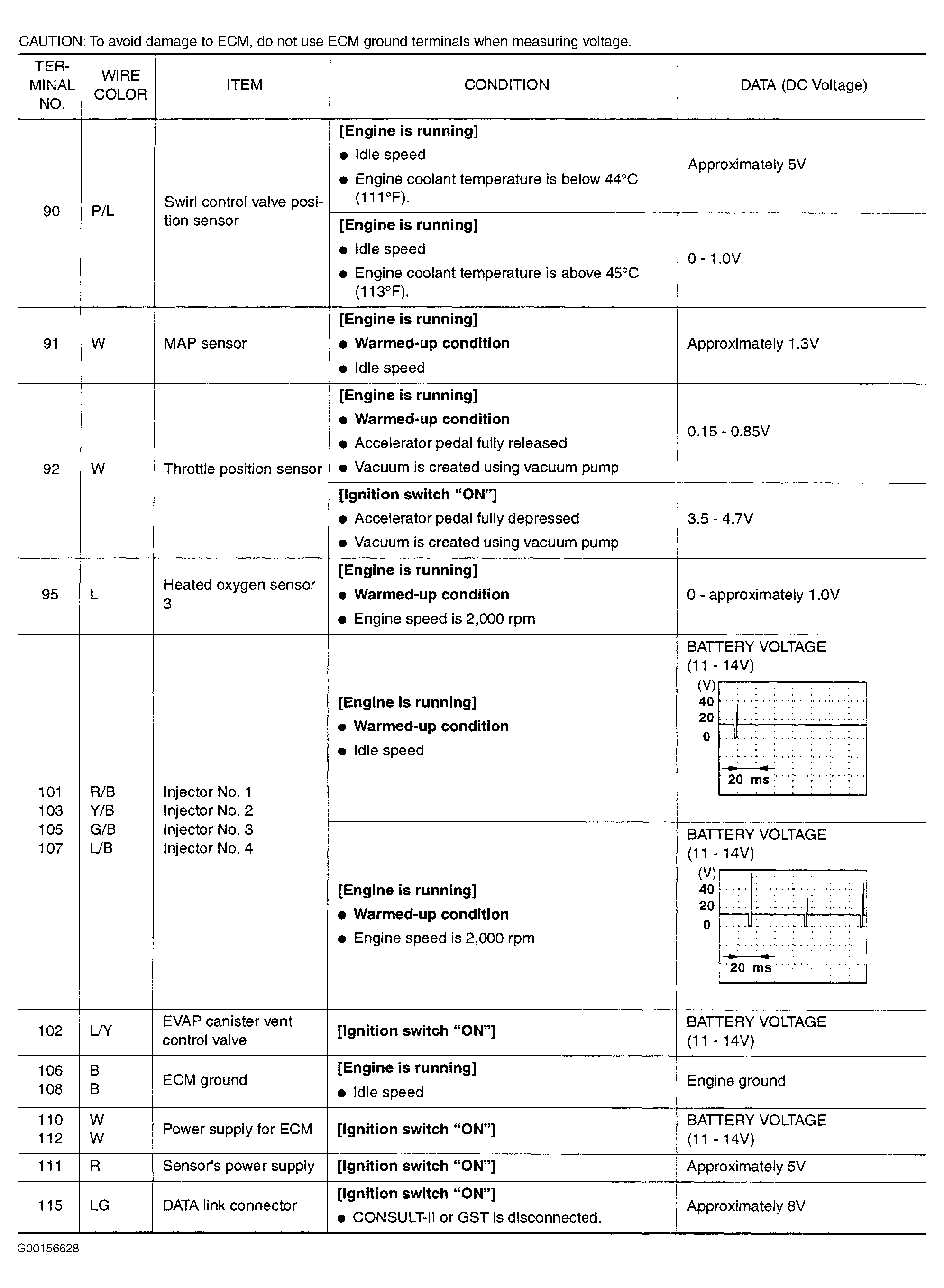

Fig 80: Pin Voltage Chart (Sentra 1.8L California CA - 7 Of 7)

G00156628

Courtesy of NISSAN MOTOR CO., U.S.A.

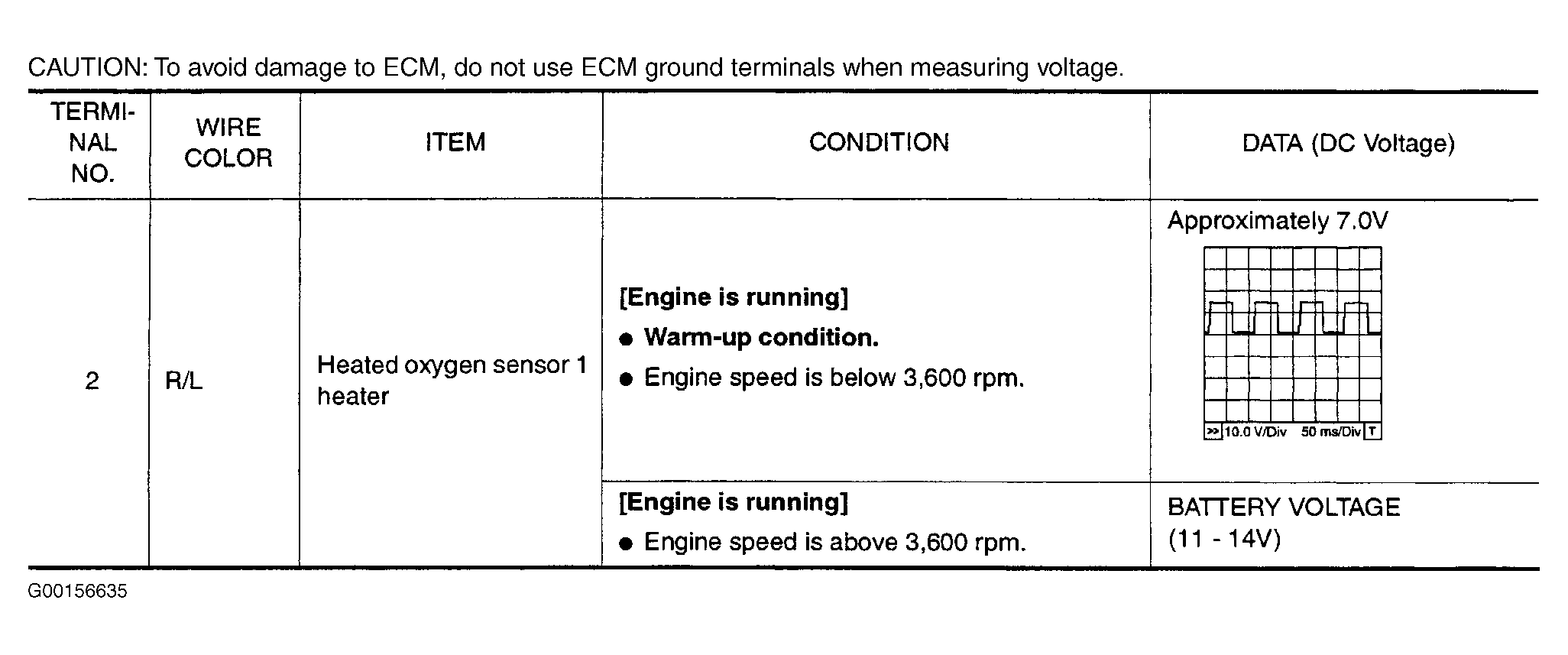

Fig 81: Pin Voltage Chart (Sentra 2.5L - 1 Of 10)

G00156635

Courtesy of NISSAN MOTOR CO., U.S.A.

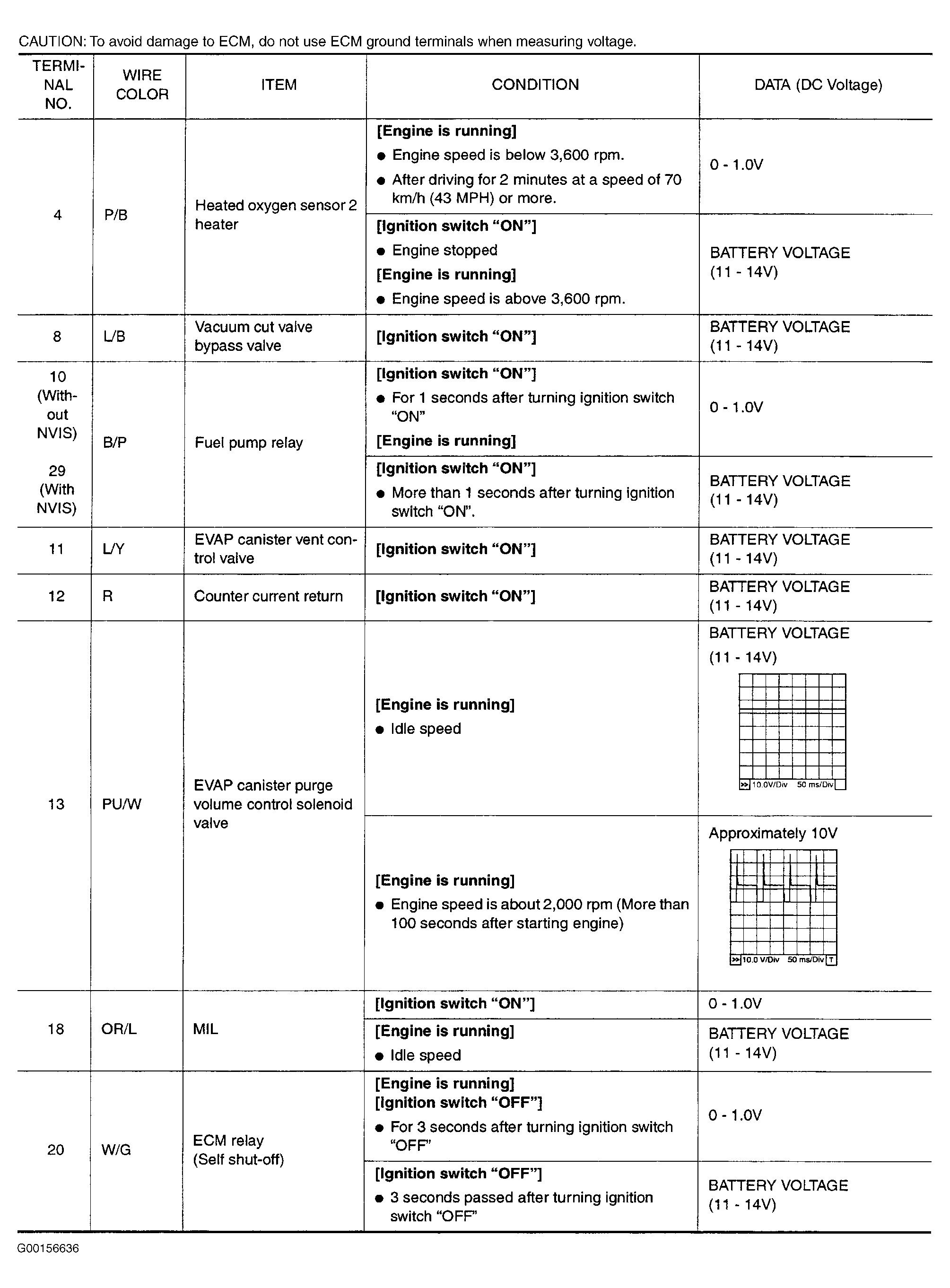

Fig 82: Pin Voltage Chart (Sentra 2.5L - 2 Of 10)

G00156636

Courtesy of NISSAN MOTOR CO., U.S.A.

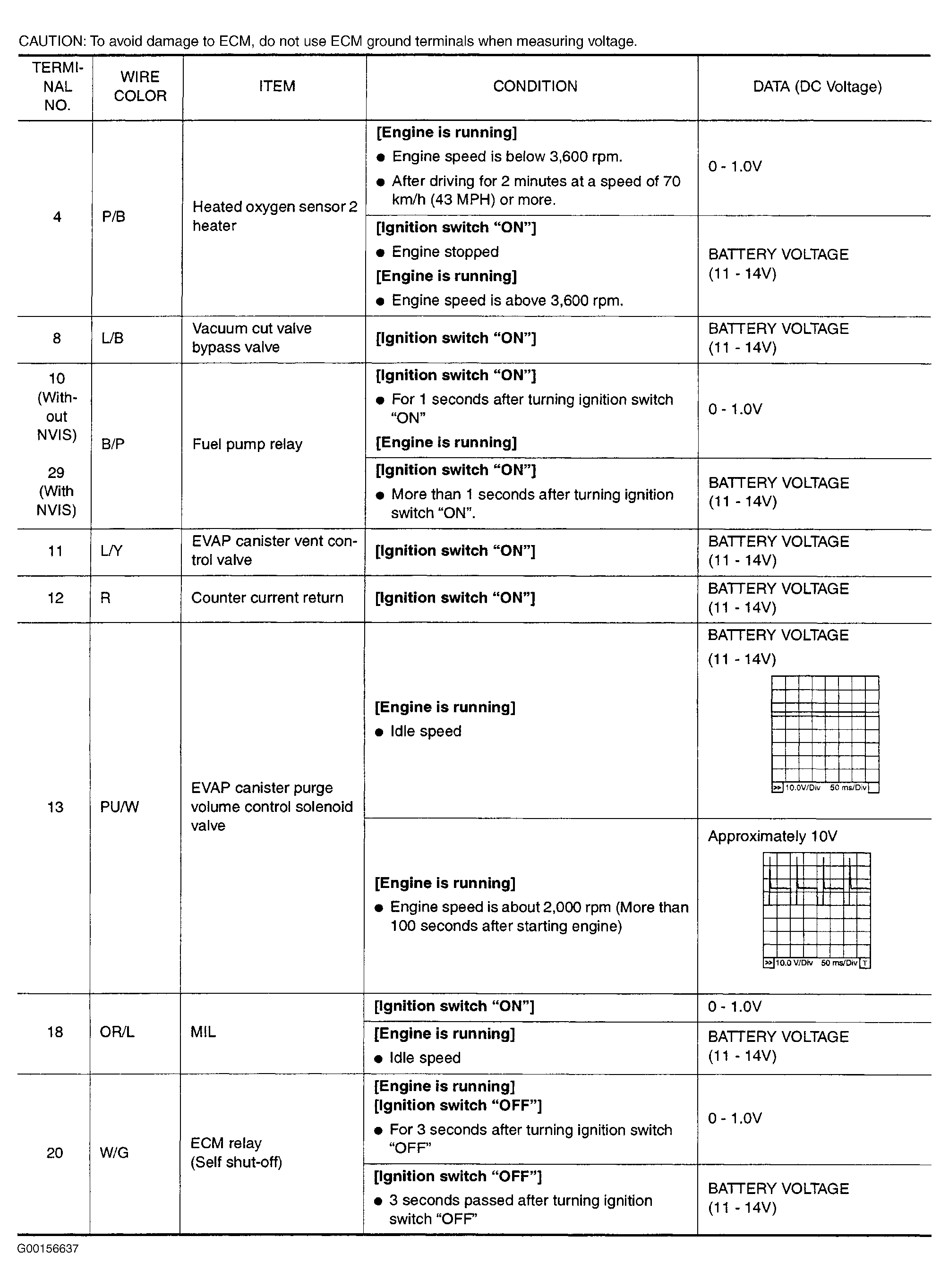

Fig 83: Pin Voltage Chart (Sentra 2.5L - 3 Of 10)

G00156637

Courtesy of NISSAN MOTOR CO., U.S.A.

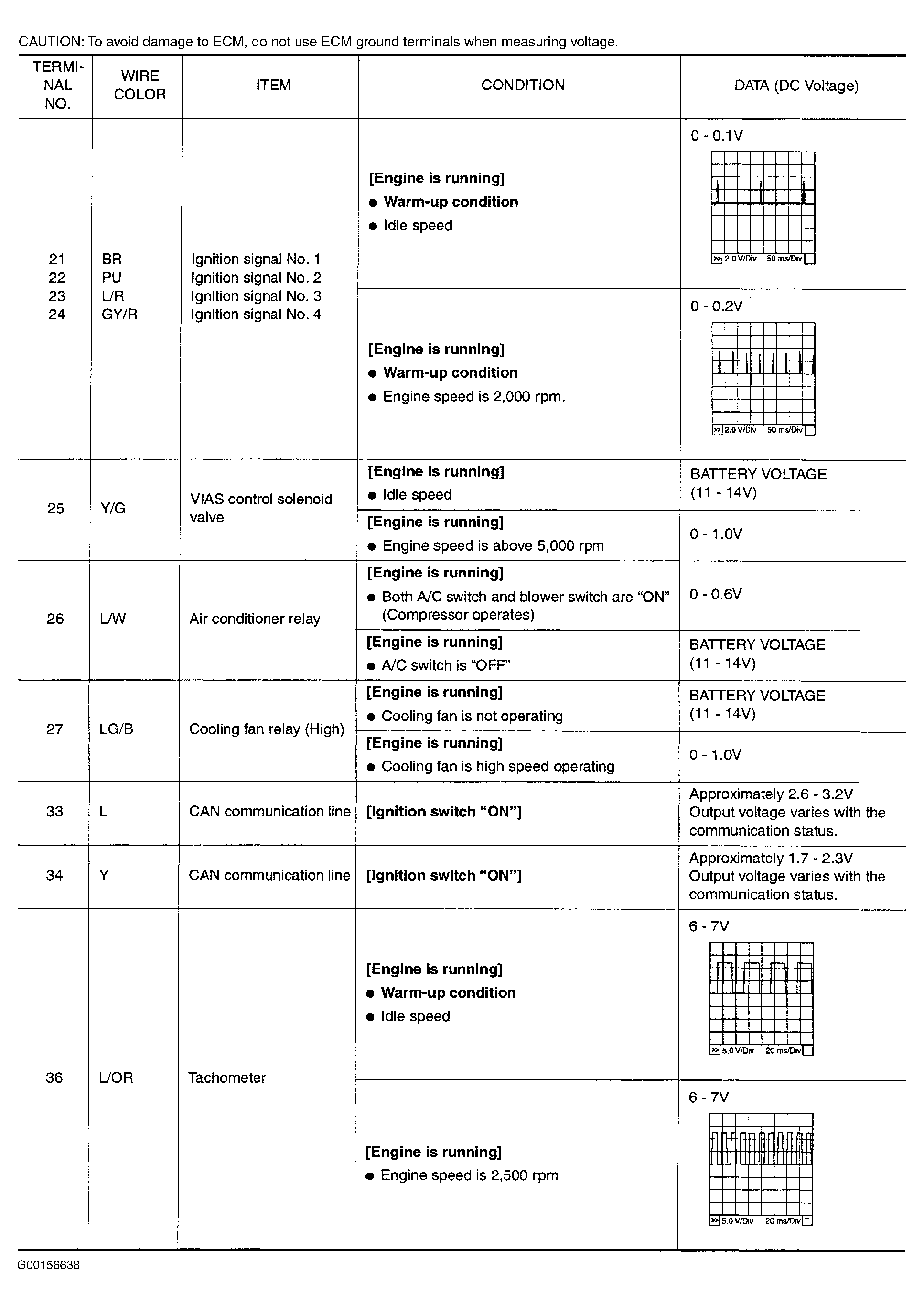

Fig 84: Pin Voltage Chart (Sentra 2.5L - 4 Of 10)

G00156638

Courtesy of NISSAN MOTOR CO., U.S.A.

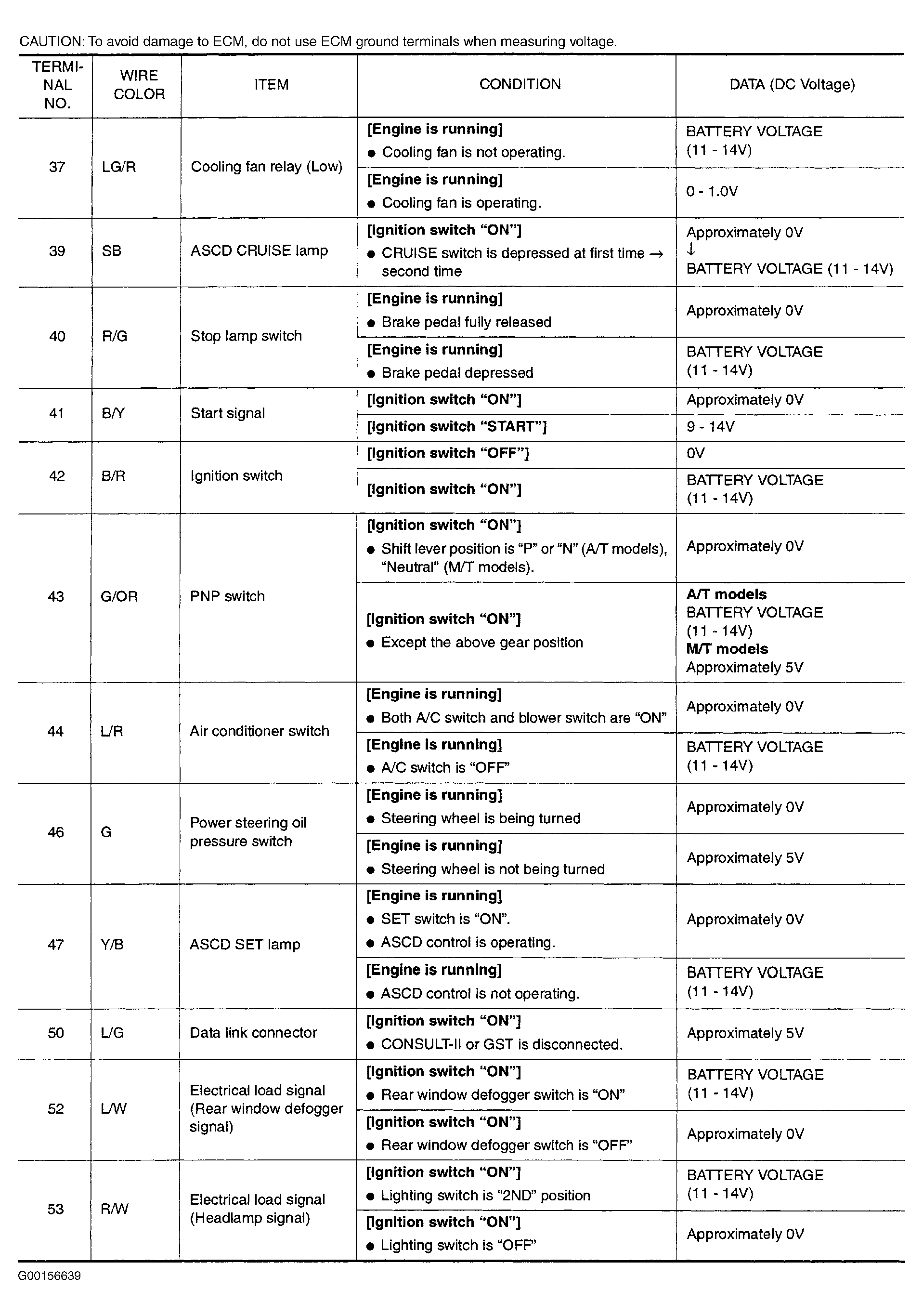

Fig 85: Pin Voltage Chart (Sentra 2.5L - 5 Of 10)

G00156639

Courtesy of NISSAN MOTOR CO., U.S.A.

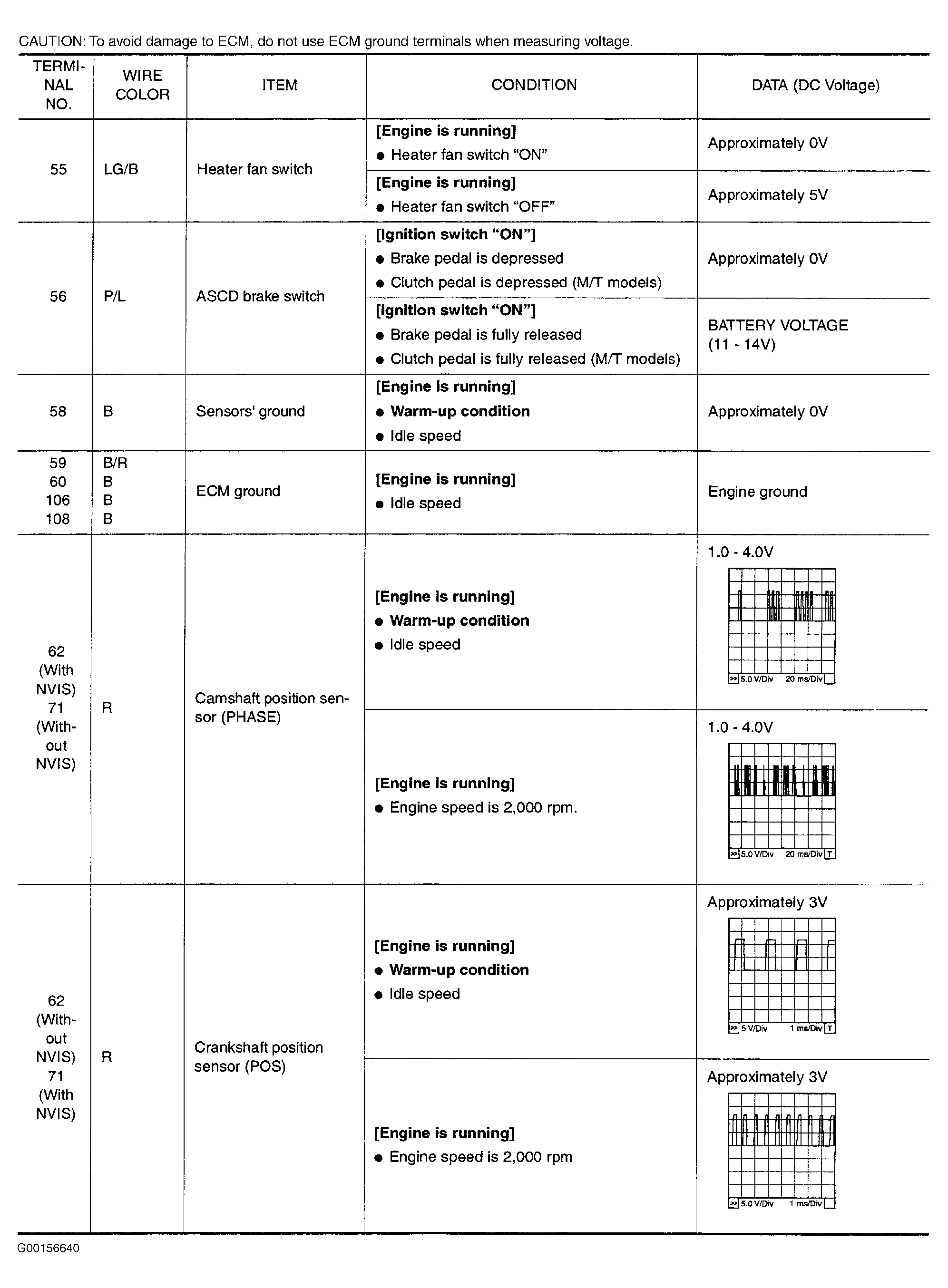

Fig 86: Pin Voltage Chart (Sentra 2.5L - 6 Of 10)

G00156640

Courtesy of NISSAN MOTOR CO., U.S.A.

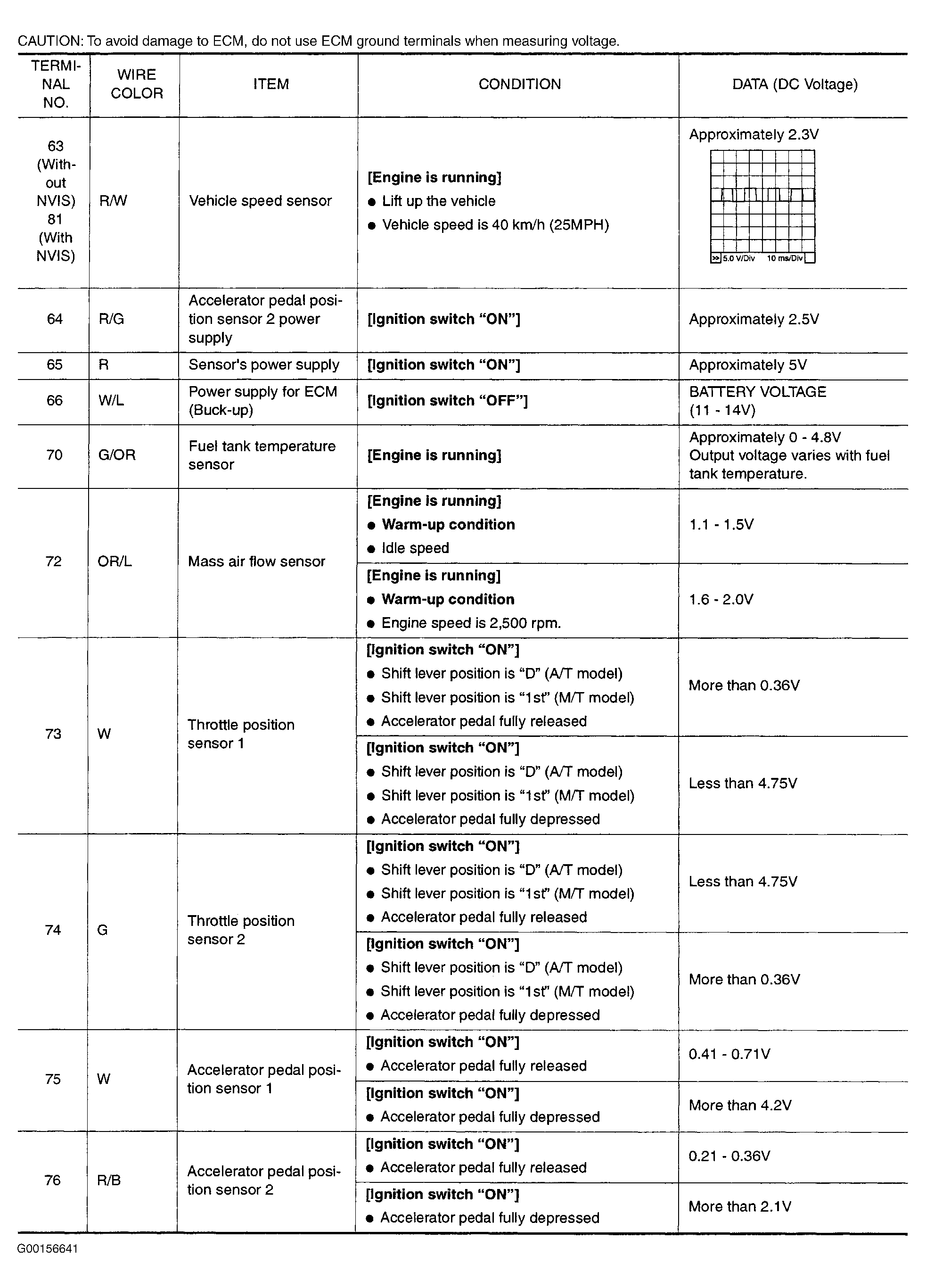

Fig 87: Pin Voltage Chart (Sentra 2.5L - 7 Of 10)

G00156641

Courtesy of NISSAN MOTOR CO., U.S.A.

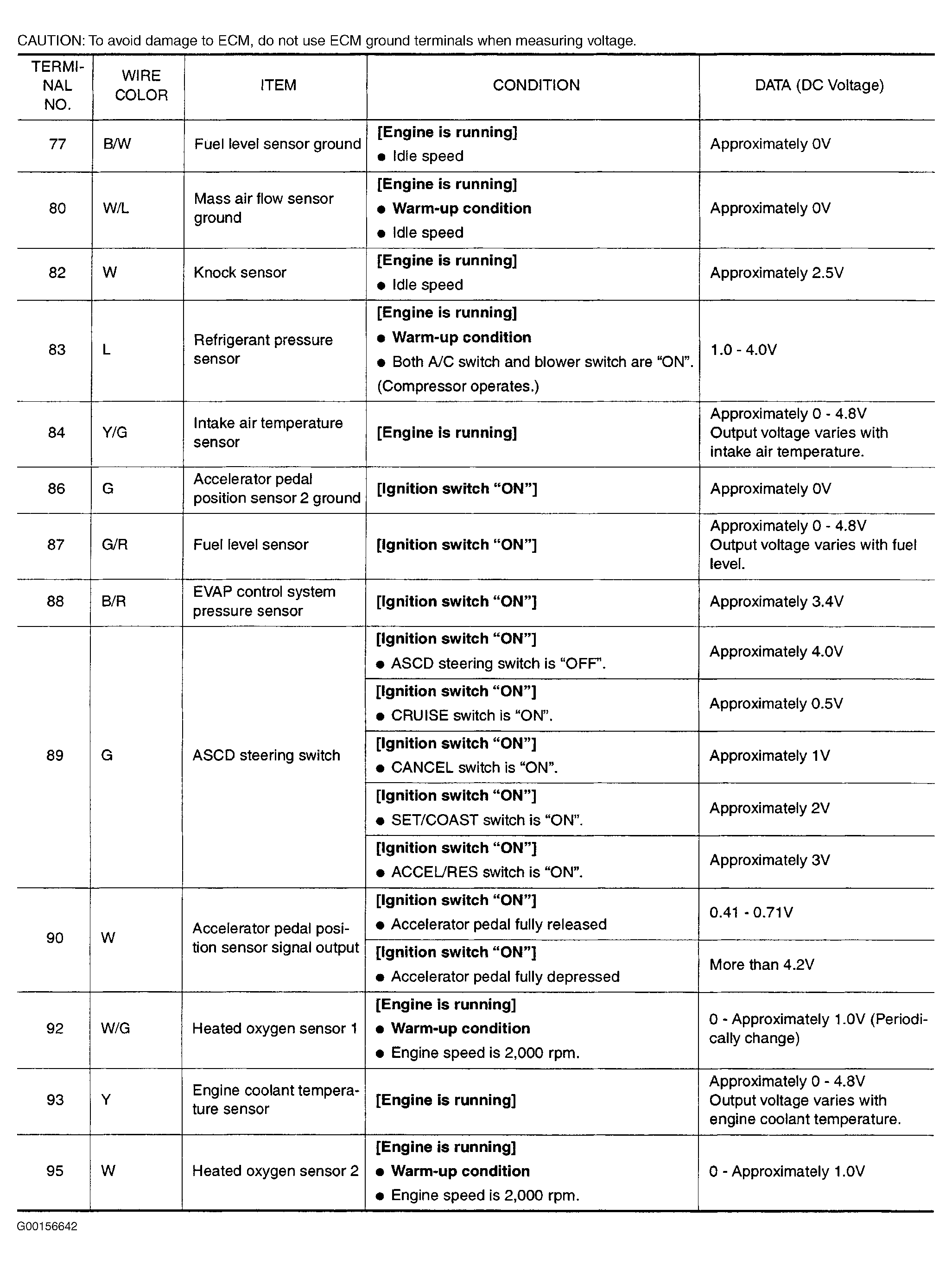

Fig 88: Pin Voltage Chart (Sentra 2.5L - 8 Of 10)

G00156642

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 89: Pin Voltage Chart (Sentra 2.5L - 9 Of 10)

G00156643

Courtesy of NISSAN MOTOR CO., U.S.A.

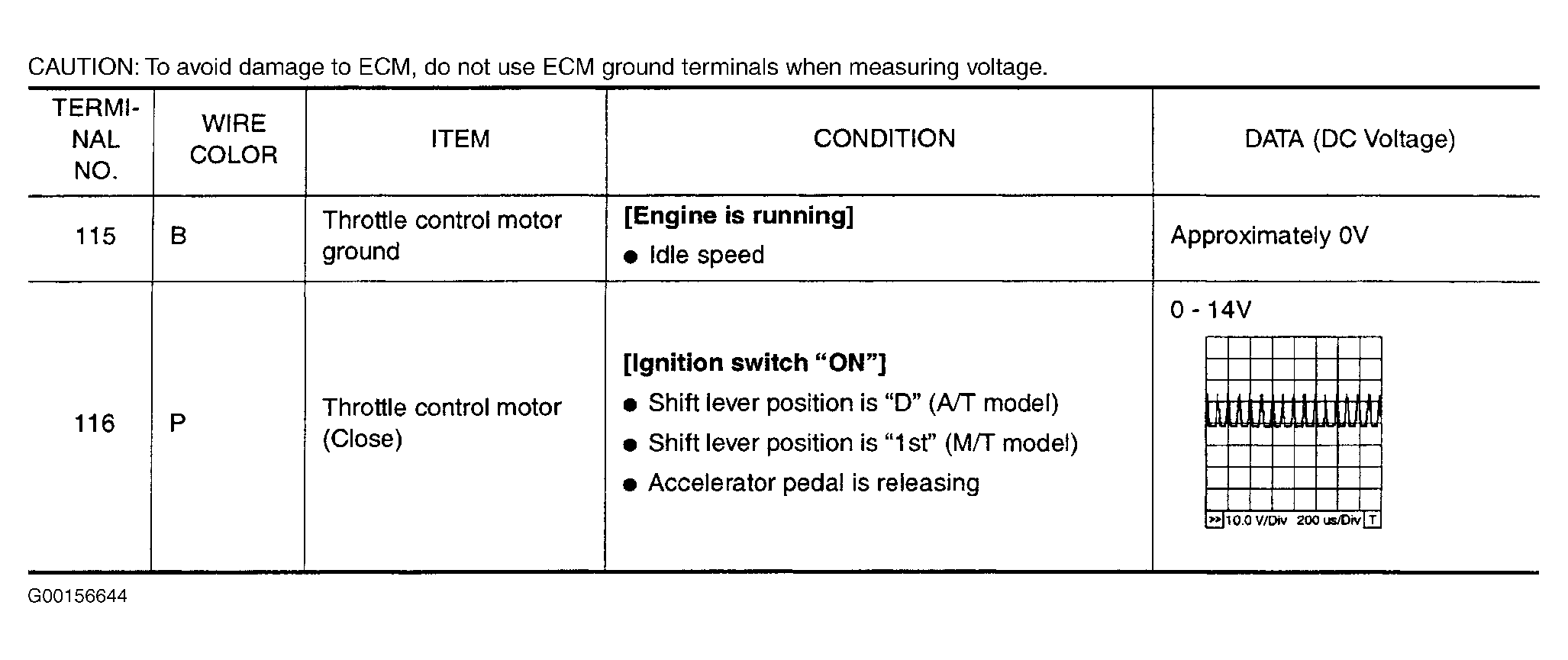

Fig 90: Pin Voltage Chart (Sentra 2.5L - 10 Of 10)

G00156644

Courtesy of NISSAN MOTOR CO., U.S.A.
