VIAS Control Solenoid Valve
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2002 Nissan Xterra, 2002 Nissan Sentra, 2002 Nissan Quest, 2002 Nissan Pathfinder, and 2002 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- With CONSULT-II
Disconnect vacuum hoses from VIAS control solenoid valve. Turn ignition on. On CONSULT-II from ACTIVE TEST mode, select VIAS SOL VALVE. Using CONSULT-II, command valve On and Off. Using an auxiliary length of vacuum hose connected to vacuum port "A" blow through valve under specified conditions. See CHECKING VIAS CONTROL SOLENOID VALVE WITH CONSULT-II table. See Fig 1. If valve does not test as specified, replace VIAS control solenoid valve.CHECKING VIAS CONTROL SOLENOID VALVE WITH CONSULT-IIVIAS Valve Condition Air Passage Continuity Between A & B Air Passage Continuity Between A & C ON Yes No OFF No Yes - Without CONSULT-II

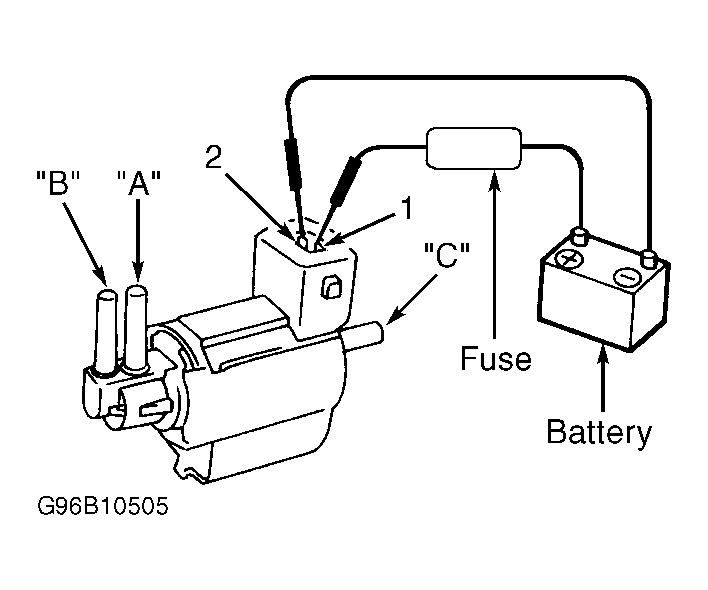

Disconnect vacuum hoses from VIAS control solenoid valve. Turn ignition on. Using 2 jumper wires, jumper VIAS control solenoid valve pin No. 1 to battery voltage and pin No. 2 to ground. Using an auxiliary length of vacuum hose connected to vacuum port "A" blow through valve under specified conditions. When voltage is applied to solenoid, air continuity should exist between vacuum ports "A" and "B", and air continuity should not exist between vacuum ports "A" and "C". When voltage is removed from valve air continuity should exist between vacuum ports "A" and "C", and air continuity should not exist between vacuum ports "A" and "B". When voltage is removed, vacuum should not exist. See Fig 1. If valve does not test as specified, replace VIAS control solenoid valve.
