Symptom Chart

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Numbers are arranged in order of inspection.

Perform inspections starting with number one and work up.

CAUTION:
  • Do not remove or disassemble any RE5F22A model transaxle parts unless specified to do so in AT section.
  • Condition for "on vehicle" only.

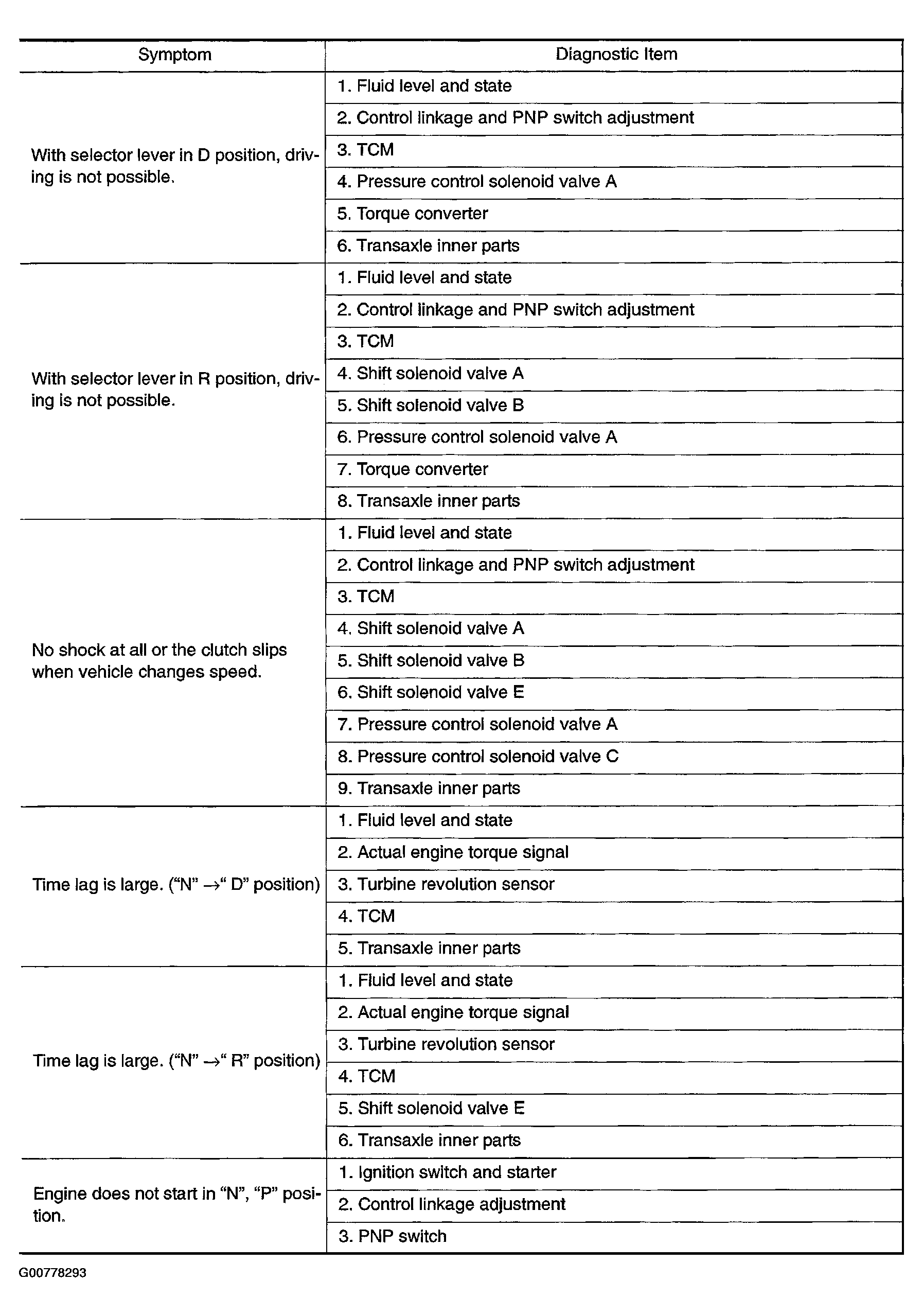

Fig 1: Symptom Chart (1 Of 6)
G00778293Courtesy of NISSAN MOTOR CO., U.S.A.

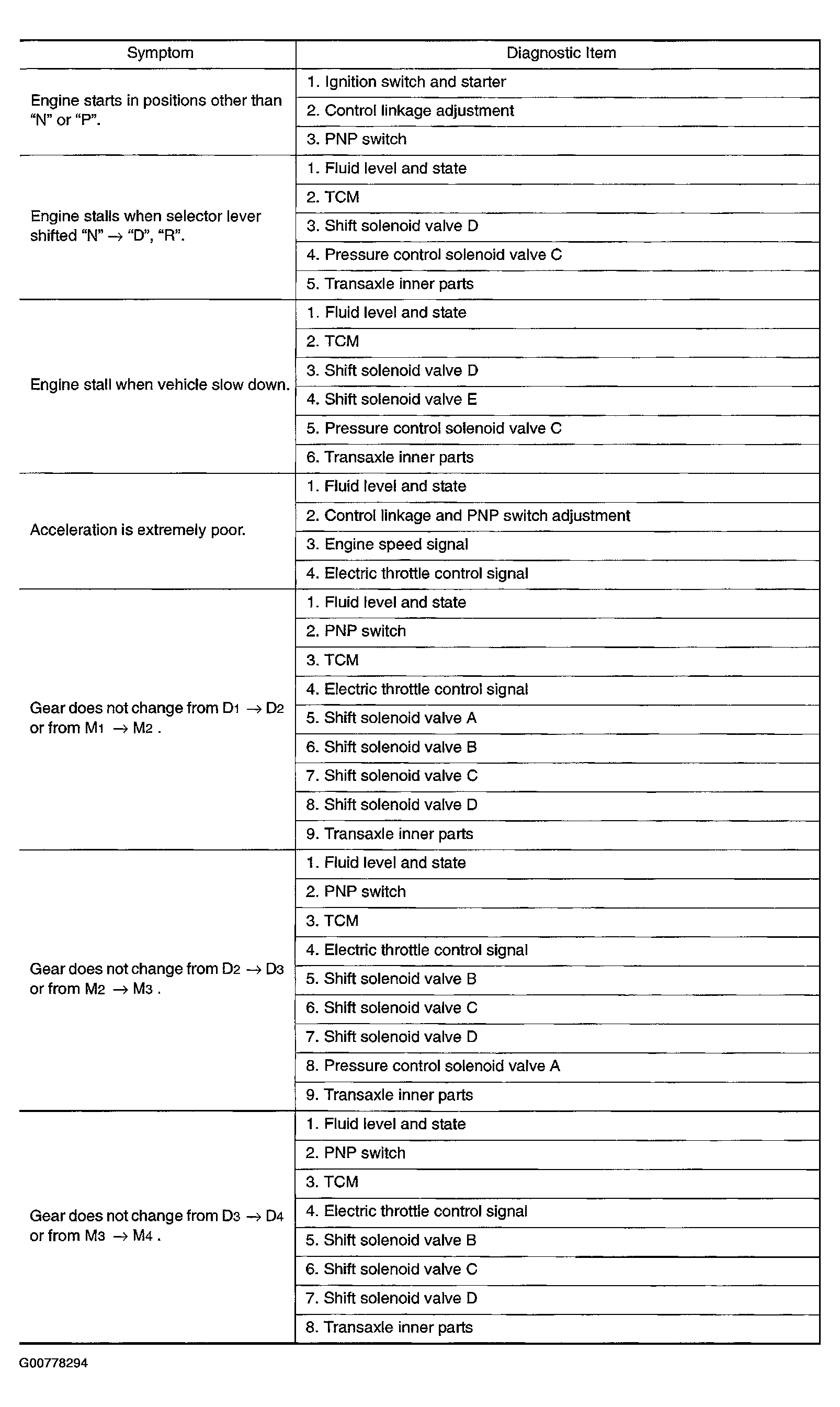

Fig 2: Symptom Chart (2 Of 6)
G00778294Courtesy of NISSAN MOTOR CO., U.S.A.

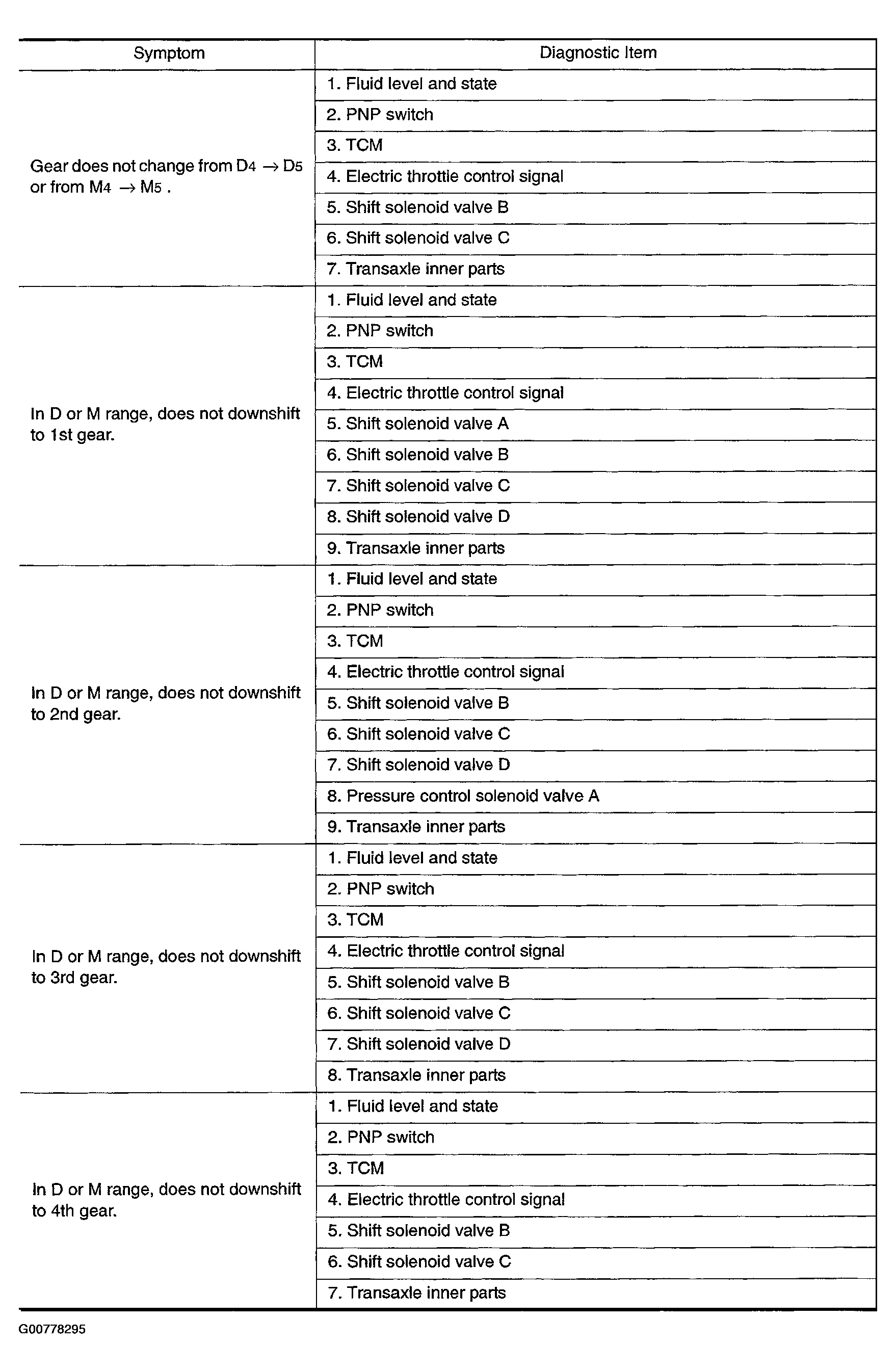

Fig 3: Symptom Chart (3 Of 6)
G00778295Courtesy of NISSAN MOTOR CO., U.S.A.

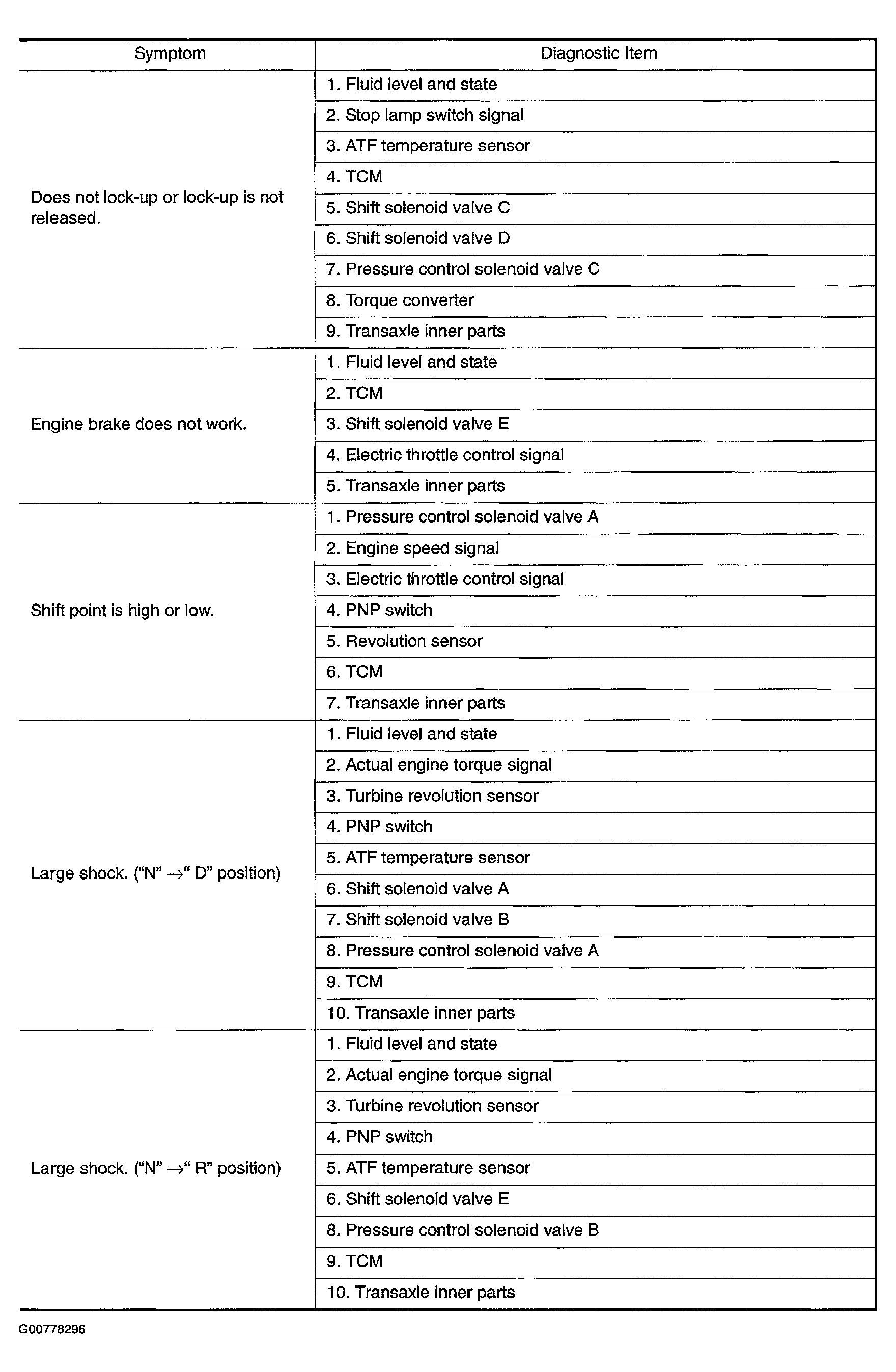

Fig 4: Symptom Chart (4 Of 6)
G00778296Courtesy of NISSAN MOTOR CO., U.S.A.

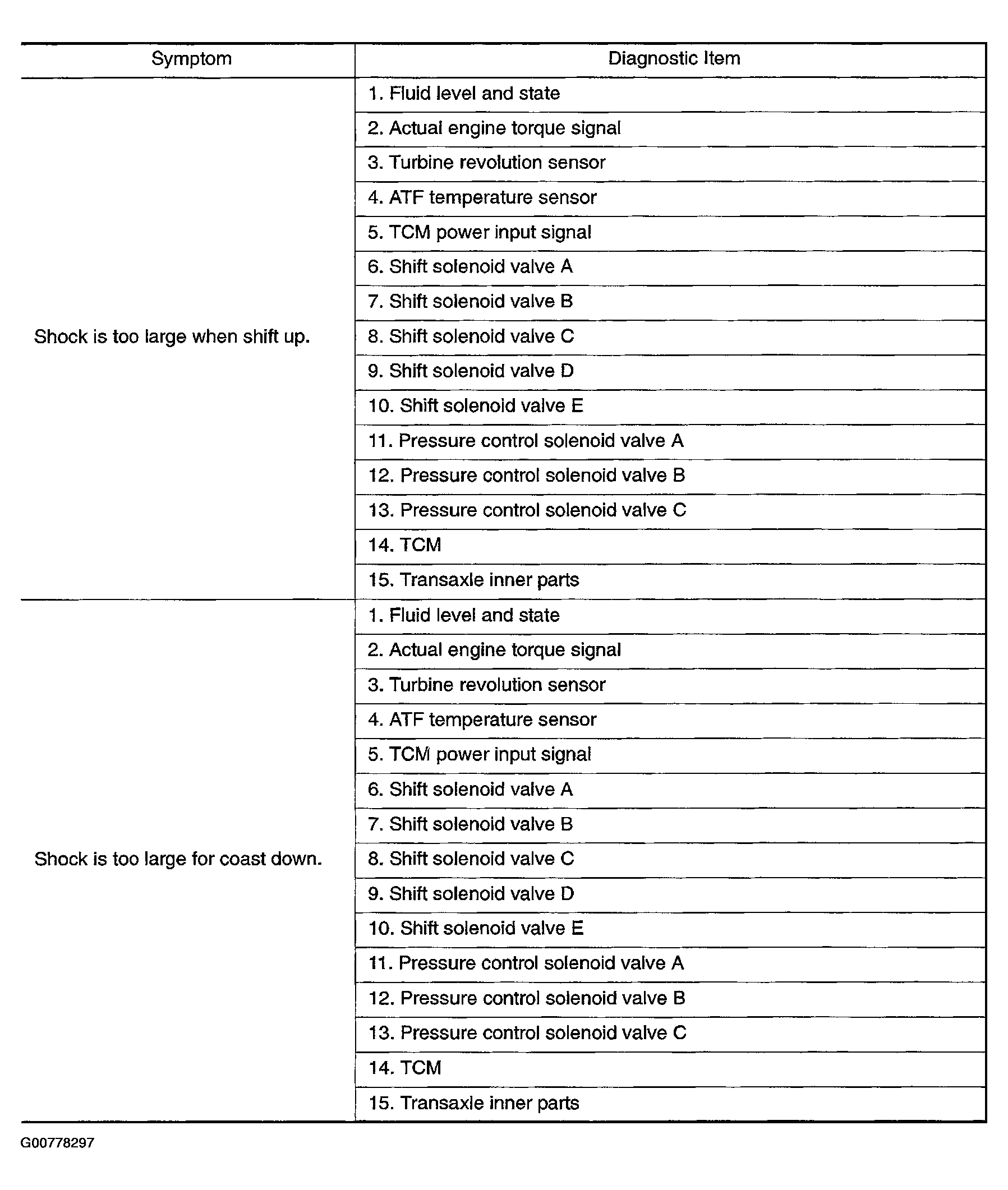

Fig 5: Symptom Chart (5 Of 6)
G00778297Courtesy of NISSAN MOTOR CO., U.S.A.

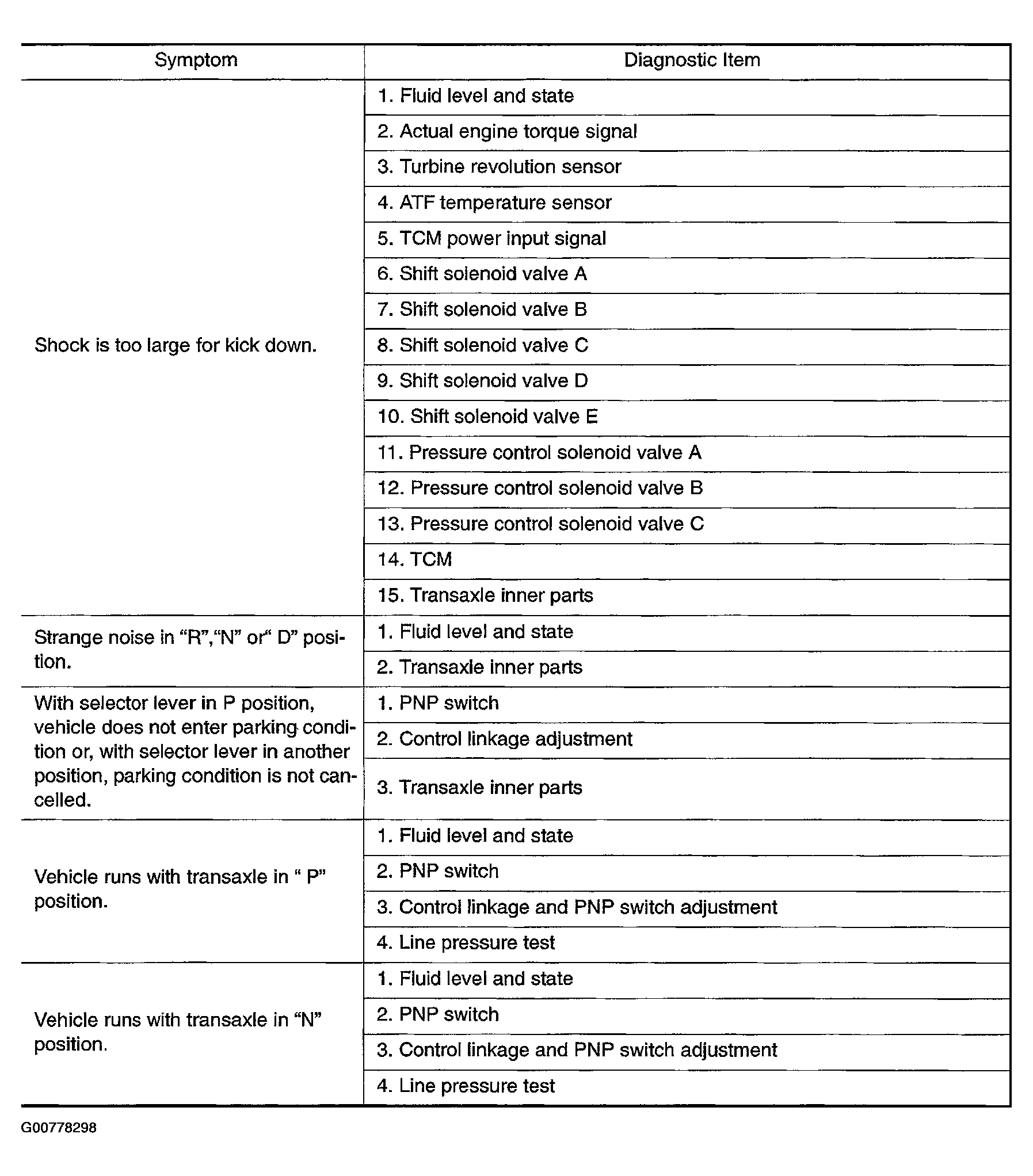

Fig 6: Symptom Chart (6 Of 6)
G00778298Courtesy of NISSAN MOTOR CO., U.S.A.
