Fail-safe mode list

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

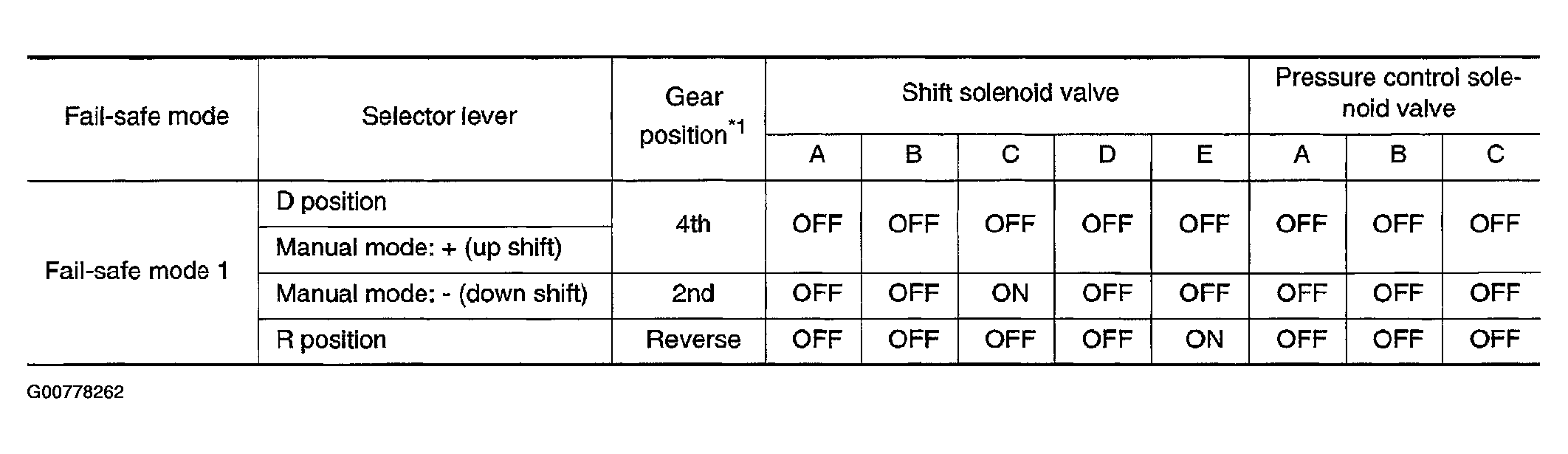

Fig 1: Fail-Safe Mode List (1 Of 2)
G00778262Courtesy of NISSAN MOTOR CO., U.S.A.

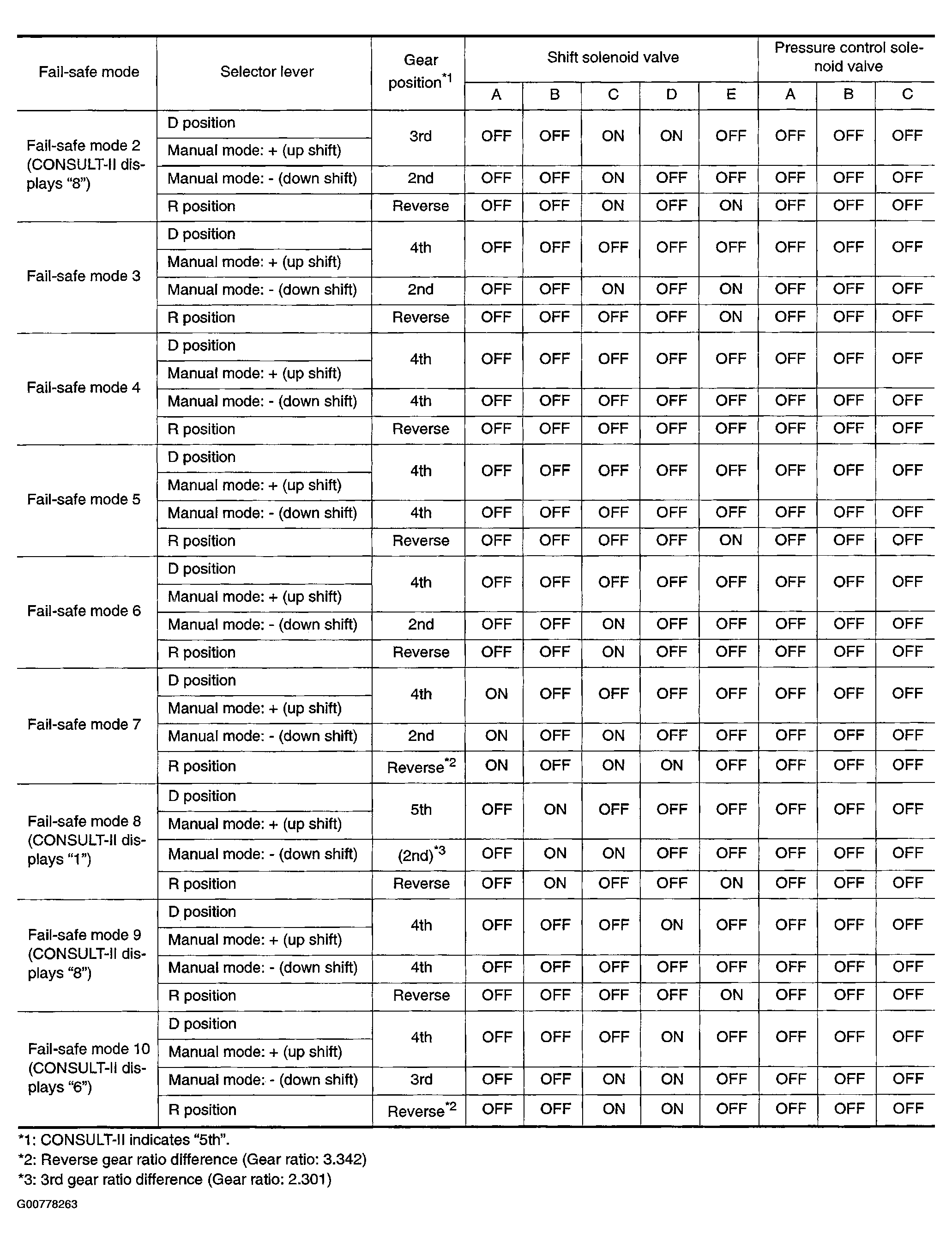

Fig 2: Fail-Safe Mode List (2 Of 2)
G00778263Courtesy of NISSAN MOTOR CO., U.S.A.
