WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

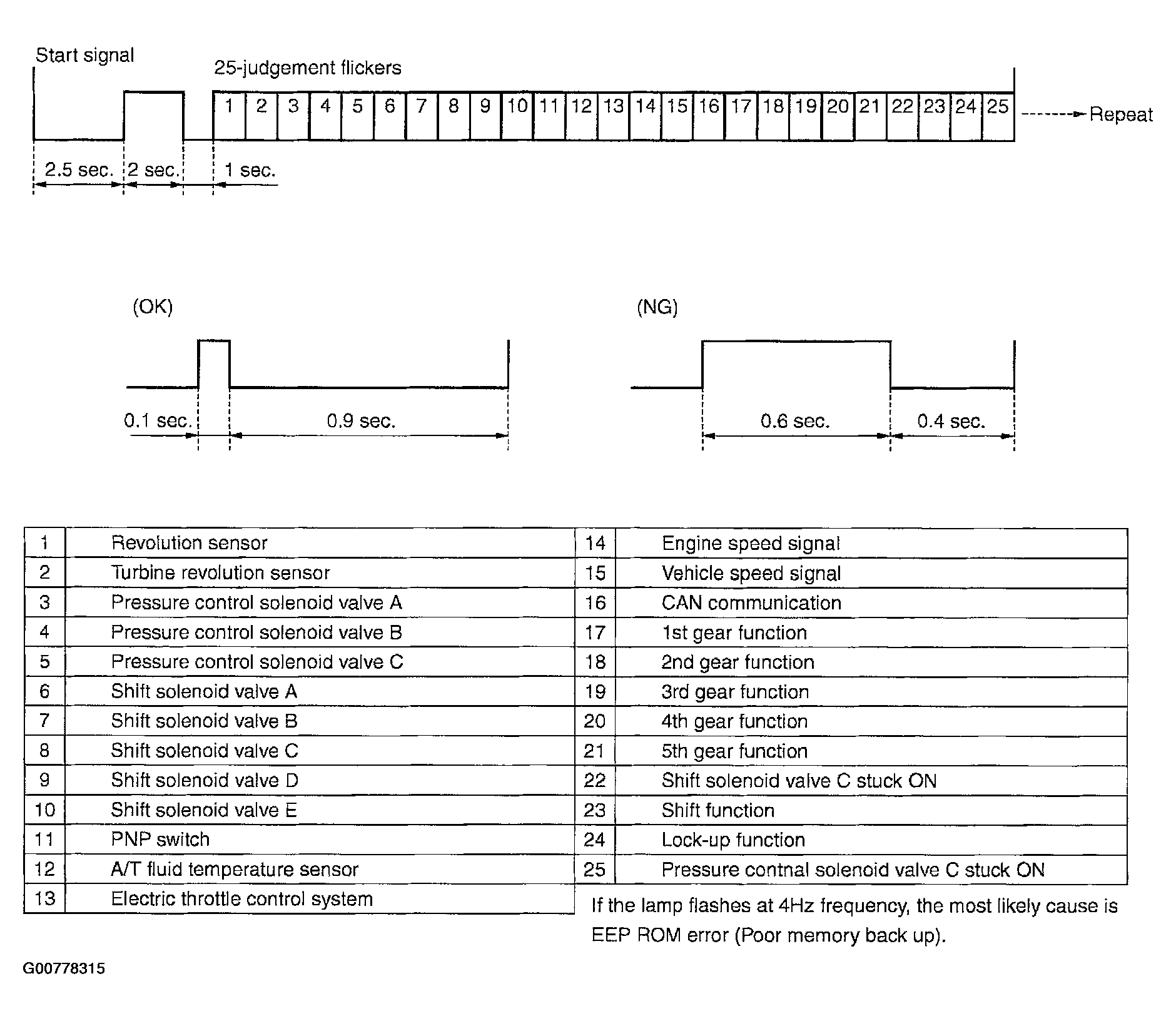

When a malfunction is detected, the malfunction route is indicated by longer illumination of the indicator lamp.
