With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "TRANSMISSION" with "DATA MONITOR" mode in Consult-II.
  3. Depress or release accelerator pedal and read out ON/OFF signaling action of the "CLSD THL POS".
  4. Depress or release brake pedal and read out ON/OFF signaling action of the "BRAKE SW".

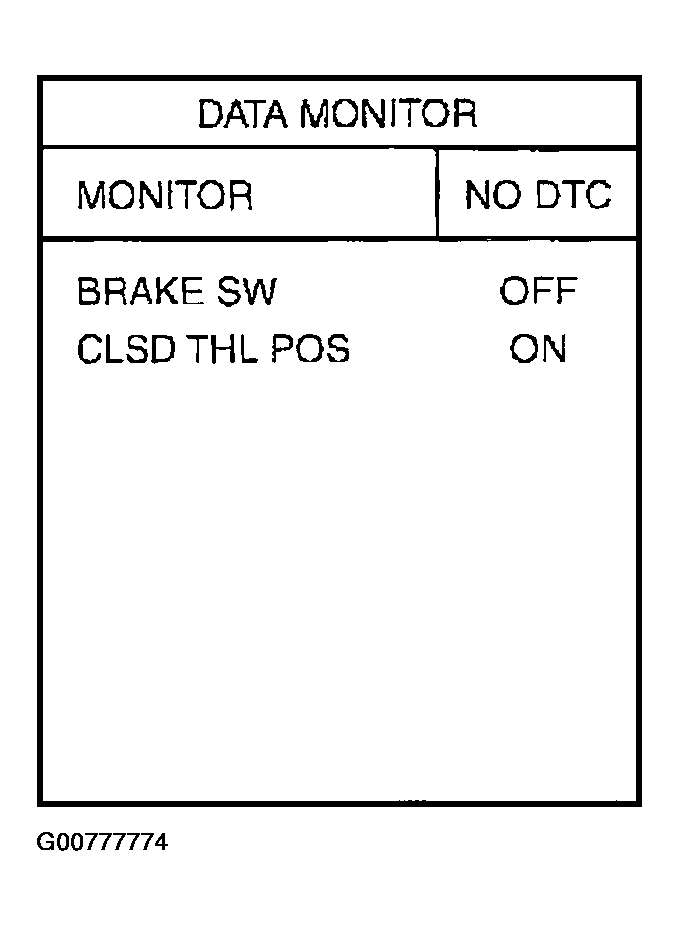

Fig 1: Consult-II Display Screen
G00777774Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 7 .
  2. NG: GO TO 5.
