One-Way Clutch Outer Race Sub Assembly & 2nd Coast Brake Hub & One-Way Clutch No.1: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

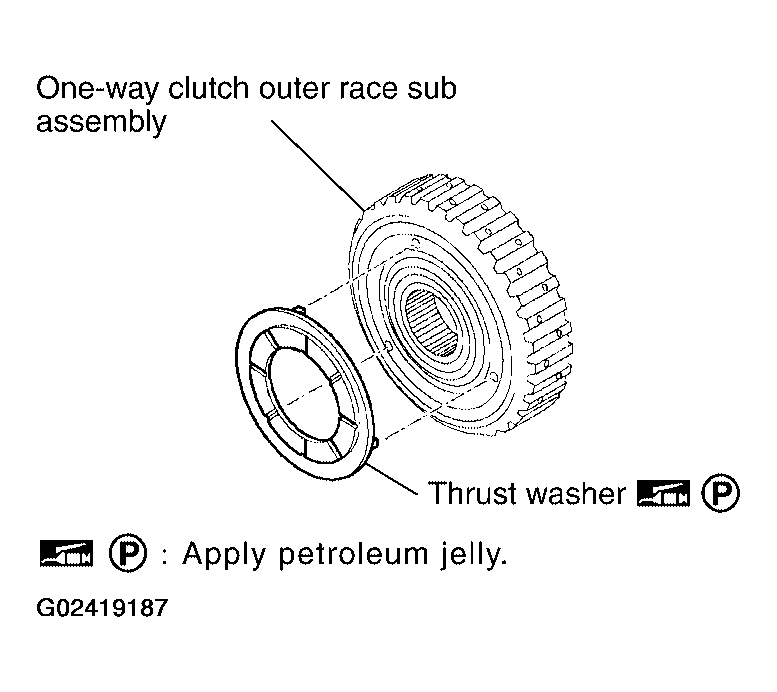

Remove thrust washer from one-way clutch outer race sub assembly.

Fig 1: Removing Thrust Washer From One-Way Clutch Outer Race Sub Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

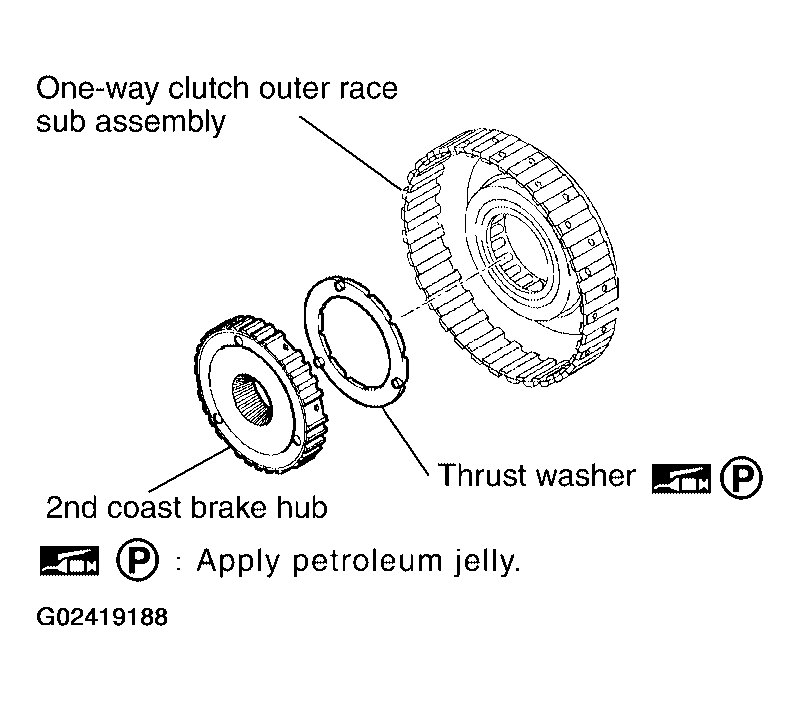

Remove 2nd coast brake hub from one-way clutch outer race sub assembly.
Remove thrust washer from 2nd coast brake hub.

Fig 2: Removing Thrust Washer From 2nd Coast Brake Hub
Courtesy of NISSAN MOTOR CO., U.S.A.

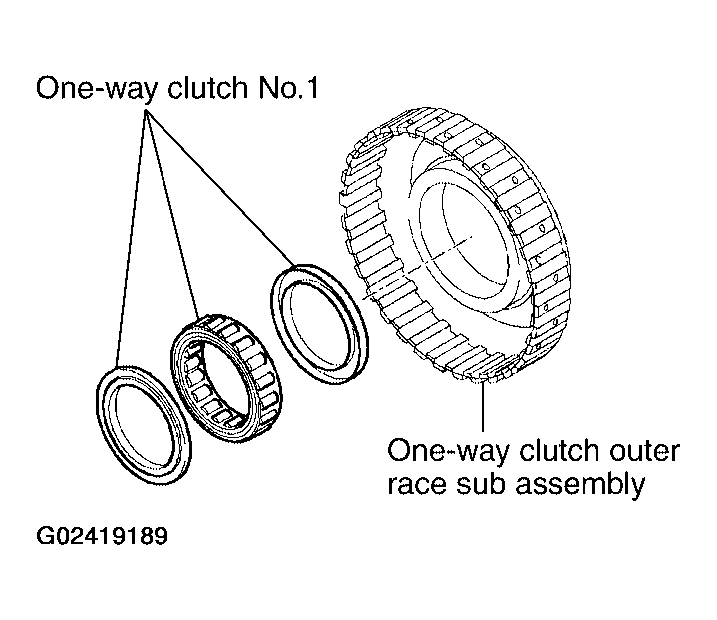

Remove one-way clutch No.1 from one-way clutch outer race sub assembly.

Fig 3: Removing One-Way Clutch No. 1
Courtesy of NISSAN MOTOR CO., U.S.A.
