Differential Gear Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove O-rings from differential gear assembly.
    NOTE: Do not reuse O-rings.

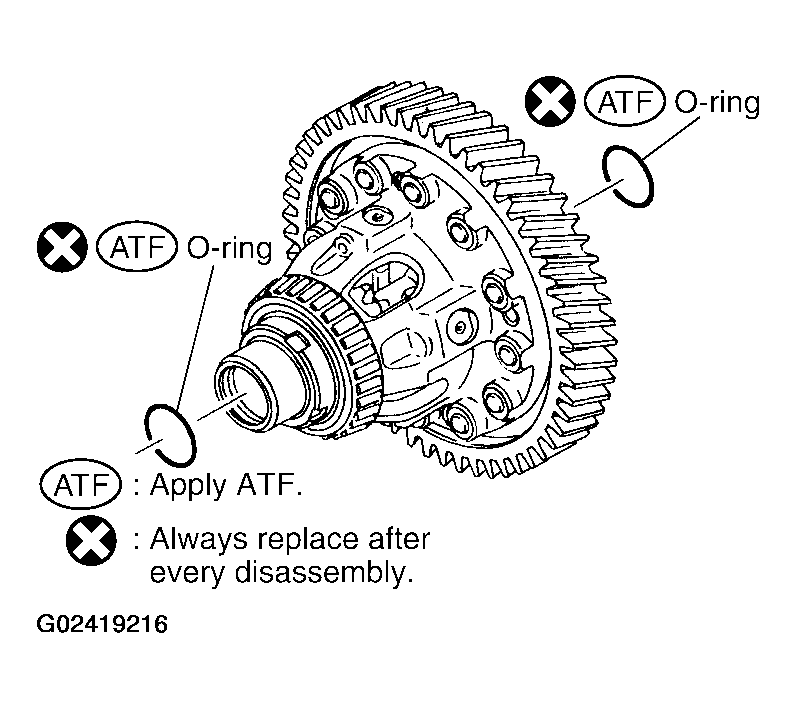

    Fig 1: Removing O-Rings From Differential Gear Assembly
    G02419216Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove tapered roller bearings, using suitable puller and Tool.

    Tool number: ST33081000 (J-8107-2)

    NOTE: Do not reuse tapered roller bearings.

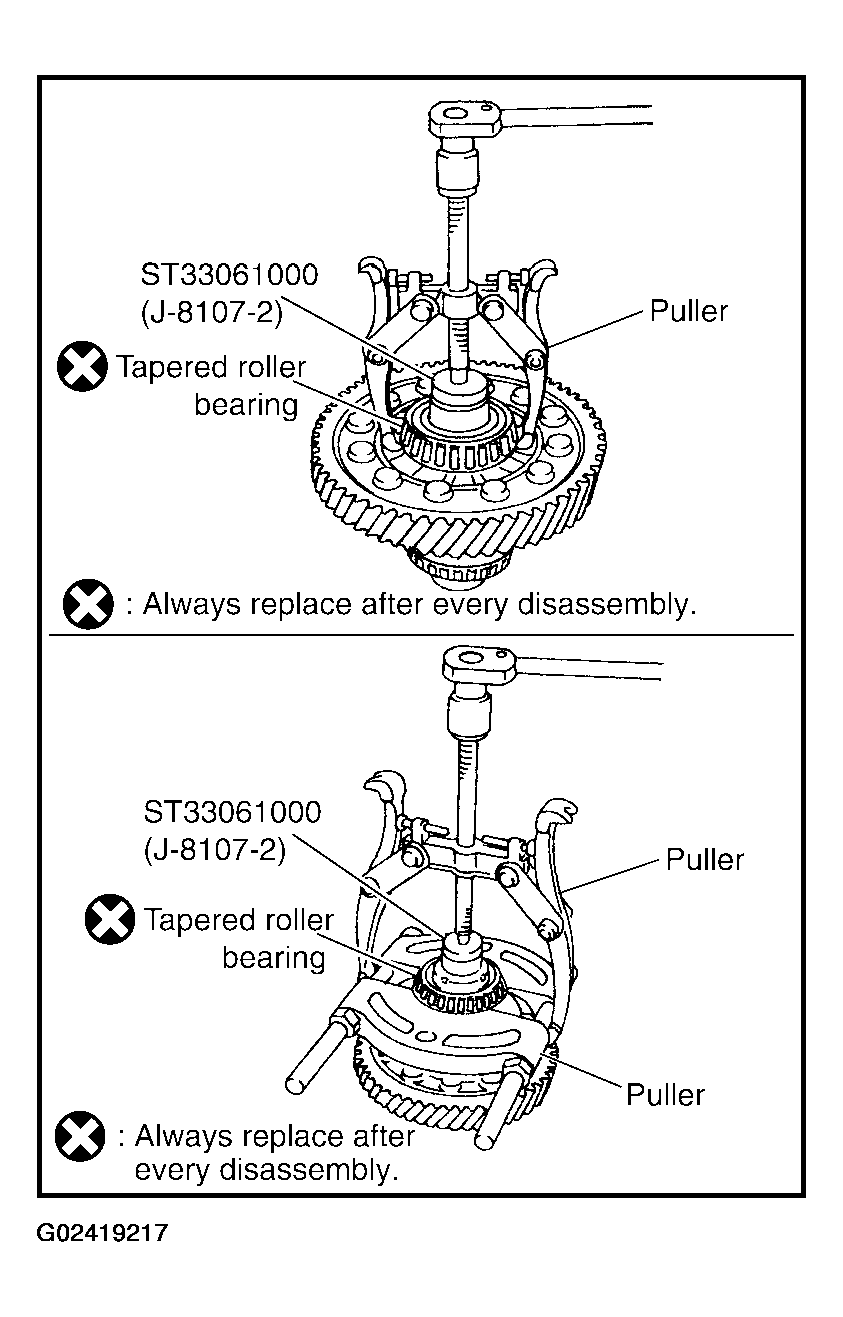

    Fig 2: Removing Tapered Roller Bearings
    G02419217Courtesy of NISSAN MOTOR CO., U.S.A.
