Differential Gear Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new tapered roller bearings in differential gear assembly, using Tool.

    Tool number: KV38100500 ( - )

    : ST33720000 (J-25405)

    NOTE: Do not reuse tapered roller bearings.

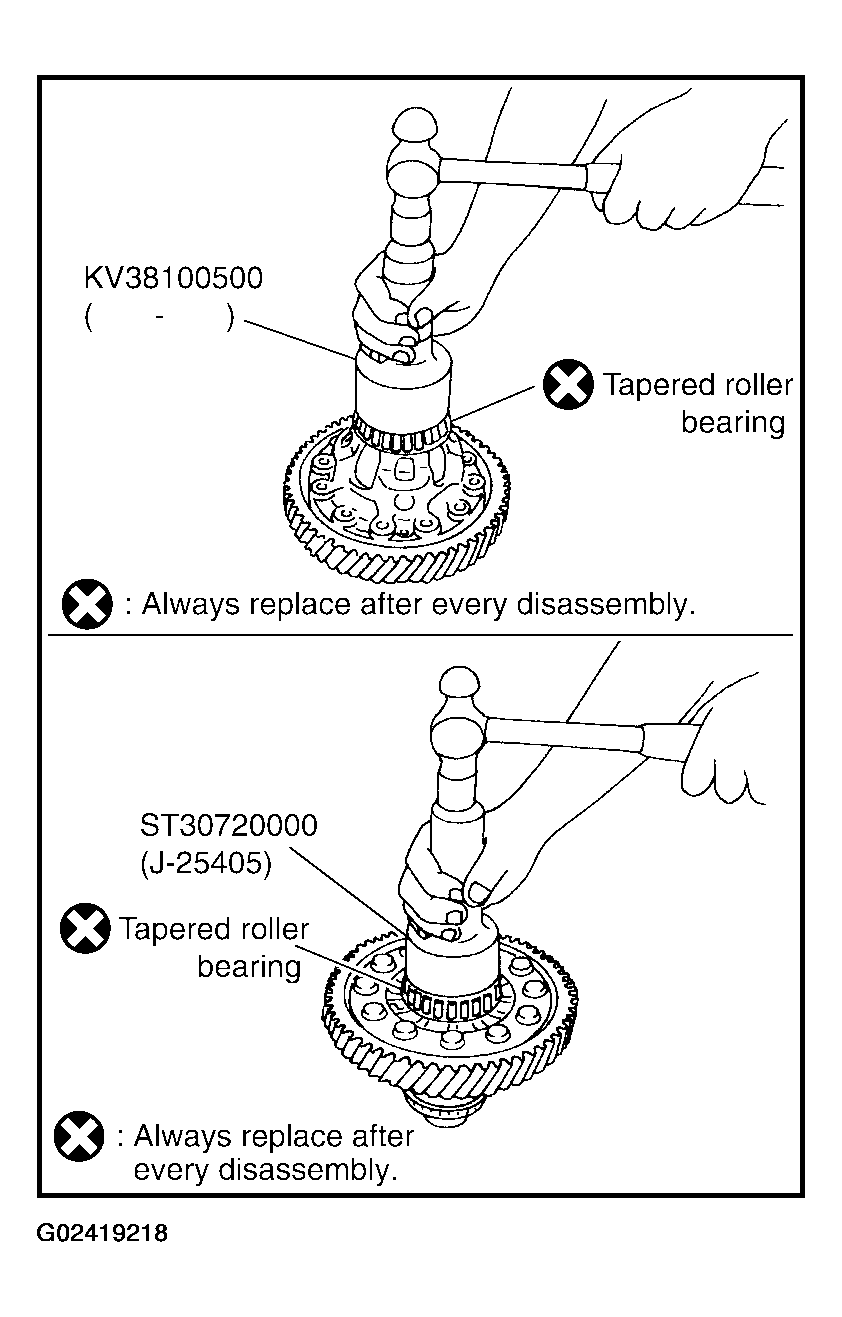

    Fig 1: Installing Tapered Roller Bearings In Differential Gear Assembly
    G02419218Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install new O-rings in differential gear assembly.
    NOTE:
    • Do not reuse O-rings.
    • Apply ATF to O-rings.

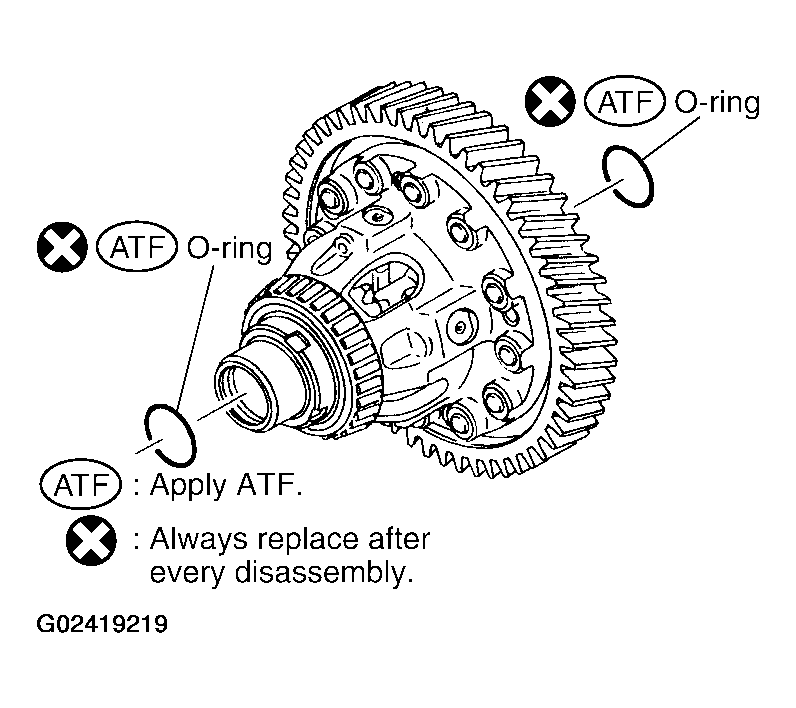

      Fig 2: Installing O-Rings In Differential Gear Assembly
      G02419219Courtesy of NISSAN MOTOR CO., U.S.A.
