Valve Body Assembly: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side cover. Refer to "Transaxle Side Cover ".
  2. Disconnect the terminal cord assembly sub-harness connectors.
  3. Remove the valve body assembly bolts and remove the valve body assembly.

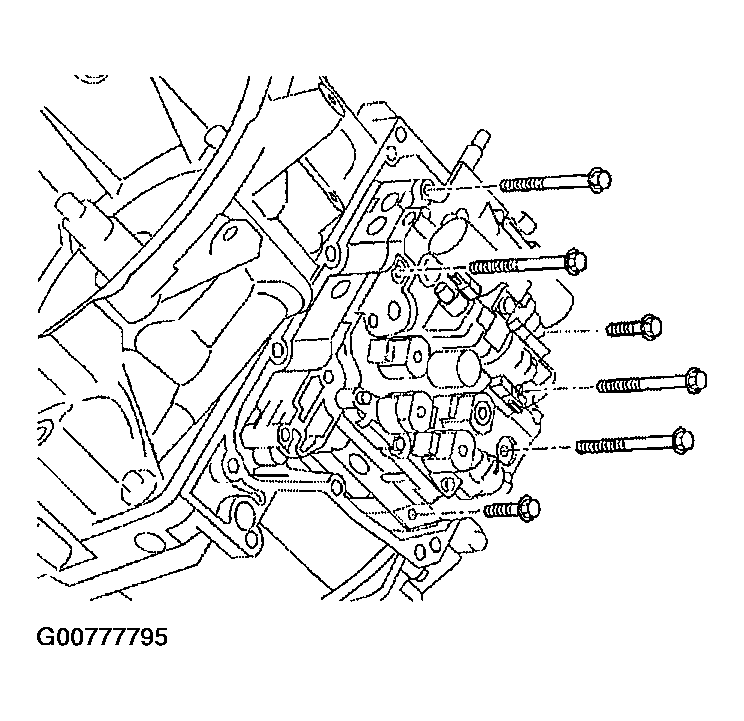

Fig 1: View Of Valve Body Assembly And Mounting Bolts
G00777795Courtesy of NISSAN MOTOR CO., U.S.A.
