Turbine Revolution Sensor Replacement: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery and bracket.
  2. Disconnect electrical connector.
  3. Remove bolt, and turbine revolution sensor from A/T.

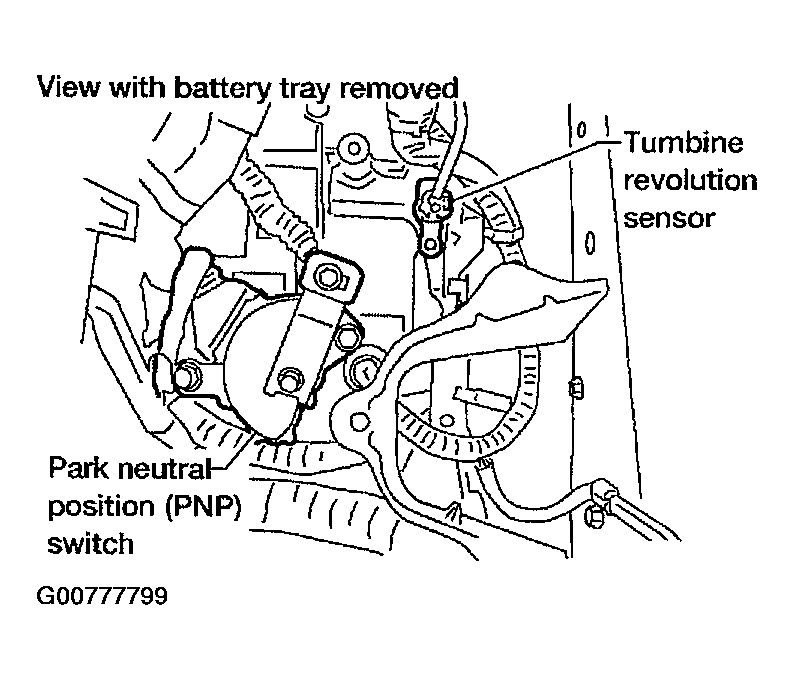

Fig 1: Locating Turbine Revolution Sensor
G00777799Courtesy of NISSAN MOTOR CO., U.S.A.
