ATF Cooler Valve: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to Fig 1 for ATF cooler valve and hoses removal and installation information.

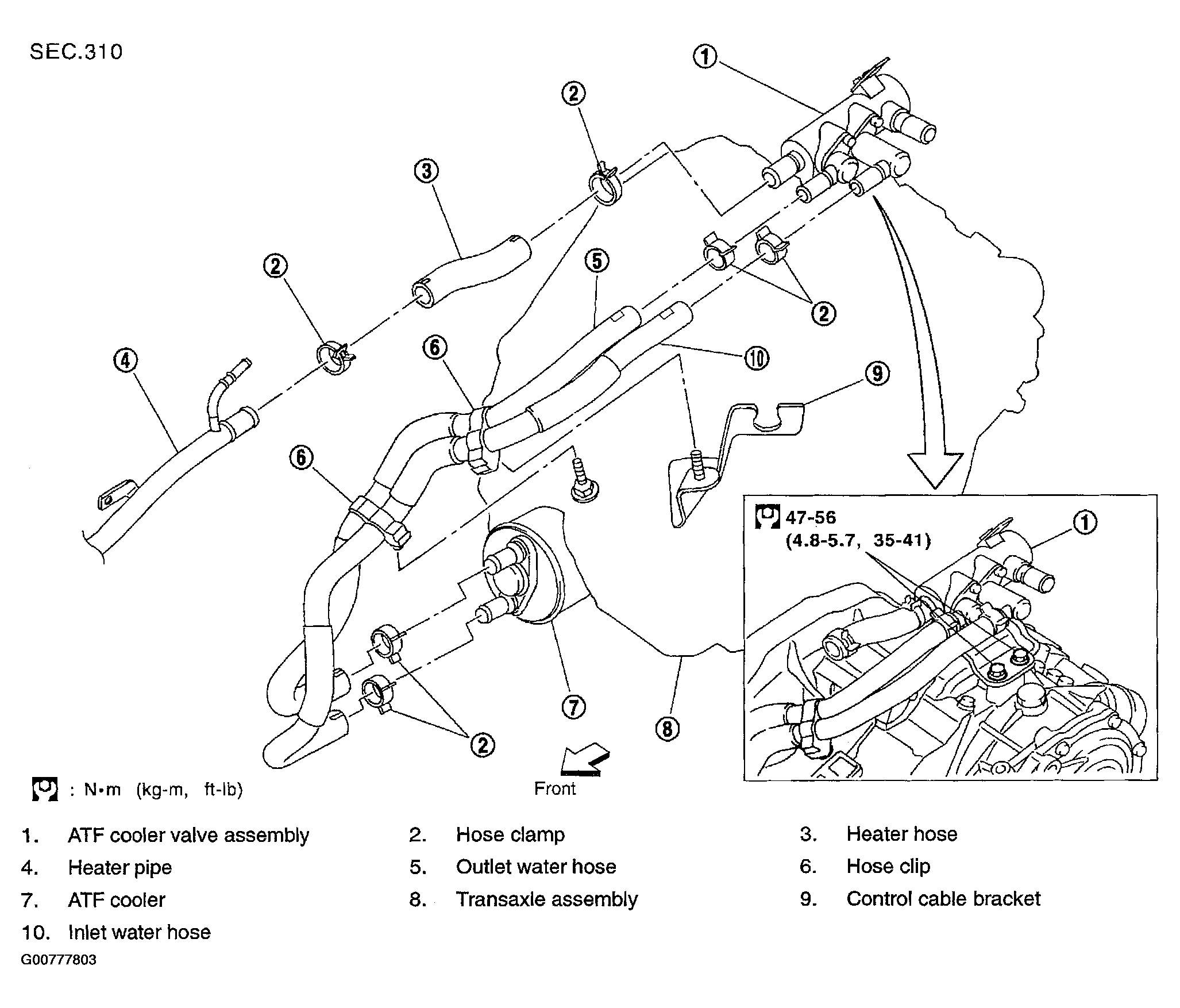

Fig 1: ATF Cooler Valve
G00777803Courtesy of NISSAN MOTOR CO., U.S.A.
