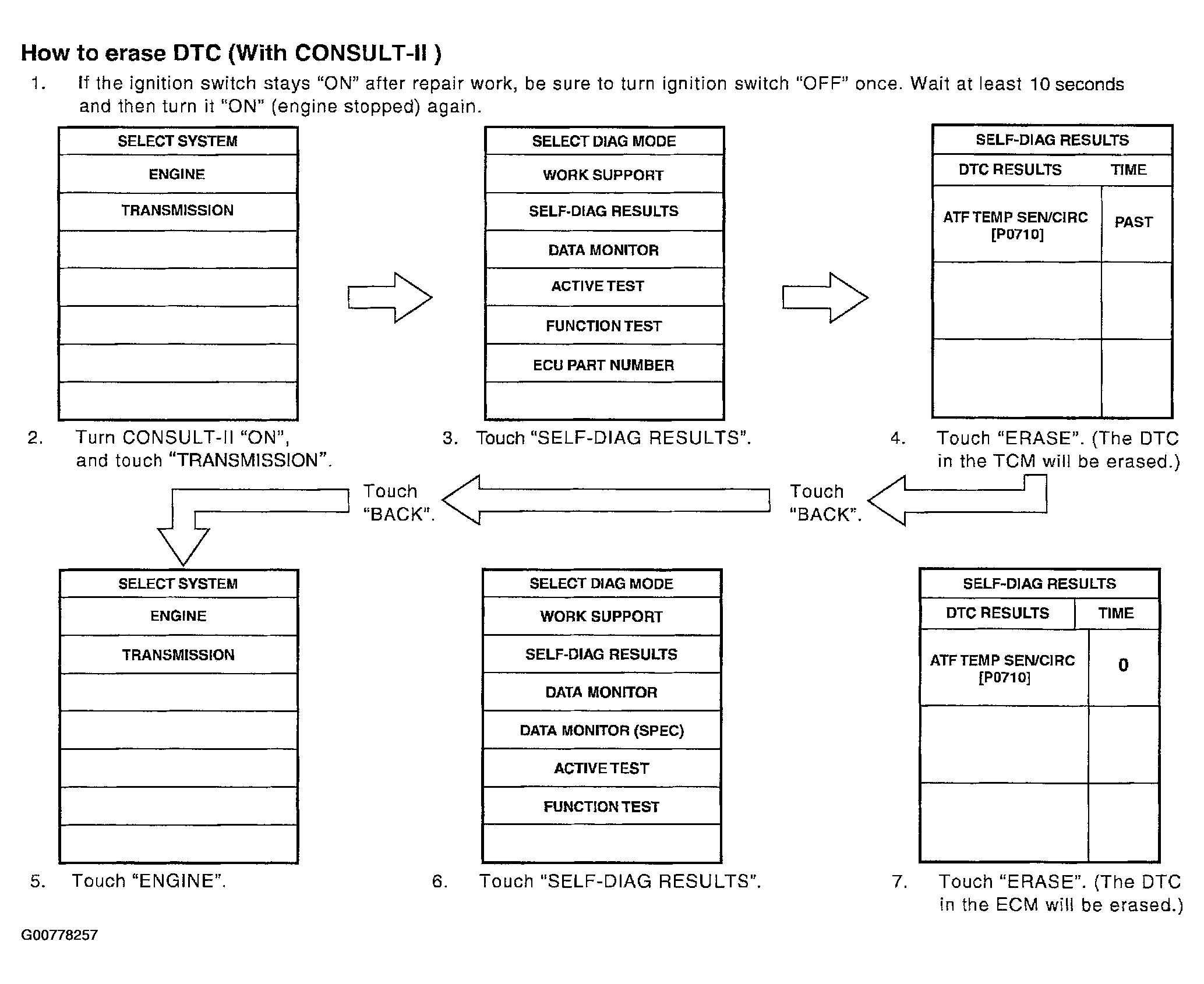

How To Erase DTC (With Consult-II)
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- If a DTC is displayed for both ECM and TCM, it is necessary to be erased for both ECM and TCM.
- If the ignition switch stays "ON" after repair work, be sure to turn ignition switch "OFF" once. Wait at least 10 seconds and then turn it "ON" (engine stopped) again.
- Turn Consult-II "ON" and touch "TRANSMISSION".
- Touch "SELF-DIAG RESULTS".
- Touch "ERASE". (The DTC in the TCM will be erased.) Then touch "BACK" twice.
- Touch "ENGINE".
- Touch "SELF-DIAG RESULTS".
- Touch "ERASE". (The DTC in the ECM will be erased.)
