With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "ON" and start engine.
Select "TRANSMISSION" with "SELF-DIAG RESULTS" mode in Consult-II.
The "CAN COMM CIRCUIT" is detected.

Yes or No?

Yes : Print out Consult-II screen, GO TO 2.
NO : INSPECTION END

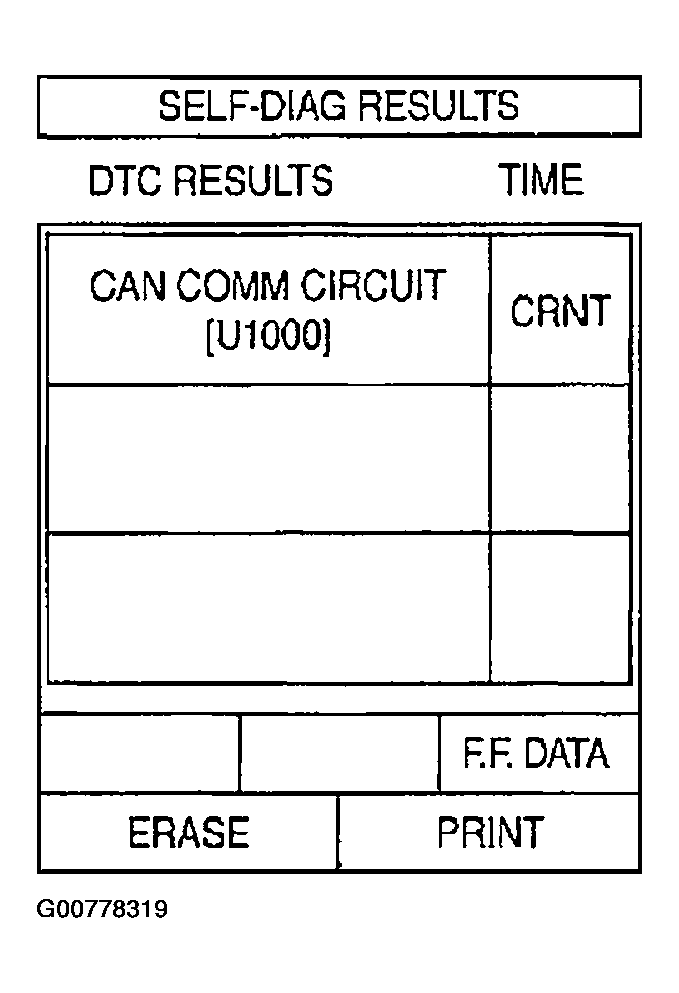

Fig 1: Consult-II Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
