A/T PV IGN Relay

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Apply 12V direct current between A/T PV IGN relay terminals 1 and 2.
Check continuity between relay terminals 3 and 5.

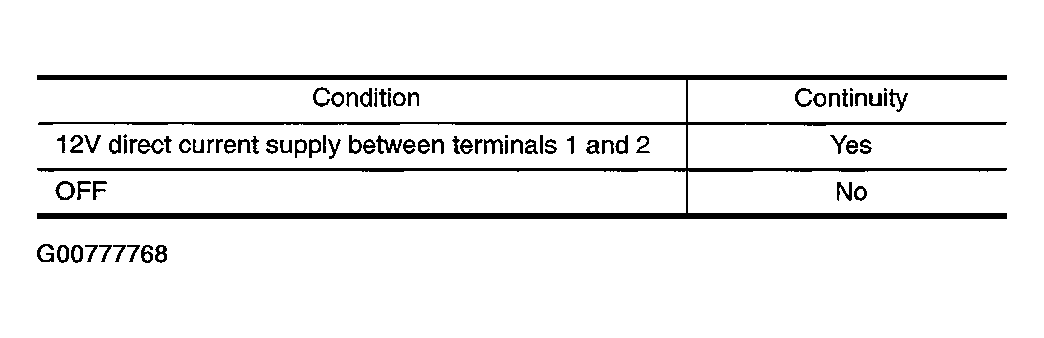

Fig 1: A/T PV IGN Relay Component Inspection (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

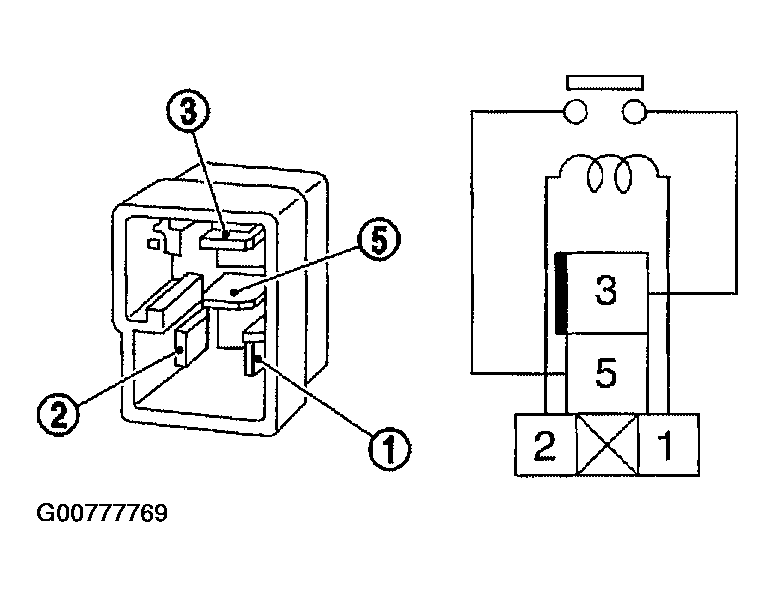

Fig 2: A/T PV IGN Relay Component Inspection (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace A/T PV IGN relay.
