Without Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "ON". (Do not start engine.)
Check voltage between the TCM connector terminals and ground.

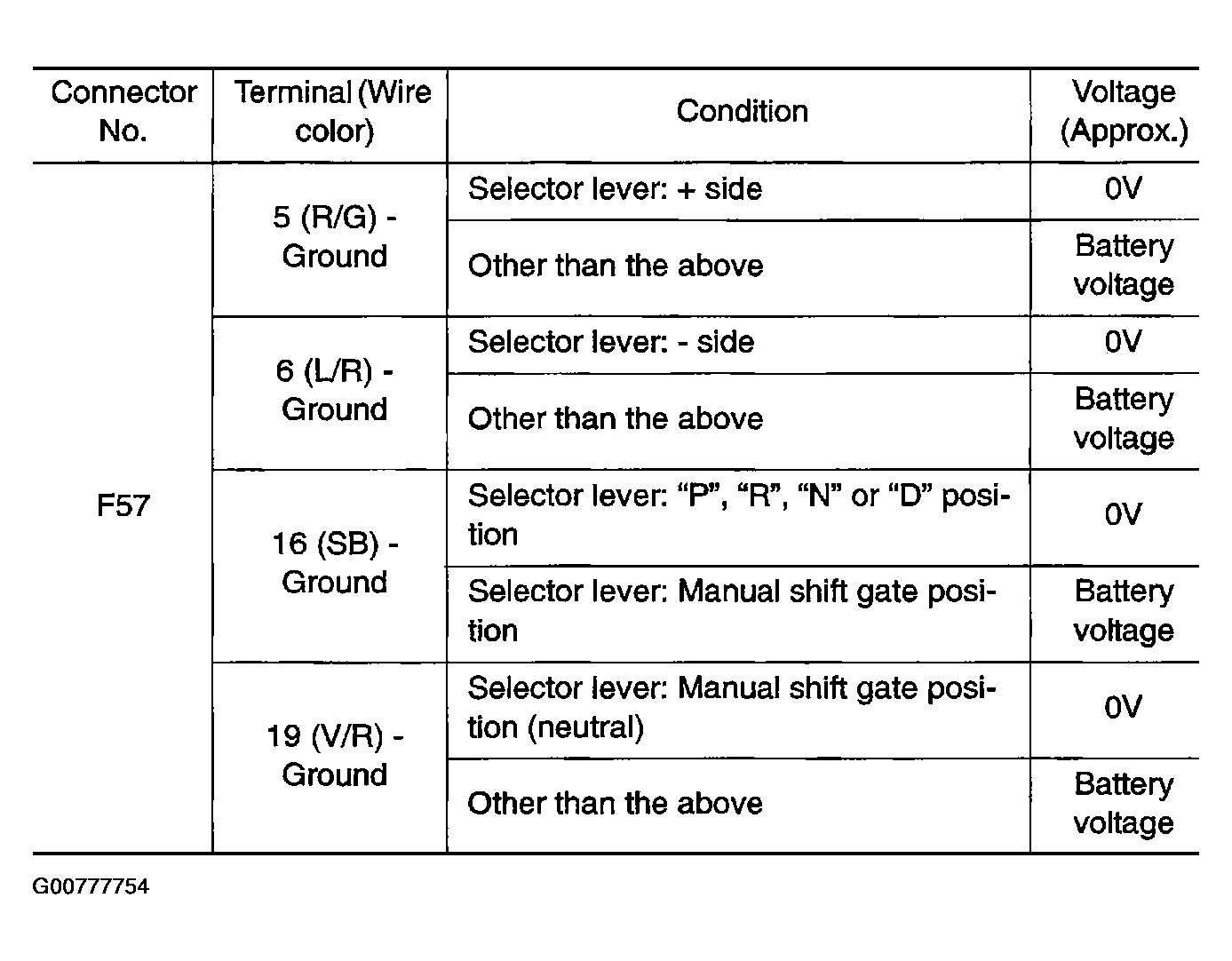

Fig 1: Manual Mode Switch Circuit Voltage Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

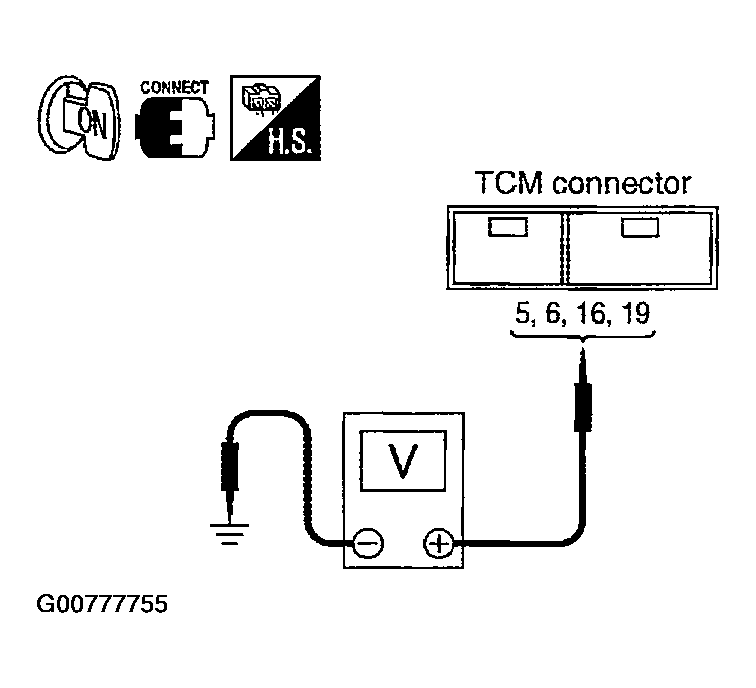

Fig 2: Checking Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4 .
NG: GO TO 2.
