With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "TRANSMISSION" with "DATA MONITOR" mode in Consult-II.
  3. Read out ON/OFF switching action of the "MANU MODE SW", "NON M-MODE SW", "UP SW", "DOWN SW".

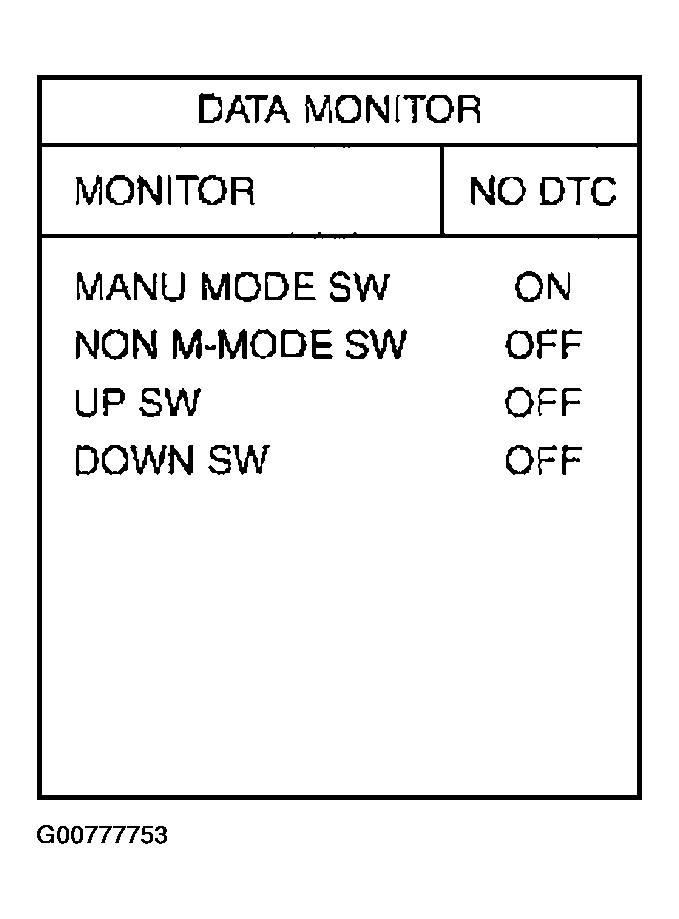

Fig 1: Consult-II Display Screen
G00777753Courtesy of NISSAN MOTOR CO., U.S.A.
