With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "TRANSMISSION" with "DATA MONITOR" mode in Consult-II.

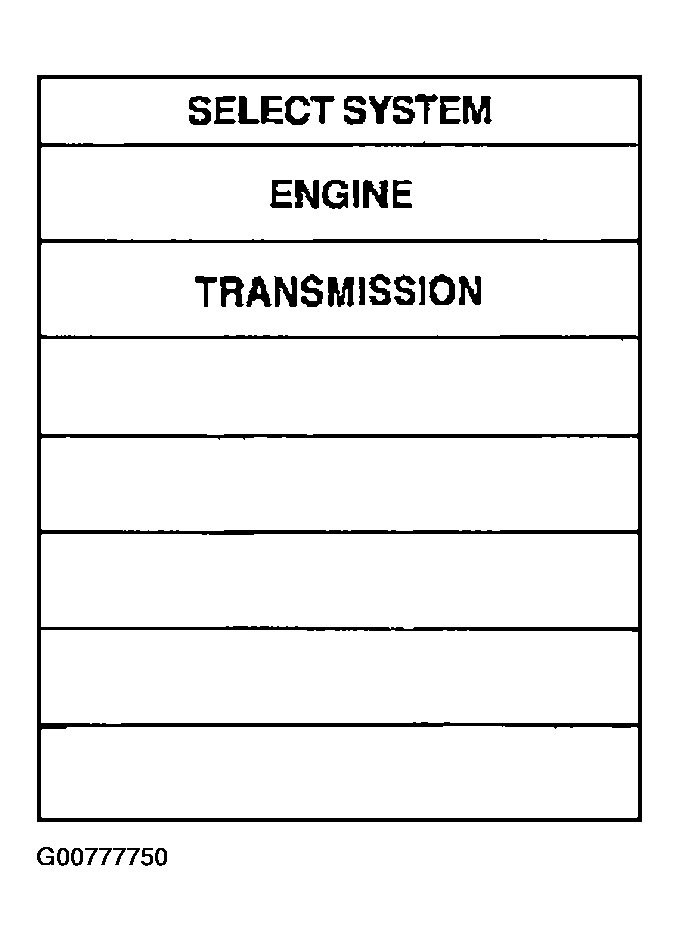

    Fig 1: Consult-II Display Screen
    G00777750Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Move selector lever to "M" position (manual shift gate position).
  4. Shift selector lever into "+ side" and "- side".
  5. Wait for at least 30 consecutive seconds.
  6. If DTC is detected, go to "Diagnostic Procedure ".
