2. Check Pressure Control Solenoid Valve C Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Disconnect the TCM connector.
  3. Check resistance between TCM connector terminals 28 and 45.

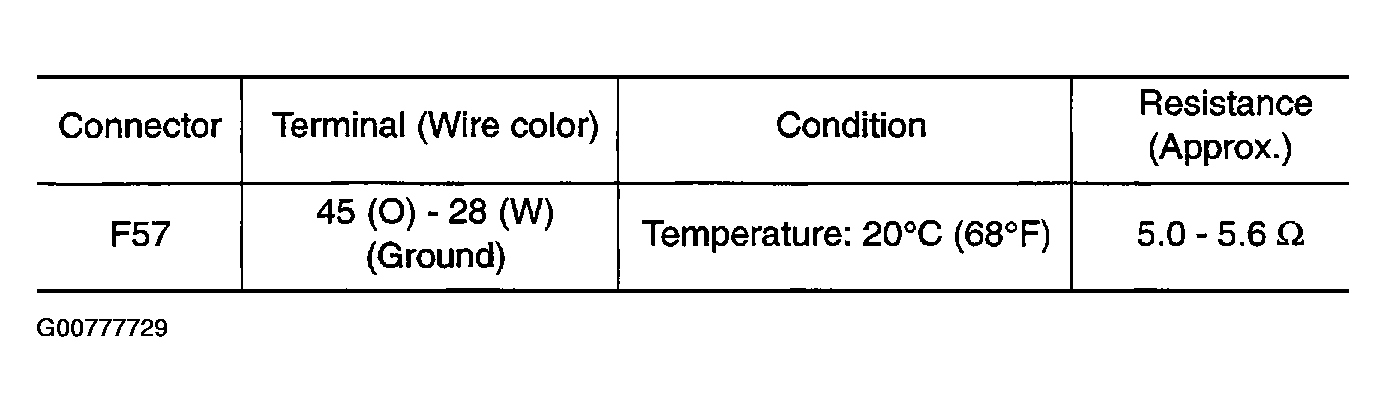

Fig 1: Pressure Control Solenoid Valve "C" Resistance Specification Table
G00777729Courtesy of NISSAN MOTOR CO., U.S.A.

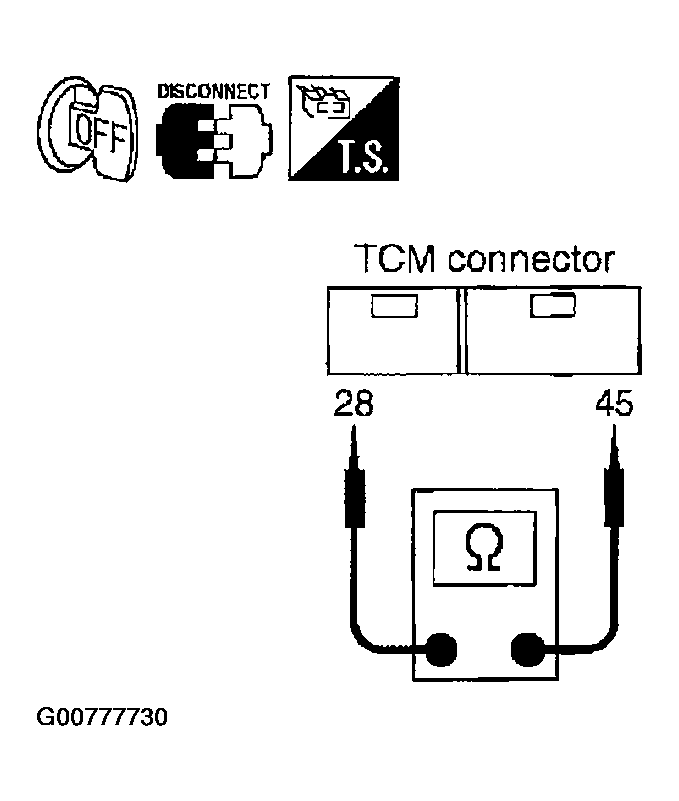

Fig 2: Checking Resistance
G00777730Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 5 .
  2. NG: GO TO 3.
