Without Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine.
  2. Check pulse between TCM connector terminals 21 and 36.

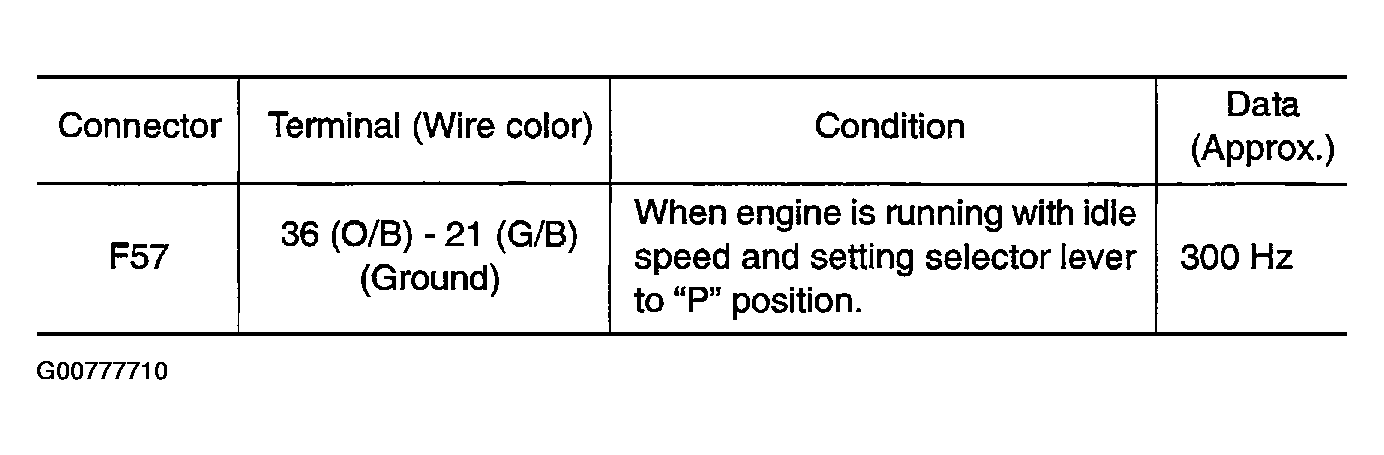

Fig 1: Pressure Control Solenoid Valve Operation Table
G00777710Courtesy of NISSAN MOTOR CO., U.S.A.

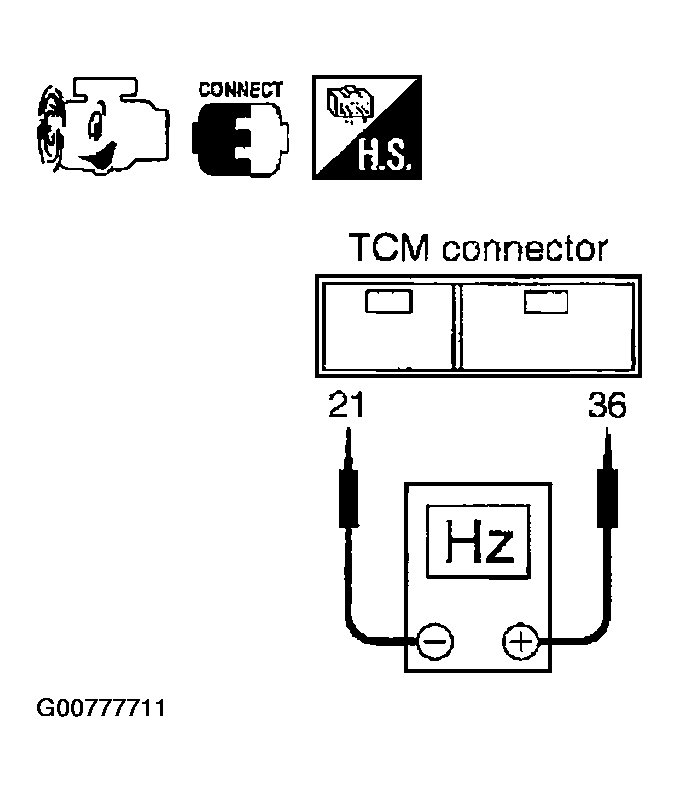

Fig 2: Checking Pulse
G00777711Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 5 .
  2. NG: GO TO 2.
