With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. After warming up the engine and transaxle, turn ignition switch "OFF".
  2. Turn ignition switch "ON". (Do not start engine.)
  3. Select "DATA MONITOR" mode for "TRANSMISSION" with Consult-II.
  4. Read out the value of "PC SOL B OUT" and "PC SOL B MON".

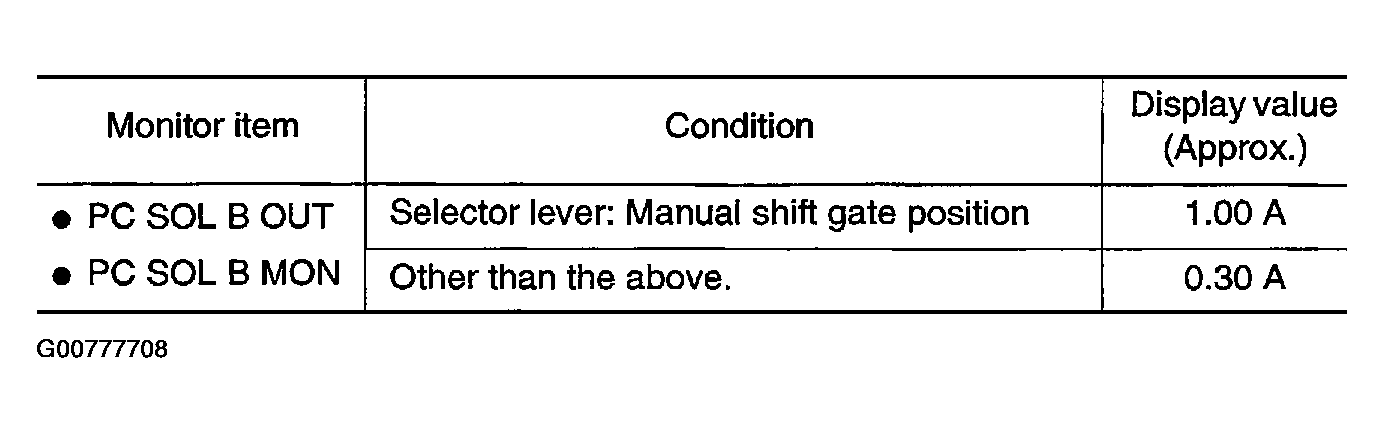

Fig 1: Pressure Control Solenoid Valve Operation Table
G00777708Courtesy of NISSAN MOTOR CO., U.S.A.

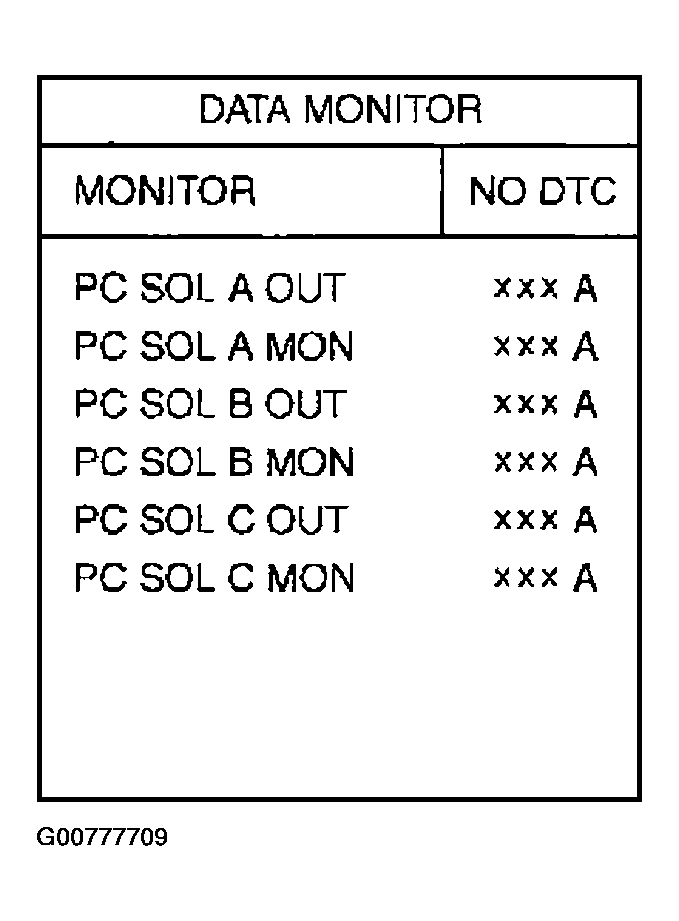

Fig 2: Consult-II Display Screen
G00777709Courtesy of NISSAN MOTOR CO., U.S.A.
