3. Check Shift Solenoid Valve E

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Disconnect terminal cord assembly harness connector.
Check resistance between terminal 5 and ground.

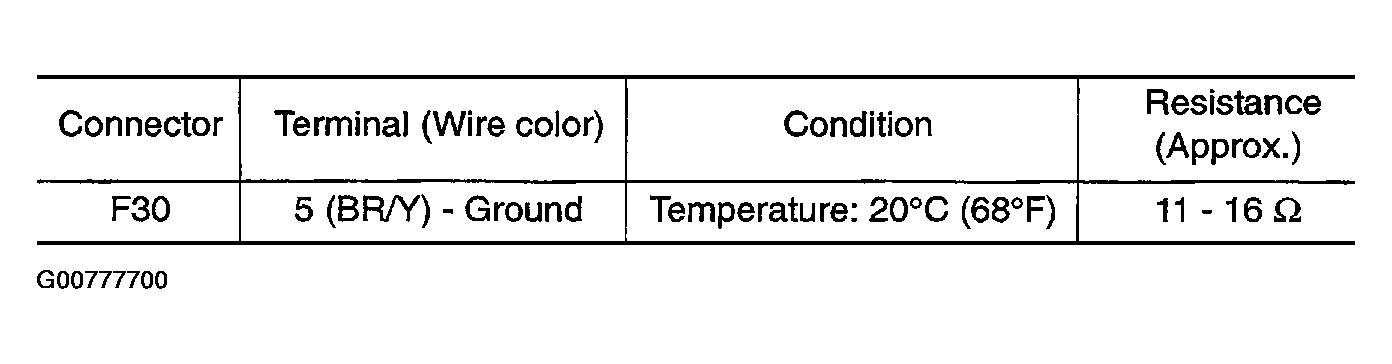

Fig 1: Shift Solenoid Valve Resistance Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

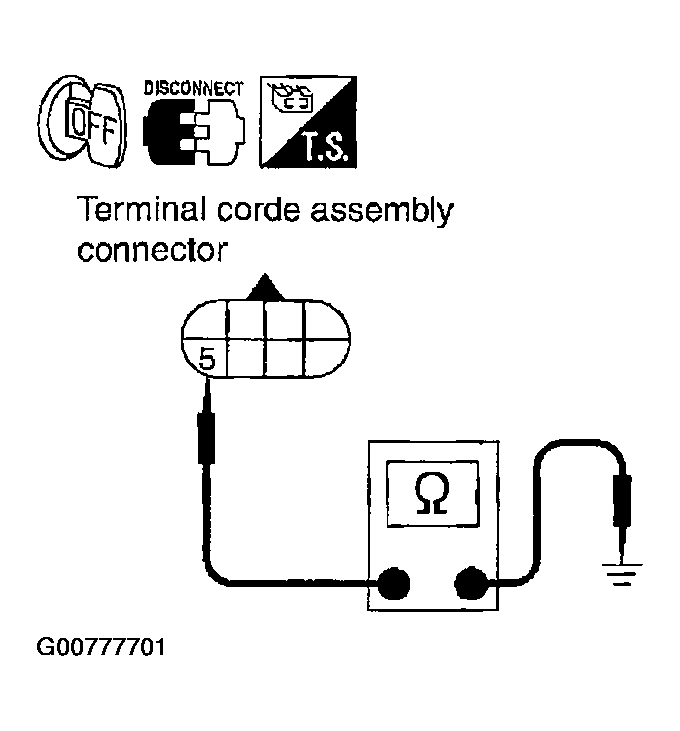

Fig 2: Checking Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.
Reinstall any part removed.

OK or NG

OK: GO TO 4.
NG: Replace the transaxle assembly. Refer to "REMOVAL AND INSTALLATION ".
