Without Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drive vehicle.
  2. Check voltage between TCM connector terminal and ground.

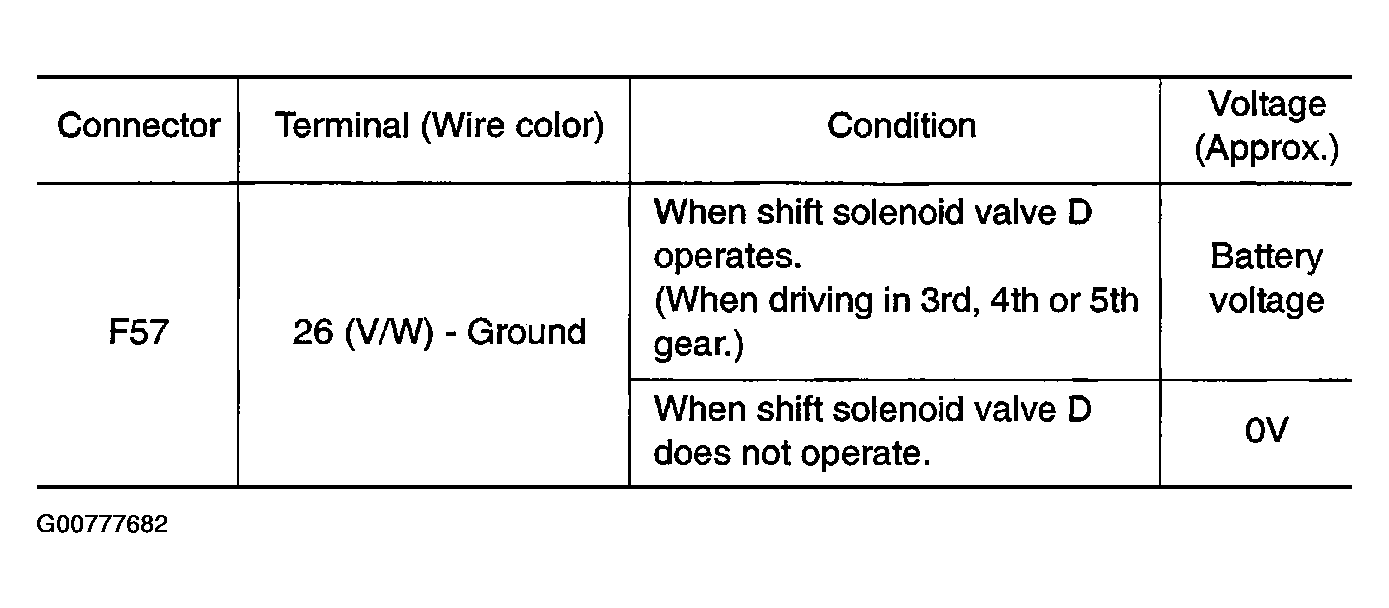

Fig 1: Shift Solenoid Valve Voltage Specification Table
G00777682Courtesy of NISSAN MOTOR CO., U.S.A.

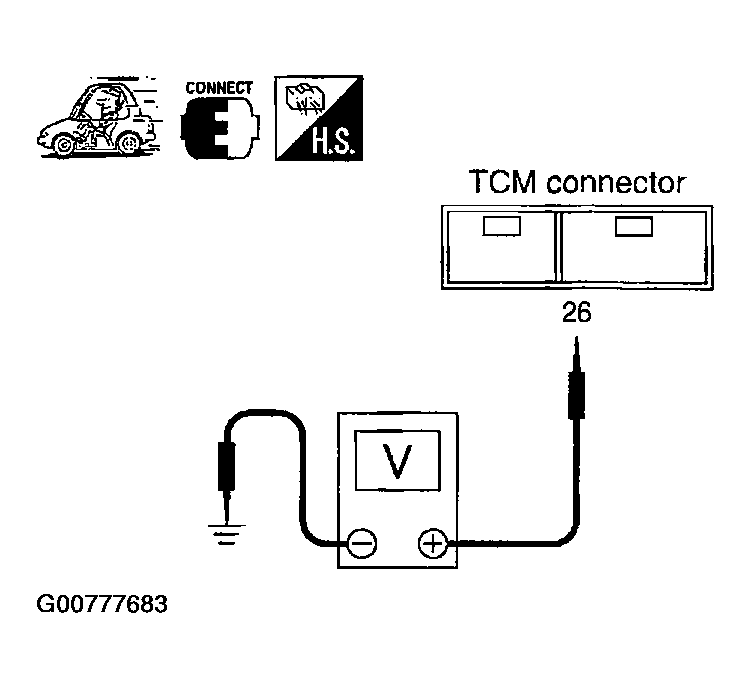

Fig 2: Checking Voltage
G00777683Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 5 .
  2. NG: GO TO 2.
