Shift Solenoid Valve C

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Disconnect terminal cord assembly harness connector.
  3. Check resistance between terminal 4 and ground.

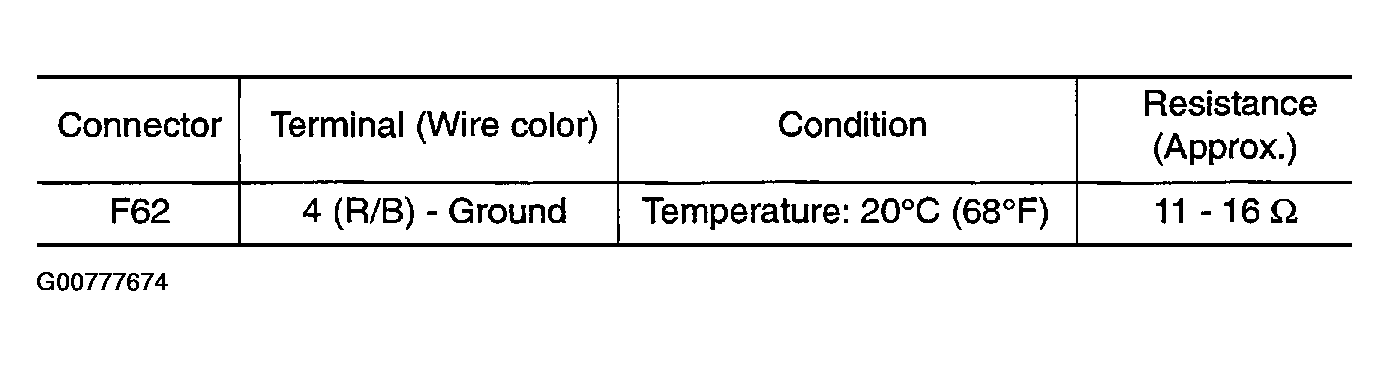

    Fig 1: Shift Solenoid Valve Resistance Specification Table
    G00777674Courtesy of NISSAN MOTOR CO., U.S.A.

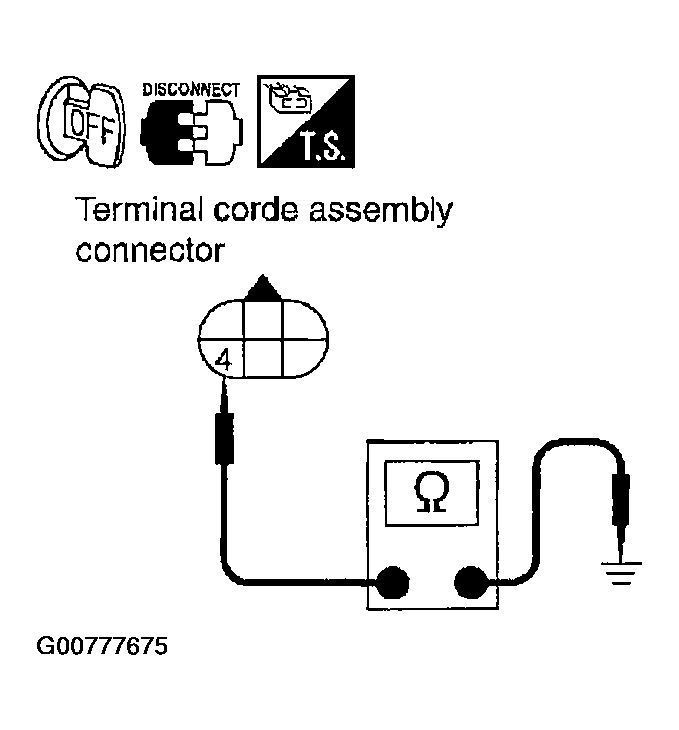

    Fig 2: Checking Resistance
    G00777675Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, replace the transaxle assembly. Refer to "REMOVAL AND INSTALLATION ".
