2. Check Shift Solenoid Valve B Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Disconnect the TCM connector.
  3. Check resistance between TCM connector terminal 25 and ground.

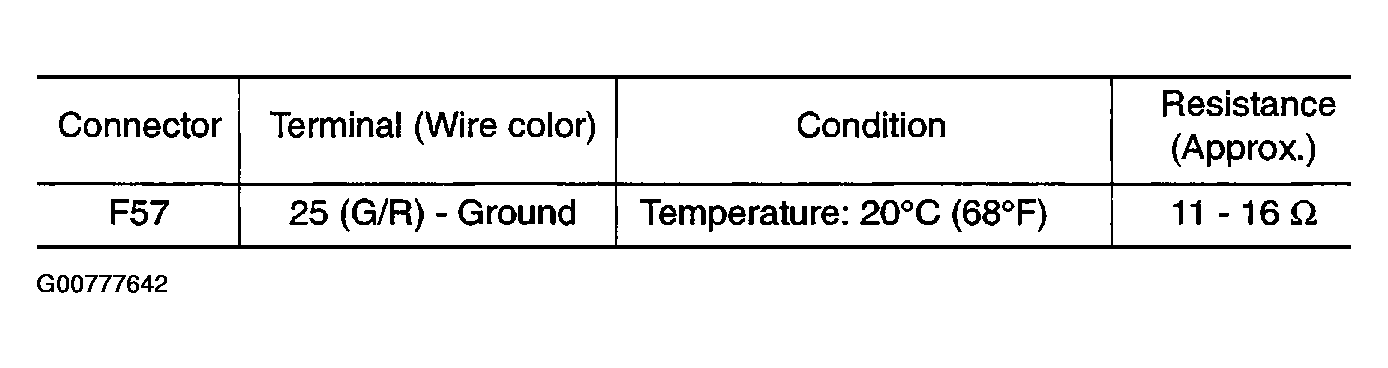

Fig 1: Shift Solenoid Valve Resistance Specification Table
G00777642Courtesy of NISSAN MOTOR CO., U.S.A.

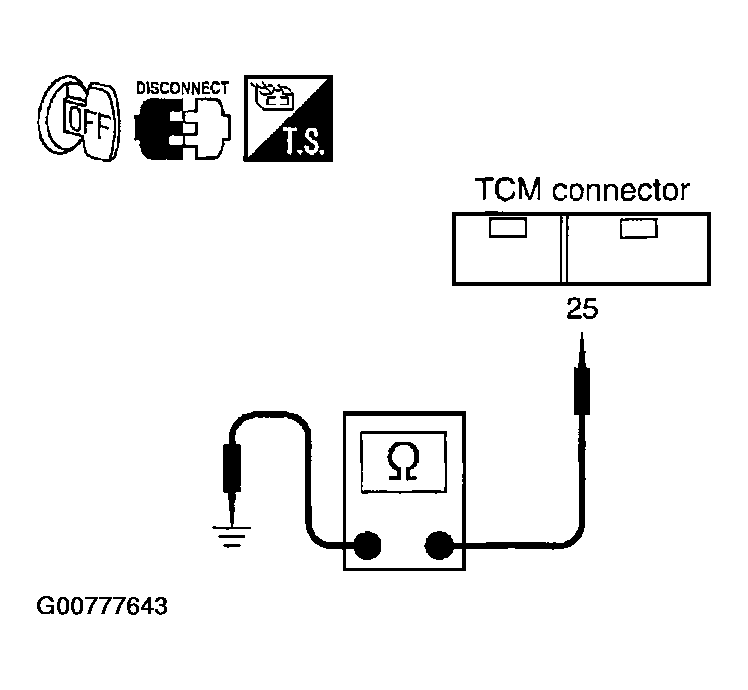

Fig 2: Checking Resistance
G00777643Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 5 .
  2. NG: GO TO 3.
