2. Check Shift Solenoid Valve A Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Disconnect the TCM connector.
  3. Check resistance between TCM connector terminal 46 and ground.

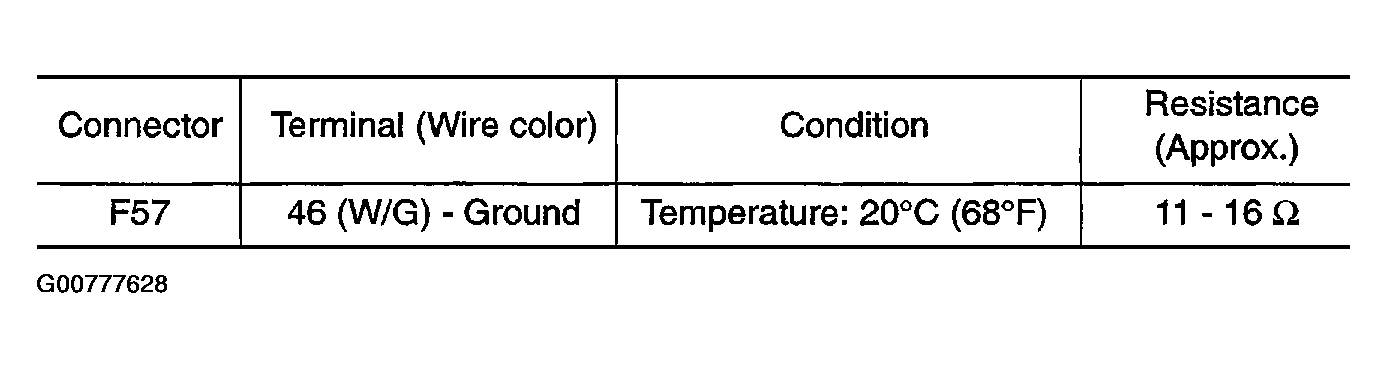

Fig 1: Shift Solenoid Valve Resistance Specification Table
G00777628Courtesy of NISSAN MOTOR CO., U.S.A.

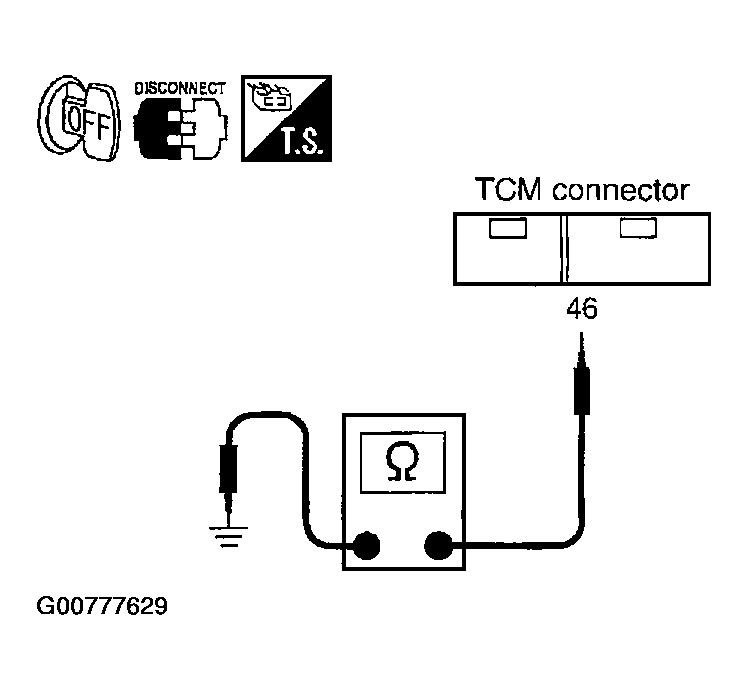

Fig 2: Checking Resistance
G00777629Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 5 .
  2. NG: GO TO 3.
