With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "TRANSMISSION" with "DATA MONITOR" mode in Consult-II.
  3. Drive vehicle and read out the value of "SFT SOL A OUT" and "SFT SOL A MON".

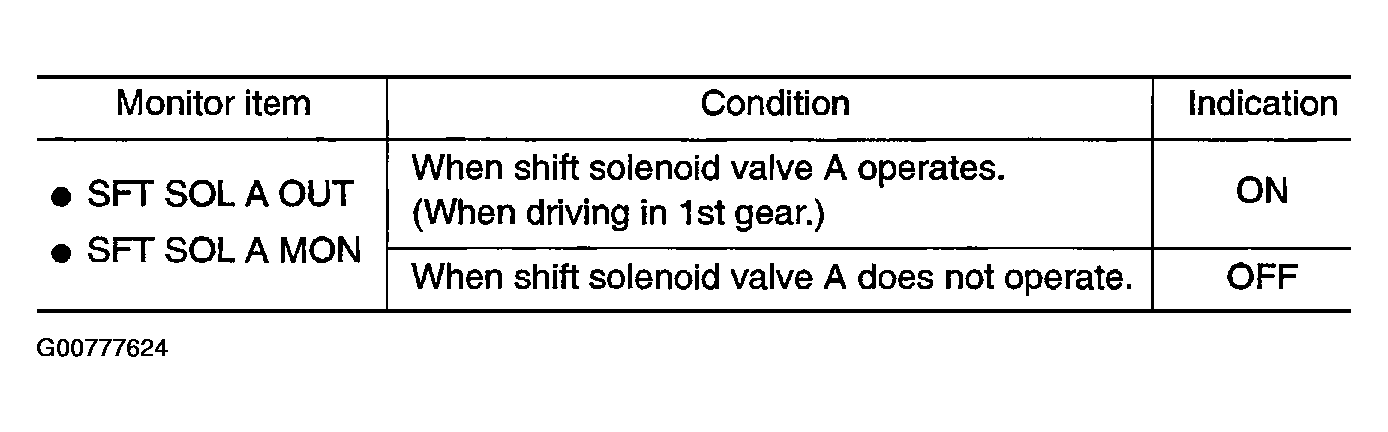

Fig 1: Shift Solenoid Valve Operation Specification Table
G00777624Courtesy of NISSAN MOTOR CO., U.S.A.

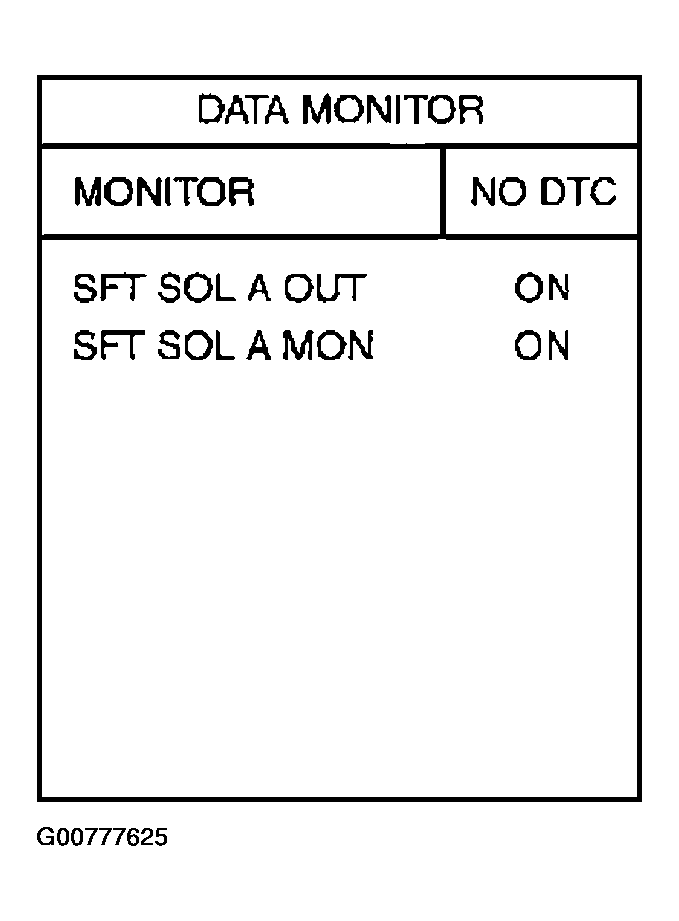

Fig 2: Consult-II Display Screen
G00777625Courtesy of NISSAN MOTOR CO., U.S.A.
