Without Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine.
  2. Check pulse between TCM connector terminals 35 and 40.

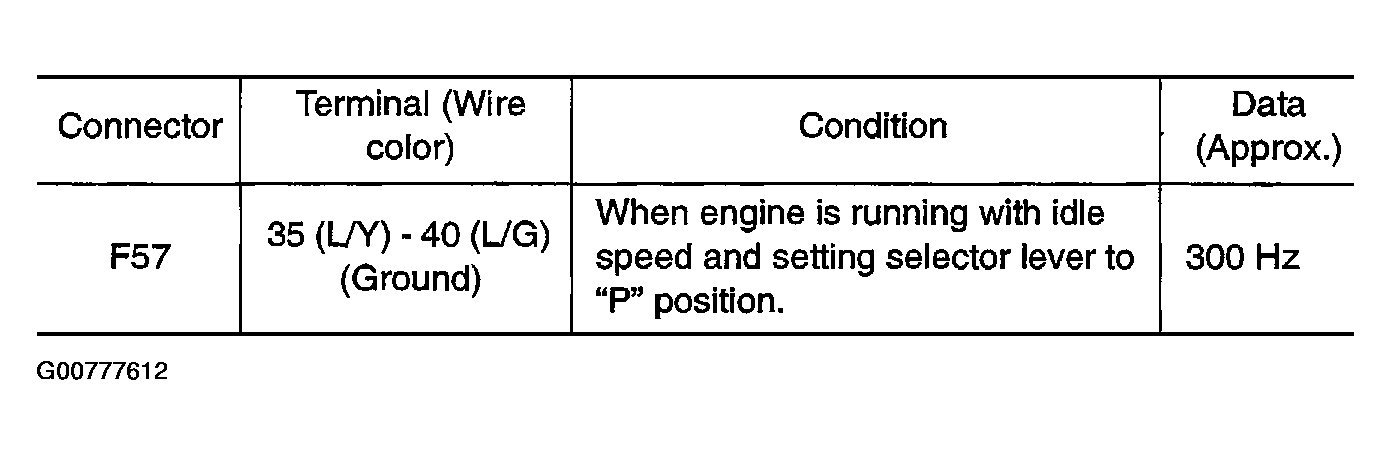

Fig 1: Pressure Control Solenoid Valve "A" Signal Specification Table
G00777612Courtesy of NISSAN MOTOR CO., U.S.A.

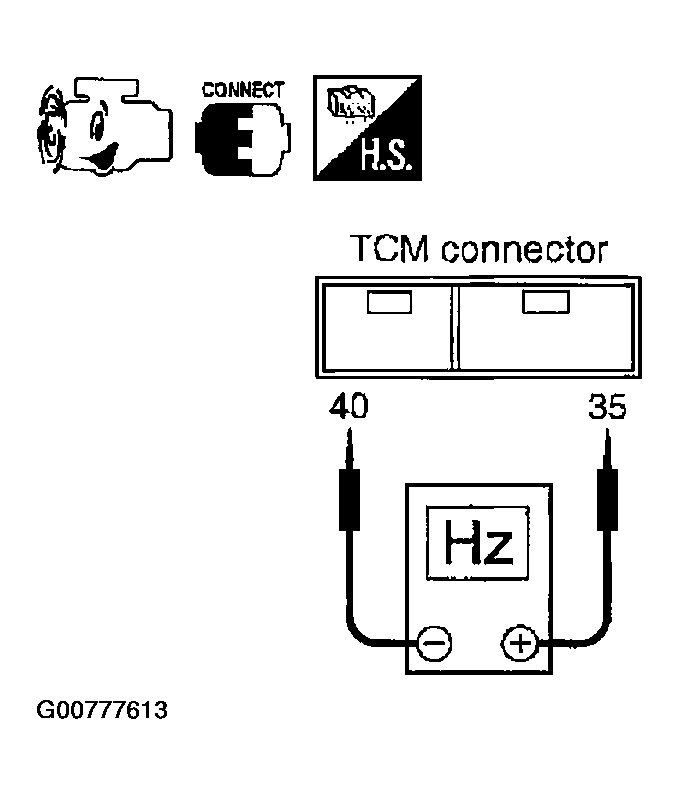

Fig 2: Checking Pulse
G00777613Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 5 .
  2. NG: GO TO 2.
