Wiring Diagram - At - TCCSIG

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

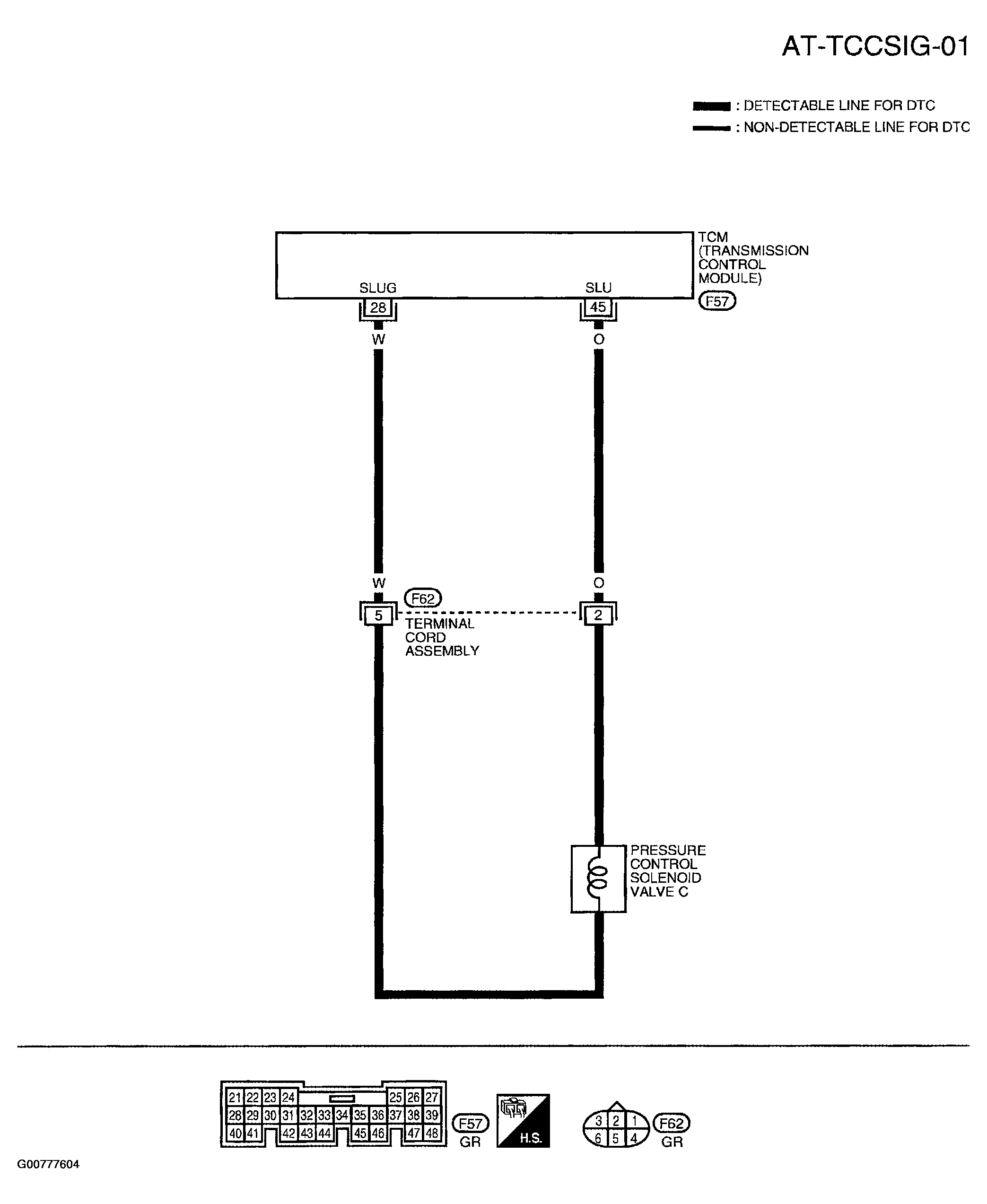

Fig 1: Wiring Diagram - AT-TCCSIG-01
G00777604Courtesy of NISSAN MOTOR CO., U.S.A.

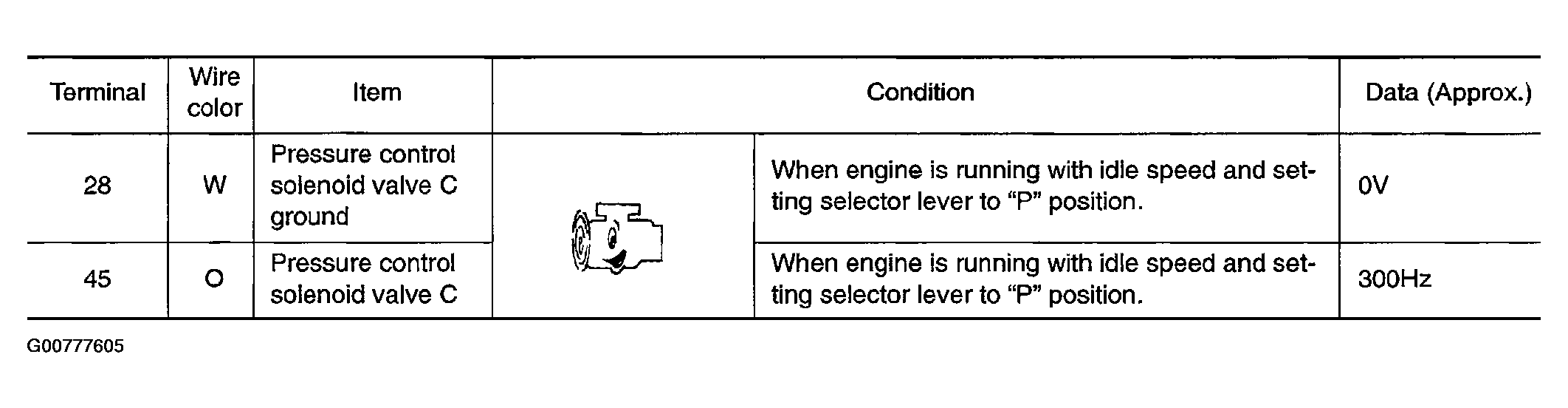

TCM terminals and data are reference value. Measured between each terminal and ground.

Fig 2: TCM Terminals & Data
G00777605Courtesy of NISSAN MOTOR CO., U.S.A.
