With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "TRANSMISSION" with "DATA MONITOR" mode in Consult-II.
  3. While monitoring "ENGINE SPEED", check for engine speed change corresponding to "ACCELE ANGLE".

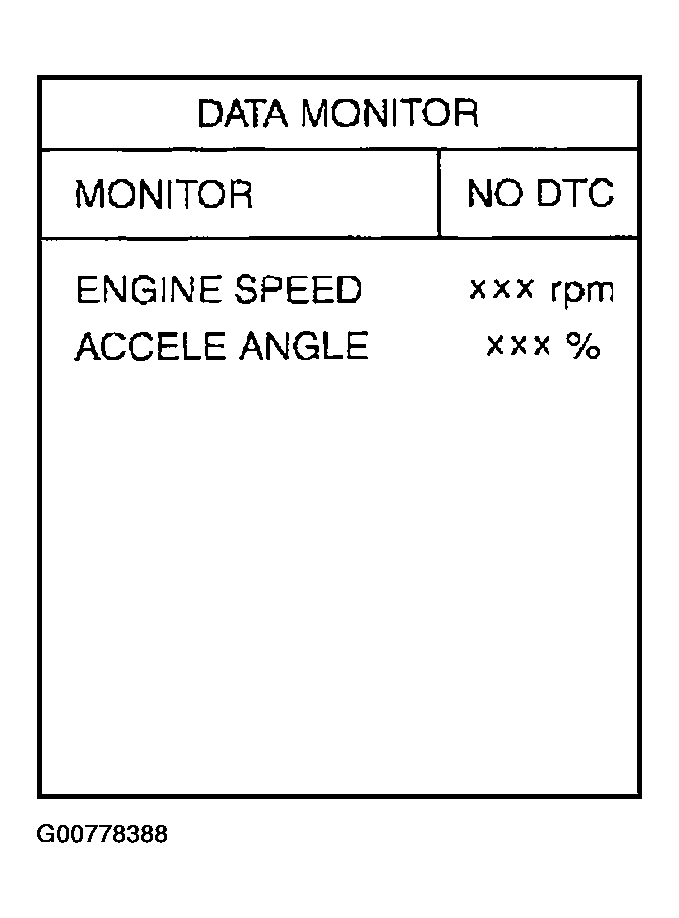

Fig 1: Consult-II Display Screen
G00778388Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : GO TO 3.
  2. NG : Check the ignition signal circuit.
