With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "ON". (Do not start engine.)
Select "ENGINE" with "SELF-DIAG RESULTS" mode in Consult-II. Refer to "Consult-II FUNCTION ".

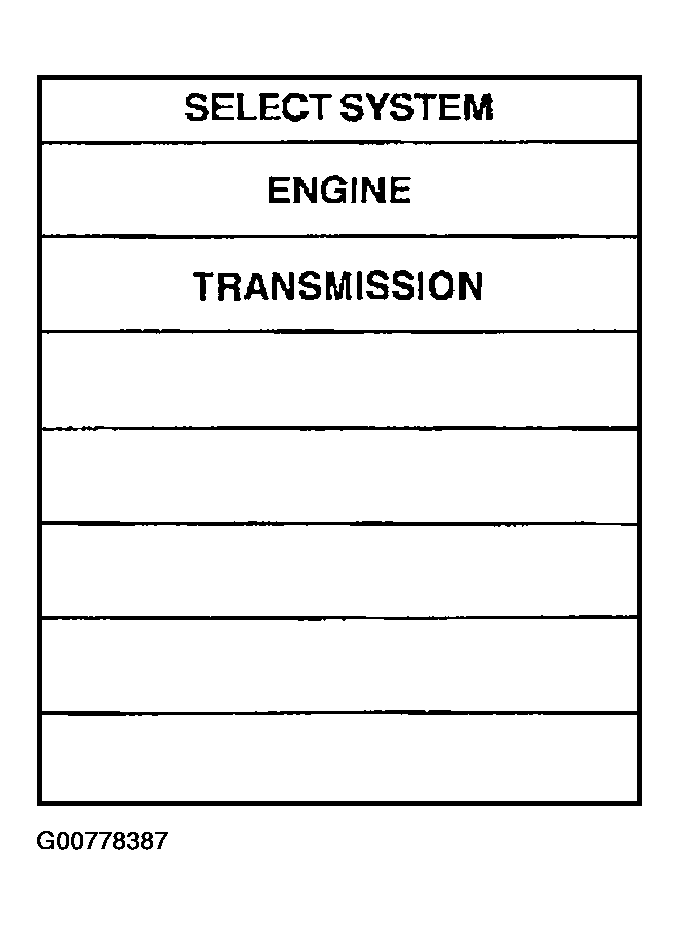

Fig 1: Consult-II Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 2.
NG : Check the DTC detected item, go to "INDEX FOR DTC ".
- If CAN communication line is detected, go to DTC U1000 CAN COMMUNICATION LINE .
