With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON" and select "TRANSMISSION" with "DATA MONITOR" mode in Consult-II.

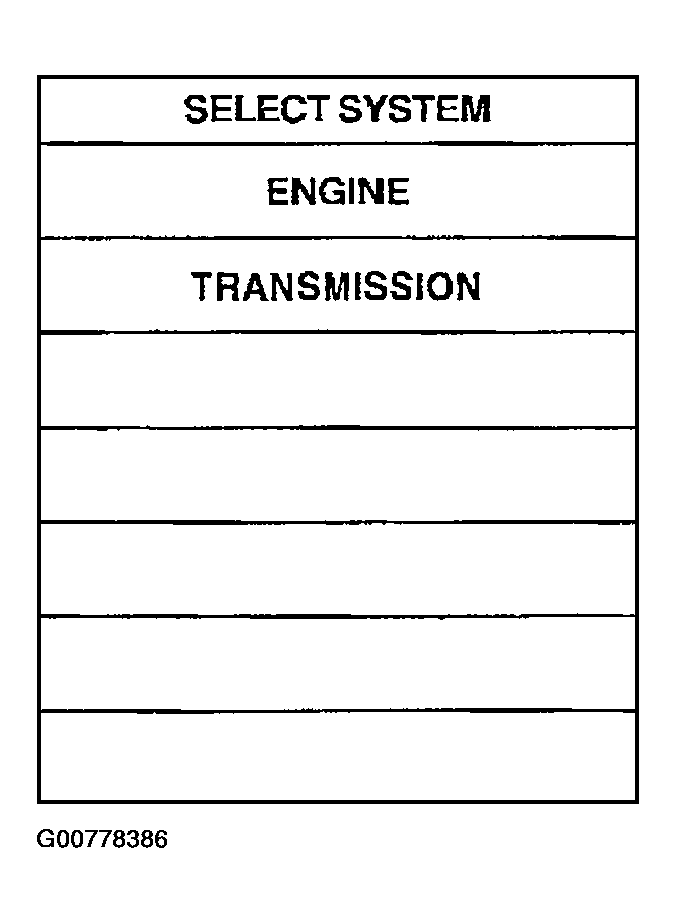

    Fig 1: Consult-II Display Screen
    G00778386Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine.
  3. Drive vehicle and maintain the following conditions for at least 10 consecutive seconds.

    VHCL/S SE-A/T: 10 km/h (6 MPH) or more

    ACCELE ANGLE: More than 10 %

    SLCT LVR POSI: "D" position

  4. If DTC is detected, go to "Diagnostic Procedure ".
