With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "TRANSMISSION" with "DATA MONITOR" mode in Consult-II.
  3. Drive vehicle and read out the value of "VHCL/S SE-AT".

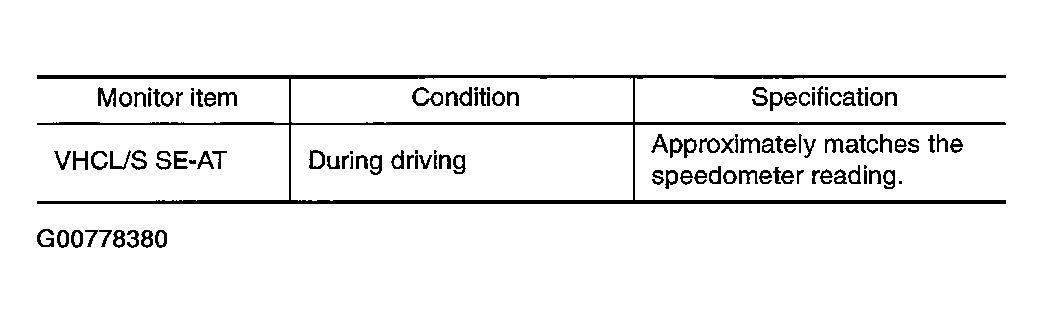

Fig 1: Revolution Sensor Specification Table
G00778380Courtesy of NISSAN MOTOR CO., U.S.A.

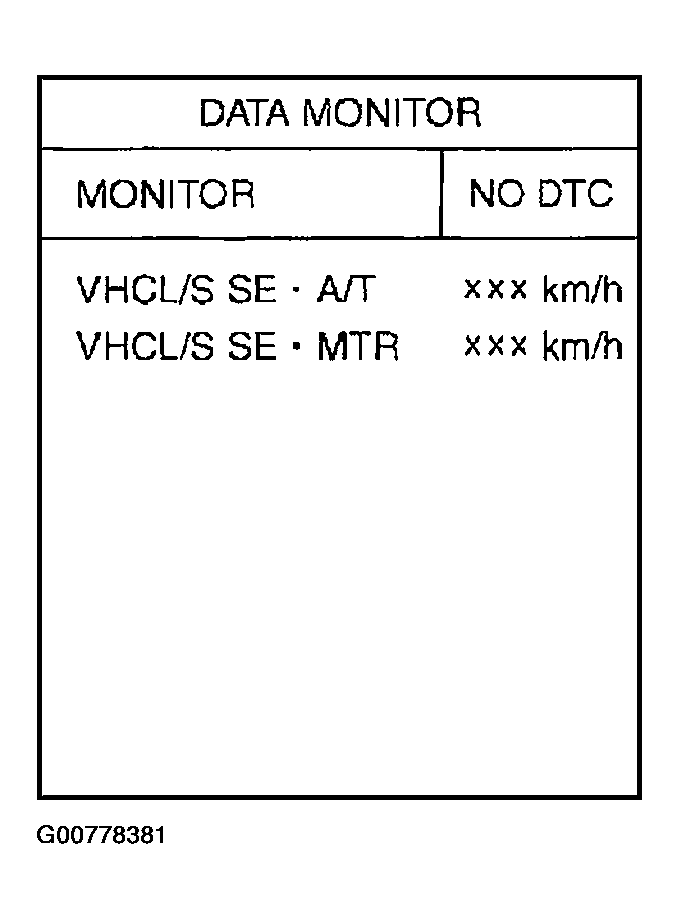

Fig 2: Consult-II Display Screen
G00778381Courtesy of NISSAN MOTOR CO., U.S.A.
