Without Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine.
  2. Check pulse between TCM connector terminals 23 and 30.

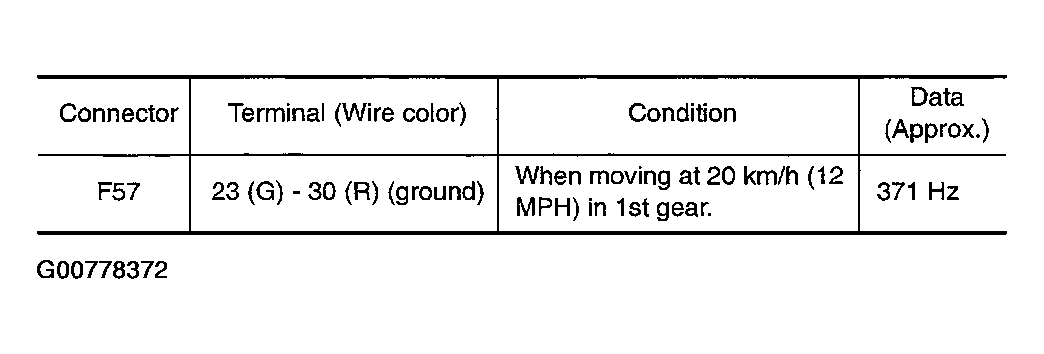

Fig 1: Turbine Revolution Sensor Specification Table
G00778372Courtesy of NISSAN MOTOR CO., U.S.A.

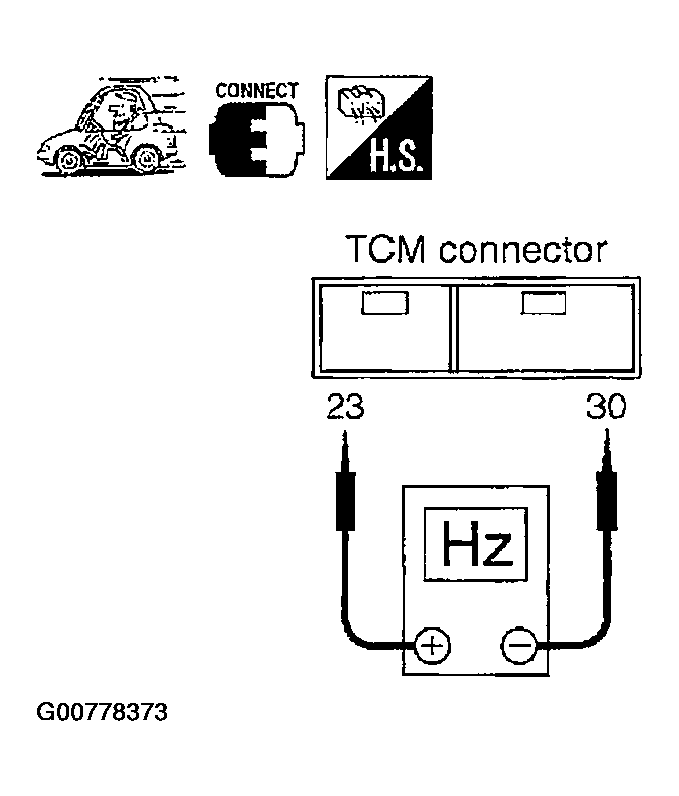

Fig 2: Checking Pulse
G00778373Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : GO TO 3 .
  2. NG : GO TO 2.
