With Consult-II
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch "ON". (Do not start engine.)

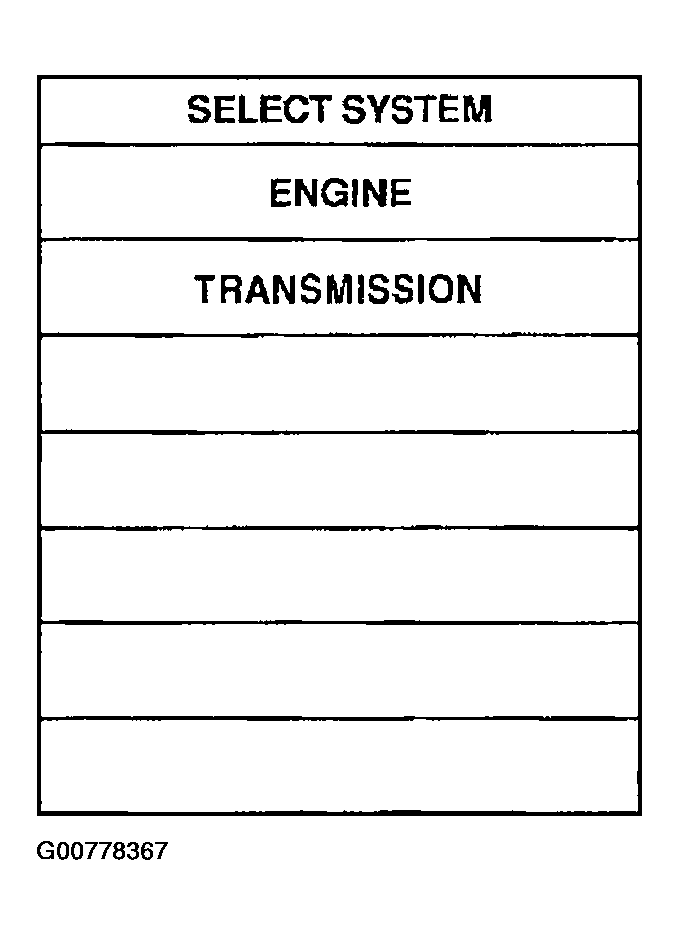

- Select "DATA MONITOR" mode for "TRANSMISSION" with Consult-II.
- Start engine.
- Drive vehicle and maintain the following conditions for at least 1 consecutive minute.
FLUID TEMP: More than 20°C (68°F)
VHCL/S SE-A/T: 70 km/h (43 MPH) or more
SLCT LVR POSI: "D" position
GEAR: Except 1st position
- If DTC is detected, go to "Diagnostic Procedure ".
