Turbine Revolution Sensor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove turbine revolution sensor.
Connect 12V power supply and 100 Ω resistance to the terminal. (Do not mistake polarity)
Inspect the voltage of HIGH and LOW signal by shaking magnetic body from side to side at turbine revolution sensor tip [gap is within 5 mm (0.20 in)].
CAUTION: Make sure to shake direction from bolt hole to sensor-self when shaking magnetic body. If not, voltage value cannot change.

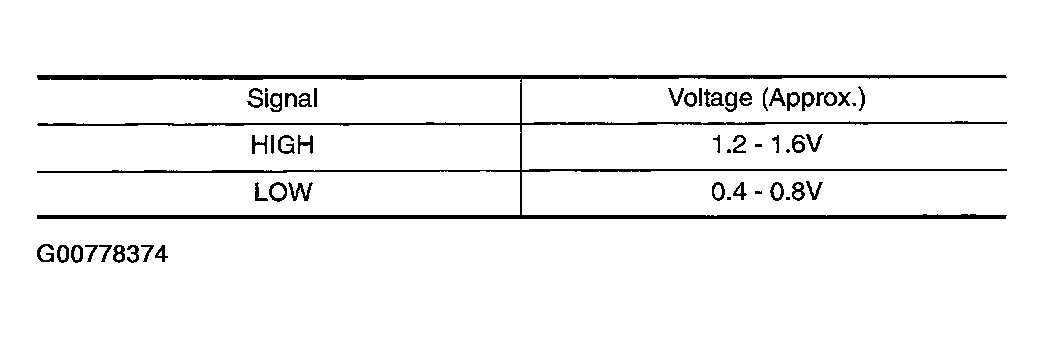

Fig 1: Turbine Revolution Sensor Component Inspection (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

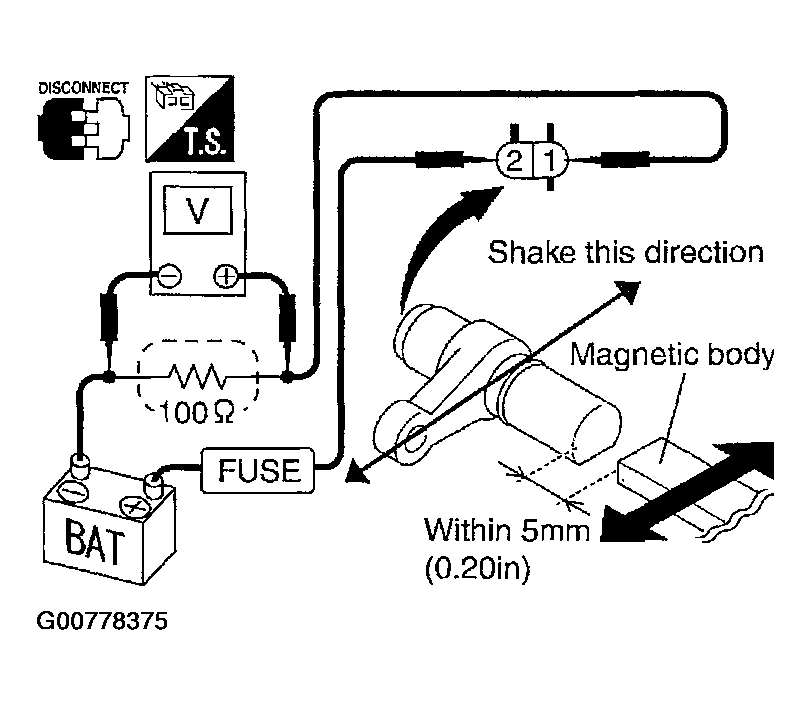

Fig 2: Turbine Revolution Sensor Component Inspection (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace turbine revolution sensor.
