Without Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Start engine.
Check voltage between TCM connector terminals 41 and 42 while warming up A/T. Refer to "Wiring Diagram - AT - FTSP ".

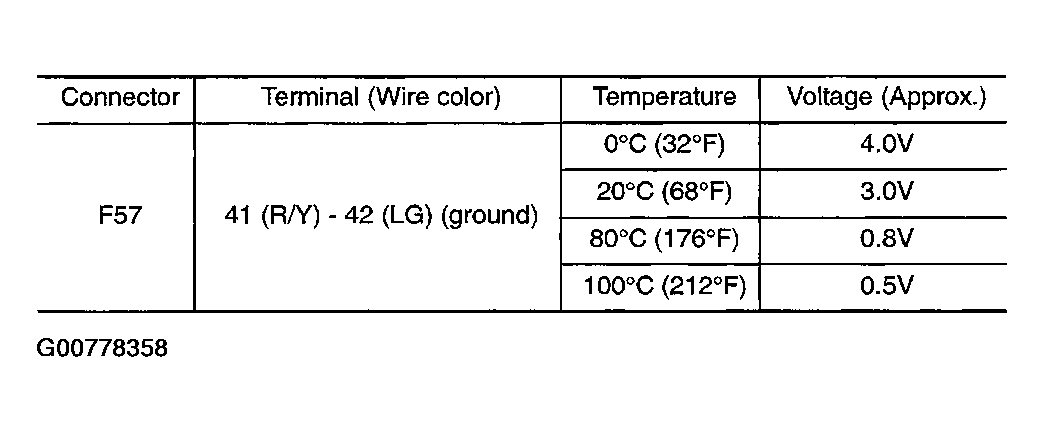

Fig 1: Fluid Temperature Sensor Temperature/Voltage Reference Table
Courtesy of NISSAN MOTOR CO., U.S.A.

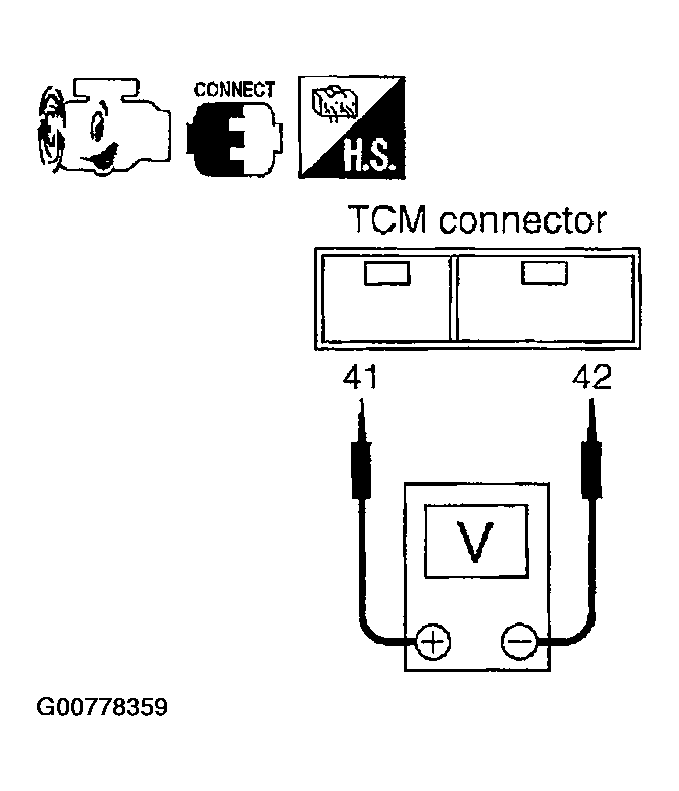

Fig 2: Checking Voltage
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "OFF".
Disconnect the TCM connector.
Check if there is continuity between the connector terminal and ground.

OK or NG

OK : GO TO 5 .
NG : GO TO 2.
