With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "TRANSMISSION" with "DATA MONITOR" mode in Consult-II.
  3. Read out the value of "FLUID TEMP SE".

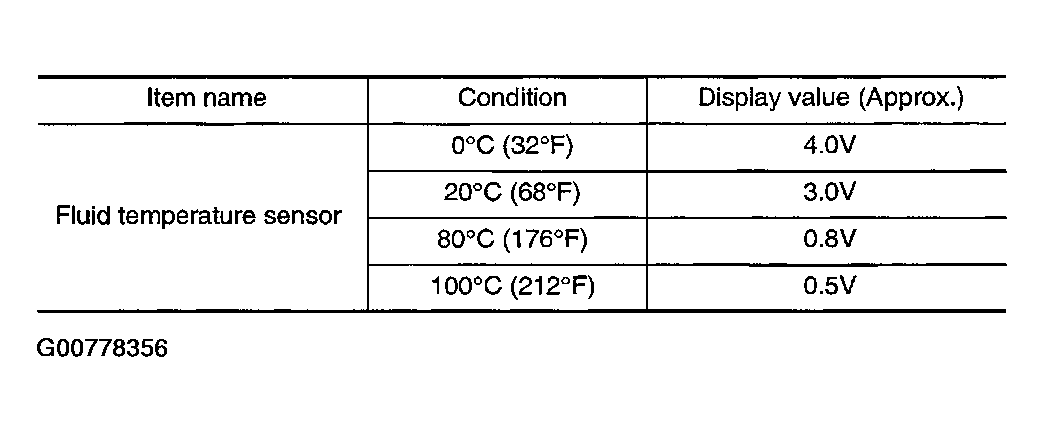

Fig 1: Fluid Temperature Sensor Temperature/Voltage Reference Table
G00778356Courtesy of NISSAN MOTOR CO., U.S.A.

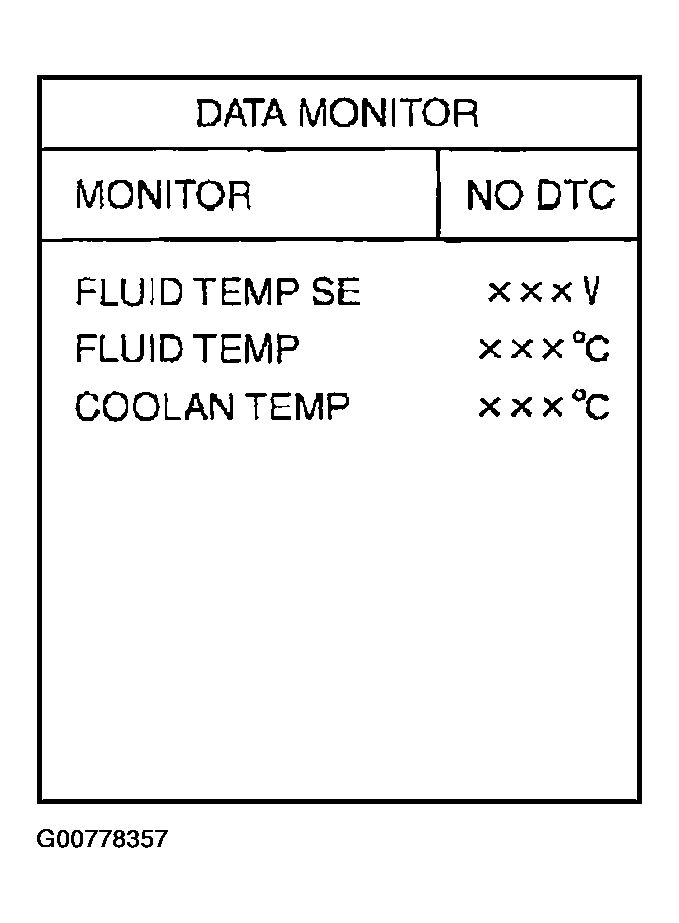

Fig 2: Consult-II Display Screen
G00778357Courtesy of NISSAN MOTOR CO., U.S.A.
