With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "TRANSMISSION" with "DATA MONITOR" mode in Consult-II.

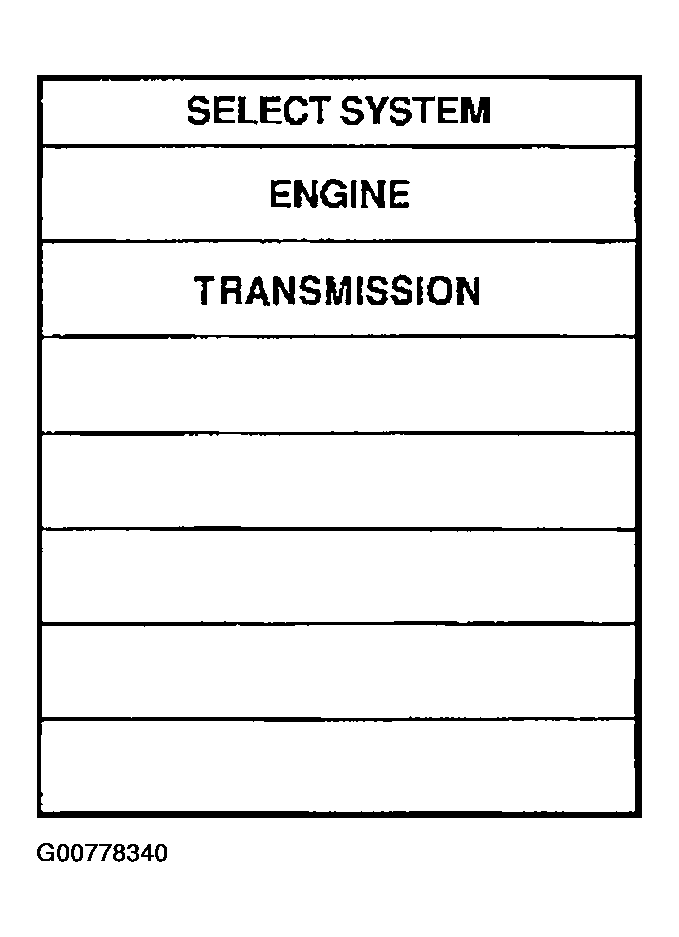

    Fig 1: Consult-II Display Screen
    G00778340Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine.
  4. Warm up engine so that engine coolant temperature is more than 50°C (122°F).

    COOLAN TEMP: More than 50°C (122°F)

  5. Maintain the following conditions for at least 16 minutes (Total). (It is not necessary to drive vehicle.)

    COOLAN TEMP: More than 50°C (122°F) SLCT LVR POSI: "D" position

  6. If DTC is detected, go to "Diagnostic Procedure ".
