Without Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Move selector lever to "P", "R", "N", or "D" position and check voltage between the TCM connector terminals and ground.

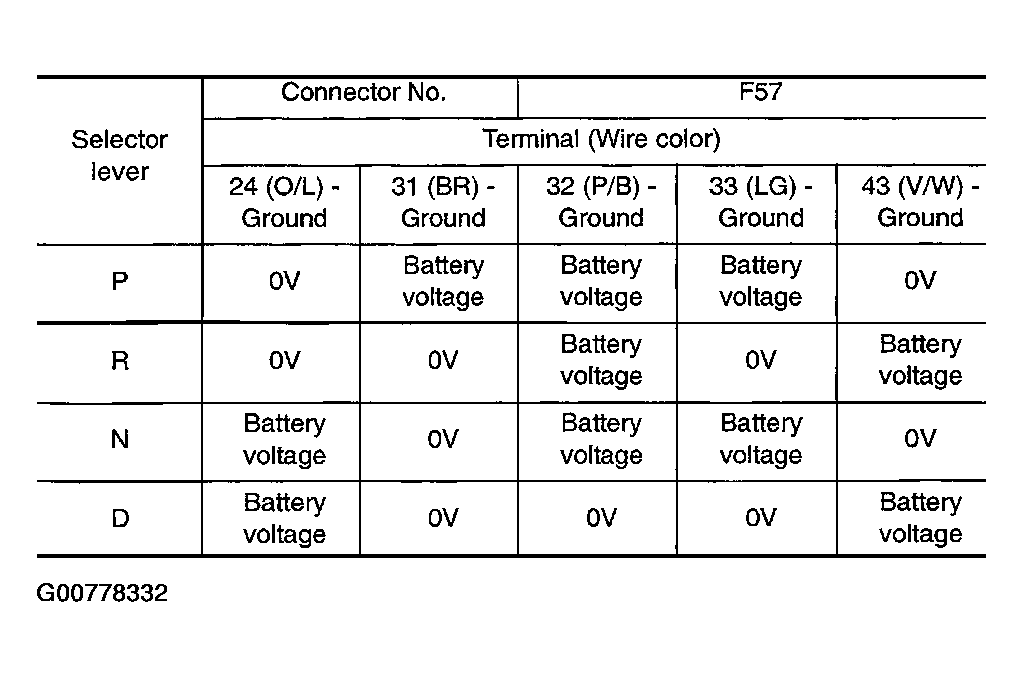

Fig 1: PNP Switch Voltage Reference Table
G00778332Courtesy of NISSAN MOTOR CO., U.S.A.

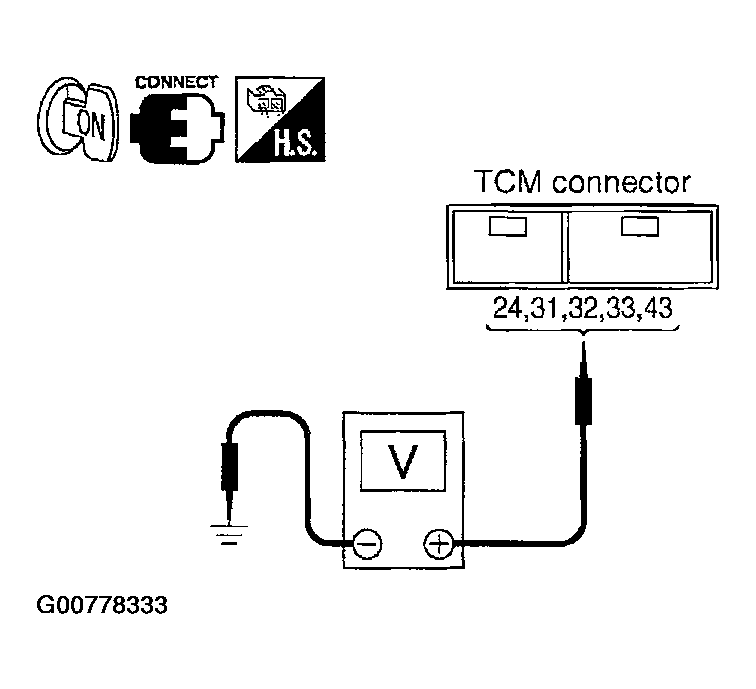

Fig 2: Checking Voltage
G00778333Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : GO TO 5 .
  2. NG : GO TO 2.
