With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for "TRANSMISSION" with Consult-II.

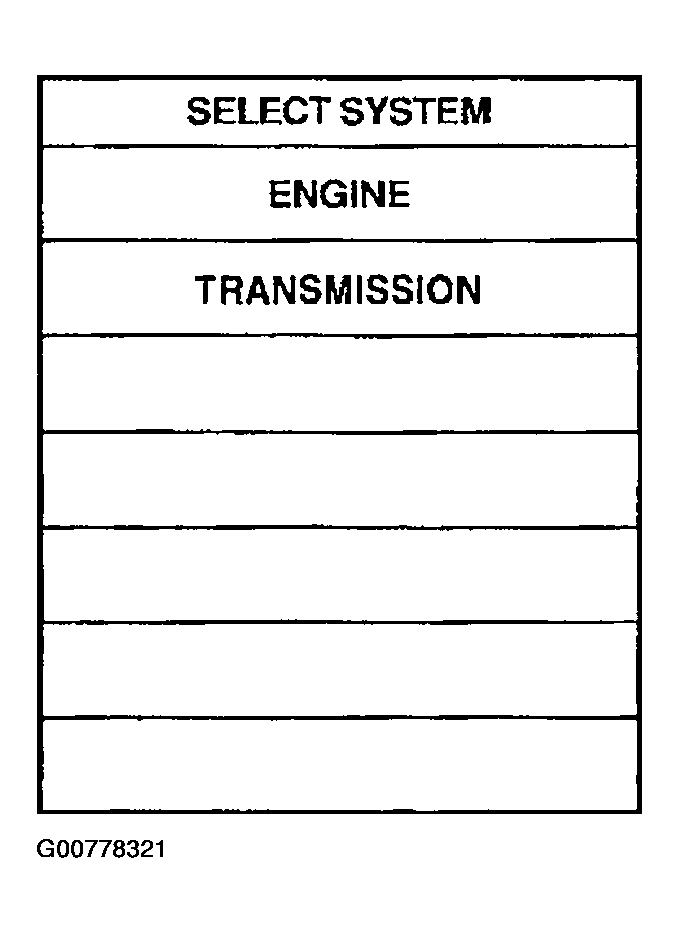

    Fig 1: Consult-II Display Screen
    G00778321Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine.
  3. Drive vehicle and maintain the following conditions for at least 5 consecutive seconds.

    VHCL/S SE-A/T: 30 km/h (17 MPH) or more ACCELE ANGLE: 10 % or less

  4. If DTC is detected, go to "Diagnostic Procedure ".
